BZGNSS P15 Pro / P18 Pro / P25 Pro FPV GPS Module

Short Description:

BZGNSS P15 Pro, P18 Pro and P25 Pro FPV GPS modules provide 10Hz positioning, support for 50+ satellites and 2m accuracy, with a compass on the P25 Pro.


  • Product Name: BZGNSS P15 Pro / P18 Pro / P25 Pro FPV GPS Module
  • GPS Type: Five-Mode GNSS Positioning Module
  • GNSS Platform: Multi-Constellation GNSS
  • Supported Systems: Five-Mode GNSS Positioning
  • Positioning Accuracy: 2m CEP50
  • Update Rate: 10Hz
  • Interface: UART
  • Operating Voltage: 5V DC
  • Satellite Capacity: Supports 50+ Satellites
  • Compass: Integrated on P25 Pro Only

Product Detail

FAQ

GNSS Specifications

Product NameBZGNSS P15 Pro / P18 Pro / P25 Pro FPV GPS Module
Available ModelsP15 Pro / P18 Pro / P25 Pro
GPS TypeFive-Mode GNSS Positioning Module
Positioning Accuracy2m CEP50
Speed Accuracy0.05m/s
Navigation Update Rate10Hz
Maximum Satellite Search50+ Satellites
Cold Start20 Seconds or Less
Hot Start1 Second or Less
Baud Rate115200bps
Communication InterfaceUART
Operating Voltage5V DC
Tracking Sensitivity−167dBm
Recapture Sensitivity−160dBm
Cold Start Sensitivity−148dBm
Hot Start Sensitivity−160dBm
Software SupportBetaflight / INAV / ArduPilot / Mission Planner
Operating Temperature−40°C to +85°C
Storage Temperature−40°C to +85°C
PPS IndicatorSteady Before Positioning and Flashing After Positioning

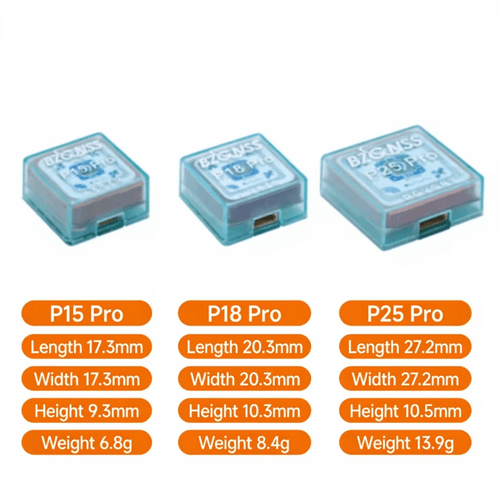

Model Comparison

SpecificationP15 ProP18 ProP25 Pro
Dimensions17.3 × 17.3 × 9.3mm20.3 × 20.3 × 10.3mm27.2 × 27.2 × 13.9mm
Weight6.8g8.4g13.9g
ConnectorSH0.8 4-PinSH1.0 4-PinSH1.0 6-Pin
UART Wiring5V / GND / RX / TX5V / GND / RX / TX5V / GND / RX / TX
Compass WiringNot AvailableNot AvailableSDA / SCL
Integrated CompassNoNoYes
Operating Voltage5V5V5V
Update Rate10Hz10Hz10Hz
Positioning Accuracy2m CEP502m CEP502m CEP50
Satellite Capacity50+50+50+

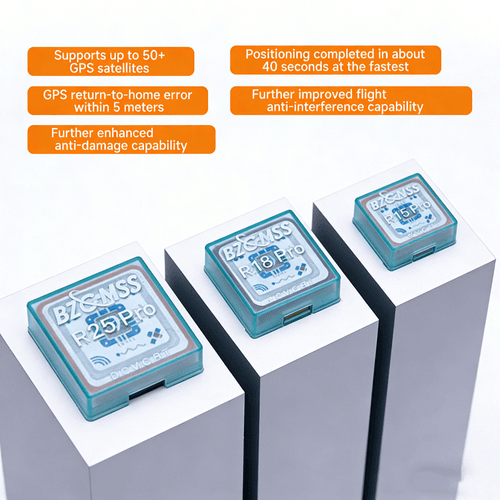

Key Features

Five-Mode Positioning

Multi-system satellite positioning improves availability and navigation stability for FPV aircraft.

50+ Satellite Support

The receiver can search for more than 50 satellites for reliable positioning in suitable environments.

10Hz Update Rate

A 10Hz navigation update rate provides frequent position data for responsive flight-control applications.

2m Positioning Accuracy

Typical horizontal accuracy of 2m CEP50 supports GPS Rescue, return-to-home and navigation functions.

Fast Satellite Acquisition

The receiver supports a cold start of 20 seconds or less and a hot start of one second or less.

High Tracking Sensitivity

Tracking sensitivity of −167dBm helps maintain satellite reception during dynamic flight.

Multiple Size Options

P15 Pro, P18 Pro and P25 Pro dimensions support compact racing builds and larger navigation platforms.

P25 Pro Compass

The P25 Pro adds an integrated compass with SDA and SCL connections for heading information.

Technical Highlights

High-Performance FPV Positioning

The P15 Pro, P18 Pro and P25 Pro modules combine five-mode GNSS positioning, a 10Hz update rate and support for more than 50 satellites. This provides frequent and reliable position data for FPV flight-control functions.

Fast Cold and Hot Start

The modules support a cold-start time of 20 seconds or less and a hot-start time of one second or less under suitable reception conditions, reducing the waiting time before flight.

Accurate Navigation Data

Horizontal positioning accuracy of 2m CEP50 and speed accuracy of 0.05m/s support GPS Rescue, return-to-home, waypoint navigation and flight-data recording.

High-Sensitivity Satellite Reception

Tracking sensitivity reaches −167dBm, while recapture and hot-start sensitivity reach −160dBm. The high-sensitivity receiver improves positioning stability in dynamic FPV applications.

Three Installation Sizes

The compact P15 Pro is designed for space-limited aircraft, the P18 Pro provides a balanced general-purpose option, and the larger P25 Pro adds an integrated compass for navigation applications requiring heading data.

Wide Flight-Software Compatibility

The GPS series supports Betaflight, INAV, ArduPilot and Mission Planner environments, allowing integration with racing drones, fixed-wing aircraft, multirotors and autonomous RC platforms.

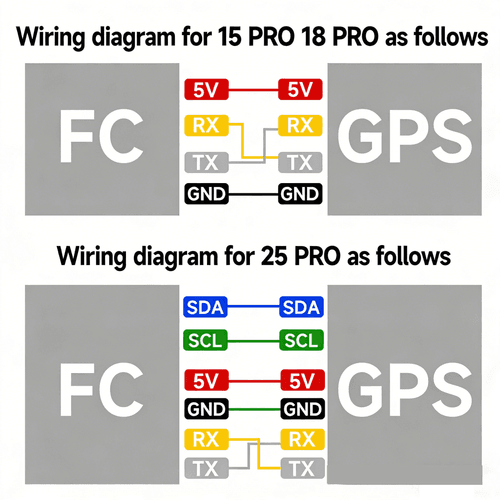

Wiring Definition

ConnectionP15 ProP18 ProP25 Pro
5VConnect to FC 5VConnect to FC 5VConnect to FC 5V
GNDConnect to FC GNDConnect to FC GNDConnect to FC GND
GPS RXConnect to FC TXConnect to FC TXConnect to FC TX
GPS TXConnect to FC RXConnect to FC RXConnect to FC RX
SDANot AvailableNot AvailableConnect to FC SDA
SCLNot AvailableNot AvailableConnect to FC SCL

Applications

  • FPV racing drones

  • FPV freestyle drones

  • Long-range FPV aircraft

  • Fixed-wing RC aircraft

  • Multirotor navigation systems

  • GPS Rescue and return-to-home systems

  • Autonomous robots

  • RC positioning projects

Compatibility

Betaflight

Supports GPS Rescue and flight-data functions when configured on a compatible UART.

INAV

Suitable for return-to-home, position hold and waypoint-navigation functions supported by INAV.

ArduPilot

Compatible with supported ArduPilot flight controllers and navigation configurations.

5V Flight Controllers

Requires a regulated 5V power output and an available UART for GPS communication.

Compass Interfaces

The P25 Pro requires available SDA and SCL connections when the integrated compass is used.

FPV Platforms

Suitable for racing drones, freestyle drones, fixed-wing aircraft and long-range FPV builds.

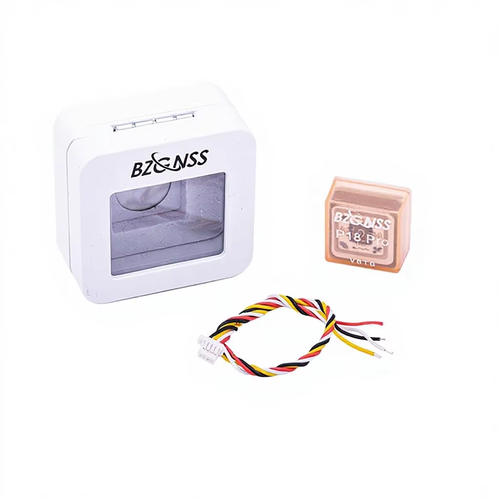

Package Contents

  • BZGNSS GPS Module in Selected Model                × 1

  • Connection Cable                × 1

  • Packaging Box                × 1

FAQ

What are the BZGNSS P15 Pro, P18 Pro and P25 Pro?
They are high-performance FPV GPS modules designed for racing drones, freestyle drones, fixed-wing aircraft, multirotors and other RC positioning applications.
What is the difference between the three models?
The main differences are their dimensions, weight and connector type. The P25 Pro also includes an integrated compass, while the P15 Pro and P18 Pro do not.
Which model is the smallest?
The P15 Pro is the smallest model at 17.3 × 17.3 × 9.3mm and weighs approximately 6.8g without the cable.
Which model includes a compass?
Only the P25 Pro includes an integrated compass. It uses additional SDA and SCL connections for compass communication.
How many satellites can the modules receive?
All three models support searching for more than 50 satellites under suitable reception conditions.
What is the positioning update rate?
The P15 Pro, P18 Pro and P25 Pro provide a 10Hz navigation update rate.
What is the positioning accuracy?
The specified horizontal positioning accuracy is approximately 2m CEP50 under suitable satellite reception conditions.
How long does the GPS take to obtain a fix?
The specified cold-start time is 20 seconds or less, while the hot-start time is one second or less under suitable operating conditions.
What voltage do the modules require?
All three models require a regulated 5V DC power supply from the flight controller or another suitable source.
Which flight-control software is supported?
The modules support Betaflight, INAV, ArduPilot and Mission Planner environments when correctly wired and configured.
How should the UART wires be connected?
Connect GPS TX to the flight-controller RX pad and GPS RX to the flight-controller TX pad. Connect 5V and GND with the correct polarity.
How is the P25 Pro compass connected?
In addition to 5V, GND, TX and RX, connect the P25 Pro SDA wire to the flight-controller SDA pad and its SCL wire to the flight-controller SCL pad.
How does the PPS indicator work?
The indicator remains steady before positioning is completed and flashes after the receiver obtains a valid position fix.
Where should the GPS module be installed?
Install it with the antenna facing upward and as far as practical from the VTX, ESC, motors, battery leads and other sources of electromagnetic interference.

B2B Procurement FAQ

Is wholesale purchasing available?
Yes. Wholesale purchasing is available for FPV retailers, drone manufacturers, distributors and system integrators.
Can different models be combined in one order?
Mixed orders containing P15 Pro, P18 Pro and P25 Pro modules may be discussed according to the required quantity and stock availability.
Can samples be ordered before bulk purchasing?
Sample orders may be arranged for flight-controller compatibility testing, positioning evaluation and installation verification.
Are different colors available?
Housing colors may vary by model, batch and stock availability. Please confirm the required color before placing a volume order.
Can the cable or connector be customized?
Cable length, connector type and wire configuration requirements may be evaluated for qualified volume orders.
Is OEM or private-label service available?
OEM labeling, packaging and cable configuration requirements can be discussed according to the order quantity and project requirements.
Is technical documentation available?
Product specifications, wiring information and integration guidance can be supplied for qualified projects.
What information is required for a quotation?
Please provide the required model, quantity, color, cable requirements, destination country, delivery schedule and any OEM requirements.
