Bainianxing BU-1025TF U-blox M10 GNSS GPS Receiver
GNSS Specifications
| Product Name | Bainianxing BU-1025TF U-blox M10 GNSS GPS Receiver |
|---|---|
| Model | BU-1025TF |
| GPS Type | GNSS Receiver and Antenna Module |
| GNSS Platform | U-blox M10 |
| GNSS Chipset | UBX-M10050-KB |
| Supported Systems | GPS / GLONASS / Galileo / BeiDou / QZSS / SBAS |
| Supported Signals | GPS L1 C/A / Galileo E1-B/C / GLONASS L1OF / BeiDou B1I |
| Positioning Accuracy | 2m CEP Typical |
| Navigation Update Rate | Up to 18Hz Depending on GNSS Configuration |
| Tracking Sensitivity | Up to −167dBm |
| Communication Interface | UART TTL |
| Default Baud Rate | 38400bps |
| Configurable Baud Rate | 4800–921600bps |
| Output Protocol | NMEA 0183 V4.11 and UBX |
| Operating Voltage | 3.6–5V DC |
| Power Consumption | Approximately 25mW |
| Flash Memory | Built-in Configuration Flash Memory |
| Timing Output | 1PPS Time Pulse Output |
| Connector | 1.25mm 4-Pin Connector |
| Pin Interface | VCC / GND / TX / RX with Separate 1PPS Pad |
| Fix Indicator | LED Blinks After 3D Positioning |

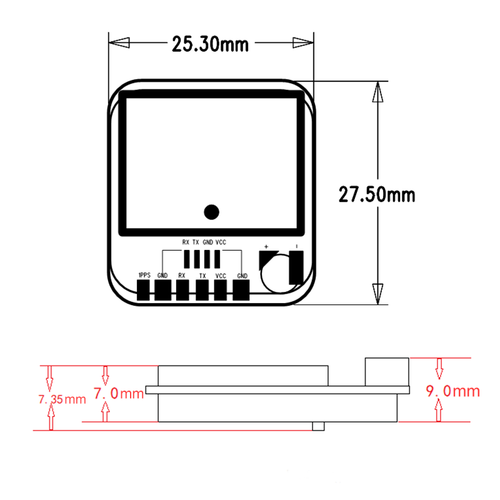

| Dimensions | 25.3 × 27.5 × 9.0mm |

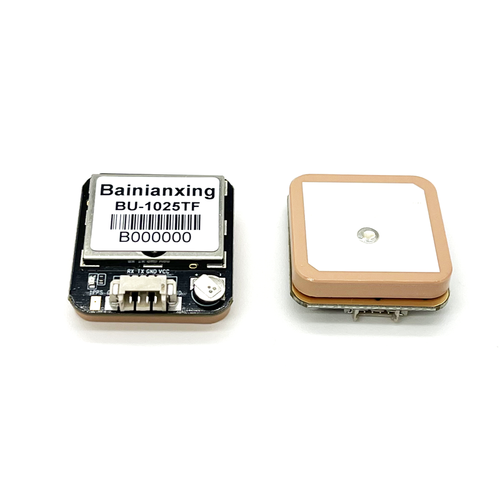

| Patch Antenna | 25 × 25 × 4mm Ceramic Antenna |
Key Features
U-blox M10 Platform
The modern GNSS platform provides high sensitivity, fast acquisition and reliable positioning for FPV and autonomous applications.
Multi-Constellation Reception
Supports GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS for improved satellite availability.
Low Power Consumption
Power consumption of approximately 25mW makes the module suitable for battery-powered aircraft and mobile navigation devices.
Built-in Flash Memory
Customized baud rate, update rate and protocol settings can be stored in flash memory and retained after a power cycle.
Up to 18Hz Update Rate
A configurable navigation update rate supports dynamic FPV aircraft, autonomous vehicles and mobile positioning systems.
1PPS Timing Output
The dedicated one-pulse-per-second output supports precise timing and synchronization requirements.
Integrated Ceramic Antenna
The built-in 25 × 25mm ceramic patch antenna provides a compact integrated positioning solution.
Positioning Status LED
The onboard LED provides a visible indication when the module has achieved a valid 3D positioning fix.
Technical Highlights
Concurrent Multi-GNSS Positioning
The BU-1025TF supports concurrent reception from multiple navigation systems, including GPS, GLONASS, Galileo and BeiDou. Access to more visible satellites helps maintain positioning availability in complex operating environments.
High-Sensitivity U-blox M10 Receiver
The U-blox M10 platform provides tracking sensitivity of up to −167dBm. This enables reliable satellite tracking for FPV drones, bait boats and other mobile navigation equipment.
Built-in Configuration Memory
Configuration settings can be written to the onboard flash memory and retained after the module is restarted. Supported settings include the baud rate, navigation update rate and output-message configuration.
Low-Power GNSS Operation
Power consumption of approximately 25mW reduces the load on the aircraft or vehicle power system, making the module suitable for compact battery-powered positioning applications.
UART and NMEA Integration
The UART TTL interface supports configurable baud rates from 4800 to 921600bps. NMEA 0183 and UBX protocol support simplifies integration with flight controllers, navigation controllers and embedded systems.

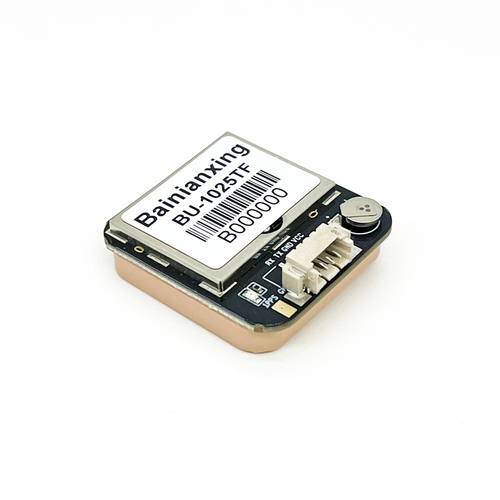

Compact Integrated Antenna Design
The receiver, ceramic patch antenna, backup power component and positioning indicator are integrated into a compact 25.3 × 27.5mm module for space-limited FPV installations.

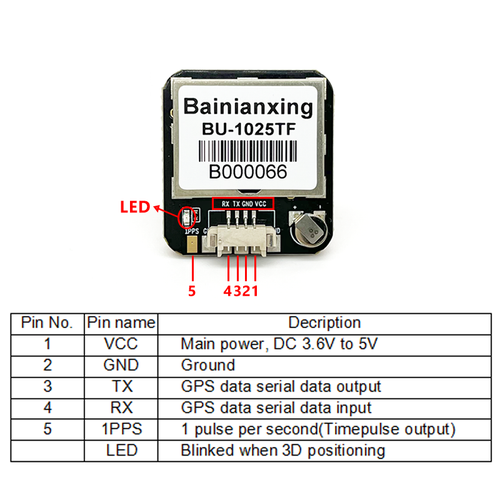

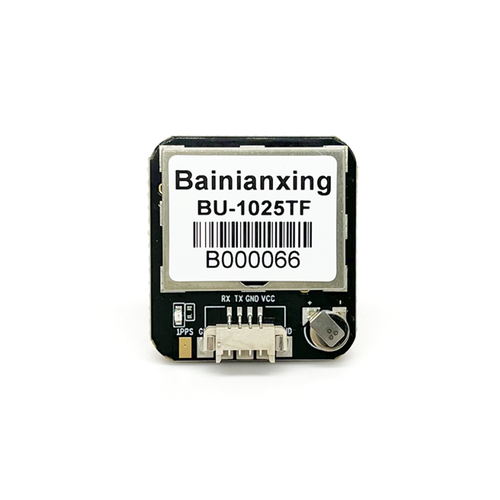

Pin Definition
| VCC | Main Power Input, 3.6–5V DC |
|---|---|
| GND | Power and Signal Ground |
| TX | GNSS Serial Data Output |
| RX | GNSS Serial Data Input |
| 1PPS | One Pulse Per Second Time Output |
| LED | Blinks After a Valid 3D Position Fix |
Applications
FPV racing and freestyle drones
Long-range FPV aircraft
Autonomous UAV navigation
Fishing bait boats
RC boats and marine navigation
Mobile robots and rovers
Asset-tracking equipment
Embedded positioning systems
Compatibility
Flight Controllers
Compatible with flight controllers equipped with an available UART and supported GNSS configuration.
Navigation Systems
Suitable for navigation controllers that accept NMEA 0183 or UBX positioning data.
Power Systems
Requires a regulated 3.6–5V DC power supply connected with the correct polarity.
UART Devices
Communicates through UART TTL using the TX and RX signal connections.
FPV Platforms
Suitable for multirotors, fixed-wing aircraft, long-range drones and autonomous FPV vehicles.
Embedded Controllers
Can be integrated with compatible embedded controllers and development platforms using serial communication.
Package Contents
Bainianxing BU-1025TF GNSS Receiver Module × 1

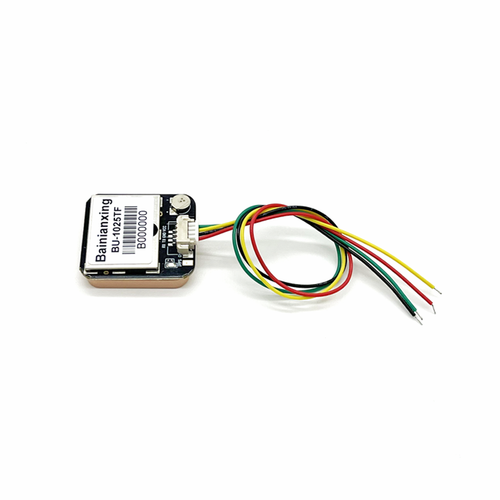

Connection Cable × 1
