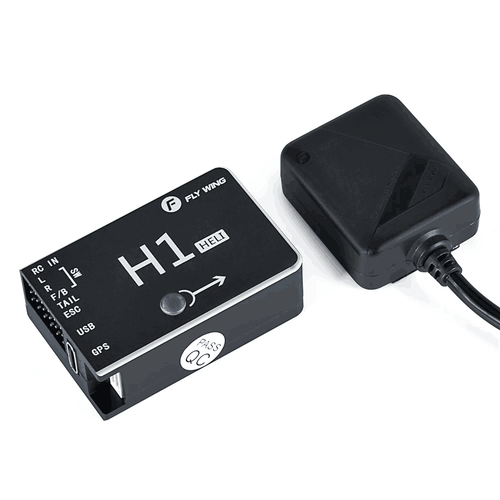

FLY WING H1 6CH GPS Helicopter Flight Controller System

Short Description:

FLY WING H1 is a 6-channel GPS helicopter flight controller with GPS and GLONASS positioning, stable hover, voltage monitoring and automatic return functions.


  • Product Name: FLY WING H1 6CH GPS Helicopter Flight Controller System
  • GPS Type: Dual-Mode GPS Helicopter Flight Control System
  • GNSS Platform: M8N Dual-Mode GNSS
  • Supported Systems: GPS / GLONASS
  • Positioning Accuracy: Horizontal ±1.5m / Vertical ±0.5m
  • Battery Support: 3S / 4S / 6S LiPo
  • Interface: Dedicated GPS Port
  • Operating Voltage: 6.0–8.4V DC
  • Flight Modes: GPS / 3D / Home
  • Compass Redundancy: Main Controller Compass + GPS Module Compass

Product Detail

FAQ


System Specifications

Product NameFLY WING H1 6CH GPS Helicopter Flight Controller System
ModelH1
System Type6-Channel Flybarless GPS Helicopter Flight Controller
GPS TypeDual-Mode GNSS Receiver with Compass
GNSS PlatformM8N Dual-Mode GNSS
Supported SystemsGPS / GLONASS
Hover AccuracyHorizontal ±1.5m / Vertical ±0.5m
Flight ModesGPS Mode / 3D Mode / Home Mode
Swashplate SupportH3 / HR3 Flybarless Swashplate
Receiver SupportS.BUS / I.BUS / W.BUS / PPM / SUMD / HD08
Operating Voltage6.0–8.4V DC from ESC BEC
Battery Support3S / 4S / 6S LiPo
Rated System Power2W
Peak System Power4W
Main Controller SensorsFloating IMU / Barometer / Compass
GPS Module SensorsGPS / GLONASS Receiver / Compass
Main Controller Size31.4 × 48.5 × 18.5mm
GPS Module Size39 × 46 × 15mm
Main Controller WeightApproximately 38.7g
GPS Module WeightApproximately 28.1g
Operating Temperature−10°C to +55°C
Maximum Wind Resistance10m/s
Maximum Tilt Angle45° Maximum / 35° Default
Maximum Vertical Speed4m/s Rising / 4m/s Falling
Configuration InterfaceUSB Type-C

Key Features

Dual-Mode GNSS

GPS and GLONASS reception improves satellite availability and positioning stability for RC helicopters.

Stable GPS Hover

GPS mode provides horizontal positioning accuracy of ±1.5m and vertical hover accuracy of ±0.5m.

Three Flight Modes

GPS, 3D and Home modes support stable hovering, manual aerobatic control and automatic return functions.

Compass Redundancy

The main controller and external GPS module both include compass sensing for improved heading information.

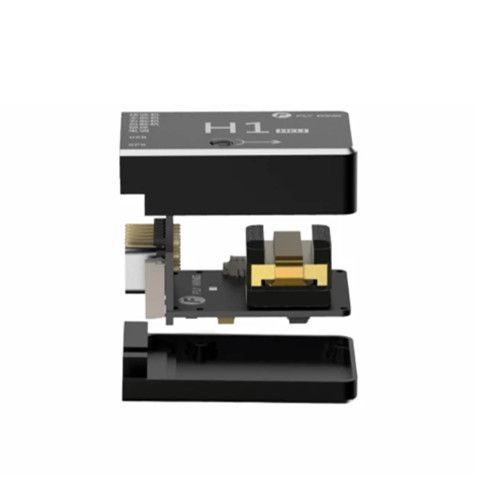

Floating IMU Design

The suspended IMU and double-layer damping structure reduce vibration transferred to the flight sensors.

Voltage Monitoring

The included voltage-detection connection supports low-voltage monitoring and return protection.

Metal Shielding Housing

The CNC metal controller enclosure improves structural protection and electromagnetic shielding.

Type-C Configuration

The reversible USB Type-C interface provides a convenient connection to the H1 assistant software.

Technical Highlights

GPS and GLONASS Dual-Mode Positioning

The external M8N GNSS module receives both GPS and GLONASS satellite signals. Increased satellite availability supports stable hovering, return-to-home operation and automatic flight functions.

High-Accuracy GPS Hover

In GPS mode, the H1 system provides specified hover accuracy of ±1.5m horizontally and ±0.5m vertically, supporting stable flight and easier helicopter control.

Independent Suspension Sensor

The floating IMU uses an independent suspension structure and double-layer damping material to reduce vibration. The FPC gold-plated circuit connection helps maintain accurate sensor data transmission.

Independent Sensor and MCU Power

The sensor and main processor use independent power-supply circuits with TI LDO regulation, anti-static protection and inrush-current protection for improved system stability.

GPS, 3D and Home Flight Modes

GPS mode provides fixed-position hovering, 3D mode supports manual aerobatic flight, and Home mode enables automatic return toward the recorded home point.

Return and Voltage Protection

The H1 supports loss-of-signal return, one-button return and low-voltage return functions when the GPS signal, compass calibration and power-system configuration meet the operating requirements.

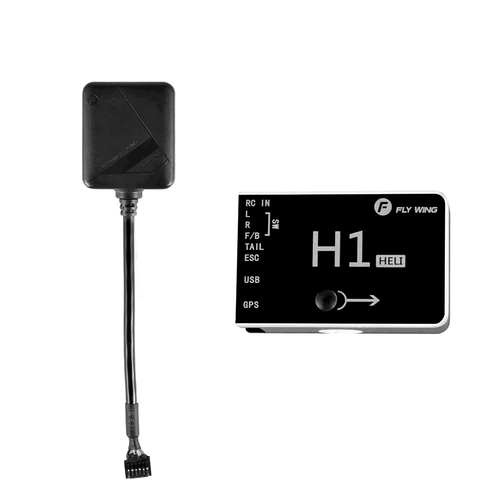

Ports and Connections

RC INReceiver Signal Input
L ServoLeft Swashplate Servo Output
R ServoRight Swashplate Servo Output
F/B ServoForward or Rear Swashplate Servo Output
TAILTail Servo or Tail Motor Control Output
ESCMain Motor ESC Control Output
GPSExternal GPS and Compass Module Interface
USBType-C Configuration and Data Interface
Voltage CheckBattery Voltage Detection Input

Flight Functions

  • GPS fixed-position hovering

  • 3D manual and aerobatic flight

  • Automatic home return

  • Loss-of-signal return protection

  • One-button return function

  • Low-voltage return protection

  • Automatic circular flight route

  • Automatic figure-eight flight route

Compatibility

FW450 Series

Suitable for supported FLY WING FW450 and FW450L RC helicopter configurations.

H3 Swashplate

Supports compatible H3 flybarless helicopter swashplate configurations.

HR3 Swashplate

Supports compatible HR3 flybarless helicopter swashplate configurations.

Mainstream Helicopters

Can be configured for supported ALIGN T-REX, SAB, GAUI and similar RC helicopters.

Receiver Systems

Supports S.BUS, I.BUS, W.BUS, PPM, SUMD and compatible single-line receiver signals.

Windows Assistant

The H1 assistant software supports compatible Windows 7, Windows 8 and Windows 10 systems.

Package Contents

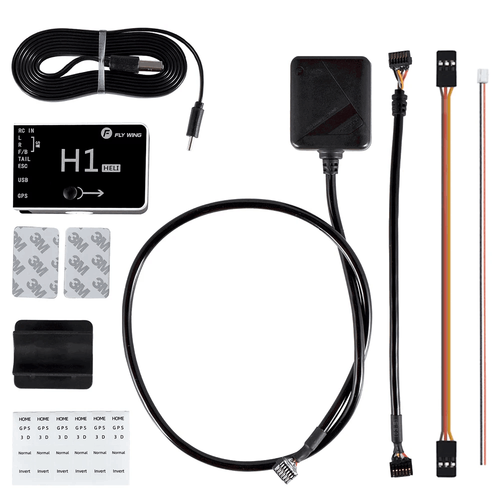

  • FLY WING H1 Flight Controller                × 1

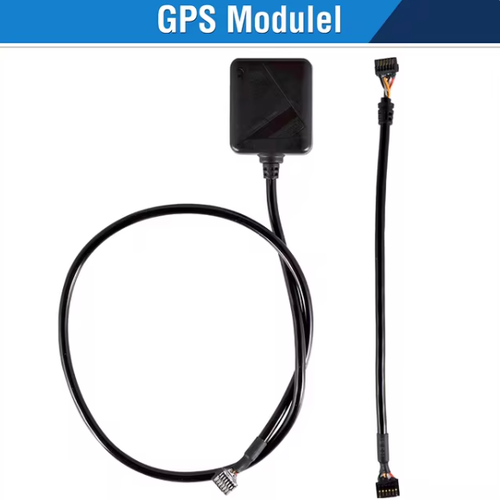

  • Dual-Mode GPS and Compass Module                × 1

  • GPS Connection Cable                × 1

  • Receiver Connection Cable                × 1

  • Voltage Detection Cable                × 1

  • USB Type-C Cable                × 1

  • Mounting Accessories                × 1 Set

FAQ

What is the FLY WING H1?
The FLY WING H1 is a GPS-assisted flybarless flight-control system designed for compatible RC helicopters. It includes a main controller and an external GPS and compass module.
Which satellite systems does the H1 support?
The H1 GPS module supports dual-mode GPS and GLONASS satellite positioning.
What positioning accuracy does the H1 provide?
In GPS hover mode, the specified positioning accuracy is approximately ±1.5m horizontally and ±0.5m vertically.
What flight modes are available?
The H1 provides GPS mode, 3D mode and Home mode. GPS mode supports stable hovering, while 3D mode supports manual aerobatic flight.
Does the GPS module include a compass?
Yes. The external GPS module includes a compass. The main controller also uses compass, IMU and barometer data for flight control and positioning.
What input voltage does the H1 require?
The flight controller requires a 6.0–8.4V ESC BEC power supply. A 5V BEC must not be used to power the H1 main controller.
Which battery types are supported?
The H1 system supports voltage monitoring for 3S, 4S and 6S LiPo battery configurations when correctly connected and configured.
Which receiver types are compatible?
Supported receiver signals include S.BUS, I.BUS, W.BUS, PPM, SUMD and other compatible single-line receiver systems.
Which swashplate types are supported?
The H1 supports compatible H3 and HR3 flybarless helicopter swashplate configurations.
Does the H1 support automatic return?
Yes. It supports one-button return, loss-of-signal return and low-voltage return when GPS reception, compass calibration and system configuration are valid.
What is the purpose of the voltage detection cable?
The voltage detection cable allows the flight controller to monitor the flight battery and activate configured low-voltage protection functions.
How is the H1 configured?
Connect the main controller to a compatible Windows computer through the USB Type-C port and configure it using the H1 assistant software.
Where should the GPS module be installed?
Install the GPS module level with the helicopter fuselage, with its orientation aligned correctly and away from motors, ESC power wiring and strong magnetic interference.
Is compass calibration required?
Yes. Compass calibration must be completed during initial setup and repeated after major structural changes or when operating far from the previous calibration location.

B2B Procurement FAQ

Is wholesale purchasing available?
Yes. Wholesale purchasing can be arranged for RC helicopter retailers, distributors, repair centers and aircraft manufacturers.
Can samples be ordered before bulk purchasing?
Sample orders may be arranged for helicopter compatibility testing, flight evaluation and installation verification.
Is the GPS module included with the controller?
The complete H1 system package includes the main controller, external GPS and compass module and the required connection cable.
Are different GPS cable lengths available?
Cable-length availability may vary by package version. Please confirm the required helicopter model and cable length before ordering.
Can replacement GPS modules be supplied separately?
Replacement-module availability depends on current stock and compatibility with the H1 controller version.
Is OEM packaging available?
OEM labeling and packaging requirements may be evaluated according to the order quantity and project requirements.
Is technical documentation available?
Installation instructions, wiring information, assistant-software guidance and parameter-setting documentation can be supplied for qualified projects.
What information is required for a quotation?
Please provide the required quantity, helicopter model, cable-length requirement, destination country, delivery schedule and any OEM requirements.
