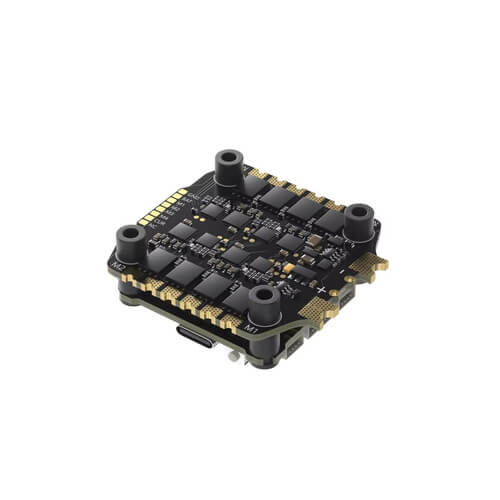

GEPRC TAKER F722 BLS 65A V2 STACK
B2B Procurement FAQ
Is the GEPRC TAKER F722 BLS 65A V2 Stack suitable for OEM FPV drone production?
Yes. The stack combines an STM32F722 flight controller, ICM42688-P gyroscope, 16MB Blackbox, dual BEC outputs and a 65A 4-in-1 ESC. It is suitable for compatible racing, freestyle, digital HD and custom FPV drone projects.
What should B2B buyers confirm before placing an order?
Buyers should confirm the hardware revision, battery configuration, motor specifications, required VTX and receiver interfaces, firmware targets, mounting pattern, cable configuration and order quantity.
Can the stack be used in a 7S or 8S FPV drone?
The ESC supports 3S–8S LiPo input, but the flight controller is specified for 3S–6S LiPo input. For 7S–8S projects, buyers should confirm the approved power arrangement and ensure that the flight controller receives voltage within its specified range.
Can the stack be integrated into custom FPV drone platforms?
Yes. It is suitable for custom FPV drone development and production when the electrical specifications, board dimensions and 30.5mm × 30.5mm mounting pattern meet the project requirements.
Can external receivers and GPS modules be connected?
Yes. The flight controller provides five UART interfaces for compatible receivers, GPS modules, VTX systems and other supported FPV peripherals.
Can GPS and a DJI Air Unit be used at the same time?
Yes, provided the devices use compatible power and UART interfaces and the required Betaflight ports are configured correctly.
What information should be included in a bulk RFQ?
For a B2B quotation, provide the required quantity, target drone platform, battery voltage, motor specification, receiver type, VTX type, firmware requirements, delivery destination and any packaging or labeling requirements.
Is private labeling or OEM/ODM support available?
OEM, ODM and private-label availability depends on the supplier, order quantity and customization requirements. Buyers should provide their technical specifications, estimated annual demand, packaging requirements and branding scope for evaluation.
What documents should be requested for bulk procurement?
Buyers should request the latest product specification, wiring diagram, pinout information, firmware targets, hardware revision details, packing information and any applicable compliance documents required for the destination market.
FAQ
What battery voltage does the GEPRC TAKER F722 BLS 65A V2 Stack support?
The GEP-F722-HD V2 flight controller supports 3S–6S LiPo input, while the TAKER H65_8S_BLS 65A 4-in-1 ESC supports 3S–8S LiPo input. For 7S–8S configurations, use the manufacturer-approved wiring and regulated power arrangement.
What is the continuous current rating of the ESC?
The TAKER H65_8S_BLS 4-in-1 ESC is rated for 65A continuous current and up to 70A burst current for five seconds.
Which flight controller and ESC are included in the stack?
The stack includes one GEP-F722-HD V2 flight controller and one TAKER H65_8S_BLS 65A 4-in-1 ESC.
Does the stack support the DJI Air Unit?
Yes. The flight controller supports a direct plug-in connection to compatible DJI Air Unit systems, and a DJI Air Unit adapter cable is included.
How much Blackbox memory is available?
The flight controller provides 16MB of onboard Blackbox storage for flight-data recording, PID tuning and troubleshooting.
Which firmware targets should be used?
The flight controller firmware target is GEPRCF722, while the ESC firmware target is B_X_30.
Which gyroscope does the flight controller use?
The GEP-F722-HD V2 flight controller uses an ICM42688-P gyroscope connected through SPI.
What USB interface does the flight controller use?
The flight controller uses an upgraded Type-C USB interface for firmware updates and flight-controller configuration.
What BEC outputs are available?
The flight controller provides two independent BEC outputs rated at 5V/3A and 9V/2.5A.
What mounting pattern does the stack use?
Both boards use a 30.5mm × 30.5mm mounting pattern. The Ø4mm mounting holes become Ø3mm after the silicone shock-absorbing rings are installed.
