65A 8-bit 4-in-1 ESC
The 3065S ESC provides 65A continuous current per channel and supports digital motor-control protocols up to DShot600.

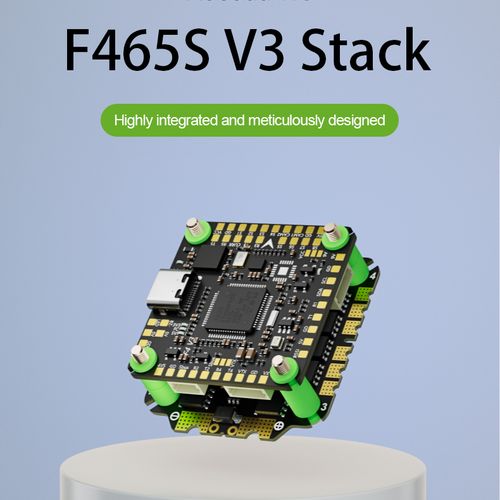

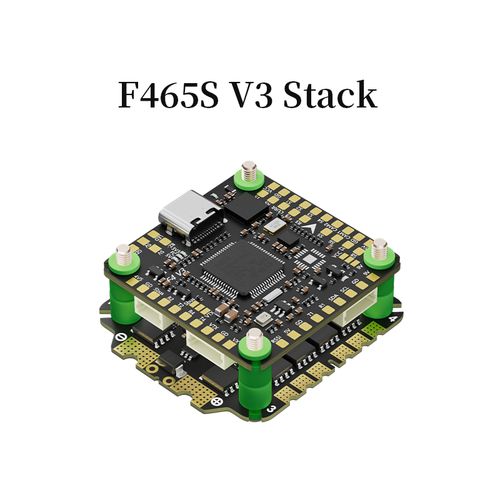

Aocoda-RC F465S V3 Stack
Electrical
| FC Input Voltage | 3S–6S LiPo |
|---|---|
| ESC Input Voltage | 3S–8S LiPo |
| ESC Model | 3065S 8-bit 4-in-1 ESC |
| Continuous Current | 65A × 4 |
| Current Scaling | 75A × 4 |
| 5V BEC | 5V / 2.5A |
| 9V BEC | 9V / 2.5A |
| ESC BEC | No |
| Current Sensor | Supported, Current Meter Scale 78 |
| ESC Signal | DShot150 / DShot300 / DShot600 / MultiShot / OneShot |
| ESC Telemetry | Supported |
| ESC Firmware | Bluejay D_X_30_v0.21.1-RC1-hex |
Interfaces
| USB | USB Type-C |
|---|---|
| FC-to-ESC Interface | 8-Pin SH1.0 Reverse Connection Cable |
| UART | 5 UART Interfaces |
| UART1 | GPS Connection |
| UART2 | Receiver Connection |
| UART3 | ESC Communication |
| UART4 | VTX Connection |
| UART5 | Bluetooth Connection |
| Camera Interface | Dual Analog Camera Inputs, CAM1 / CAM2 Switching |
| VTX Interface | VTX Serial and Power Connection |
| SBUS | Standard SBUS Interface for Compatible Receivers and DJI Units |
| CRSF / ELRS | Dedicated CRSF / ELRS Receiver Interface |
| GPS | GPS Interface with Serial and I2C Connections |
| I2C | SCL / SDA for Compatible External Devices |
| LED | LED Strip Interface |
| Buzzer | Supported |
| Receiver Compatibility | ELRS / CRSF / SBUS / FrSky / Futaba / FlySky / TBS Crossfire / DSMX |
Features
STM32F405 Flight Controller
The STM32F405RGT6 MCU provides responsive flight-control processing and flexible peripheral management for modern FPV applications.
Bluejay ESC Firmware
The 8-bit ESC uses Bluejay firmware for compatible digital motor protocols, telemetry and configurable ESC operation.
Dual BEC Power System
Independent 5V/2.5A and 9V/2.5A BEC outputs help power compatible receivers, cameras, video transmitters and other FPV accessories.
16MB Blackbox
Integrated 16MB Blackbox storage records flight data for PID tuning, vibration analysis, troubleshooting and performance optimization.
Bluetooth Configuration
The integrated Bluetooth chip provides an additional wireless configuration option for compatible applications and tuning workflows.
Dual-Camera Support
Two camera inputs support CAM1 and CAM2 connections. CAM1 is enabled by default, while USER3 can be configured for camera switching.
Flexible Peripheral Support
Five UARTs and dedicated GPS, receiver, LED strip, buzzer, VTX and I2C connections support versatile FPV drone configurations.

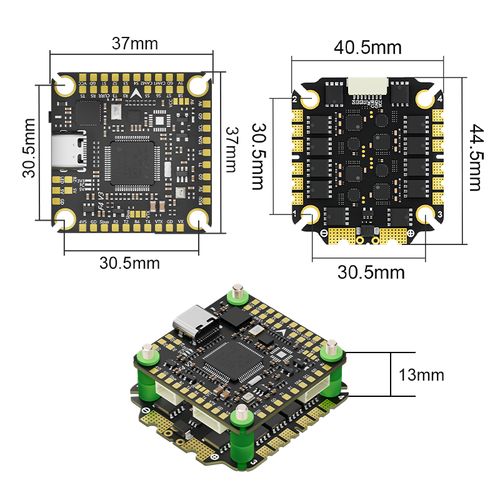

Mechanical
| FC Dimensions | 37mm × 37mm |
|---|---|
| FC Weight | 9.4g |
| ESC Dimensions | 40.5mm × 44.5mm |
| ESC Weight | 15.8g |
| Mounting Pattern | 30.5mm × 30.5mm |
| Mounting Hardware | M3 |
| Stack Height | Approximately 13mm |

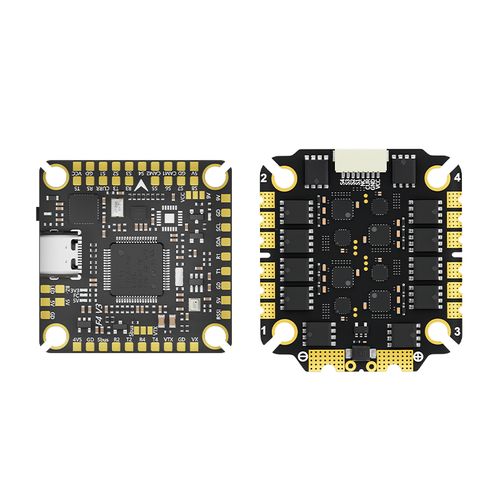

| Board Type | F405 Flight Controller and 65A 8-bit ESC Stack |
| Power Connection | XT60 Power Cable |
| Included Capacitor | 35V 1000µF Solid-State Electrolytic Capacitor |
Technical Highlights
F405 Processing Platform
The STM32F405RGT6 MCU works with the ICM42688P gyroscope and SPL06-001 barometer to provide flight-control processing, motion sensing and altitude data for compatible FPV applications.
High-Current 3065S ESC
The 3065S 4-in-1 ESC provides 65A continuous current per channel and supports DShot150, DShot300, DShot600, MultiShot and OneShot motor-control signals.
Bluejay Firmware Platform
Bluejay firmware provides digital motor-protocol support and telemetry functionality for the 8-bit ESC platform.
Flight Data Recording
The integrated 16MB Blackbox records flight information for vibration analysis, PID tuning, troubleshooting and performance evaluation.
Wireless Configuration
The onboard Bluetooth interface provides a convenient wireless connection option, while USB Type-C supports standard wired configuration and firmware-management workflows.
Dual-Camera and Video-System Support
Dual-camera inputs, configurable camera switching and dedicated VTX, SBUS and power connections support flexible analog and HD FPV video-system integration.
Applications
High-Current Racing FPV Drones
Freestyle FPV Quadcopters
HD Digital FPV Builds
Analog FPV Drone Builds
Dual-Camera FPV Platforms
Custom FPV Drone Development
FPV Drone Repair and Performance Upgrades
OEM and ODM FPV Drone Projects
Compatibility
Battery
The flight controller is rated for 3S–6S LiPo input, while the ESC is listed for 3S–8S LiPo input. Confirm the manufacturer-approved FC power arrangement before using 7S or 8S batteries.
Motors
Compatible with FPV brushless motors that operate within the selected battery voltage and the ESC’s 65A continuous current specification.
Video System
Supports compatible analog cameras, analog VTX systems and HD digital video systems through the available camera, serial and power interfaces.
Receiver
Supports compatible ELRS, CRSF, SBUS, FrSky, Futaba, FlySky, TBS Crossfire and DSMX receiver configurations.
GPS
Compatible GPS modules can be connected through UART1 and the available SCL/SDA interface when required.
Firmware
Compatible with Betaflight, iNav and ArduPilot. The listed flight-controller firmware target is AOCODARCF405V3.
Mounting
Suitable for frames that support the standard 30.5mm × 30.5mm M3 mounting pattern and provide enough clearance for the 40.5mm × 44.5mm ESC.
Stack Connection
The flight controller and ESC are connected through the included 8-pin SH1.0 reverse connection cable.
Power Accessories
The package includes a 35V 1000µF capacitor and an XT60 power cable for compatible power-system installations.
FAQ
What components are included in the Aocoda-RC F465S V3 Stack?
The stack includes an Aocoda-RC F405 V3 flight controller and a 3065S 8-bit 65A 4-in-1 ESC, together with the connecting cable, mounting hardware, capacitor and XT60 power cable.
What battery voltage does the F465S V3 support?
The 3065S ESC is specified for 3S–8S LiPo input, while the F405 V3 flight controller is specified for 3S–6S LiPo input. For 7S or 8S operation, confirm the manufacturer-approved FC power arrangement before installation.
What is the current rating of the ESC?
The 3065S 4-in-1 ESC is rated for 65A continuous current per channel. The product specification also lists 75A × 4 current scaling.
Which MCU and gyroscope are used?
The flight controller uses an STM32F405RGT6 MCU and an ICM42688P gyroscope. It also integrates an SPL06-001 barometer.
Which ESC firmware does the F465S V3 use?
The 3065S 8-bit ESC uses Bluejay firmware. The listed firmware reference is Bluejay D_X_30_v0.21.1-RC1-hex.
What is the difference between F465S V3 and F465 V3?
The F465S V3 uses a 3065S 8-bit ESC with Bluejay firmware, while the F465 V3 uses a 3065 V2 32-bit ESC with AM32 firmware. Buyers should select the version that matches their ESC firmware and configuration requirements.
Does the flight controller support Blackbox recording?
Yes. The flight controller includes 16MB of Blackbox memory for flight-data recording, PID tuning, vibration analysis and troubleshooting.
Does the F465S V3 support Bluetooth configuration?
Yes. The flight controller includes a Bluetooth chip and assigns UART5 to the Bluetooth connection in the supplied wiring diagram.
Which firmware platforms are supported?
The flight controller supports Betaflight, iNav and ArduPilot. The listed firmware target is AOCODARCF405V3.
Which receivers can be connected?
The flight controller supports compatible ELRS, CRSF, SBUS, FrSky, Futaba, FlySky, TBS Crossfire and DSMX receiver configurations.
Can two cameras be connected?
Yes. Two camera inputs are provided. CAM1 is enabled by default, while USER3 can be configured to switch to CAM2.
What BEC outputs are available?
The flight controller provides 5V/2.5A and 9V/2.5A BEC outputs. The 3065S ESC itself does not include a BEC.
What mounting pattern does the stack use?
The flight controller and ESC use an M3 30.5mm × 30.5mm mounting pattern. The assembled stack height is approximately 13mm.
B2B Procurement FAQ
Is the Aocoda-RC F465S V3 suitable for OEM FPV drone production?
Yes. Its F405 flight controller, 65A 8-bit ESC, 30.5mm mounting pattern, Blackbox storage, Bluetooth connection and peripheral support make it suitable for compatible racing, freestyle and custom FPV drone projects.
What should buyers confirm before placing an order?
Buyers should confirm the exact hardware revision, ESC firmware, battery configuration, motor and propeller combination, receiver protocol, video system, mounting space and expected operating current.
What information should be included in a bulk RFQ?
Provide the required quantity, target drone platform, battery configuration, motor specification, receiver type, video system, preferred firmware, delivery destination and any packaging or labeling requirements.
Can the F465S V3 be used in 7S or 8S FPV projects?
The ESC is specified for 3S–8S input, but the flight controller is listed for 3S–6S input. Buyers planning a 7S or 8S system should confirm the manufacturer-approved FC power arrangement before integration.
Can the stack support HD and analog video systems?
Yes. The flight controller provides camera, VTX, SBUS, serial and power interfaces for compatible analog and HD FPV video systems.
Is the F465S V3 suitable as a replacement or upgrade stack?
It can be used as a replacement or upgrade when the frame supports the 30.5mm × 30.5mm M3 mounting pattern and the battery, motors, receiver, video system, wiring and firmware are compatible.
Is private labeling or OEM/ODM support available?
OEM, ODM and private-label availability depends on the supplier, order quantity and customization scope. Buyers should provide estimated demand, branding files, packaging requirements and technical specifications for evaluation.
What documents should be requested for bulk procurement?
B2B buyers should request the latest product specification, wiring diagram, hardware revision information, FC and ESC firmware targets, packing list, quality-control requirements and applicable compliance documentation.
