1280 × 720 OLED Display
The high-contrast OLED display delivers deep blacks, vivid colors and clear image detail for immersive analog FPV flying.

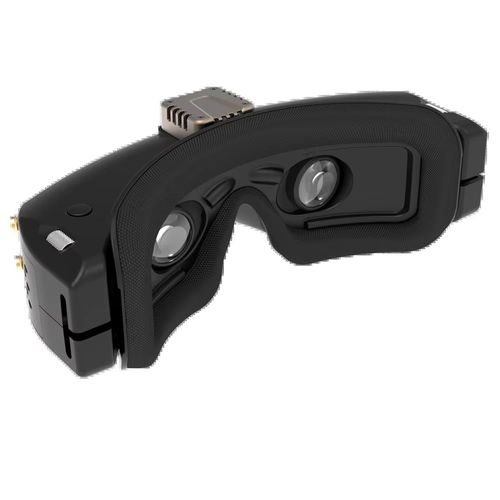

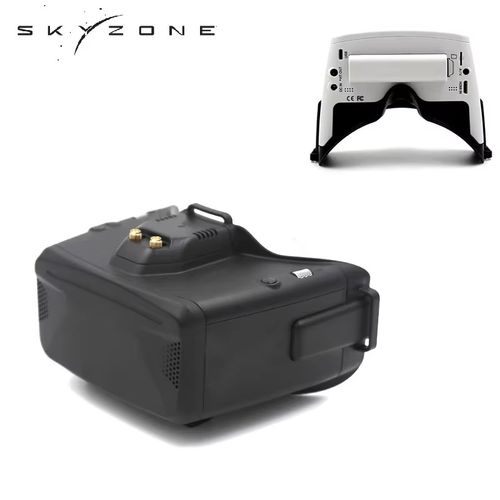

SKYZONE SKY04O PRO FPV Goggles
Technical Highlights
42° Immersive Optics
The upgraded optical system provides a 42-degree diagonal field of view with selectable 4:3 and 16:9 aspect ratios.
48CH SteadyView Receiver
The included 5.8GHz 48-channel SteadyView diversity receiver combines antenna signals to improve image stability during analog FPV operation.
60FPS DVR Recording
The integrated DVR records MJPEG video at up to 60FPS in MOV format and supports compatible memory cards with capacities up to 128GB.
Adjustable Focus and IPD
Individual focus adjustment from −6 to +2 diopters and a 58–71mm interpupillary-distance range help accommodate different users.
Built-In Head Tracking
A three-axis accelerometer and three-axis gyroscope provide head-tracking output for compatible camera and aircraft control systems.
Product Specifications
| Model | SKYZONE SKY04O PRO |
|---|---|
| Display | OLED |
| Resolution | 1280 × 720 |
| Field of View | 42° diagonal |
| Aspect Ratio | 4:3 / 16:9 selectable |
| Focus Range | −6 to +2 diopters |
| IPD Range | 58–71mm |
| Receiver | 5.8GHz 48CH SteadyView diversity receiver |
| DVR | MJPEG, 60FPS, MOV, 6Mbps |
| Storage Support | Memory card up to 128GB |
| Head Tracking | 3-axis accelerometer and 3-axis gyroscope |
| Power Supply | DC 6.5–25.2V / USB 5V |
| Power Consumption | Approximately 720mA at 12V |
| Antenna Connector | SMA |
| Interface Languages | 10 languages |

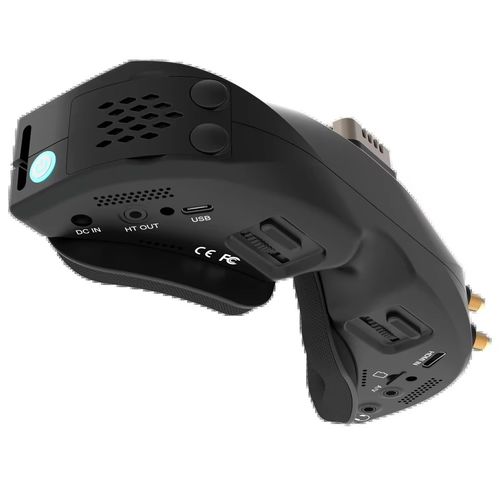

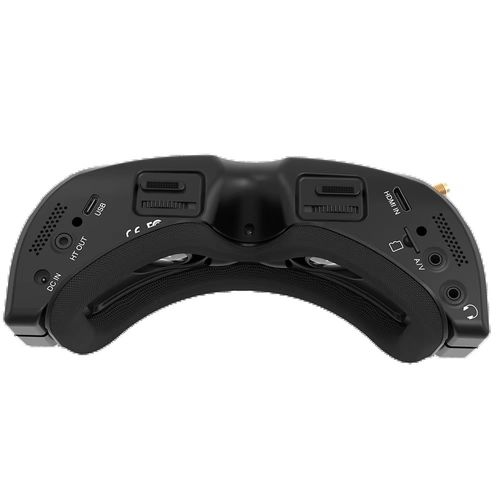

Interfaces and Controls
| Video Receiver | Removable 5.8GHz SteadyView receiver module |
|---|---|
| HDMI Input | External digital video input |
| AV Input | External analog audio and video input |
| Head Tracker Output | Output for compatible head-tracking systems |
| Audio Output | Headphone connection |
| USB Connection | USB power and firmware connection |
| Antenna Connections | Dual SMA antenna connectors |
| User Controls | Menu navigation, receiver control and DVR controls |
Applications
Analog FPV racing drones
Freestyle FPV quadcopters
Long-range analog FPV aircraft
FPV fixed-wing aircraft
RC airplanes and custom FPV platforms
FPV training, flight review and onboard video recording
Compatibility
5.8GHz analog FPV video transmitters
Compatible 5.8GHz FPV antennas with SMA connectors
Analog FPV cameras and aircraft video systems
Compatible HDMI video sources
Compatible head-tracking camera or aircraft systems
DC 6.5–25.2V and supported USB 5V power sources
Package Contents
1 × SKYZONE SKY04O PRO FPV Goggles
1 × SteadyView Receiver Module
2 × Faceplates, Wide and Narrow
1 × Face Sponge with Hook-and-Loop Fastener
1 × Zipper Carrying Case
1 × Power Cable
1 × Head Tracker Cable
2 × 5.8GHz 2dBi Antennas
1 × Video and Audio Cable
1 × USB-C Cable
1 × User Manual
FAQ
What is the SKYZONE SKY04O PRO?
The SKYZONE SKY04O PRO is a pair of OLED FPV goggles designed for 5.8GHz analog FPV systems. It includes a 48-channel SteadyView receiver, DVR and built-in head tracking.
What is the display resolution?
The current SKYZONE specification lists a 1280 × 720 OLED display.
What field of view does it provide?
The SKY04O PRO provides a 42-degree diagonal field of view and supports selectable 4:3 and 16:9 aspect ratios.
Which receiver is included?
The goggles include a 5.8GHz 48-channel SteadyView diversity receiver module designed to improve analog video reception and image stability.
Does the SKY04O PRO support DVR recording?
Yes. The integrated DVR records MJPEG video at up to 60FPS in MOV format and supports compatible memory cards up to 128GB.
Can the focus be adjusted?
Yes. The focus can be adjusted from −6 to +2 diopters, while the interpupillary distance can be adjusted from 58mm to 71mm.
Does it include head tracking?
Yes. The built-in head tracker uses a three-axis accelerometer and a three-axis gyroscope for compatible head-tracking applications.
What power supply does it support?
The goggles support DC 6.5–25.2V input and USB 5V power. Use a compatible power source and cable.
Which antennas can be used?
The goggles use SMA antenna connectors and include two 5.8GHz 2dBi antennas. Compatible 5.8GHz SMA antennas may also be used.
Can the receiver module be removed?
Yes. The SteadyView receiver is installed as a removable module, allowing compatible receiver-module servicing or replacement.
B2B Procurement FAQ
Is the SKYZONE SKY04O PRO suitable for bulk FPV equipment procurement?
Yes. Its OLED display, integrated analog receiver, DVR, adjustable optics and replaceable receiver module make it suitable for FPV retailers, distributors, training providers and equipment integrators.
What should buyers confirm before ordering?
Buyers should confirm the product revision, display resolution, receiver-module version, included accessories, antenna connector type, power-cable specification and regional frequency requirements.
What information should be included in a bulk RFQ?
Include the required quantity, destination country, preferred packaging, accessory requirements, delivery schedule, branding requirements and any requested inspection or compliance documents.
Is the receiver module replaceable?
Yes. The supplied SteadyView receiver is removable. Buyers should confirm the exact compatible receiver-module version when purchasing replacements or spare modules.
Are antennas included with each unit?
The official package list includes two 5.8GHz 2dBi antennas. Bulk buyers should verify the final packing configuration before confirming an order.
Can the goggles be supplied with customized packaging?
Customized packaging, labeling and documentation depend on order quantity and supplier capability. Buyers should provide artwork and packaging specifications during quotation.
Which documents should be requested for wholesale procurement?
Buyers should request the latest specification sheet, user manual, firmware information, packing list, product-revision details and any compliance documentation required by the destination market.
What quality checks are recommended before shipment?
Recommended checks include display inspection, receiver-channel testing, DVR recording, focus and IPD adjustment, head-tracker output, button operation, interface testing and accessory verification.
