ReadyToSky 1.2/1.3GHz 9CH Analog FPV Video Receiver

Short Description:

ReadyToSky 1.2/1.3GHz 9-channel analog FPV video receiver with an SMA Y antenna and AV output for compatible goggles or monitors. Match the VTX channel before use.

Product Name: ReadyToSky 1.2/1.3GHz 9CH Analog FPV Video Receiver
Signal Type: Analog FPV video
Operating Frequency: 1080–1360 MHz; 1.2/1.3 GHz band
Input Voltage: 5 V DC
Output Interface: Analog AV output via the pictured 3.5 mm cable and wiring harness
Antenna Type: Y-shaped dipole antenna with SMA connection
Channel Count: 9 selectable channels
Channel Selection: Onboard pushbutton with LED channel indication
Video Format: PAL / NTSC

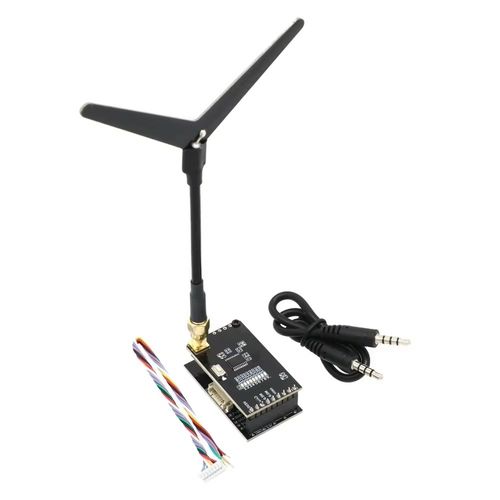

Shown Accessories: Y-shaped antenna, 3.5 mm AV cable and wiring harness; confirm shipment contents when ordering

Send email to us

Product Detail

FAQ

Technical Highlights

9-Channel Analog Video Reception

This VRX receives analog FPV video in the 1.2/1.3 GHz band. Its nine listed channel frequencies span 1080 to 1360 MHz. Select the same frequency on the matching video transmitter before operation.

AV Output for Ground Displays

The receiver provides analog AV output for a monitor or FPV goggles equipped with a compatible AV input. The pictured assembly shows a 3.5 mm AV cable and a wiring harness.

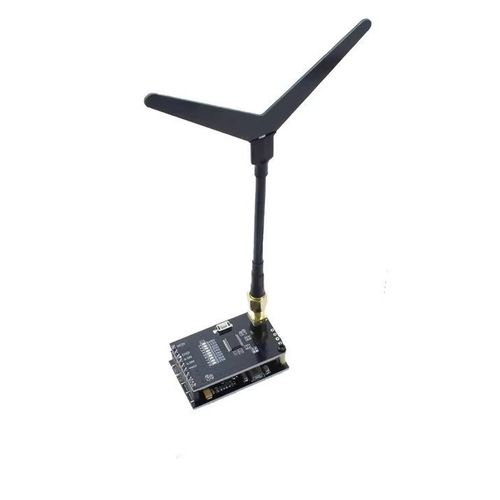

SMA Y-Shaped Antenna

The pictured receiver uses an SMA-connected Y-shaped antenna. Check the connector and cable arrangement against the actual ground-station installation before ordering.

Receiver Specifications

Product type	Analog FPV video receiver (VRX)
Operating band	1.2/1.3 GHz
Listed channel frequencies	CH1 1080, CH2 1120, CH3 1160, CH4 1200, CH5 1240, CH6 1280, CH7 1320, CH8 1360, CH9 1258 MHz
Input voltage	5 V DC; verify the input marking on the supplied board before connection
Video format	PAL / NTSC analog video
Output	Analog AV
Antenna connection	SMA
Channel control	Onboard pushbutton and LED indication

Selection and Installation Notes

This is a video receiver, not a video transmitter or an RC control receiver.
Pair it with an analog 1.2/1.3 GHz video transmitter operating on the same channel.
Use a display or goggles with a compatible analog AV input; this module does not provide HDMI or USB video output.
Confirm the board revision, power-input marking, cable pinout and supplied accessories before installation.

FAQ

Is this module a VTX or a VRX?

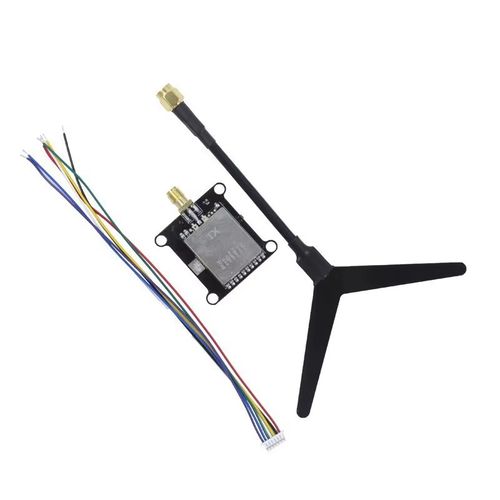

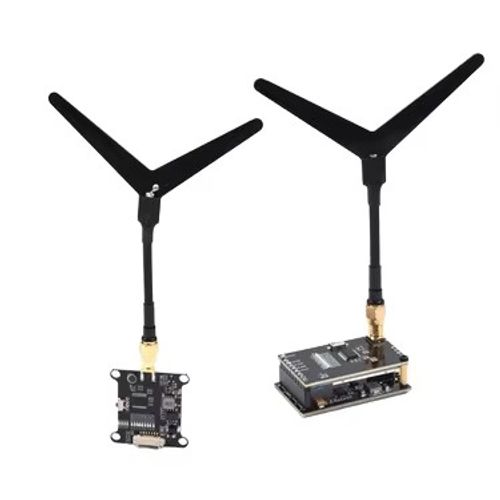

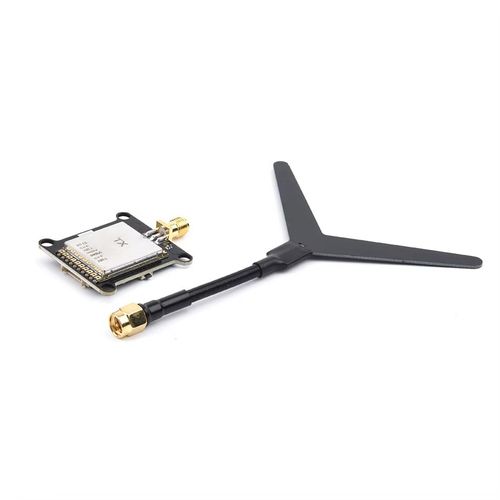

It is a VRX: an analog FPV video receiver. The transmitter shown in some source photos is a separate device, and its 25–800 mW output-power settings do not apply to this receiver.

Can it receive a standard 5.8 GHz video transmitter?

No. Select an analog video transmitter that supports the corresponding 1.2/1.3 GHz channel, then set both devices to the same frequency.

What display connection does it use?

It provides analog AV output. The connected goggles or monitor must have a compatible AV input.

What supply should be used?

The referenced receiver specification lists 5 V DC. Check the input marking and wiring on the supplied board before applying power, as the transmitter in the mixed photo archive is a different device.

B2B Procurement FAQ

Can the exact board revision and physical measurements be confirmed?

Request confirmation of the production board revision, measured dimensions, weight and input marking during quotation. These details should not be taken from transmitter images or a different receiver revision.

Which accessories are included in a bulk order?

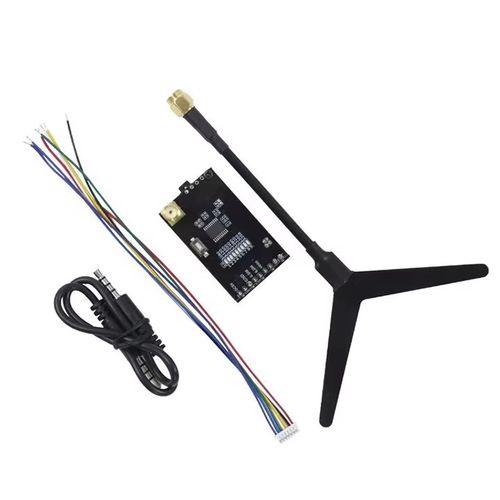

The supplied photos show a Y-shaped antenna, a 3.5 mm AV cable and a wiring harness. Confirm the exact packing list in the quotation before placing an order.

Are MOQ, lead time and customization available?

MOQ, lead time and any customization requirements must be confirmed for the requested quantity and configuration during quotation.
