1500TVL Resolution
Provides high horizontal resolution for clearer analog FPV video and improved recognition of track details.

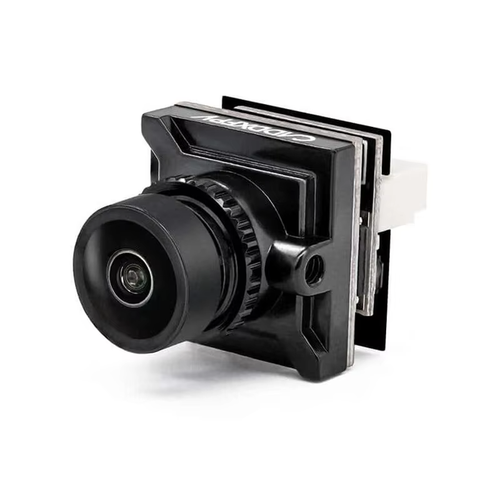

1500TVL FPV Racing Drone Camera
Imaging Specifications
| Image Sensor | CMOS Image Sensor |
|---|---|
| Horizontal Resolution | 1500TVL |
| Video Format | Analog CVBS |
| Aspect Ratio | Not specified in the supplied product information |
| OSD Adjustment | Supported |
| Video Latency | Low-latency video designed for FPV racing applications |
Optical Specifications

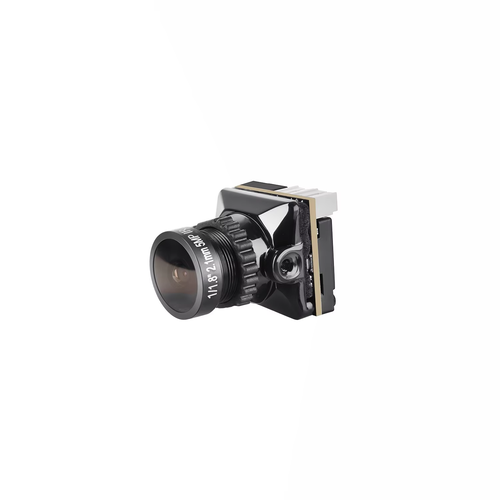

| Lens | 2.1mm wide-angle lens |
|---|---|
| Lens Format | Compatible with 1/1.8-inch image format |
| Lens Rating | 3MP |
| Optical Filter | IR-filtered visible-light optics |
| Field of View | Wide angle; exact viewing angle is not specified |
| Focus Adjustment | Manually adjustable lens focus |
Electrical and Mechanical
| Input Voltage | Not specified; confirm the required voltage before wiring |
|---|---|
| Camera Format | Compact 19mm-class FPV camera |
| PCB Design | Compact exposed-PCB camera design |
| Mounting | Side mounting points for adjustable installation |
| Video Application | Analog FPV video transmission systems |
| Recommended Use | FPV racing, freestyle and custom quadcopters |
Features
Visible-Light CMOS Imaging
Designed for visible-light FPV applications, including outdoor racing, freestyle flying and general navigation.
Low-Latency Video
Analog CVBS output provides a responsive video feed for racing and other control-sensitive FPV applications.
Adjustable OSD
OSD adjustment support allows compatible display parameters and camera settings to be configured.
2.1mm Wide-Angle Lens
The 2.1mm lens provides a wide viewing area suitable for FPV navigation and racing-course awareness.
3MP IR-Filtered Optics
The lens is marked for 3MP performance and incorporates visible-light IR filtering for natural daytime imaging.
Compact 19mm Format
The compact camera format is suitable for space-constrained FPV quadcopters and custom drone platforms.
Adjustable Installation Angle
Side mounting points allow the camera angle to be adjusted according to frame geometry and flight style.
Technical Highlights 技术亮点
Visible-Light FPV Imaging 可见光FPV成像
The camera is designed for conventional visible-light FPV applications, providing real-time analog video for racing, freestyle and general quadcopter operation.
该摄像头适用于常规可见光FPV应用，可为竞速、花飞及普通四旋翼飞行提供实时模拟视频画面。
1500TVL Analog Resolution 1500TVL模拟分辨率
The 1500TVL specification provides enhanced image detail compared with lower-resolution analog FPV cameras while retaining broad analog-system compatibility.
1500TVL水平分辨率能够提供更丰富的模拟图像细节，同时保持与常见模拟FPV系统的兼容性。
Low-Latency Video Transmission 低延迟视频传输
Analog CVBS video output minimizes processing delay, helping pilots receive responsive visual feedback during high-speed FPV racing.
模拟CVBS视频输出可减少图像处理延迟，在高速FPV竞速飞行中为飞手提供及时的视觉反馈。
Adjustable OSD Support 可调OSD支持
OSD adjustment support provides additional flexibility when configuring compatible camera display parameters for different FPV installations.
可调OSD功能便于根据不同FPV安装需求，对兼容的摄像头显示参数进行设置。
2.1mm Wide-Angle Optics 2.1毫米广角镜头
The 2.1mm 3MP-rated lens provides a wide viewing area, while its IR-filtered optical design is intended for visible-light color imaging.
2.1毫米、3MP规格的镜头提供宽广视野，IR滤光设计则适用于可见光彩色成像。
Compact FPV Installation 紧凑型FPV安装
The compact 19mm-class format and side mounting points support installation in racing frames, freestyle frames and custom FPV platforms.
紧凑的19毫米级外形与侧面安装孔适用于竞速机架、花飞机架以及定制FPV平台。
Applications
FPV racing quadcopters
Freestyle FPV drones
Analog FPV drone builds
Custom multirotor platforms
Compact FPV camera replacement
FPV training and practice drones
Drone development and prototyping
OEM and ODM FPV camera projects
Compatibility
Analog Video Transmitters
Designed for connection to compatible analog FPV video transmitters that accept a CVBS video signal.
Flight Controllers
Can be connected to compatible flight controllers with an analog camera input and appropriate power output.
FPV Receivers and Goggles
Compatible with analog FPV receiving equipment when used with a matching analog video transmitter and frequency system.
Package Contents
1 × 1500TVL FPV Racing Drone Camera
Frequently Asked Questions
常见问题解答
What is the 1500TVL FPV Racing Drone Camera? 1500TVL FPV Racing Drone Camera是什么产品？
It is a compact visible-light analog FPV camera designed for racing, freestyle and custom FPV quadcopters.
它是一款紧凑型可见光模拟FPV摄像头，适用于竞速、花飞及定制FPV四旋翼飞行器。
Which FPV camera category does this product belong to? 这款产品属于哪个FPV摄像头分类？
This product belongs to the Visible Light FPV Camera category.
该产品属于Visible Light FPV Camera可见光FPV摄像头分类。
Is this a thermal imaging FPV camera? 这是热成像FPV摄像头吗？
No. It is a conventional visible-light camera and does not provide thermal imaging.
不是。它是常规可见光摄像头，不具备热成像功能。
What is the horizontal resolution of the camera? 该摄像头的水平分辨率是多少？
The listed horizontal resolution is 1500TVL.
产品标注的水平分辨率为1500TVL。
What type of video signal does the camera output? 该摄像头输出什么类型的视频信号？
The camera is designed for analog CVBS FPV video systems.
该摄像头适用于模拟CVBS FPV视频系统。
What lens does the camera use? 该摄像头使用什么镜头？
It uses a 2.1mm wide-angle lens marked for 1/1.8-inch image format, 3MP performance and IR-filtered visible-light imaging.
它采用2.1毫米广角镜头，镜头标注支持1/1.8英寸成像格式、3MP规格以及可见光IR滤光成像。
Does the camera support OSD adjustment? 该摄像头支持OSD调节吗？
Yes. OSD adjustment is listed as a supported product feature.
支持。OSD调节是该产品标注的功能之一。
Is the camera suitable for FPV racing? 该摄像头适合FPV竞速使用吗？
Yes. Its analog video output, low-latency design and wide-angle lens make it suitable for FPV racing applications.
适合。模拟视频输出、低延迟设计和广角镜头使其适用于FPV竞速应用。
What is the exact field of view? 该摄像头的精确视场角是多少？
The product is described as wide angle, but the exact horizontal and diagonal viewing angles are not specified in the supplied information.
产品标注为广角摄像头，但现有资料没有提供精确的水平或对角视场角。
What input voltage does the camera require? 该摄像头需要多少输入电压？
The input-voltage range is not specified in the supplied product information. Confirm the required voltage before connecting the camera to a flight controller or power source.
现有产品资料没有标明输入电压范围。连接飞控或电源之前，应先确认摄像头所需电压。
B2B Procurement FAQ
B2B采购常见问题
Is this camera suitable for OEM FPV drone projects? 这款摄像头适合OEM FPV无人机项目吗？
Yes. Its compact format, analog CVBS output and side mounting design make it suitable for compatible FPV drone integration and OEM projects.
适合。紧凑的外形、模拟CVBS输出和侧面安装结构适用于兼容的FPV无人机集成与OEM项目。
What should buyers confirm before placing a bulk order? 批量订购前需要确认哪些信息？
Buyers should confirm input voltage, video standard, aspect ratio, exact field of view, connector pinout, cable requirements, mounting dimensions and product revision.
采购方应确认输入电压、视频制式、画面比例、精确视场角、接口定义、线材要求、安装尺寸和产品版本。
What information should be included in an RFQ? 询价单中应包含哪些信息？
Include the required quantity, application, flight-controller model, analog VTX model, mounting requirements, connector specification, delivery destination and packaging requirements.
询价时应提供采购数量、应用场景、飞控型号、模拟VTX型号、安装要求、接口规格、交付地点及包装要求。
Can this camera be used as a replacement FPV camera? 这款产品可以作为替换用FPV摄像头吗？
Yes, provided the existing system uses compatible analog CVBS video, the mounting space is suitable and the camera input voltage and connector pinout are verified.
可以，但必须确认原系统采用兼容的模拟CVBS视频、安装空间合适，并核实输入电压和接口定义。
Is customization or private labeling available? 是否支持定制或贴牌服务？
OEM, ODM and private-label availability depends on order quantity and customization requirements. Buyers should provide branding, packaging and technical requirements for evaluation.
OEM、ODM和贴牌服务取决于订单数量及定制要求，采购方可提供品牌、包装和技术需求进行评估。
What documents should be requested for bulk procurement? 批量采购时应索取哪些资料？
Request the latest specification sheet, connector pinout, voltage information, product-revision details, packing list, quality-control requirements and applicable compliance documents.
建议索取最新规格书、接口定义、电压信息、产品版本资料、装箱清单、质量控制要求及适用的合规文件。
