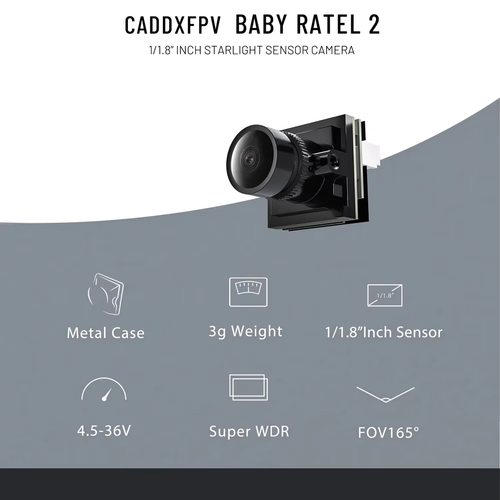

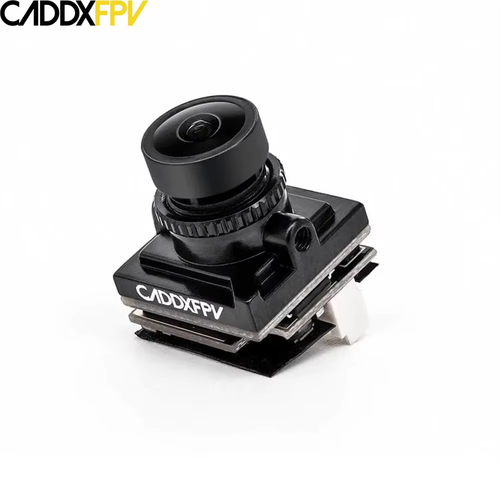

Caddx Baby Ratel 2
Imaging Specifications
| Imaging Technology | Visible-light analog imaging |
|---|---|
| Image Sensor | 1/1.8-inch starlight image sensor |
| Horizontal Resolution | 1200TVL |
| Video System | NTSC and PAL switchable |
| Aspect Ratio | 4:3 and 16:9 switchable |
| Video Output | Analog CVBS |
| Wide Dynamic Range | Super WDR |
| Digital Noise Reduction | 3DNR |

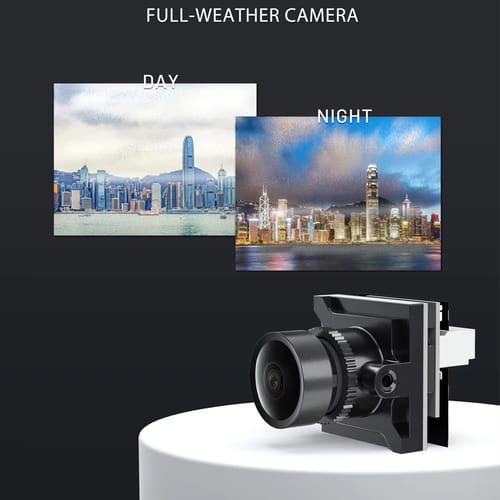

| Day and Night Modes | Auto / Color / Black and White / External |
Optical Specifications
| Lens | 1.8mm wide-angle lens |
|---|---|
| Field of View | 165° |
| Low-Light Performance | Starlight-grade visible-light imaging |
| Electronic Shutter | PAL: 1/50–1/100,000; NTSC: 1/60–1/100,000 |
| Exposure Processing | Super WDR for high-contrast and backlit environments |
| Image Adjustment | Separate OSD menu board supported |
Electrical and Mechanical Specifications
| Input Voltage | 4.5–36V DC |
|---|---|
| Camera Size | 14 × 14mm nano-size camera |
| Weight | Approximately 3g |
| Housing Material | Metal camera case |
| Mounting | Nano-size mounting with supplied mounting accessories |

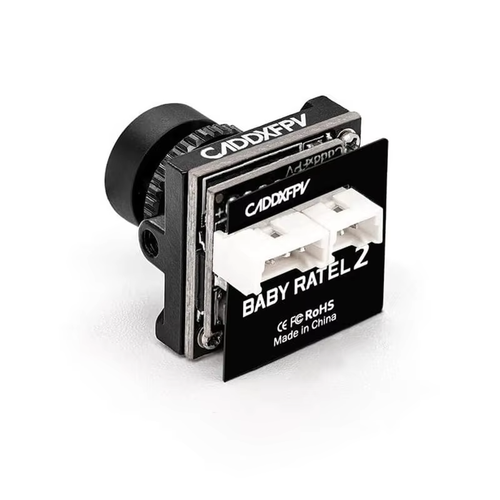

| Video Connection | Power, ground and analog video connection |
Key Features
Visible-Light Imaging
Captures visible-light scenes for real-time analog FPV navigation during daytime and low-light flights.
1200TVL Resolution
Provides detailed analog video output for precise navigation and obstacle awareness.
Starlight Sensor
The 1/1.8-inch sensor improves visible-light image performance in dim environments.
Super WDR
Balances bright and dark areas to preserve useful details in high-contrast scenes.
165° Wide FOV
The wide field of view provides broad forward visibility for freestyle and racing flights.
NTSC and PAL
Supports switchable NTSC and PAL formats for different analog FPV systems.
Ultra-Lightweight Design
The approximately 3g construction helps reduce the weight of compact FPV drones.
Wide Voltage Input
The 4.5–36V DC input supports integration with a wide range of FPV power systems.
Technical Highlights
Visible-Light Analog FPV Imaging
The Baby Ratel 2 captures visible-light images and provides a low-latency analog CVBS signal for real-time FPV navigation. It is a visible-light camera and does not use thermal-imaging technology.
1/1.8-Inch Starlight Sensor
The large 1/1.8-inch starlight sensor improves light collection and preserves visible scene details during evening, indoor and other low-light flights.
Ultra-Clear 1200TVL Video
The 1200TVL horizontal resolution provides detailed analog video while maintaining the low-latency performance required for FPV navigation.
Super WDR for Complex Lighting
Super WDR balances exposure between bright skies, shadows and backlit objects, helping pilots retain useful visual information when lighting conditions change rapidly.
165° Wide-Angle Field of View
The 1.8mm lens provides a 165-degree field of view, offering broad scene coverage for freestyle, racing, Tiny Whoop and compact FPV aircraft.
Nano-Size 3g Construction
The 14 × 14mm body and approximately 3g weight make the camera suitable for space-limited and weight-sensitive FPV builds.
Applications
Tiny Whoop Drones
Suitable for compact Tiny Whoop builds requiring a lightweight visible-light FPV camera.
Freestyle FPV Drones
Provides wide-angle, low-latency visible-light video for indoor and outdoor freestyle flying.
FPV Racing Drones
The analog CVBS output supports responsive real-time video for racing applications.
Micro and Toothpick Builds
The 14 × 14mm format and 3g weight suit micro and Toothpick-class FPV aircraft.
Compatibility and Integration
Analog FPV Video Transmitters
Compatible with analog VTX equipment accepting a standard CVBS camera signal.
Flight Controllers
Can connect through compatible flight-controller camera-input and video-output circuits.
Analog FPV Goggles
Supports analog receiving systems compatible with the selected NTSC or PAL format.

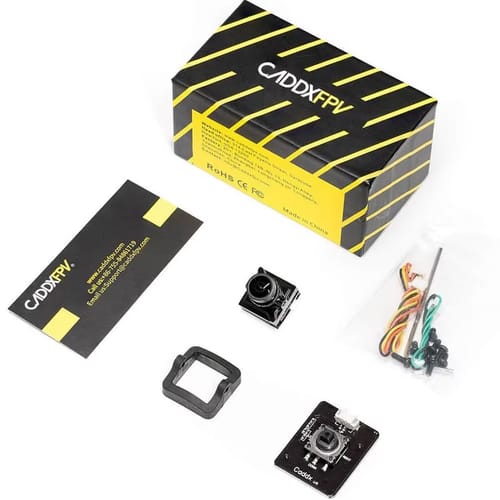

Package Contents
Caddx Baby Ratel 2 Camera ×1
OSD Menu Board ×1
Two-Pin Silicone Cable ×1
Three-Pin Silicone Cable ×1
Mounting Bracket ×1
Screw and Installation Accessories ×1 Set
1.5mm Hex Wrench ×1
Warranty Card ×1
Frequently Asked Questions
Which FPV camera category does the Baby Ratel 2 belong to?
The Caddx Baby Ratel 2 belongs to the Visible Light FPV Camera category. It captures visible-light images and is not a thermal-imaging camera.
What is the Caddx Baby Ratel 2?
It is a nano-size visible-light analog FPV camera featuring a 1/1.8-inch starlight sensor, 1200TVL resolution, Super WDR and a 165-degree field of view.
Is the Baby Ratel 2 an analog or digital camera?
It is an analog visible-light FPV camera that provides a standard CVBS video output.
Is the Baby Ratel 2 a thermal-imaging camera?
No. It uses a visible-light starlight sensor. Starlight low-light imaging improves visibility in dim environments but does not detect thermal radiation.
What image sensor does the camera use?
The camera uses a 1/1.8-inch starlight sensor designed to improve visible-light imaging in low-light conditions.
What is the camera resolution?
The Baby Ratel 2 provides a horizontal resolution of 1200TVL.
Does it support both NTSC and PAL?
Yes. NTSC and PAL video formats can be selected through the camera settings.
What field of view does the camera provide?
The 1.8mm wide-angle lens provides an approximately 165-degree field of view.
What are the camera size and weight?
The camera uses a compact 14 × 14mm nano-size body and weighs approximately 3g.
What input voltage does the camera support?
The supplied product material specifies a 4.5–36V DC input range. Verify the voltage specification for the exact production batch before wiring.
B2B Procurement FAQ
Is wholesale purchasing available?
Yes. Wholesale purchasing is available for FPV distributors, retailers, drone manufacturers and system integrators.
Can I order samples before bulk purchasing?
Yes. Samples can be arranged for visible-light image evaluation, mounting verification and analog-system compatibility testing.
Are OEM or private-label services available?
OEM and private-label requirements can be discussed according to order quantity, packaging requirements and requested customization.
What information is required for a quotation?
Please provide the required quantity, destination country, delivery address, packaging requirements and any OEM or branding requests.
Can the video configuration be confirmed before ordering?
Yes. NTSC/PAL support, aspect-ratio options, connection configuration and package contents can be confirmed before a volume order.
What is included in the standard package?
The standard package includes the camera, OSD menu board, connection cables, mounting bracket, installation accessories, hex wrench and warranty card.
Can technical integration information be provided?
Available wiring, input-voltage, CVBS video-output, camera-setting and mounting information can be provided for project evaluation.
