5.2–6.0GHz Frequency Coverage
The antenna covers the 5.2–6.0GHz frequency range for compatible 5.8GHz FPV video transmitters, receivers, goggles and ground-station equipment.

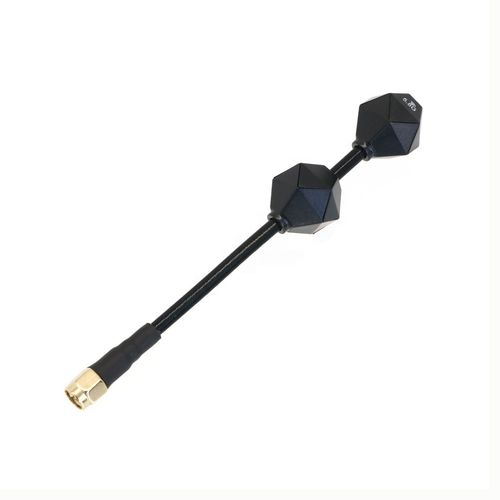

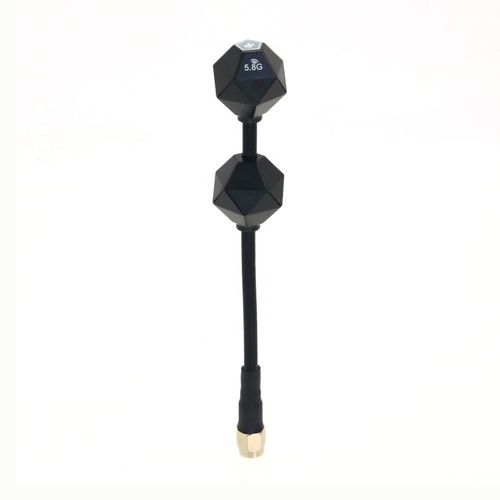

SoloGood Dual 5.2–6.0GHz 6dBi FPV Antenna
Technical Highlights
6dBi High-Gain Design
The specified 6dBi gain provides a focused RF radiation pattern for compatible FPV video links requiring increased signal strength and reception capability.
Dual-Element Antenna Structure
The dual-element layout is designed to improve antenna performance while maintaining a compact form suitable for FPV aircraft and video equipment.
RHCP Circular Polarization
Right-hand circular polarization helps maintain a reliable video link during aircraft movement and reduces sensitivity to antenna orientation.

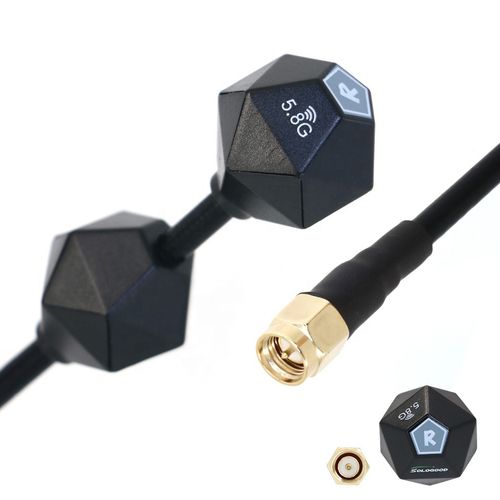

SMA Male Connector
The integrated SMA male connector supports direct installation on compatible FPV video transmitters, receivers, goggles and extension systems.

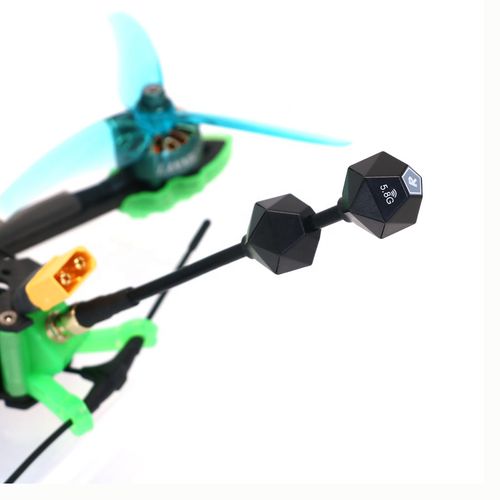

Compact FPV Installation
A 130mm overall length and flexible 75mm cable section support practical antenna placement on racing, freestyle and long-range FPV platforms.
Product Specifications
| Product Name | SoloGood Dual 5.2–6.0GHz 6dBi FPV Antenna |
|---|---|
| Product Type | High-gain FPV video antenna |
| Frequency Range | 5.2–6.0GHz |
| Nominal Band | 5.8GHz FPV video band |
| Antenna Gain | 6dBi |
| Polarization | RHCP, right-hand circular polarization |
| Connector | SMA male |
| Antenna Structure | Dual-element design |

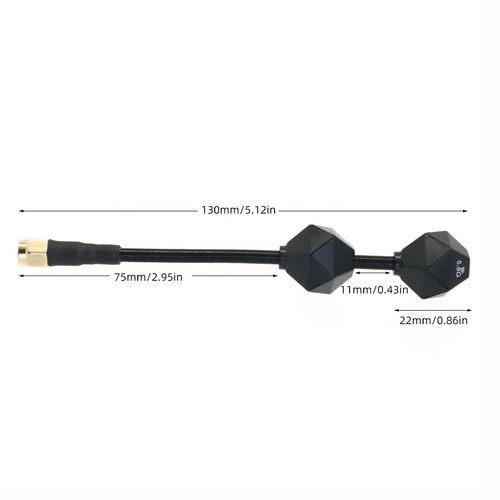

| Overall Length | Approximately 130mm |
| Cable Length | Approximately 75mm |
| Element Spacing | Approximately 11mm |
| Radiator Width | Approximately 22mm |
| Color | Black |
| Primary Application | FPV analog video transmission and reception |
Compatibility and Use
| Video Transmitters | Compatible 5.2–6.0GHz VTX units with an SMA female connector |
|---|---|
| Video Receivers | Compatible 5.8GHz analog FPV receivers with an SMA female connector |
| FPV Goggles | Compatible analog FPV goggles using an SMA female antenna port |
| FPV Monitors | Compatible monitors and ground stations with 5.8GHz receivers |
| Polarization Matching | Best used with other RHCP antennas in the same FPV video system |
| Connector Matching | Verify SMA and RP-SMA connector types before installation |
Installation Guidelines
Confirm that the connected device operates within the 5.2–6.0GHz range.
Verify that the device uses an SMA female connector rather than RP-SMA.
Match the antenna with RHCP antennas throughout the video link where possible.
Keep the radiating elements clear of carbon fiber, batteries and large metal components.
Mount the antenna away from propellers and other moving parts.
Secure the cable without sharply bending or crushing the coaxial section.
Connect the antenna before powering a video transmitter.
Applications
FPV racing quadcopters
Freestyle FPV drones
Long-range analog FPV aircraft
FPV fixed-wing airplanes
5.8GHz FPV goggles and monitors
Analog FPV video receivers and ground stations
Compatible 5.8GHz video transmitters
Package Contents
1 × SoloGood Dual 5.2–6.0GHz 6dBi RHCP FPV Antenna
FAQ
What is the SoloGood Dual FPV Antenna?
It is a 5.2–6.0GHz high-gain antenna designed for compatible analog FPV video transmitters, receivers, goggles and ground-station equipment.
Is this product a video transmitter or receiver?
No. It is an external RF antenna that can be connected to a compatible video transmitter or receiver.
What frequency range does the antenna support?
The specified operating range is 5.2–6.0GHz, covering the commonly used 5.8GHz analog FPV video band.
What is the antenna gain?
The specified antenna gain is 6dBi.
Which polarization does the antenna use?
The antenna uses RHCP, or right-hand circular polarization.
Which connector does the antenna use?
It uses an SMA male connector. Verify that the connected device has a compatible SMA female port.
Is SMA the same as RP-SMA?
No. SMA and RP-SMA use different center-contact arrangements. Check both the connector body and center contact before ordering.
Can it be used on both a VTX and an FPV receiver?
Yes, provided the device operates within the supported frequency range and has a compatible connector and polarization requirement.
Can it be used with an LHCP antenna?
It may physically connect to a compatible port, but mixing RHCP and LHCP antennas can cause substantial signal loss. Matching polarization is recommended.
What is the total antenna length?
The overall length shown in the product dimensions is approximately 130mm, including the connector and radiating structure.
Can a VTX be powered without the antenna connected?
No. Connect a suitable antenna before powering the VTX to reduce the risk of damaging its RF output stage.
How should the antenna be installed?
Position the radiating elements away from carbon fiber, batteries, metal components and propellers, and avoid sharply bending the coaxial cable.
B2B Procurement FAQ
Which specifications should buyers confirm before ordering?
Confirm the 5.2–6.0GHz frequency range, 6dBi gain, RHCP polarization, SMA male connector, order quantity and required packaging.
What information should be included in a bulk RFQ?
Include the required quantity, intended VTX or receiver model, connector type, polarization, cable-length requirement, packaging needs and delivery destination.
Can this antenna be used with every 5.8GHz FPV device?
Compatibility depends on the device frequency range, connector type, polarization and available mounting space. Buyers should verify all four before ordering.
Can connector or cable options be customized?
Connector, cable-length, labeling and packaging customization depend on supplier capability, technical feasibility and minimum order quantity.
What quality checks are recommended before shipment?
Recommended checks include connector inspection, cable continuity, dimensional verification, polarization identification, frequency-response sampling and appearance inspection.
Should transmit and receive antennas use the same polarization?
Yes. Matching RHCP antennas on the transmitting and receiving sides is recommended to reduce polarization mismatch loss.
Can the antenna be supplied as a matched pair?
Pair packaging may be requested for compatible transmitter-and-receiver applications, subject to order quantity and supplier packaging options.
Which documents should bulk buyers request?
Buyers should request the latest specification sheet, dimensional drawing, connector definition, polarization information, packing list and applicable inspection records.
