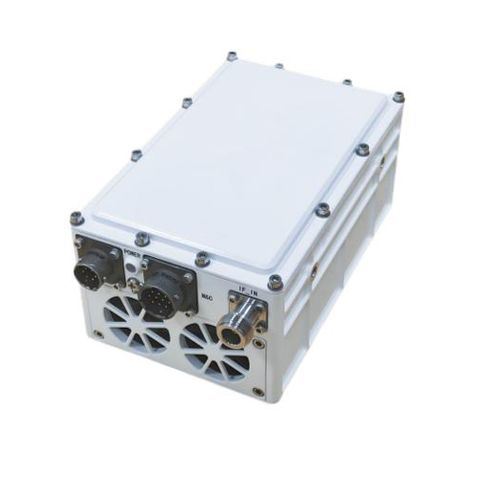

40W Ka-Band SSPB
Technical Highlights
Four Ka-Band Frequency Options
The SSPB is available in four output-frequency versions covering ranges from 27.50 to 31.00GHz. Each version converts a 950–1950MHz L-band input using its corresponding local oscillator frequency.
40W Rated RF Output
The 40W version provides 46dBm rated output power and 43dBm linear output power for Ka-band satellite uplink integration.
70dB Gain with Fine Adjustment
A small-signal gain of 70dB is combined with a 0–20dB adjustment range in precise 0.25dB steps.
Internal and External Reference Support
The unit supports a 10MHz external reference at 0dBm ±5dB and an internal reference with stability of ≤±0.1ppm over temperature. Automatic reference switching is specified.
Outdoor Monitoring and Integration
The IP66 enclosure supports operation from −40 to +60°C and provides serial or Ethernet monitoring through RS485/RS422, SNMP and HTTP.
Frequency Configuration
| Band Version | Output Frequency | LO Frequency |
|---|---|---|
| Band 1 | 27.50–28.50GHz | 26.55GHz |
| Band 2 | 28.25–29.25GHz | 27.3GHz |
| Band 3 | 29.00–30.00GHz | 28.05GHz |
| Band 4 | 30.00–31.00GHz | 29.05GHz |
| Input Frequency | 950–1950MHz | |
RF Specifications
| Rated Output Power | 46dBm, approximately 40W |
|---|---|
| Linear Output Power | 43dBm |
| Small Signal Gain | 70dB |
| Gain Adjustment | 0–20dB in 0.25dB steps |
| 10MHz External Reference | 0dBm ±5dB |
| Internal Reference Stability | ≤±0.1ppm over temperature |
| Phase Noise | −63dBc/Hz at 100Hz; −73dBc/Hz at 1kHz; −83dBc/Hz at 10kHz; −93dBc/Hz at 100kHz |
| Output Spurious at Rated Power | ≤−55dBc |
| Gain Variation over 40MHz | 1.2dB p-p |
| Gain Variation over 500MHz | 3.5dB p-p |
| Gain Variation over 1000MHz | 4.0dB p-p |
| Gain Variation over Temperature | 3.0dB p-p |
| IM3 | −25dBc at linear output power with dual tones 5MHz apart |
| Noise Power Density at 27.5–31.0GHz | ≤−70dBW/4kHz |
| Noise Power Density at 17.7–21.2GHz | ≤−145dBW/4kHz |
Power and Environmental Specifications
| Standard Power Supply | +48V DC, operating range 36–75V |
|---|---|
| Optional Power Supply | +24V DC, operating range 20–32V |
| Power Consumption | 320W at rated output power |

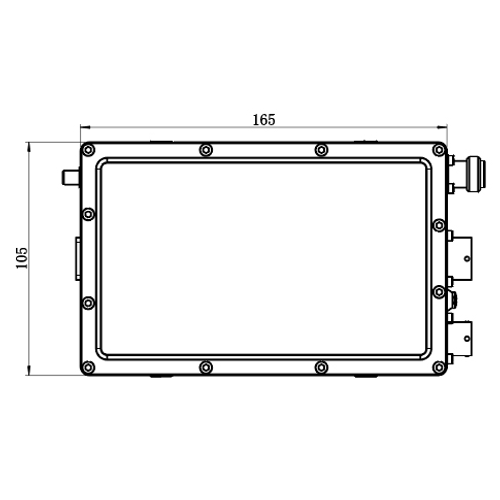

| Outline Dimensions | 165 × 105 × 77mm (6.5 × 4.1 × 3.0in) |
| Weight | 2kg (4.4lb) |
| Operating Temperature | −40 to +60°C (−40 to +140°F) |
| Storage Temperature | −50 to +80°C (−58 to +176°F) |
| Ingress Protection | IP66 |
| Humidity | 100% condensing |
Interfaces
| IF Input Interface | N-K, 50Ω |
|---|---|
| Input VSWR | ≤1.8:1 |

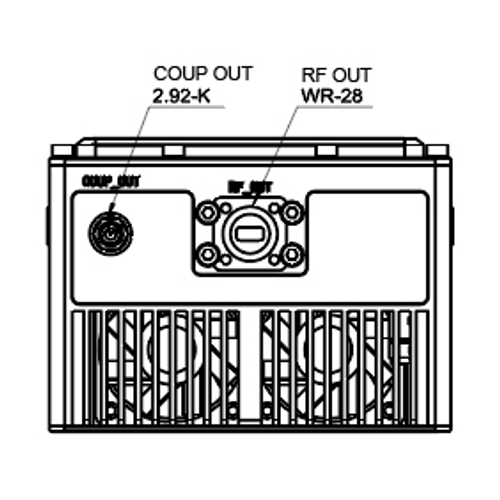

| RF Output Interface | WR-28 grooved waveguide |
| Output VSWR | ≤1.3:1 |
| Coupling Interface | 2.92mm-K |
| Power Interface | 6-pin circular connector; PT02E-10-6P shown in the mechanical drawing |
| Monitoring Interface | 10-pin circular connector; PT02E-12-10P shown in the mechanical drawing |
| Monitor and Control | RS485/RS422; Ethernet with SNMP and HTTP |
| Status Indicator | Green for normal operation; red for fault status |
Recommended Applications
- Ka-band satellite uplink terminals
- Satellite ground stations and gateway systems
- Outdoor block upconverter and power-amplifier assemblies
- Ka-band communication system integration
Integration Notes
- Select the required output-frequency version before ordering.
- Use a compatible WR-28 waveguide connection and verify system flange requirements.
- Confirm whether the standard 48V DC input or optional 24V DC input is required.
- Allow adequate installation clearance for airflow around the cooling fins and fans.
- Confirm the required RS485, RS422 or Ethernet monitoring method during system integration.
FAQ
What is the 40W Ka-Band SSPB?
It is a solid-state power block upconverter that converts a 950–1950MHz L-band input into a Ka-band RF output while providing 46dBm, approximately 40W, of rated output power.
Which Ka-band output frequencies are available?
Four versions are specified: 27.50–28.50GHz, 28.25–29.25GHz, 29.00–30.00GHz and 30.00–31.00GHz.
Does one unit cover the complete 27.50–31.00GHz range?
No continuous full-band operation is specified. The documentation identifies four output-frequency versions, so the required range should be selected before ordering.
What is the input frequency?
The specified IF input-frequency range is 950–1950MHz.
What are the rated and linear output powers?
The 40W version provides 46dBm rated output power and 43dBm linear output power.
Can the gain be adjusted?
Yes. The unit provides 0–20dB of gain adjustment in 0.25dB steps, with a specified small-signal gain of 70dB.
Does the SSPB support an external reference?
Yes. It supports a 10MHz external reference at 0dBm ±5dB. The internal reference has stability of ≤±0.1ppm over temperature, and automatic reference switching is specified.
What RF interfaces are used?
The IF input uses an N-K 50Ω interface, the RF output uses a WR-28 grooved waveguide, and the coupled output uses a 2.92mm-K interface.
Which DC power inputs are supported?
The standard supply is +48V DC with a 36–75V operating range. A +24V DC version with a 20–32V range is optional.
What is the power consumption?
The specified power consumption for the 40W version is 320W at rated RF output power.
Which monitoring interfaces are available?
The specified monitor and control options include RS485/RS422 and Ethernet with SNMP and HTTP.
Is the SSPB suitable for outdoor installation?
The enclosure is rated IP66 and supports an operating temperature range of −40 to +60°C and 100% condensing humidity.
What are the dimensions and weight?
The outline dimensions are 165 × 105 × 77mm, and the specified weight is 2kg.
B2B Procurement FAQ
What information should be included in an RFQ?
Please specify the required output-frequency band, quantity, standard 48V or optional 24V power input, monitoring interface and system-level connector requirements.
How should the output-frequency version be selected?
Select one of the four specified ranges according to the required satellite uplink frequency plan: 27.50–28.50GHz, 28.25–29.25GHz, 29.00–30.00GHz or 30.00–31.00GHz.
Should the RFQ identify this as the 40W version?
Yes. The 40W configuration uses 46dBm rated output power, 43dBm linear output power and 320W power consumption. These values should be stated to avoid confusion with the higher-power configurations shown on the combined specification sheet.
Is a 24V DC configuration available?
A +24V DC configuration with a 20–32V operating range is listed as optional. Its availability for the selected frequency version should be confirmed during quotation.
Can an evaluation unit be requested?
Evaluation-unit availability is not stated in the supplied material and must be confirmed during quotation for the required frequency, power-supply and monitoring configuration.
Which specifications should be verified during incoming inspection?
Recommended checks include the output-frequency version, input frequency, rated and linear output power, gain adjustment, VSWR, RF interfaces, power input and monitor-and-control communication.
Can protocol and interface documents be requested?
The applicable RS485, RS422, SNMP or HTTP interface documentation should be requested and confirmed for the selected unit before system integration.
Can packaging and product labels be specified for bulk orders?
Any packaging, identification or labeling requirements should be included in the RFQ and confirmed by the supplier before ordering.
How are MOQ, lead time, warranty and delivery terms confirmed?
These commercial terms are not provided in the supplied documentation and must be confirmed in the supplier quotation.
