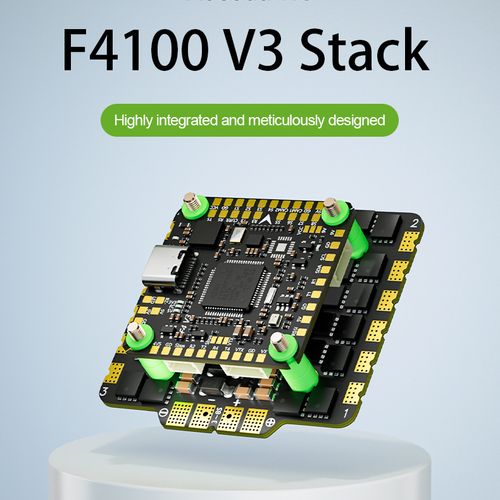

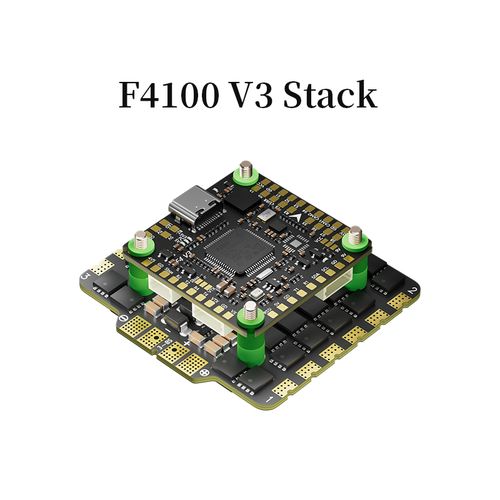

Aocoda-RC F4100 V3 F405 FC + 100A AM32 4-in-1 ESC Stack

Short Description:

Aocoda-RC F4100 V3 combines an STM32F405 flight controller with a 3–6S 30100 AM32 32-bit 100A 4-in-1 ESC, ICM42688P gyro, SPL06-001 barometer and dual BEC outputs.

Product Name: Aocoda-RC F4100 V3 F405 FC + 100A AM32 4-in-1 ESC Stack
Product Type: 30.5 × 30.5mm Flight Controller and 4-in-1 ESC Stack
MCU: STM32F405RET6
Gyroscope: ICM42688P
Barometer: SPL06-001
OSD Support: Supported
Firmware: Betaflight, iNav and ArduPilot support
Firmware Target: AOCODARCF405V3
ESC Continuous Current: 100A × 4
ESC Input Voltage: 3–8S LiPo

Send email to us

Product Detail

FAQ

Technical Highlights

F405 Flight Controller and 30100 AM32 ESC

The F4100 V3 combines an Aocoda-RC F405 V3 flight controller with a 30100 AM32 32-bit four-in-one ESC in a 30.5 × 30.5mm mounting format.

100A Continuous Current per Channel

The 30100 ESC is rated for 100A continuous current per channel across four motor channels, with a specified 120A peak-current rating per channel.

ICM42688P Gyroscope and SPL06-001 Barometer

The flight controller integrates an ICM42688P gyroscope, SPL06-001 barometer and 16MB blackbox storage.

Dual BEC and Peripheral Interfaces

The FC provides 5V/2.5A and 9V/2.5A BEC outputs together with connections for receivers, GPS, VTX, two cameras, LED strips, a buzzer and the included ESC.

Flight Controller Specifications

Flight Controller	Aocoda-RC F405 V3 FC
MCU	STM32F405RET6
Gyroscope	ICM42688P
Barometer	SPL06-001
OSD	Supported
Blackbox Storage	16MB
Motor Outputs	8 channels
UART Ports	5 UARTs
UART Assignment	UART1: GPS; UART2: receiver; UART3: ESC; UART4: VTX; UART5: Bluetooth
Firmware Support	Betaflight, iNav and ArduPilot
Firmware Target	AOCODARCF405V3
BEC Outputs	5V/2.5A and 9V/2.5A
FC Input Voltage	3–6S LiPo
FC Dimensions	37 × 37mm
FC Weight	9.4g
Mounting Pattern	M3, 30.5 × 30.5mm

30100 4-in-1 ESC Specifications

ESC Model	30100 AM32 32-bit 4-in-1 ESC
Primary Firmware Identifier	AM32_AORC_K_A_F421_2.16.hex
Continuous Current	100A × 4
Peak Current	120A × 4
ESC Input Voltage	3–8S LiPo
Input Signals	DShot300, DShot600 and PWM
Telemetry	Supported
Onboard BEC	No
Current Meter Scale	132
Working Humidity	20%–95%

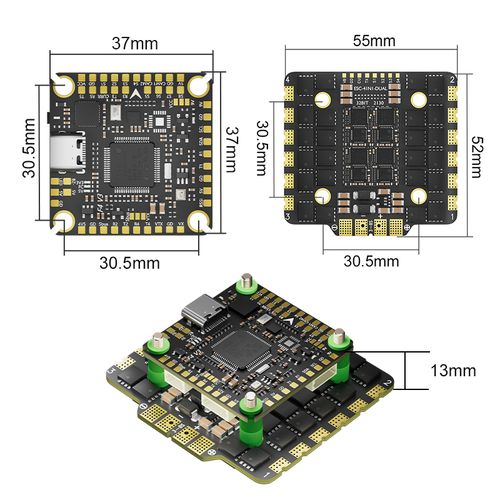

ESC Dimensions	55 × 52mm in the supplied F4100 V3 dimensional image
ESC Weight	33g
Mounting Pattern	M3, 30.5 × 30.5mm

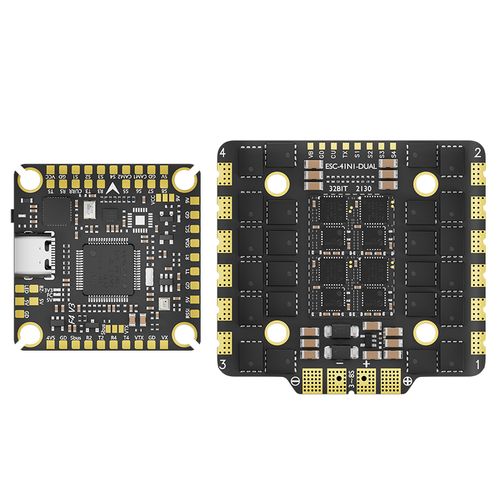

Interfaces and Receiver Support

Dedicated connectors are provided for the ESC, GPS, analog camera and CRSF/ELRS receiver.
Solder pads are provided for VTX, receiver, UART, I2C and power connections.
The supplied wiring information shows ELRS, CRSF, S.BUS, FrSky, Futaba, FlySky, TBS Crossfire and DSMX receiver connections.
Two camera inputs are shown as CAM1 and CAM2, with CAM1 enabled by default and camera switching assigned through USER3.
LED-strip and buzzer connections are supported.
An onboard Bluetooth device is assigned to UART5.

Voltage and Installation Notes

Complete Stack Battery Range	3–6S LiPo
Standalone ESC Battery Range	3–8S LiPo
FC Board Size	37 × 37mm
ESC Board Size	55 × 52mm in the supplied model-specific image
Assembled Stack Height	Approximately 13mm as illustrated
Mounting Pattern	30.5 × 30.5mm with M3 hardware

The ESC component is listed for up to 8S, but the complete F4100 V3 stack and its F405 V3 flight controller are specified for 3–6S operation.
Do not apply an 8S battery directly to the flight controller without a separately verified power arrangement.
The wiring diagram identifies the selectable VTX power output as 9V by default; verify the voltage before connecting a VTX.
Use the documented VCC selection for the 3–4S arrangement and the 9V selection for the 6S arrangement.
Verify the 8-pin SH1.0 cable orientation before connecting the flight controller to the ESC.
Install both supplied 35V 1000µF capacitors on the main ESC power input according to the approved wiring arrangement.

Package Contents

F405 V3 Flight Controller	1
30100 32-Bit 4-in-1 ESC	1
8-Pin SH1.0 Connection Cable	1
M3 × 8mm Shock-Absorbing Balls	8
35V 1000µF Solid-State Electrolytic Capacitors	2
XT90 Power Cable	1
Nuts	8
M3 × 30mm Metal Screws	4
