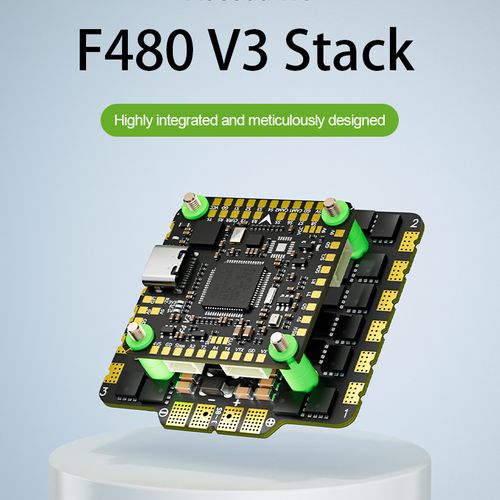

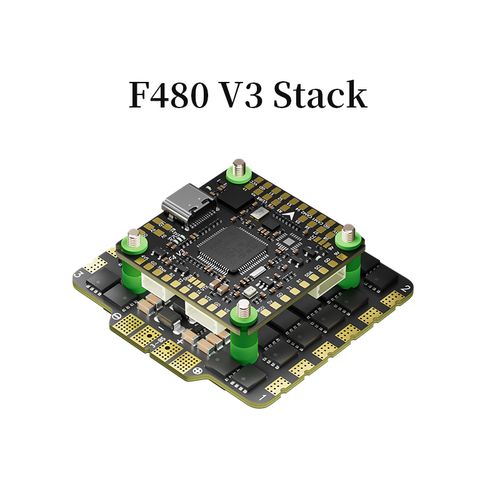

Aocoda-RC F480 V3 F405 FC + 80A AM32 4-in-1 ESC Stack
Technical Highlights

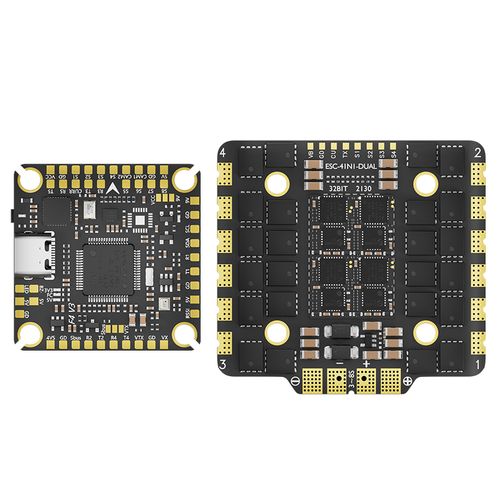

F405 Flight Controller and 80A AM32 ESC
The F480 V3 combines an Aocoda-RC F405 V3 flight controller with a 3080 AM32 32-bit 80A four-in-one ESC for 3–6S FPV aircraft.
ICM42688P Gyroscope and SPL06-001 Barometer
The flight controller integrates an ICM42688P gyroscope and SPL06-001 barometer together with 16MB blackbox storage.
Dual BEC Power Outputs
The FC provides 5V/2.5A and 9V/2.5A BEC outputs for supported FPV peripherals and onboard systems.
Telemetry and Multiple ESC Protocols
The 32-bit ESC supports telemetry together with DShot150, DShot300, DShot600, MultiShot and OneShot input signals.
Flight Controller Specifications
| Flight Controller | Aocoda-RC F405 V3 FC |
|---|---|
| MCU | STM32F405RET6 |
| Gyroscope | ICM42688P |
| Barometer | SPL06-001 |
| OSD | Supported |
| Blackbox Storage | 16MB |
| Motor Outputs | 8 channels |
| UART Ports | 5 UARTs |
| UART Assignment | UART1: GPS; UART2: receiver; UART3: ESC; UART4: VTX; UART5: Bluetooth |
| Firmware Support | Betaflight, iNav and ArduPilot |
| Firmware Target | AOCODARCF405V3 |
| BEC Outputs | 5V/2.5A and 9V/2.5A |
| Input Voltage | 3–6S LiPo |
| Dimensions | 37 × 37mm |
| Weight | 9.4g |
| Mounting Pattern | M3, 30.5 × 30.5mm |
4-in-1 ESC Specifications
| ESC Model | 3080 AM32 32-bit 4-in-1 ESC |
|---|---|
| Primary Firmware Identifier | AM32_AORC_K_A_F421_2.16.hex |
| Continuous Maximum Current | 80A × 4 |
| Current Scaling | 100A × 4 |
| Input Voltage | 3–6S LiPo |
| Input Signals | DShot150, DShot300, DShot600, MultiShot and OneShot |
| Telemetry | Supported |
| Onboard BEC | No |
| Current Meter Scale | 145 |
| Working Humidity | 20%–95% |
| Dimensions | 55 × 52mm |
| Weight | 33g |
| Mounting Pattern | M3, 30.5 × 30.5mm |
Interfaces and Receiver Support
Dedicated connectors are provided for the ESC, GPS, analog camera and CRSF/ELRS receiver.
Solder pads are available for VTX, receiver, UART, I2C and power connections.
The supplied wiring information shows ELRS, CRSF, S.BUS, FrSky, Futaba, FlySky, TBS Crossfire and DSMX receiver connections.
Two camera inputs are shown as CAM1 and CAM2, with CAM1 enabled by default and camera switching assigned through USER3.
LED-strip and buzzer connections are supported.
An onboard Bluetooth device is assigned to UART5.

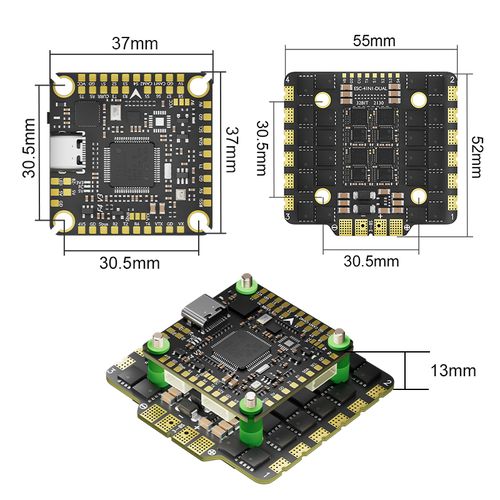

Dimensions and Installation Notes
| FC Board Size | 37 × 37mm |
|---|---|
| ESC Board Size | 55 × 52mm |
| Assembled Stack Height | Approximately 13mm as illustrated |
| Mounting Pattern | 30.5 × 30.5mm with M3 hardware |
| System Battery Range | 3–6S LiPo |
The wiring diagram identifies the selectable VTX power output as 9V by default and instructs users to verify the voltage before connection.
Use the documented VCC selection for the 3–4S arrangement and the 9V selection for the 6S arrangement.
Verify the 8-pin SH1.0 connector orientation before connecting the FC to the ESC.
Install both supplied 35V 1000µF capacitors on the main ESC power input according to the wiring diagram.
The ESC parameter sheet labels 100A × 4 as current scaling, not as a verified burst-current rating.
Package Contents
| F405 V3 Flight Controller | 1 |
|---|---|
| 3080 32-Bit 4-in-1 ESC | 1 |
| 8-Pin SH1.0 Connection Cable | 1 |
| M3 × 8mm Shock-Absorbing Balls | 8 |
| 35V 1000µF Solid-State Electrolytic Capacitors | 2 |
| XT90 Power Cable | 1 |
| Nuts | 8 |
| M3 × 30mm Metal Screws | 4 |
FAQ
What components are included in the F480 V3 stack?
The stack combines an Aocoda-RC F405 V3 flight controller with a 3080 AM32 32-bit 80A four-in-one ESC.
What is the ESC continuous-current rating?
The ESC is specified for 80A continuous maximum current per channel across four channels.
Is 100A × 4 the burst-current rating?
The supplied parameter sheet labels 100A × 4 as current scaling. It does not explicitly identify this value as a burst-current rating, so it should not be marketed as verified burst current.
Which battery voltage does the F480 V3 support?
Both the flight controller and included ESC are specified for 3–6S LiPo input.
Which ESC input protocols are supported?
The ESC documentation lists DShot150, DShot300, DShot600, MultiShot and OneShot.
Does the flight controller include a barometer and blackbox storage?
Yes. It includes an SPL06-001 barometer and 16MB blackbox storage.
What are the FC and ESC dimensions?
The flight controller measures 37 × 37mm, while the ESC measures 55 × 52mm. Both use a 30.5 × 30.5mm M3 mounting pattern.
B2B Procurement FAQ
What model information should be included in an RFQ?
Please specify Aocoda-RC F480 V3, F405 V3 FC, 3080 AM32 32-bit 80A ESC, required quantity, destination country and any documentation requirements.
Should the ESC firmware version be confirmed before ordering?
Yes. The supplied material contains more than one firmware identifier, including one filename containing a conflicting 60A reference. The installed firmware and hardware revision should be confirmed for the quoted production batch.
Should the current rating be confirmed independently from the firmware filename?
Yes. The hardware model, product parameter table and official product designation identify the ESC as an 80A 3080 AM32 version. A firmware filename should not be used as the hardware current rating.
Does the documented package include the power components?
The supplied package list shows two 35V 1000µF capacitors and one XT90 power cable. Buyers should confirm that the quoted batch contains the same accessories.
Are samples, MOQ and lead time guaranteed?
No fixed sample policy, minimum order quantity or lead time is stated in the supplied material. These items must be confirmed during quotation.
