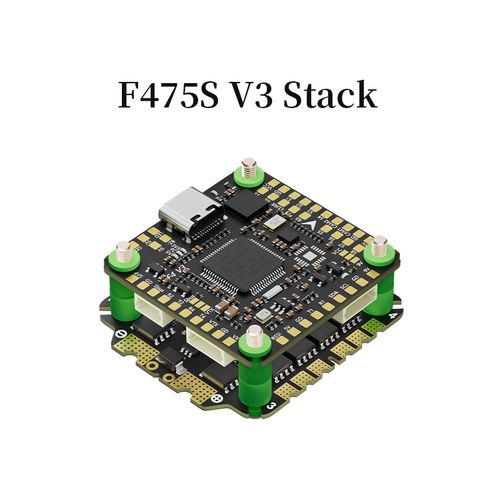

Aocoda-RC F475S V3 F405 FC + 75A 8-Bit 4-in-1 ESC Stack

Short Description:

Aocoda-RC F475S V3 combines an STM32F405 flight controller with a 75A 8-bit 4-in-1 ESC, ICM42688P gyro, SPL06-001 barometer, dual BEC and 30.5mm mounting.

Product Name: Aocoda-RC F475S V3 F405 FC + 75A 8-Bit 4-in-1 ESC Stack
Product Type: 30.5 × 30.5mm Flight Controller and 4-in-1 ESC Stack
MCU: STM32F405RGT6
Gyroscope: ICM42688P
Barometer: SPL06-001
OSD Chip: Supported
Firmware: Betaflight, iNav and ArduPilot support
Firmware Target: AOCODARCF405V3
ESC Continuous Current: 75A × 4
ESC Input Voltage: 3–8S LiPo

Send email to us

Product Detail

FAQ

Technical Highlights

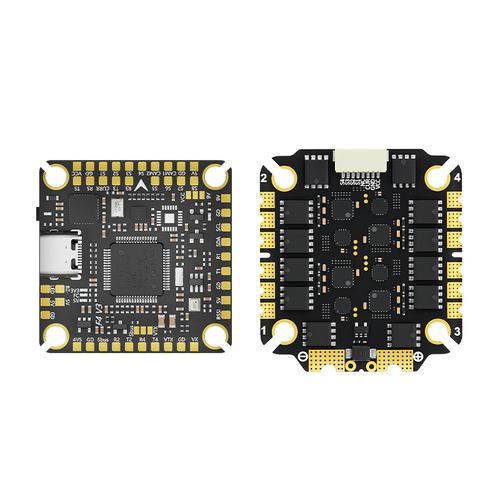

F405 Flight Controller and 75A ESC Stack

The F475S V3 combines an Aocoda-RC F405 V3 flight controller with a 3075S 8-bit 75A four-in-one ESC in a 30.5 × 30.5mm mounting format.

ICM42688P Gyroscope and SPL06-001 Barometer

The flight controller integrates an ICM42688P gyroscope and SPL06-001 barometer for flight stabilization and altitude-related data.

Dual BEC and Extensive Peripheral Interfaces

The FC provides 5V/2.5A and 9V/2.5A BEC outputs together with dedicated connections for GPS, receiver, ESC, VTX, cameras, LED strips and a buzzer.

Bluejay 8-Bit ESC with Telemetry

The included four-in-one ESC supports DShot300 and DShot600 input signals, ESC telemetry and Bluejay firmware.

Flight Controller Specifications

Flight Controller	Aocoda-RC F405 V3 FC
MCU	STM32F405RGT6
Gyroscope	ICM42688P
Barometer	SPL06-001
OSD	Supported
Blackbox Storage	16MB
Motor Outputs	8 channels
UART Ports	5 UARTs
UART Assignment	UART1: GPS; UART2: receiver; UART3: ESC; UART4: VTX; UART5: Bluetooth
Firmware Support	Betaflight, iNav and ArduPilot
Firmware Target	AOCODARCF405V3
BEC Outputs	5V/2.5A and 9V/2.5A
FC Input Voltage	3–6S LiPo
FC Dimensions	37 × 37mm
FC Weight	9.4g
Mounting Pattern	M3, 30.5 × 30.5mm

4-in-1 ESC Specifications

ESC Model	3075S 8-bit 4-in-1 ESC
ESC Firmware	Bluejay D_X_30_v0.21.1-RC1-hex
Continuous Maximum Current	75A × 4
Current Scaling	85A × 4
Input Voltage	3–8S LiPo
Input Signal	DShot300 and DShot600
ESC Telemetry	Supported
ESC BEC	No onboard BEC
Current Meter Scale	78
ESC Dimensions	44.5 × 40.5mm
ESC Weight	15.8g
Mounting Pattern	M3, 30.5 × 30.5mm

Interfaces and Receiver Support

Dedicated connectors are provided for the ESC, GPS, analog camera and CRSF/ELRS receiver.
Solder pads are provided for VTX, receiver, UART, I2C and power connections.
The wiring information shows support for ELRS, CRSF, S.BUS, FrSky, Futaba, FlySky, TBS Crossfire and DSMX receiver connections.
Two camera inputs are shown as CAM1 and CAM2, with CAM1 enabled by default and camera switching assigned through USER3.
LED-strip and buzzer connections are supported.
An onboard Bluetooth device is assigned to UART5.

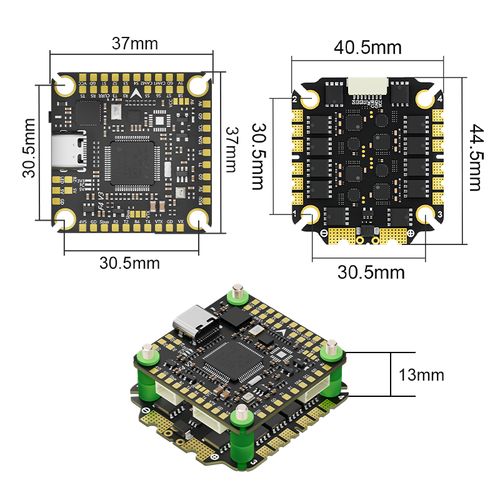

Dimensions and Installation Notes

FC Board Size	37 × 37mm
ESC Board Size	44.5 × 40.5mm
Assembled Stack Height	Approximately 13mm as illustrated
Mounting Pattern	30.5 × 30.5mm with M3 hardware
FC Battery Range	3–6S LiPo
ESC Battery Range	3–8S LiPo

The FC and ESC have different stated voltage ranges. Do not apply 8S voltage directly to the FC without a separately verified power arrangement.
The wiring diagram identifies the VTX supply as 9V by default and instructs the installer to verify the voltage before connection.
Use the VCC selection for the documented 3–4S arrangement and the 9V selection for the documented 6S arrangement.
Verify connector orientation before connecting the supplied reverse-wired FC-to-ESC cable.
Use the supplied capacitor on the main ESC power input according to the wiring diagram.

Package Contents

F405 V3 Flight Controller	1
3075S 8-Bit 4-in-1 ESC	1
8-Pin SH1.0mm Reverse Connection Cable	1
M3 × 8mm Shock-Absorbing Balls	8
35V 1000µF Solid-State Electrolytic Capacitor	1
XT60 Power Cable	1
Nuts	8
M3 × 30mm Metal Screws	4

FAQ

What components are included in the F475S V3 stack?

The stack combines an Aocoda-RC F405 V3 flight controller with a 3075S 8-bit 75A four-in-one ESC. The documented package also includes the FC-to-ESC cable, mounting hardware, a 35V 1000µF capacitor and an XT60 power cable.

Which MCU and gyro does the flight controller use?

The main parameter table and visible device marking identify an STM32F405RGT6 MCU. The gyroscope is an ICM42688P.

What is the ESC continuous-current rating?

The ESC is specified for 75A continuous maximum current per channel across four channels. The separate 85A × 4 value is labelled as current scaling in the supplied material and is not presented here as a burst-current rating.

Can the complete stack be powered from an 8S battery?

The ESC is specified for 3–8S LiPo, but the flight controller is specified for 3–6S LiPo. An 8S installation therefore requires a separately verified FC power arrangement and should not apply the full battery voltage directly to the FC.

Which receiver systems can be connected?

The supplied wiring information shows connections for ELRS, CRSF, S.BUS, FrSky, Futaba, FlySky, TBS Crossfire and DSMX receiver systems.

Does the flight controller have onboard storage and a barometer?

Yes. The FC includes 16MB blackbox storage and an SPL06-001 barometer.

Which ESC protocols are supported?

The included 8-bit ESC supports DShot300 and DShot600 input signals and provides ESC telemetry.

B2B Procurement FAQ

What model information should be included in an RFQ?

Please specify Aocoda-RC F475S V3, F405 V3 FC, 3075S 8-bit 75A ESC, required quantity, destination country and any documentation requirements.

Should the MCU version be confirmed before ordering?

Yes. One supplied annotation says STM32F405RET6, while the detailed specification and device marking indicate STM32F405RGT6. The actual production-batch MCU should be confirmed during quotation.

What battery configuration should a buyer specify?

Please state the intended cell count and power architecture. The ESC is listed for 3–8S, while the FC is listed for 3–6S, so an 8S build requires additional power-path confirmation.

Is the complete accessory set included with every order?

The supplied product material shows a defined package list. Buyers should confirm that the quoted batch includes the same cable, capacitor, XT60 lead and mounting hardware before placing the order.

Are samples, MOQ and lead time guaranteed?

No fixed sample policy, minimum order quantity or lead time is stated in the supplied material. These items must be confirmed during quotation.
