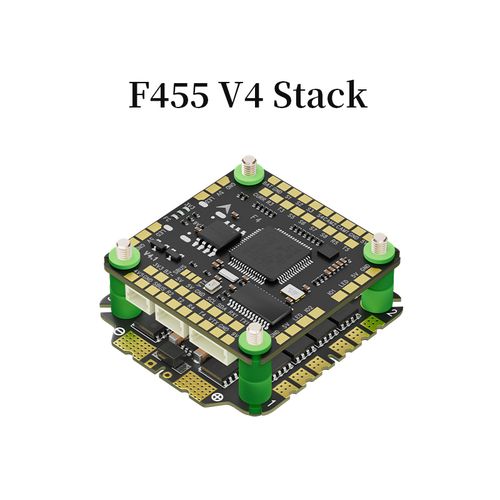

Aocoda-RC F455 V4 Stack

Short Description:

The Aocoda-RC F455 V4 combines an STM32F405RGT6 flight controller, ICM42688P gyro, SPL06-001 barometer and 3055 V2 55A 32-bit 4-in-1 ESC in a 30.5 30.5 mm FPV stack.

Product Name: Aocoda-RC F455 V4 Stack
Product Type: F405 Flight Controller and 55A 32-bit 4-in-1 ESC Stack
MCU: STM32F405RGT6, 168 MHz, 1 MB Flash
Gyroscope: ICM42688P (SPI1)
Barometer: SPL06-001 (I2C1)
OSD Chip: AT7456E (SPI2)
Firmware: Betaflight, INAV and ArduPilot (ChiBiOS)
Firmware Target: AOCODARCF405V3
ESC: 3055 V2 32-bit 4-in-1 ESC, 55A continuous × 4
Mounting Pattern: M3, 30.5 × 30.5 mm

Send email to us

Product Detail

FAQ

Technical Highlights

STM32F405 Flight Control Platform

The F405 V4 flight controller uses an STM32F405RGT6 MCU running at 168 MHz with 1 MB of flash memory. It provides five UARTs, eight motor outputs and 16 MB of onboard blackbox storage for FPV multirotor configuration and flight-data recording.

ICM42688P Gyroscope and SPL06-001 Barometer

An ICM42688P gyroscope connected through SPI1 provides motion sensing, while the onboard SPL06-001 barometer provides altitude-related pressure data through I2C1.

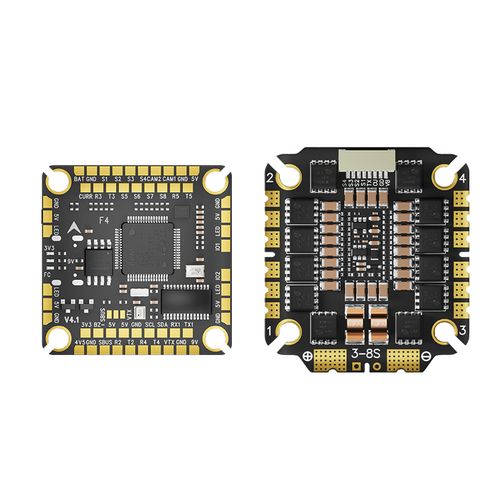

3055 V2 55A 32-Bit 4-in-1 ESC

The included 3055 V2 electronic speed controller combines four 32-bit ESC channels on one board. The supplied specification lists 55A continuous current per channel, telemetry support and DShot150, DShot300, DShot600, MultiShot and OneShot signal compatibility.

Flexible Video and Peripheral Connections

The flight controller supports analog and HD video configurations, dual camera inputs, a dedicated receiver connection, GPS, VTX, buzzer and LED strip connections. Separate 5V/2.5A and 9V/2.5A BEC outputs are provided on the FC.

Flight Controller Specifications

Flight Controller	F405 V4 FC
MCU	STM32F405RGT6, 168 MHz, 1 MB Flash
Gyroscope	ICM42688P (SPI1)
Barometer	SPL06-001 (I2C1)
OSD Chip	AT7456E (SPI2)
Blackbox	16 MB onboard flash (SPI3)
Motor Outputs	8 channels
UARTs	5
BEC Outputs	5V/2.5A and 9V/2.5A
USB Interface	USB Type-C
Firmware	Betaflight, INAV and ArduPilot (ChiBiOS)
Firmware Target	AOCODARCF405V3

ESC Specifications

ESC Model	3055 V2
ESC Type	32-bit 4-in-1 ESC
Continuous Current	55A × 4
Current Scaling	60A × 4, as labeled in the supplied specification
Telemetry	Supported
ESC BEC	No
Control Protocols	DShot150, DShot300, DShot600, MultiShot and OneShot
Listed ESC Firmware Files	AM32_AORC_K_A_F421_2.16.hex or AocodaRC-BL32-4IN1-60A-Rev.32.10
Working Humidity	20%–95%
Input Voltage	The supplied F455 V4 artwork states 3–8S LiPo. Confirm the exact production batch before 7S or 8S operation because the current manufacturer family listing states 3–6S for the 55A variant.

Interfaces and Connections

UART1: GPS
UART2: Receiver
UART3: ESC
UART4: VTX
UART5: Selectable
Receiver connections shown for ELRS/CRSF, S.BUS and other supported serial receiver systems
Dual camera inputs with selectable camera switching
Analog VTX and HD video-system support
DJI FPV OSD support through an available UART
Dedicated LED strip, buzzer and GPS connection points
FC-to-ESC connection through the included 8-pin SH1.0 mm cable

Physical Specifications

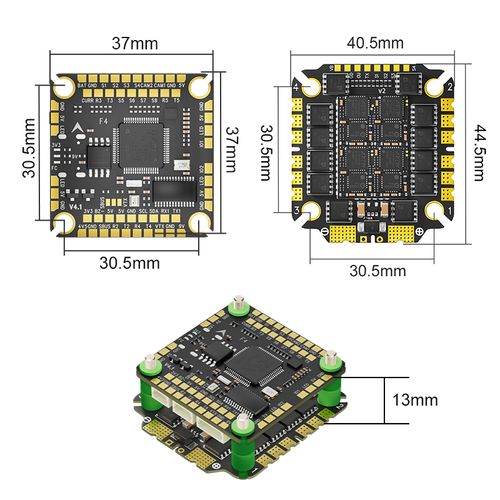

FC Dimensions	37 × 37 mm
FC Weight	9.4 g
ESC Dimensions	44.5 × 40.5 mm
ESC Weight	15.8 g
Mounting Pattern	M3, 30.5 × 30.5 mm
Assembled Stack Height	Approximately 13 mm, according to the supplied dimension drawing

Installation Notes

Check the selected output voltage before connecting a camera, VTX or other peripheral. The supplied wiring diagram shows 9V as the default selectable output.
Use the supplied wiring diagram to verify every signal, ground and power connection before applying battery power.
Confirm the exact battery-voltage rating of the production batch before operating the 55A ESC on 7S or 8S LiPo.
Install the FC and ESC with the supplied vibration-damping hardware and maintain clearance between both boards.
Connect the supplied 35V 1000µF capacitor with the correct polarity at the ESC power-input pads.

Package Contents

1 × F405 V4 Flight Controller
1 × 3055 V2 32-bit 4-in-1 ESC
1 × 8-pin SH1.0 mm reverse-connection cable
8 × M3 × 8 mm shock-absorbing balls
1 × 35V 1000µF solid-state electrolytic capacitor
1 × XT60 power cable
8 × Nuts
4 × M3 × 30 mm metal screws

FAQ

What components are included in the Aocoda-RC F455 V4 Stack?

The stack includes an F405 V4 flight controller and a 3055 V2 55A 32-bit 4-in-1 ESC. The supplied package also includes an 8-pin connection cable, vibration-damping hardware, a 35V 1000µF capacitor, an XT60 power cable, nuts and mounting screws.

Which MCU and sensors does the flight controller use?

The flight controller uses an STM32F405RGT6 MCU, an ICM42688P gyroscope and an SPL06-001 barometer. It also provides an AT7456E OSD chip and 16 MB of onboard blackbox storage.

What is the continuous-current rating of the ESC?

The supplied specification lists 55A continuous current for each of the four ESC channels. It separately labels a 60A × 4 current-scaling value; this should not be presented as an unsupported continuous or burst-current rating.

Which flight-control firmware does the FC support?

The manufacturer lists Betaflight, INAV and ArduPilot with ChiBiOS support. The specified firmware target is AOCODARCF405V3.

What mounting pattern does the stack use?

Both boards use an M3 30.5 × 30.5 mm mounting pattern. The FC measures 37 × 37 mm, while the ESC measures 44.5 × 40.5 mm.

Does the flight controller support analog and HD video systems?

Yes. The supplied material shows analog and HD video support, dual camera inputs, a selectable camera function and DJI FPV OSD support through an available UART.

What battery voltage can be used with the F455 V4?

The supplied F455 V4 product artwork states 3–8S LiPo for the FC and ESC. However, the current manufacturer family listing states 3–6S for the 55A version. Confirm the exact production-batch rating before connecting a 7S or 8S battery.
