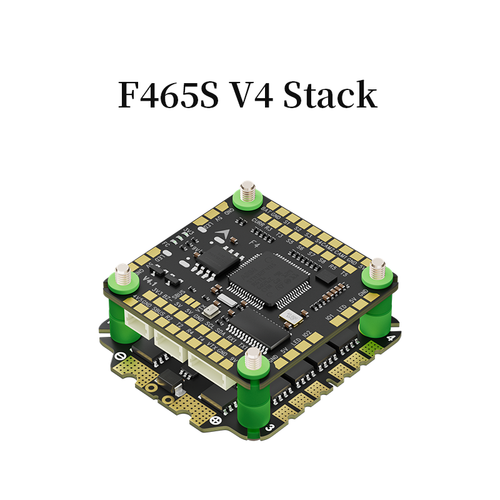

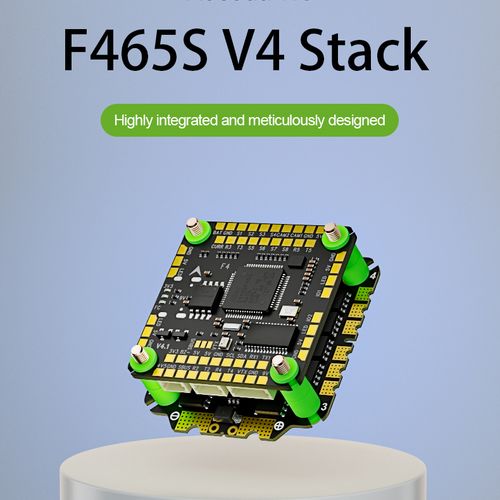

Aocoda-RC F465S V4 Stack

Short Description:

The Aocoda-RC F465S V4 pairs an STM32F405RGT6 flight controller with a 3065S 65A 8-bit Bluejay 4-in-1 ESC, ICM42688P gyro and 30.5 30.5 mm mounting pattern.

Product Name: Aocoda-RC F465S V4 Stack
Product Type: F405 Flight Controller and 65A 8-bit 4-in-1 ESC Stack
MCU: STM32F405RGT6, 168 MHz, 1 MB Flash
Gyroscope: ICM42688P (SPI1)
Barometer: SPL06-001 (I2C1)
OSD Chip: AT7456E (SPI2)
Firmware: Betaflight, INAV and ArduPilot (ChiBiOS)
Firmware Target: AOCODARCF405V3
ESC: 3065S 8-bit 4-in-1 ESC, 65A continuous × 4
Stack Input Voltage: 3–8S LiPo

Send email to us

Product Detail

FAQ

Technical Highlights

STM32F405 Flight Control Platform

The F405 V4 flight controller uses an STM32F405RGT6 MCU running at 168 MHz with 1 MB of flash memory. It provides five UARTs, eight motor outputs and 16 MB of onboard blackbox storage.

ICM42688P Gyroscope and SPL06-001 Barometer

An ICM42688P gyroscope connected through SPI1 provides motion sensing, while the SPL06-001 barometer communicates through I2C1 for pressure and altitude-related data.

3065S 65A Bluejay 4-in-1 ESC

The included 3065S is an 8-bit four-channel ESC with Bluejay firmware. It is rated for 65A continuous current and 75A peak current per channel with a 3–8S LiPo input range.

Analog and HD Video Integration

The flight controller supports analog and HD video configurations, dual camera inputs, selectable camera switching and DJI FPV OSD through an available UART.

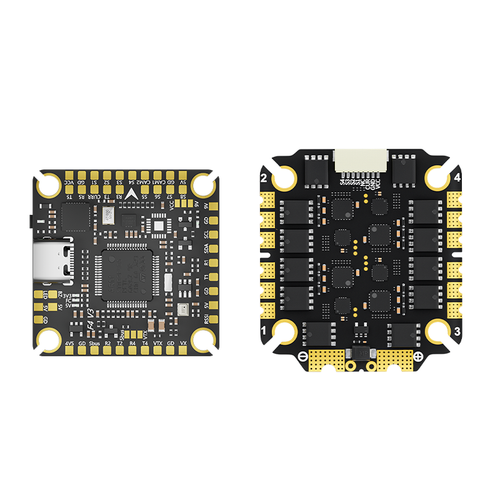

Flight Controller Specifications

Flight Controller	F405 V4 FC
MCU	STM32F405RGT6, 168 MHz, 1 MB Flash
Gyroscope	ICM42688P (SPI1)
Barometer	SPL06-001 (I2C1)
OSD Chip	AT7456E (SPI2)
Blackbox	16 MB onboard flash (SPI3)
Motor Outputs	8 channels
UARTs	5
PWM Outputs	10, including the LED strip pad
BEC Outputs	5V/2.5A and 9V/2.5A
USB Interface	USB Type-C
Flight-Control Firmware	Betaflight, INAV and ArduPilot (ChiBiOS)
Firmware Target	AOCODARCF405V3

ESC Specifications

ESC Model	3065S
ESC Type	8-bit 4-in-1 ESC
Input Voltage	3–8S LiPo
Continuous Current	65A × 4
Peak Current	75A × 4
Current Scaling	75A × 4, as labeled in the supplied specification
Current Meter Scale	77, according to the supplied setup image
Telemetry	Supported
ESC BEC	No
Control Protocols	DShot150, DShot300, DShot600, MultiShot and OneShot
ESC Firmware	Bluejay D_X_30_v0.21.1-RC1.hex

Interfaces and Connections

UART1: GPS
UART2: Receiver
UART3: ESC
UART4: VTX
UART5: Selectable
Dual camera inputs with selectable camera switching
Analog VTX and HD video-system support
DJI FPV OSD support through an available UART
Dedicated connections for the receiver, GPS, buzzer and LED strip
Built-in inverter for S.BUS receiver input
FC-to-ESC connection through the included 8-pin SH1.0 mm cable

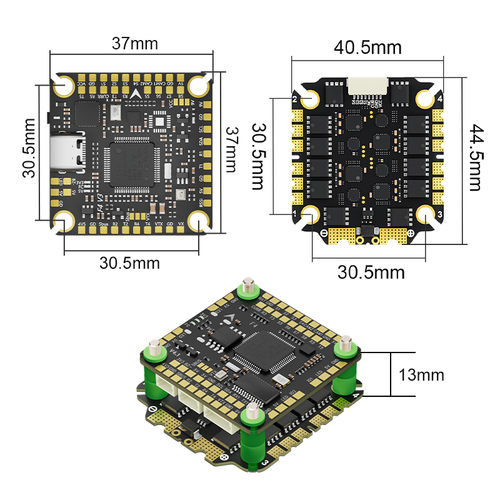

Physical Specifications

FC Dimensions	37 × 37 mm
FC Weight	9.4 g
ESC Dimensions	44.5 × 40.5 mm
ESC Weight	15.8 g
Mounting Pattern	M3, 30.5 × 30.5 mm
Assembled Stack Height	Approximately 13 mm, according to the supplied dimension drawing

Installation Notes

Use a 3–8S LiPo battery within the specified voltage range of the complete F465S V4 stack.
Check the selected peripheral-output voltage before connecting a camera or VTX. The supplied wiring diagram shows 9V as the default selectable output.
Verify every signal, ground and power connection against the supplied wiring diagram before applying battery power.
Install the FC and ESC with the supplied vibration-damping hardware and maintain clearance between both boards.
Connect the supplied 35V 1000µF capacitor to the ESC power pads with the correct polarity.

Package Contents

1 × F405 V4 Flight Controller
1 × 3065S 8-bit 4-in-1 ESC
1 × 8-pin SH1.0 mm reverse-connection cable
8 × M3 × 8 mm shock-absorbing balls
1 × 35V 1000µF solid-state electrolytic capacitor
1 × XT60 power cable
8 × Nuts
4 × M3 × 30 mm metal screws

FAQ

What components are included in the Aocoda-RC F465S V4 Stack?

The stack combines an F405 V4 flight controller with a 3065S 65A 8-bit 4-in-1 ESC. The package also includes an 8-pin connection cable, vibration-damping hardware, a 35V 1000µF capacitor, an XT60 power cable, nuts and mounting screws.

What is the input-voltage range of the F465S V4?

Both the F405 V4 flight controller and the included 3065S ESC support a 3–8S LiPo input range.

What are the continuous and peak-current ratings?

The 3065S ESC is rated for 65A continuous current and 75A peak current per channel. It provides four ESC channels on one board.

Which firmware does the 3065S ESC use?

The specified firmware is Bluejay D_X_30_v0.21.1-RC1.hex. Supported motor-control inputs include DShot150, DShot300, DShot600, MultiShot and OneShot.

Which flight-control firmware does the FC support?

The manufacturer lists Betaflight, INAV and ArduPilot with ChiBiOS support. The specified firmware target is AOCODARCF405V3.

What mounting pattern does the stack use?

Both boards use an M3 30.5 × 30.5 mm mounting pattern. The FC measures 37 × 37 mm, while the ESC measures 44.5 × 40.5 mm.

Does the flight controller support analog and HD video?

Yes. The supplied material shows analog and HD video support, dual camera inputs, selectable camera switching and DJI FPV OSD support through an available UART.
