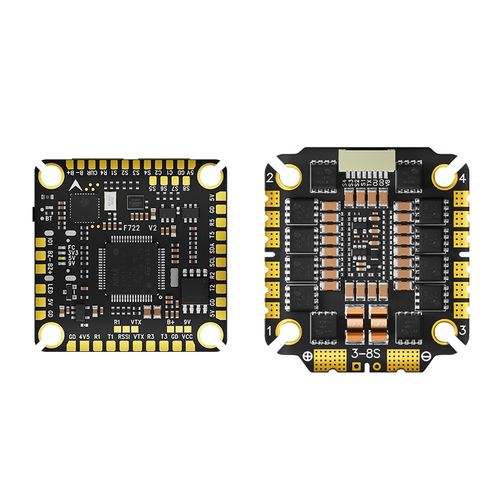

The supplied 3065 V2 ESC, its PCB marking and the manufacturer’s 3065 component specification identify a 3–8S LiPo operating range. Confirm that the delivered ESC is the 3065 V2 3–8S version before installation.

The 3065 V2 ESC is specified for 65A continuous current and 75A peak current on each of its four motor channels. No peak-duration condition is provided in the supplied material.

Select AOCODARCF722V2. The flight controller is specified for Betaflight, INAV and ArduPilot ChibiOS using this target.

The F722 V2 flight controller uses an ICM42688P gyroscope, SPL06-001 barometer and AT7456E OSD chip. It also includes 16 MB of blackbox memory.

The supplied ESC specifications list DShot150, DShot300, DShot600, MultiShot and OneShot input signals. Telemetry is also listed as supported.

The supplied wiring diagram shows an amperage meter setting of 120. Current sensing should be calibrated in the completed aircraft before the displayed readings are treated as accurate.

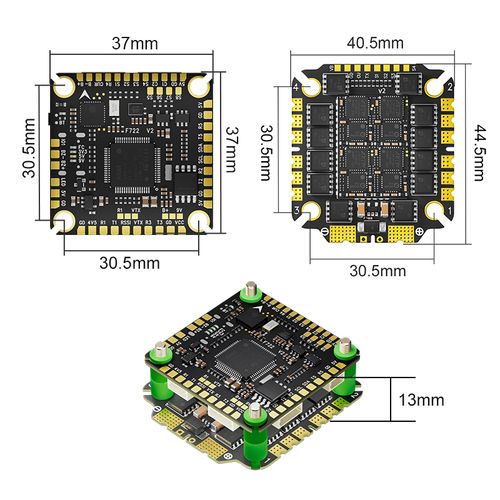

Both boards use an M3 30.5 × 30.5 mm mounting pattern. The flight controller measures 37 × 37 mm, the ESC measures 44.5 × 40.5 mm and the illustrated assembled stack height is 13 mm.

The manufacturer lists Bluetooth-equipped and non-Bluetooth variants. Bluetooth availability therefore depends on the selected SKU and should be confirmed before purchase.

The flight controller supports receiver systems including ELRS, CRSF, S.BUS, FrSky, Futaba, FlySky, TBS Crossfire and DSMX. It also provides analog video connections and DJI FPV OSD support through an available UART.

The supplied package list includes one F722 V2 flight controller, one 3065 V2 65A ESC, two 8-pin SH1.0 cables, eight shock-absorbing balls, one 35V 1000µF capacitor, one XT60 power cable, eight nuts and four M3 × 30 mm screws.

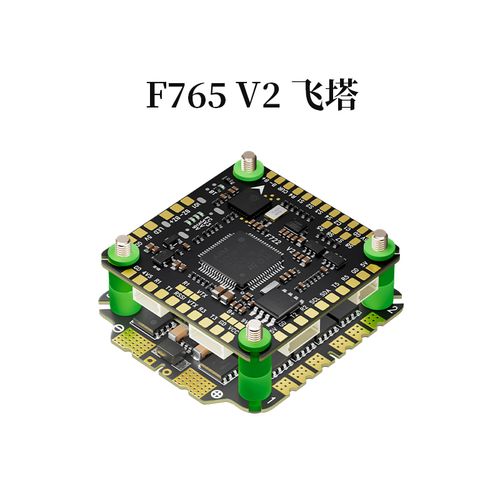

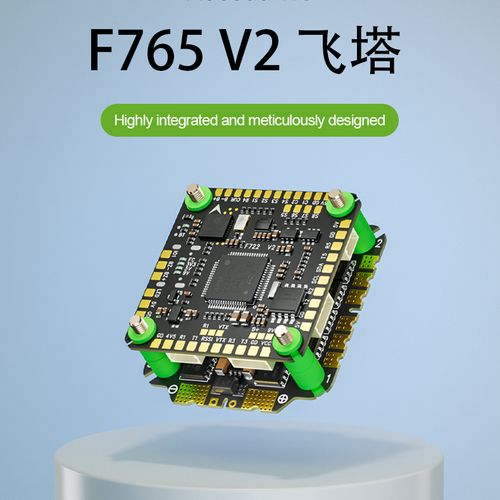

Use “Aocoda-RC F765 V2 Stack, F722 V2 FC plus 3065 V2 AM32 65A 4-in-1 ESC, 3–8S, 30.5 × 30.5 mm.” This helps separate it from the F760 V2 and F775 V2 stacks.

Confirm the 3065 V2 ESC version, 3–8S input range, Bluetooth or non-Bluetooth option, flight-controller target, ESC firmware, package contents and required quantity during quotation.

The supplied 3065 V2 material and manufacturer component specification identify 3–8S operation, while the manufacturer’s separate F765 V2 listing title states 3–6S. The exact production-batch ESC should therefore be confirmed before order approval.

MOQ, unit price, stock status and production lead time depend on the requested quantity and product variant and must be confirmed during quotation.

OEM branding, labeling, manuals and custom packaging are not established by the supplied product material. Availability and applicable order requirements must be confirmed during quotation.

Request the required AOCODARCF722V2 target information, ESC firmware version, wiring diagram and current-sensor settings as part of the quotation so that document availability can be confirmed for the ordered batch.

Provide the supplier with the exact 3065 V2 hardware version and request the corresponding manufacturer-approved firmware. Do not select the firmware solely from the current rating contained in a filename.

Sample availability, certificates, warranty coverage, delivery terms and after-sales conditions are not specified in the supplied files and must be confirmed during quotation.
