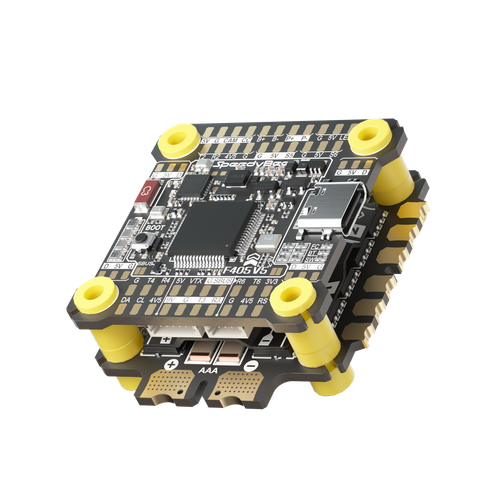

SpeedyBee F405 V5 OX32 55A FPV Stack

Short Description:

SpeedyBee F405 V5 stack with STM32F405 FC, ICM42688P gyro, 16MB Blackbox and a 3–6S OX32 55A 4-in-1 ESC for FPV drones.

Product Name: SpeedyBee F405 V5 OX32 55A FPV Stack
Product Type: 30.5 × 30.5 mm Flight Controller and 4-in-1 ESC Stack
MCU: STM32F405
Gyroscope: ICM42688P
Barometer: SPA06-003
OSD Chip: AT7456E
Firmware: Betaflight
Firmware Target: SPEEDYBEEF405V5
ESC: OX32 55A 32-bit 4-in-1 ESC
Input Voltage: 3–6S LiPo

Send email to us

Product Detail

FAQ

Technical Highlights

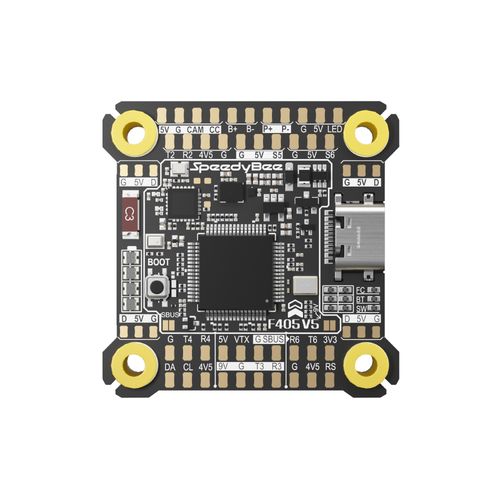

STM32F405 Flight Controller

The SpeedyBee F405 V5 combines an STM32F405 MCU with an ICM42688P gyroscope, SPA06-003 barometer and AT7456E analog OSD for FPV aircraft control.

Built-In 16MB Blackbox Storage

Integrated 16MB flash storage records Betaflight Blackbox data without requiring a removable microSD card, supporting flight analysis and filter or PID tuning.

Wireless Configuration and Firmware Upgrade

Built-in Bluetooth supports parameter tuning and compatible flight-controller firmware upgrades through the SpeedyBee App.

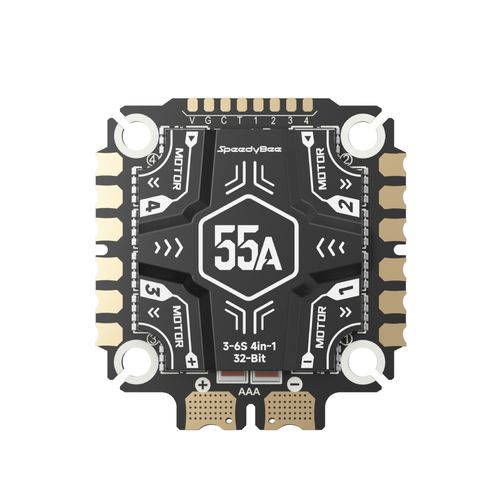

OX32 55A 32-Bit ESC

The included OX32 4-in-1 ESC supports 3–6S LiPo power, 55A continuous current per channel, DShot300 and DShot600 motor protocols, current sensing and ESC telemetry.

Expanded Aircraft Interfaces

The flight controller provides four motor outputs, two servo outputs, receiver connections, GPS and I2C interfaces, ESC telemetry input, camera-control pads and a 6-pin digital video connector.

Recessed USB Type-C Port

The recessed USB Type-C connector reduces the connector profile and improves access when the controller is installed in a compact aircraft frame.

Flight Controller Specifications

Product Name	SpeedyBee F405 V5 30.5 × 30.5 mm Model Aircraft Flight Controller
MCU	STM32F405
Gyroscope	ICM42688P
Barometer	SPA06-003
OSD Chip	AT7456E
Firmware	Betaflight
Firmware Target	SPEEDYBEEF405V5
Factory Firmware Reference	Betaflight 4.5.2
Blackbox	Built-in 16MB flash storage
Wireless Functions	Bluetooth parameter tuning and compatible wireless FC firmware upgrade through the SpeedyBee App
USB Port	Recessed USB Type-C
Motor Outputs	M1–M4
Servo Outputs	S5–S6
ESC Connection	M1–M4 solder pads and rear 10-pin connector
ESC Telemetry Input	Supported through UART5
UART Interfaces	UART1, UART2, UART3, UART4, UART5 and UART6 with dedicated Bluetooth, receiver, digital video, GPS and ESC telemetry functions
I2C	Supported through GPS connector and solder pads
Digital Video Connection	6-pin direct connector or solder connection for compatible DJI digital FPV equipment
Camera Control	Supported through the CC pad
LED Outputs	ST LED and Meteor LED strip connections
Buzzer Pads	Supported
RSSI Pads	Supported
SmartPort	Not supported
BEC Outputs	Independent 5V and PINIO-switchable 9V outputs
USB-Powered Output	Three 4.5V pads, maximum combined output current 1A, for compatible receiver or GPS equipment
Additional Output	One 3.3V solder pad
Input Voltage	3–6S LiPo
Mounting Pattern	30.5 × 30.5 mm, side-opening Ø4 mm holes
Dimensions	39 × 39 × 4.9 mm
Weight	Approximately 8.1 g

ESC Specifications

Product Name	SpeedyBee OX32 55A 30.5 × 30.5 mm 4-in-1 ESC
ESC Architecture	32-bit 4-in-1 ESC
Default Firmware	OX32
Input Voltage	3–6S LiPo
Continuous Current	55A per channel; 220A total for four channels
Maximum Current	70A per channel; 280A total for four channels
Motor Protocols	DShot300 and DShot600
Power Output	VBAT
Current Sensor	Supported
ESC Telemetry	Supported
Protection	Built-in TVS protective diode and heat sink
External Capacitor	35V 1000µF solid capacitor specified for the ESC
Mounting Pattern	30.5 × 30.5 mm, side-opening Ø4 mm holes
Dimensions	40.9 × 44.9 × 8.0 mm including heat sink
Weight	Approximately 19.1 g

Interface Allocation

UART1	Onboard Bluetooth connection
UART2	Front receiver solder pads
UART3	Digital VTX pads and rear 6-pin connector
UART4	GPS pads and front 6-pin connector
UART5	ESC telemetry input
UART6	Receiver pads and rear 4-pin connector

Compatibility and Installation Notes

Use the SPEEDYBEEF405V5 Betaflight firmware target.
Do not install SPEEDYBEEF405V4 firmware or use F405 V4 wiring documentation.
The OX32 55A ESC supports 3–6S LiPo input and DShot300 or DShot600 control.
Use the current firmware-target defaults as the starting point for current-sensor configuration and calibrate the reading against known equipment when required.
Observe correct polarity when connecting the battery lead and external capacitor.
Confirm receiver, GPS, digital video, analog video, servo and LED wiring before applying battery power.
The servo output power source must be selected according to the voltage requirements of the connected servos.
Motor, propeller and battery suitability must be evaluated as a complete propulsion system.

FAQ

Is this the SpeedyBee F405 V5 or F405 V4 stack?

This is the F405 V5 flight controller combined with the OX32 55A 32-bit 4-in-1 ESC. It is not the F405 V4 BLS 60A stack.

Which Betaflight target should be used?

Use the SPEEDYBEEF405V5 target. Firmware intended for the F405 V4 must not be installed on this controller.

Which flight-controller firmware is officially specified?

Betaflight is the officially specified firmware for this product. Compatibility with other flight-control platforms should not be assumed without confirmation for the required firmware version.

What battery voltage does the stack support?

The flight controller and OX32 55A ESC support 3–6S LiPo input.

What is the ESC current rating?

The ESC is rated for 55A continuous current per channel and a stated maximum of 70A per channel.

Does the OX32 ESC support telemetry?

Yes. ESC telemetry is supported and connects to the flight controller through the UART5 telemetry input.

Does the flight controller require a microSD card for Blackbox logging?

No. The F405 V5 includes built-in 16MB flash storage for Betaflight Blackbox data.

Can the flight controller be configured wirelessly?

Yes. Built-in Bluetooth supports parameter tuning and compatible firmware operations through the SpeedyBee App.

Does the flight controller provide servo outputs?

Yes. S5 and S6 servo signal outputs are provided. The selected servo power supply must match the voltage requirements of the connected servos.

B2B Procurement FAQ

What exact model should be stated on a purchase order?

Specify SpeedyBee F405 V5 OX32 55A 30x30 Model Aircraft FC and ESC Stack. The manufacturer SKU shown for the complete stack is SB-F4V5-OX32-55-PRO-STACK.

How can buyers avoid receiving the F405 V4 version?

State F405 V5, OX32 55A 32-bit ESC and firmware target SPEEDYBEEF405V5 on the purchase order. Do not use the F405 V4, BLS 60A or SPEEDYBEEF405V4 descriptions.

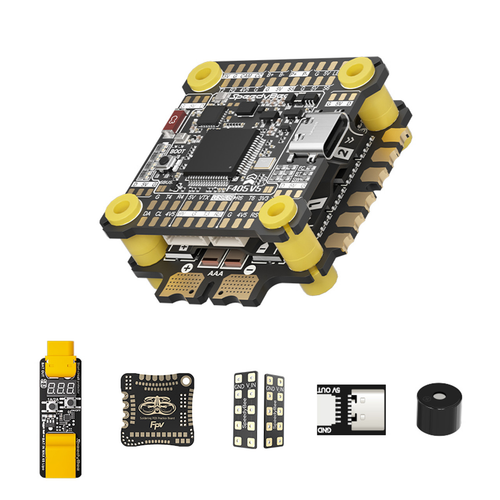

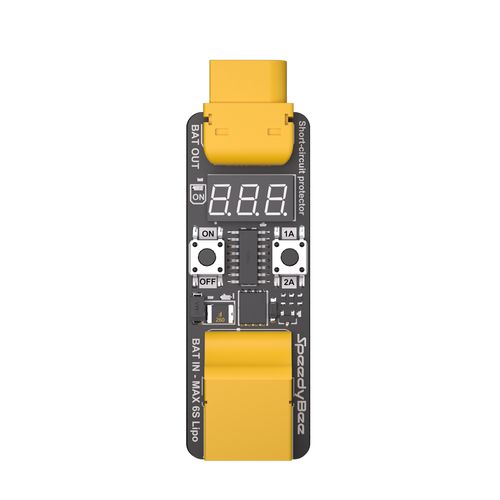

Are the voltage tester and expansion boards included?

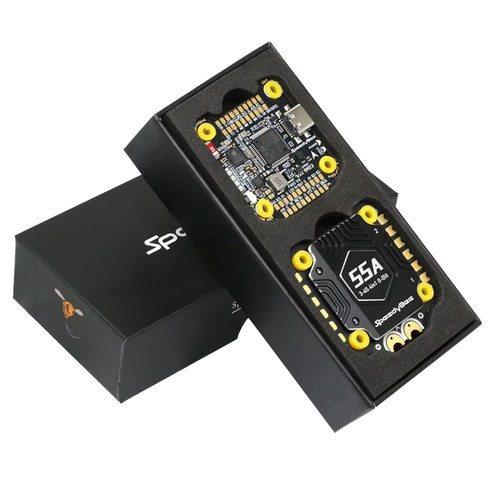

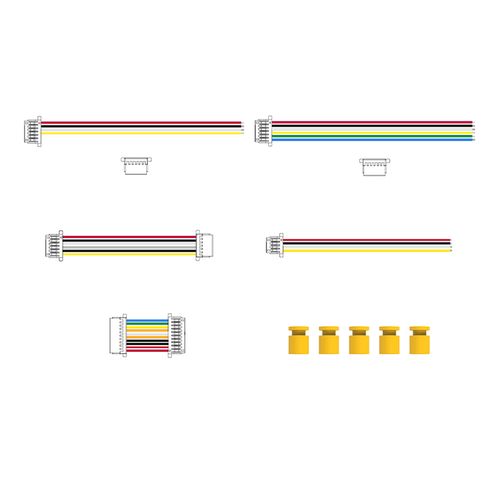

The supplied product images show multiple selectable configurations and optional accessories. Confirm the exact FC, ESC, cables, capacitor and accessory contents during quotation rather than assuming every pictured item is included.

Should the BEC current ratings be confirmed before ordering?

Yes. The supplied reseller specification image and the current manufacturer webpage show different 5V and 9V BEC current ratings. Confirm the rating for the offered hardware revision before purchase.

Is the SpeedyBee F405 V5 OX32 55A stack still available?

The manufacturer currently identifies this model as discontinued. Available quantity, production revision and product condition must be confirmed during quotation.

What should be checked during incoming inspection?

Verify the F405 V5 board marking, OX32 55A ESC marking, 30.5 × 30.5 mm mounting pattern, supplied accessories, connector condition and physical board condition before installation.

Should firmware be updated before delivery?

Firmware requirements should be confirmed for each order. Any update must use the SPEEDYBEEF405V5 target, and the existing configuration should be backed up before flashing.

Are MOQ, lead time and packaging fixed?

MOQ, available quantity, lead time and packaging requirements must be confirmed during quotation.
