It is a stack containing a SoloGood F722 V1.0 flight controller and one BLS60A 4-in-1 ESC.

Select the SOLOGOODF722 target. Save the existing configuration before flashing or updating firmware.

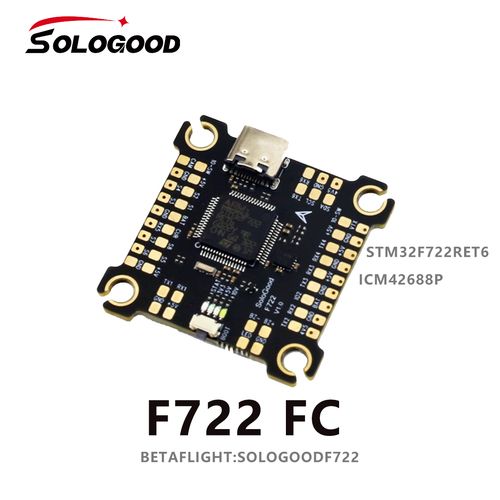

The supplied product images identify this version as the ICM42688P variant. Because other SoloGood F722 sensor variants exist, confirm the production batch before ordering replacements.

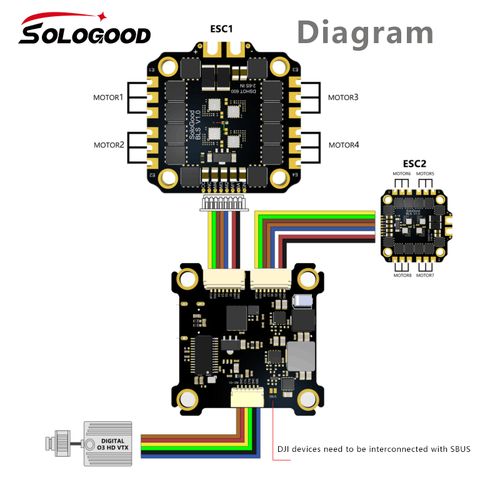

The flight controller provides eight motor signal outputs, but the supplied 4-in-1 ESC powers four motors. An X8 build requires a second compatible 4-in-1 ESC for motors five through eight.

The detailed specifications identify 3–6S LiPo operation. Do not assume 2S support without confirming the exact hardware batch with the supplier.

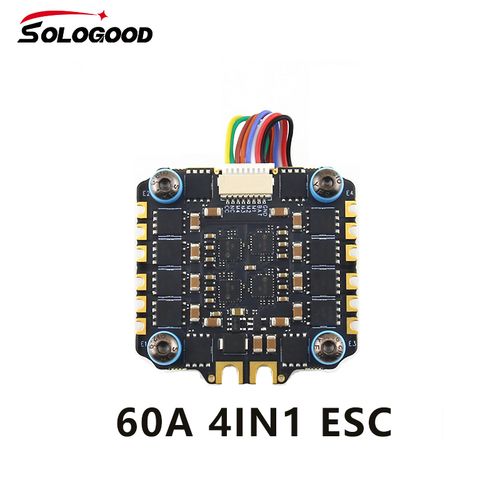

The BLS60A ESC supports DShot300 and DShot600.

The ESC can use compatible Bluejay firmware for bidirectional DShot and RPM filtering. Firmware installation and Betaflight configuration must be completed correctly before enabling these functions.

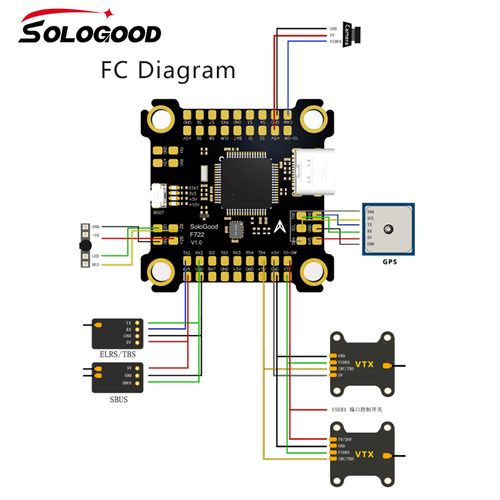

Yes. The flight controller provides a USER1-controlled 10V output intended for VTX power management.

Yes. It includes 16 MB of onboard flash memory for Betaflight blackbox logging.

The stack is specified with a 1000 µF external capacitor. Install it with the correct polarity across the ESC battery input and keep the leads as short as practical.

Confirm the F722 V1.0 board revision, ICM42688P gyroscope, barometer model, SOLOGOODF722 firmware target, BLS60A ESC firmware and 3–6S input range.

No. They are different sensor variants. Purchase orders and quotations should identify the required gyroscope explicitly to avoid receiving a different production version.

State that eight motor outputs are required and confirm whether one or two 4-in-1 ESCs are needed. The standard stack shown contains one four-channel ESC.

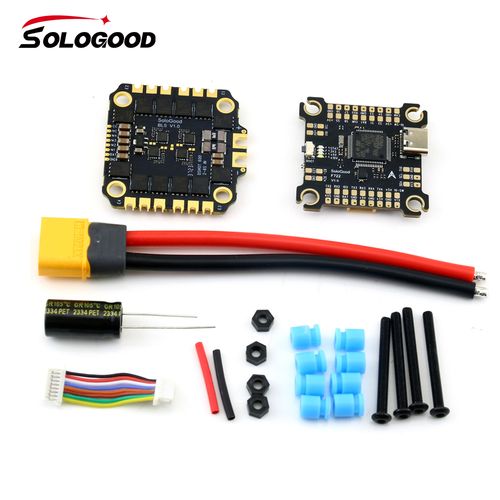

Confirm the quantities of flight controllers, ESCs, FC-to-ESC cables, XT60 leads, capacitors, silicone grommets, screws, nuts and heat-shrink tubing during quotation.

Request confirmation of the installed BLHeli_S firmware version and whether Bluejay flashing is required for the intended bidirectional DShot configuration.

MOQ, availability and lead time depend on the selected hardware revision, ESC quantity and order volume. These items must be confirmed during quotation.
