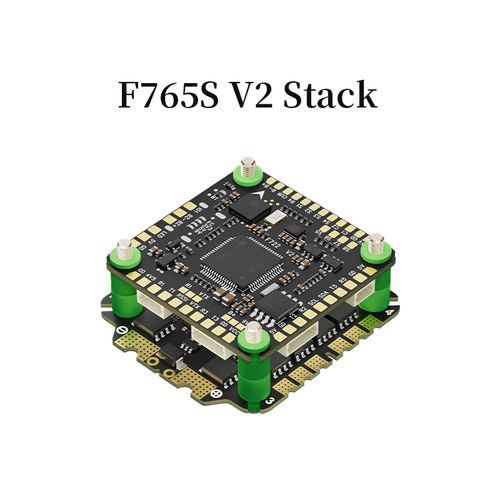

Aocoda-RC F765S V2 Stack

Short Description:

The Aocoda-RC F765S V2 stack pairs an F722 V2 flight controller with a 3065S 8-bit 65A Bluejay 4-in-1 ESC for 3-8S FPV builds.

Product Name: Aocoda-RC F765S V2 Stack
Product Type: F722 Flight Controller and 8-bit 4-in-1 ESC Stack
MCU: STM32F722RET6, 216 MHz, 512 KB Flash
Gyroscope: ICM42688P (SPI1)
Barometer: SPL06-001 (I2C)
OSD Chip: AT7456E (SPI2)
Firmware: Betaflight / INAV / ArduPilot (ChibiOS)
Firmware Target: AOCODARCF722V2
ESC Specification: 3065S V2 8-bit Bluejay 4-in-1 ESC, 65A Continuous ×4, 75A Peak ×4, 3–8S LiPo
Mounting Pattern: M3, 30.5 × 30.5 mm

Send email to us

Product Detail

FAQ

Technical Highlights

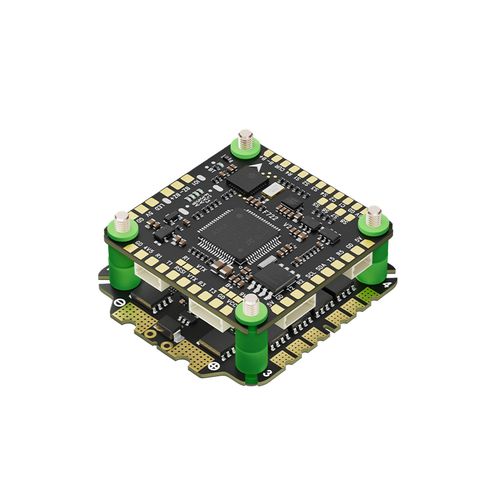

STM32F722 Flight Controller

The F722 V2 flight controller uses an STM32F722RET6 processor running at 216 MHz with 512 KB of flash memory. Its sensor set includes an ICM42688P gyroscope, SPL06-001 barometer and AT7456E OSD chip.

3065S V2 8-bit Bluejay ESC

The included 8-bit 4-in-1 ESC supports 3–8S LiPo systems and is specified for 65A continuous current and 75A peak current on each motor channel.

Multiple ESC Control Protocols

The 3065S V2 supports DShot150, DShot300, DShot600, MultiShot, OneShot, ProShot and PWM control signals with Bluejay firmware.

Standard 30.5 mm Stack Format

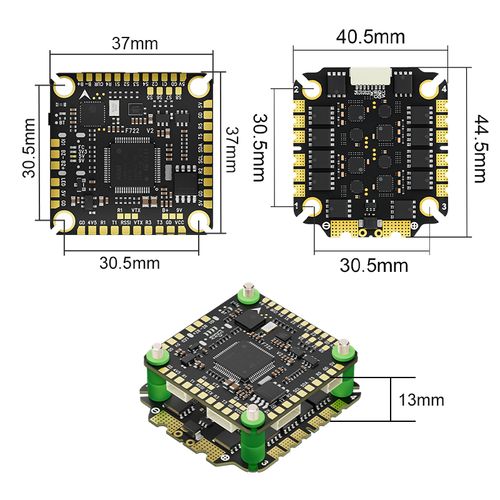

Both boards use an M3 30.5 × 30.5 mm mounting pattern. The supplied dimensional drawing shows a 13 mm assembled stack height.

Flight Controller Specifications

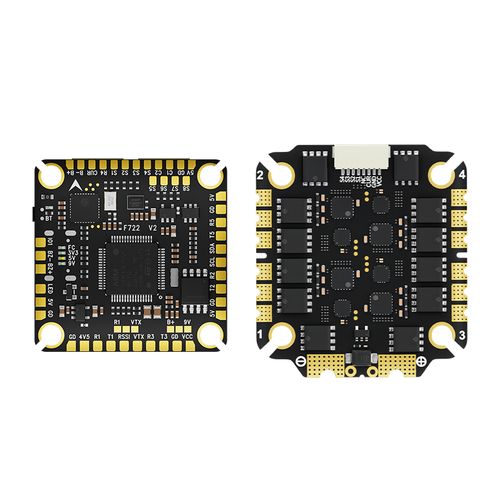

Flight Controller	F722 V2
MCU	STM32F722RET6, 216 MHz, 512 KB Flash
Gyroscope	ICM42688P (SPI1)
Barometer	SPL06-001 (I2C)
OSD Chip	AT7456E (SPI2)
Blackbox Memory	16 MB (SPI3)
Motor Outputs	8 channels
UARTs	5
BEC Outputs	5V / 2.5A and 9V / 2.5A
FC Input Voltage	12.6–33.6V, 3–8S LiPo
USB Interface	USB Type-C
Firmware	Betaflight, INAV and ArduPilot (ChibiOS)
Firmware Target	AOCODARCF722V2
FC Dimensions	37 × 37 mm
FC Weight	9.4 g

ESC Specifications

ESC Model	3065S V2 8-bit 4-in-1 ESC
Input Voltage	3–8S LiPo
Continuous Current	65A ×4
Peak Current	75A ×4
ESC Firmware	Bluejay D_X_30_v0.21.1-RC1-hex
Telemetry	Supported
Amperage Meter Setting	70, as specified in the supplied wiring material
BEC Output	None
Input Signals	DShot150, DShot300, DShot600, MultiShot, OneShot, ProShot and PWM
ESC Dimensions	44.5 × 40.5 mm
ESC Weight	15.8 g
Mounting Pattern	M3, 30.5 × 30.5 mm

Interfaces and Controls

UART1	Receiver
UART2	GPS
UART3	VTX
UART4	ESC
UART5	Optional peripheral
Receiver Support	ELRS, CRSF, S.BUS, FrSky, Futaba, FlySky, TBS Crossfire and DSMX
Camera Inputs	Dual camera inputs with switching support
Video System Support	Analog VTX and DJI FPV OSD through an available UART
Additional Interfaces	GPS, LED strip, buzzer and user IO
Bluetooth Configuration	Supported on the Bluetooth-equipped FC version shown in the supplied material

Physical Specifications

FC Dimensions	37 × 37 mm
ESC Dimensions	44.5 × 40.5 mm
Assembled Stack Height	13 mm, as shown in the supplied dimensional drawing
Mounting Pattern	M3, 30.5 × 30.5 mm
FC Weight	9.4 g
ESC Weight	15.8 g

Installation Notes

Confirm that the supplied ESC is the 3065S V2 8-bit Bluejay version rather than the 3065 V2 32-bit AM32 version.
Select the AOCODARCF722V2 target when configuring the flight controller.
The wiring diagram specifies B+ for the selectable VTX supply when using 3–4S and 9V when using 6–8S. Check the selected voltage before connecting a video transmitter.
The supplied wiring material specifies an amperage meter setting of 70. Calibrate the current sensor in the completed aircraft before relying on current readings.
Use firmware intended for the 3065S V2 8-bit ESC. Do not flash the AM32 firmware used by the non-S F765 V2 stack.
Observe correct polarity when installing the supplied 35V 1000µF capacitor and XT60 power lead.

Variant Selection

Choose F765S V2 for the 3065S V2 8-bit Bluejay ESC configuration.
Choose F765 V2 only when the 3065 32-bit AM32 ESC configuration is required.
Confirm whether the required flight-controller SKU includes Bluetooth configuration hardware.

Recommended Applications

3–8S FPV racing drones
3–8S freestyle FPV builds
Multirotors using an M3 30.5 × 30.5 mm electronics stack
Analog or compatible DJI digital FPV configurations

Package Contents

1 × F722 V2 flight controller
1 × 3065S V2 8-bit 65A 4-in-1 ESC
1 × 8-pin SH1.0 connection cable
8 × M3 × 8 mm shock-absorbing balls
1 × 35V 1000µF solid-state electrolytic capacitor
1 × XT60 power cable
8 × Nuts
4 × M3 × 30 mm metal screws

FAQ

What does the “S” in F765S V2 mean?

The F765S V2 package uses the 3065S V2 8-bit ESC with Bluejay firmware. The non-S F765 V2 uses a different 32-bit AM32 ESC, so their ESC firmware must not be interchanged.

What battery voltage does the F765S V2 support?

The F765S V2 stack is specified for 3–8S LiPo operation through its 3065S V2 ESC.

What are the ESC current ratings?

The 3065S V2 ESC is specified for 65A continuous current and 75A peak current on each of its four motor channels. No peak-current duration is provided in the supplied material.

Which firmware does the ESC use?

The 8-bit ESC uses Bluejay firmware. The supplied firmware filename is Bluejay D_X_30_v0.21.1-RC1-hex.

Which ESC control signals are supported?

The supplied specifications list DShot150, DShot300, DShot600, MultiShot, OneShot, ProShot and PWM control signals. Telemetry is also listed as supported.

Which flight controller firmware target should I select?

Select AOCODARCF722V2. The flight controller is specified for Betaflight, INAV and ArduPilot ChibiOS using this target.

Which sensors are installed on the F722 V2 flight controller?

The flight controller uses an ICM42688P gyroscope, SPL06-001 barometer and AT7456E OSD chip. It also includes 16 MB of blackbox memory.

What current-meter setting is shown in the wiring diagram?

The supplied wiring diagram shows an amperage meter setting of 70. Calibrate current sensing in the completed aircraft before relying on the displayed measurements.

Does the flight controller include Bluetooth?

The supplied images show Bluetooth hardware and a configurable Bluetooth switch. Confirm that the selected product SKU is the Bluetooth-equipped version before purchase.

What is included in the package?

The package list includes one F722 V2 flight controller, one 3065S V2 8-bit ESC, one 8-pin SH1.0 cable, eight shock-absorbing balls, one 35V 1000µF capacitor, one XT60 power cable, eight nuts and four M3 × 30 mm screws.

B2B Procurement FAQ

Which model description should be used on a purchase order?

Use “Aocoda-RC F765S V2 Stack, F722 V2 FC plus 3065S V2 8-bit Bluejay 65A 4-in-1 ESC, 3–8S, 30.5 × 30.5 mm.”

How can buyers avoid receiving the non-S F765 V2 version?

Specify the complete 3065S V2 8-bit Bluejay ESC description on the purchase order. The non-S F765 V2 uses a 3065 32-bit AM32 ESC and is a different product configuration.

Which details should be confirmed before a bulk order?

Confirm the F765S V2 model, 3065S V2 8-bit ESC, 3–8S input range, Bluetooth option, firmware version, package contents and required quantity during quotation.

What are the MOQ, unit price and production lead time?

MOQ, pricing, stock status and production lead time depend on the requested quantity and product variant and must be confirmed during quotation.

Can OEM branding or custom packaging be requested?

OEM branding, labeling, manuals and custom packaging are not established by the supplied product material. Availability and applicable order requirements must be confirmed during quotation.

Can firmware and wiring documentation be supplied?

Request the AOCODARCF722V2 target information, Bluejay ESC firmware, wiring diagram and current-meter settings as part of the quotation so that document availability can be confirmed for the ordered batch.

Are samples, certificates or warranty terms available?

Sample availability, certificates, warranty coverage, delivery terms and after-sales conditions are not specified in the supplied files and must be confirmed during quotation.
