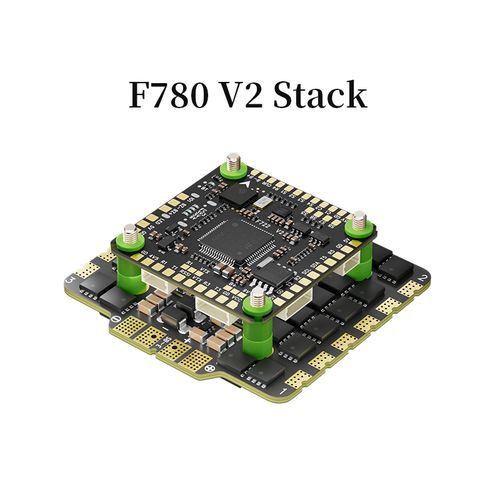

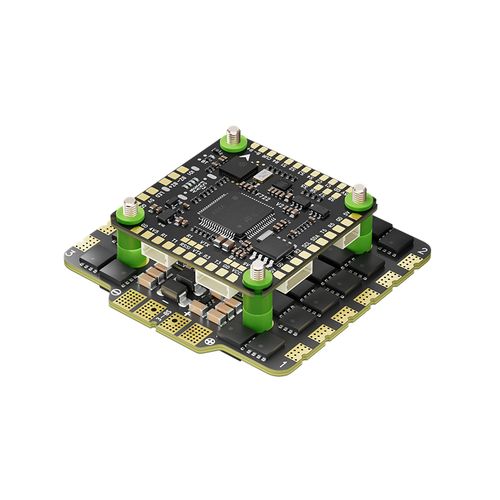

Aocoda-RC F780 V2 Stack

Short Description:

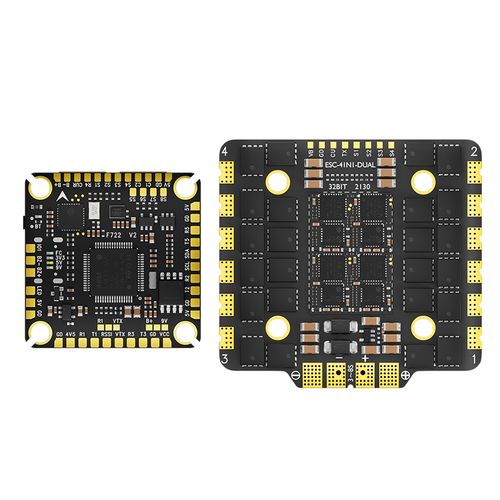

The Aocoda-RC F780 V2 stack combines an F722 V2 flight controller with a 3080 32-bit AM32 80A 4-in-1 ESC for 3–8S FPV builds.


  • Product Name: Aocoda-RC F780 V2 Stack
  • Product Type: F722 Flight Controller and 32-bit 4-in-1 ESC Stack
  • MCU: STM32F722RET6
  • Gyroscope: ICM42688P
  • Barometer: SPL06-001
  • OSD Chip: AT7456E
  • Firmware: Betaflight / INAV
  • Firmware Target: AOCODARCF722V2
  • ESC Specification: 3080 32-bit AM32 4-in-1 ESC; 80A × 4 continuous, 100A × 4 instantaneous maximum; 3–8S LiPo
  • Mounting Pattern: M3, 30.5 × 30.5 mm

Product Detail

FAQ

Technical Highlights

F722 V2 Flight Controller

The flight controller uses an STM32F722RET6 MCU, ICM42688P gyroscope, SPL06-001 barometer, AT7456E OSD chip, and 16 MB blackbox memory.

3080 32-bit AM32 ESC

The included 4-in-1 ESC supports 3–8S LiPo input and is specified for 80A per channel continuous current and 100A per channel instantaneous maximum current.

FPV Build Connections

The flight controller provides five UARTs, eight motor outputs, dual-camera connections, OSD support, LED strip support, and a buzzer connection.

30.5 × 30.5 mm Mounting

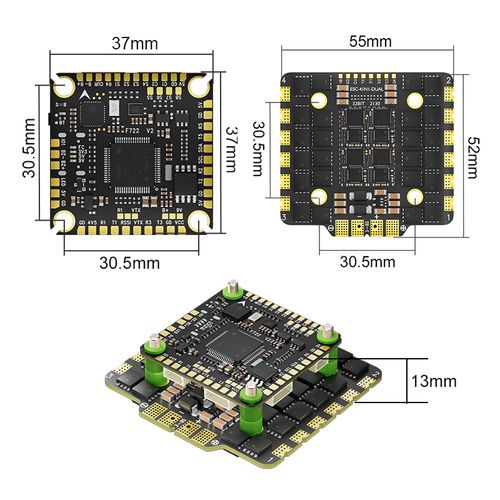

Both boards use an M3 30.5 × 30.5 mm mounting pattern. The supplied dimension image shows a 13 mm assembled stack height.

Flight Controller Specifications

Flight ControllerF722 V2 FC
MCUSTM32F722RET6
GyroscopeICM42688P
BarometerSPL06-001
OSD ChipAT7456E
Blackbox Memory16 MB
FirmwareBetaflight / INAV
Firmware TargetAOCODARCF722V2
UARTs5
Motor Outputs8
BEC Outputs5V / 2.5A and 9V / 2.5A
Dimensions37 × 37 mm
Weight9.4 g

ESC Specifications

ESC Model3080 32-bit 4-in-1 ESC
ESC FirmwareAM32; the supplied parameter sheet lists AM32_AORC_K_A_F421_2.16.hex
Input Voltage3–8S LiPo
Continuous Current80A × 4
Instantaneous Maximum Current100A × 4; duration is not specified
Listed Input SignalsDShot150 / DShot300 / DShot600, Multishot, OneShot, Proshot, and PWM
Onboard AmmeterSupported
TelemetrySupported
Dimensions55 × 52 mm, according to the supplied F780 V2 dimension drawing
Weight33 g
Amperage Meter SettingScale 76; offset 0, according to the supplied F780 V2 wiring diagram

Physical Specifications

Mounting PatternM3, 30.5 × 30.5 mm
Flight Controller Dimensions37 × 37 mm
ESC Dimensions55 × 52 mm, according to the supplied F780 V2 drawing
Assembled Stack Height13 mm, according to the supplied dimension image

Installation Notes

  • Use the AOCODARCF722V2 target when preparing compatible flight-controller firmware. The flight controller and ESC require separate firmware configuration.

  • The supplied F780 V2 wiring diagram shows an ESC amperage-meter scale of 76 and offset of 0. Verify current readings during setup.

  • Confirm the VTX supply connection against the supplied wiring diagram and the voltage requirement of the installed VTX before applying power.

  • The package lists two 35V, 1000 µF capacitors. For an 8S installation, verify capacitor voltage rating and transient-voltage margin before use.

  • Bluetooth availability depends on the selected product option; confirm the required version when ordering.

Package Contents

  • F722 V2 flight controller × 1

  • 3080 32-bit ESC × 1

  • 8-pin SH1.0 connecting cables × 2

  • M3 × 8 mm shock-absorbing balls × 8

  • 35V, 1000 µF solid-state electrolytic capacitors × 2

  • XT90 power cord × 1

  • Nuts × 8

  • M3 × 30 mm metal screws × 4

FAQ

Which boards make up the F780 V2 stack?

The stack combines an F722 V2 flight controller with a 3080 32-bit AM32 4-in-1 ESC.

What battery range does the ESC support?

The supplied ESC specifications state 3–8S LiPo input. Check the voltage limits of connected peripherals separately.

What do the 80A and 100A current figures mean?

The ESC is specified for 80A per channel continuous current and 100A per channel instantaneous maximum current. The duration of the instantaneous rating is not stated.

Which flight-controller firmware target is listed?

The listed target is AOCODARCF722V2 for the F722 V2 flight controller. The ESC uses AM32 and must be configured separately.

What mounting pattern does the stack use?

Both boards use an M3 30.5 × 30.5 mm mounting pattern. The supplied F780 V2 drawing gives the ESC's outer dimensions as 55 × 52 mm.

Is Bluetooth included with every F780 V2 stack?

No single Bluetooth configuration is established for every unit. The manufacturer lists versions with and without Bluetooth, so confirm the selected option before ordering.

How should the ESC current meter be configured?

The supplied F780 V2 wiring diagram specifies scale 76 and offset 0. Verify the resulting current readings during setup.

B2B Procurement FAQ

How should the required F780 V2 configuration be specified?

Identify the F780 V2 stack, F722 V2 flight controller, 3080 32-bit AM32 ESC, and the required Bluetooth option in the inquiry. Ask for board-marking and configuration confirmation before ordering.

What accessories are shown in the supplied packing list?

The list includes two 8-pin SH1.0 cables, eight shock-absorbing balls, two 35V 1000 µF capacitors, one XT90 power cord, eight nuts, and four M3 × 30 mm screws, in addition to the FC and ESC. Confirm the final packing list during quotation.

Are MOQ, price, and lead time fixed?

These commercial terms are not established by the supplied material and must be confirmed during quotation.

Can firmware, labeling, or packaging be customized?

The supplied material does not establish a customization commitment. Provide the requested specification and quantity for feasibility confirmation during quotation.

Are certifications and warranty terms available?

No specific certification or warranty term is established by the supplied material. Request the applicable documents and terms during quotation.
