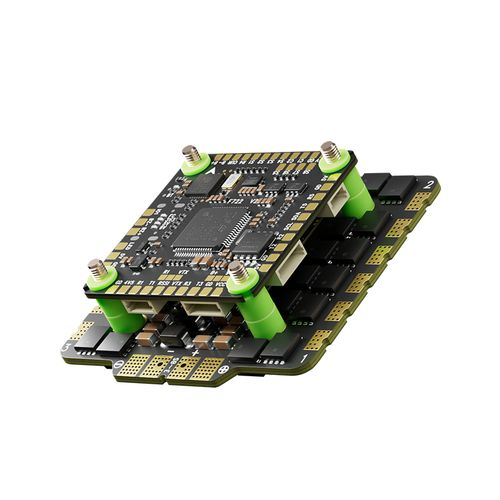

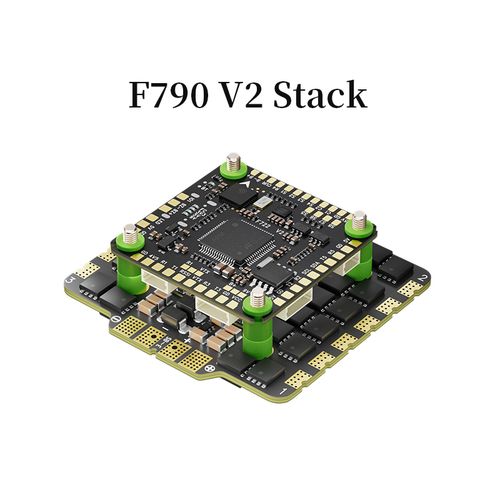

Aocoda-RC F790 V2 Stack

Short Description:

The Aocoda-RC F790 V2 stack pairs an F722 V2 flight controller with a 3090 32-bit AM32 90A 4-in-1 ESC for 3–8S FPV builds.


  • Product Name: Aocoda-RC F790 V2 Stack
  • Product Type: F722 Flight Controller and 32-bit 4-in-1 ESC Stack
  • MCU: STM32F722RET6
  • Gyroscope: ICM42688P
  • Barometer: SPL06-001
  • OSD Chip: AT7456E
  • Firmware: Betaflight / INAV
  • Firmware Target: AOCODARCF722V2
  • ESC Specification: 3090 32-bit AM32 4-in-1 ESC; 90A × 4 continuous, 100A × 4 peak; 3–8S LiPo
  • Mounting Pattern: M3, 30.5 × 30.5 mm

Product Detail

FAQ

Technical Highlights

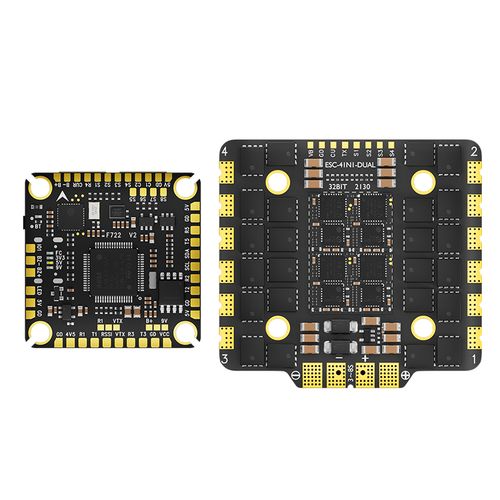

F722 V2 Flight Controller

The flight controller uses an STM32F722RET6 MCU, ICM42688P gyroscope, SPL06-001 barometer, AT7456E OSD chip, and 16 MB blackbox memory.

3090 32-bit AM32 ESC

The package list identifies a 3090 4-in-1 ESC. The manufacturer's 3090 variant rating is 90A per channel continuous current and 100A per channel peak current, with 3–8S LiPo input.

FPV Build Interfaces

The flight controller provides five UARTs, eight motor outputs, dual-camera connections, OSD support, LED strip support, and a buzzer connection.

30.5 × 30.5 mm Mounting

The flight controller and ESC use an M3 30.5 × 30.5 mm mounting pattern. Confirm the ESC's outer dimensions before finalizing enclosure or frame clearance.

Flight Controller Specifications

Flight ControllerF722 V2 FC
MCUSTM32F722RET6
GyroscopeICM42688P
BarometerSPL06-001
OSD ChipAT7456E
Blackbox Memory16 MB
FirmwareBetaflight / INAV
Firmware TargetAOCODARCF722V2
UARTs5
Motor Outputs8
BEC Outputs5V / 2.5A and 9V / 2.5A
Dimensions37 × 37 mm
Weight9.4 g

ESC Specifications

ESC Model3090 32-bit 4-in-1 ESC, as identified in the supplied package list
ESC FirmwareAM32
Input Voltage3–8S LiPo
Continuous Current90A × 4 for the 3090 variant
Peak Current100A × 4 for the 3090 variant; peak duration is not specified
Listed Input SignalsDShot300 / DShot600 and PWM in the supplied F790 V2 parameter image
Onboard AmmeterSupported
TelemetrySupported
Weight33 g

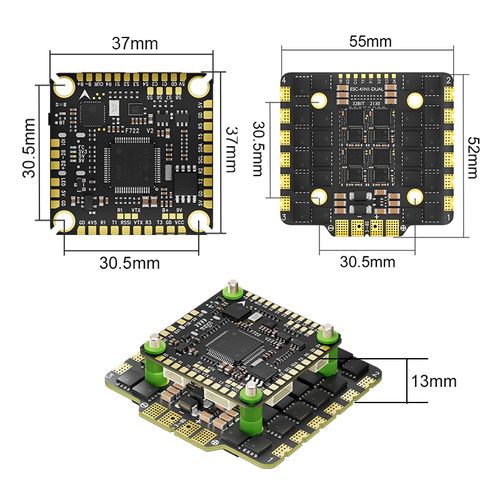

Physical Specifications

Mounting PatternM3, 30.5 × 30.5 mm
Flight Controller Dimensions37 × 37 mm
ESC Outer DimensionsConfirm for the supplied 3090 board before mechanical integration; the available sources disagree.

Installation Notes

  • Verify that the supplied ESC is marked or documented as the 3090 variant before applying the 90A continuous and 100A peak ratings.

  • Use the AOCODARCF722V2 target when preparing compatible flight-controller firmware. Configure flight-controller and ESC firmware separately.

  • Confirm the current-meter scale for the actual ESC before relying on displayed current readings; the supplied stack sheet and manufacturer's grouped ESC page give different values.

  • Check the VTX supply connection against the supplied wiring diagram and the voltage requirement of the installed VTX before applying power.

  • The listed capacitors are rated 35V. For an 8S installation, verify capacitor voltage rating and transient-voltage margin before use.

Package Contents

  • F722 V2 flight controller × 1

  • 3090 32-bit ESC × 1

  • 8-pin SH1.0 connecting cables × 2

  • M3 × 8 mm shock-absorbing balls × 8

  • 35V, 1000 µF solid-state electrolytic capacitors × 2

  • XT90 power cord × 1

  • Nuts × 8

  • M3 × 30 mm metal screws × 4

FAQ

Which flight controller and ESC are listed for the F790 V2 stack?

The supplied package list identifies an F722 V2 flight controller and a 3090 32-bit ESC. Verify the ESC marking on the delivered unit because one supplied parameter image shows ratings for a different current variant.

What are the 3090 ESC current ratings?

The manufacturer's grouped 3080/3090/30100 specifications assign the 3090 variant 90A per channel continuous current and 100A per channel peak current. A peak-duration condition is not stated.

What battery range is listed?

The 3090 ESC variant is listed for 3–8S LiPo input. Check each connected peripheral's voltage limits separately.

Which flight-controller firmware target should be used?

The listed F722 V2 target is AOCODARCF722V2. The ESC uses AM32 and requires separate configuration.

Which motor-control signals are listed in the F790 V2 material?

The supplied F790 V2 ESC parameter image lists DShot300, DShot600, and PWM.

What mounting pattern does the stack use?

Both boards are listed with an M3 30.5 × 30.5 mm mounting pattern. Confirm the ESC's outer dimensions before finalizing frame clearance.

Is a current-meter scale confirmed for the 3090 ESC?

Not conclusively. The supplied F790 V2 sheet gives 76, while the manufacturer's grouped ESC page gives 70. Confirm the correct value for the delivered board and verify current readings during setup.

B2B Procurement FAQ

What should be confirmed before ordering the F790 V2 stack?

Specify the F722 V2 flight controller and 3090 32-bit AM32 ESC, and request confirmation of the ESC marking, 90A continuous rating, outer dimensions, and current-meter setting.

What accessories are listed in the supplied packing list?

In addition to the FC and ESC, the list shows two 8-pin SH1.0 cables, eight shock-absorbing balls, two 35V 1000 µF capacitors, one XT90 power cord, eight nuts, and four M3 × 30 mm screws. Confirm the final packing list during quotation.

Are MOQ, price, and lead time fixed?

These commercial terms are not established by the supplied material and must be confirmed during quotation.

Can firmware, labeling, or packaging be customized?

The supplied material does not establish a customization commitment. Provide the requested specification and quantity for feasibility confirmation during quotation.

Are certifications and warranty terms available?

No specific certification or warranty term is established by the supplied material. Request the applicable documents and terms during quotation.
