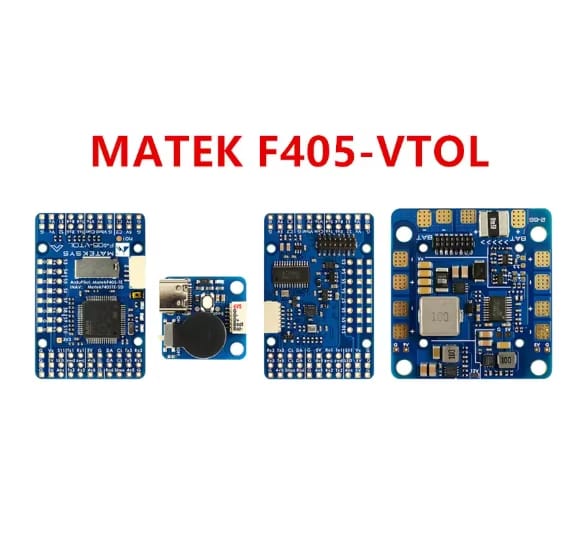

Matek Systems F405-VTOL Flight Controller

Short Description:

Matek F405-VTOL 2-6S flight controller features an integrated PDB, AT7456E OSD and microSD Blackbox. ArduPilot supports VTOL; INAV is for standard fixed-wing use.

Product Name: Matek Systems F405-VTOL Flight Controller
Product Type: VTOL-capable flight controller with integrated PDB
MCU: STM32F405RGT6, 168 MHz, 1 MB flash
Gyroscope: ICM42688-P
Barometer: SPL06-001
OSD Chip: AT7456E
Firmware: ArduPilot; INAV 5.0 or newer
Firmware Target: ArduPilot: MatekF405-TE; INAV: MATEKF405TE_SD
Input Voltage: 6.8–30 V DC (2–6S LiPo)
Blackbox Storage: MicroSD card slot

Send email to us

Product Detail

FAQ

Technical Highlights

Flight Control for VTOL and Fixed-Wing Builds

The F405-VTOL combines an STM32F405RGT6 controller, ICM42688-P gyroscope and SPL06-001 barometer. Use the MatekF405-TE ArduPilot target for VTOL configurations. The MATEKF405TE_SD INAV target is suitable for standard fixed-wing configurations, but INAV does not support VTOL on this board.

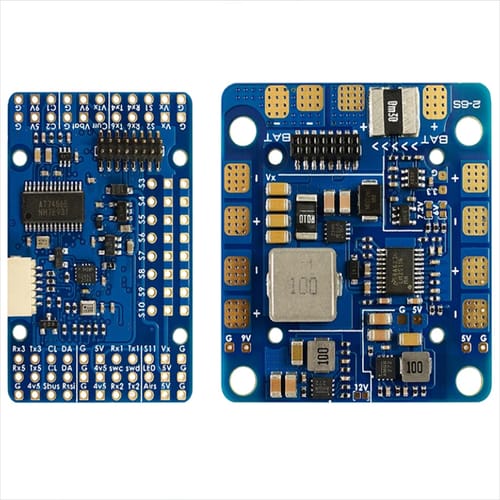

Integrated Power Distribution

The built-in PDB accepts 6.8–30 V DC from a 2–6S LiPo battery and provides five ESC power pads with a total continuous rating of 100 A. Separate regulated outputs serve flight electronics, video equipment and servos.

Onboard OSD and Flight Logging

An AT7456E OSD chip supports analog video overlays, while the microSD card slot provides Blackbox storage. For ArduPilot file logging to the card, configure LOG_BACKEND_TYPE to 1.

Interfaces for Aircraft Integration

The board provides six UARTs, one I2C interface, four ADC inputs and twelve PWM-capable outputs. It also has a switchable dual-camera input and a USB Type-C connection through the supplied USB/beeper extender.

Flight Controller Specifications

MCU	STM32F405RGT6, 168 MHz, 1 MB flash
Gyroscope / IMU	ICM42688-P
Barometer	SPL06-001
OSD	AT7456E
Blackbox Storage	MicroSD card slot
Serial Interfaces	6 UARTs; 1 optional SoftSerial TX in INAV
Other Interfaces	1 I2C; 4 ADC inputs for battery voltage, current, RSSI and airspeed
PWM Outputs	12 PWM-capable outputs; the LED pad maps to PWM12 in ArduPilot
Additional Functions	Switchable dual-camera input; SBUS inverter on UART2-RX; spare PINIO
Firmware Targets	ArduPilot: MatekF405-TE; INAV 5.0 or newer: MATEKF405TE_SD

Electrical Specifications

Battery Input	6.8–30 V DC (2–6S LiPo)
ESC Power Distribution	5 ESC power pads; 100 A total continuous rating
5 V BEC	2 A continuous
9 V / 12 V BEC	2 A continuous; 12 V selected by jumper pad
Servo Vx BEC	5 V default; 6 V or 7.2 V selectable by jumper; 8 A continuous, 10 A peak
3.3 V Output	200 mA continuous
Current Sensing	Onboard current sensor with a 220 A scale; this is not the PDB continuous-current rating

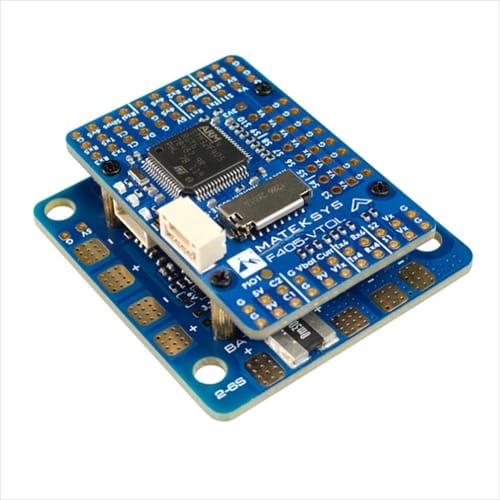

Physical Specifications

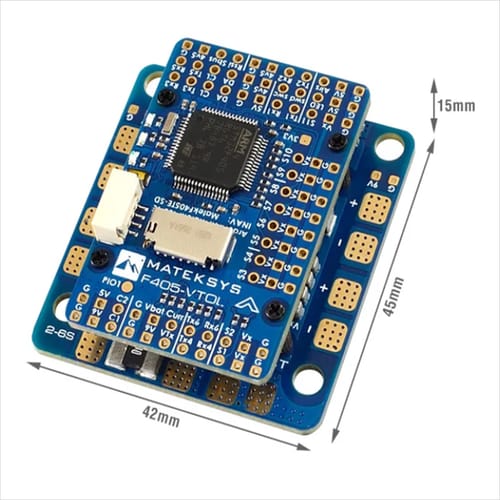

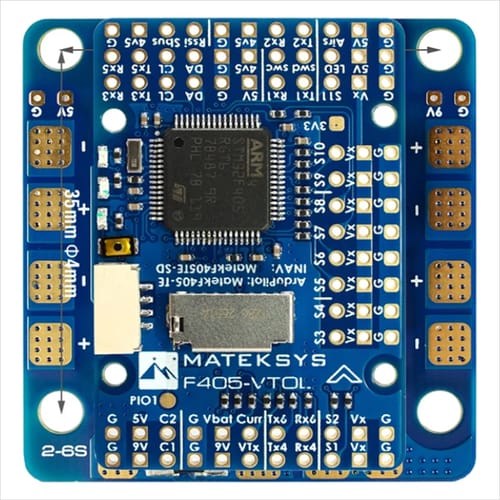

Dimensions	45 × 42 × 15 mm
Weight	25 g with USB/beeper adapter
Mounting Patterns	25 × 25 mm with 2 mm holes; 35 × 35 mm with 4 mm holes

Firmware and Installation Notes

Select the firmware target for this exact board: MatekF405-TE for ArduPilot or MATEKF405TE_SD for INAV 5.0 or newer.
Use ArduPilot for VTOL aircraft. INAV does not support VTOL on the F405-VTOL; it can be used for a conventional fixed-wing setup.
For stable 9 V, 12 V or Vx output, battery input must exceed the selected output voltage by more than 1 V.
Do not connect an ESC's onboard BEC output wire to the Vx pad.
For ArduPilot microSD file logging, set LOG_BACKEND_TYPE to 1.

Manufacturer-Documented Package Contents

1 × F405-VTOL flight controller

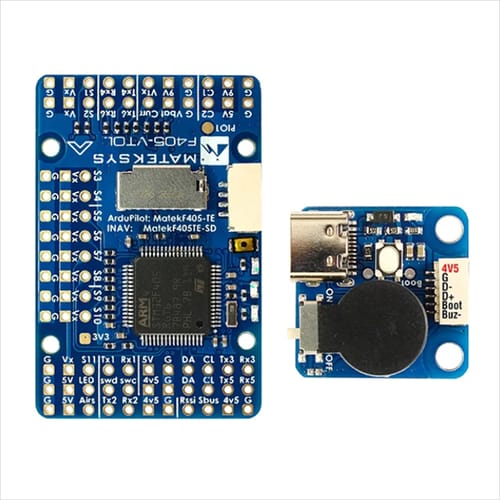

1 × USB Type-C / passive-beeper extender with 20 cm JST-SH 6-pin cable
1 × 20 cm JST-GH 4-pin I2C cable
1 × Rubycon ZLH 35 V 470 µF capacitor
Dupont 2.54 mm pins; the board is supplied with these pins unsoldered

FAQ

Can the F405-VTOL run a VTOL aircraft with INAV?

No. For VTOL configurations, use the MatekF405-TE ArduPilot target. INAV does not support VTOL on this board; its MATEKF405TE_SD target can be used for a conventional fixed-wing configuration.

Which firmware targets match this flight controller?

The ArduPilot target is MatekF405-TE. The INAV target is MATEKF405TE_SD and requires INAV 5.0 or newer.

Does the board support onboard flight logging?

Yes. It has a microSD card slot for Blackbox storage. For ArduPilot file logging to the card, set LOG_BACKEND_TYPE to 1.

Can the Vx output power servos?

Yes. The Vx BEC is intended for servos and supplies 5 V by default, or 6 V or 7.2 V via jumper selection, at 8 A continuous and 10 A peak. Do not connect an ESC onboard BEC output wire to the Vx pad.

What are the board dimensions and mounting options?

The board measures 45 × 42 × 15 mm. It supports 25 × 25 mm mounting with 2 mm holes and 35 × 35 mm mounting with 4 mm holes.
