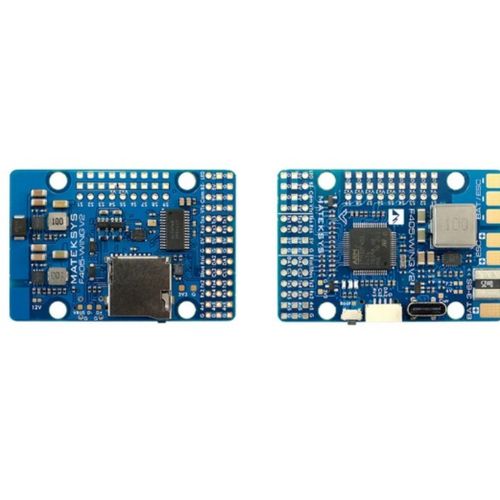

Matek F405-WING-V2 Flight Controller

Short Description:

Matek F405-WING-V2 flight controller with STM32F405 MCU, ICM42688-P gyro, DPS310 barometer, AT7456E OSD and MicroSD blackbox for 3–6S aircraft builds.

Product Name: Matek F405-WING-V2 Flight Controller
Product Type: Fixed-Wing and Multirotor Flight Controller
MCU: STM32F405RGT6, 168 MHz, 1 MB Flash
Gyroscope: ICM42688-P
Barometer: DPS310
OSD Chip: AT7456E
Firmware: ArduPilot ArduPlane 4.4 or newer; INAV 6.0 or newer
Firmware Target: MatekF405-Wing (ArduPilot); MATEKF405SE (INAV)
Input Voltage: 9–30 V DC (3–6S LiPo)
Mounting Pattern: 30.5 × 30.5 mm

Send email to us

Product Detail

FAQ

Technical Highlights

F405 Control Platform

The F405-WING-V2 uses an STM32F405RGT6 MCU, ICM42688-P gyroscope and DPS310 barometer. Its firmware targets are MatekF405-Wing for ArduPilot and MATEKF405SE for INAV.

Video and Flight Logging

An AT7456E OSD chip supports onboard display functions, while the MicroSD card slot provides blackbox storage.

Aircraft Integration

Six UARTs, two I2C buses and 10 PWM outputs provide connections for aircraft control and peripherals. The 10-output count includes the LED pad.

Integrated Power Distribution

The board accepts 9–30 V DC input for 3–6S LiPo systems. It provides 5 V, selectable 9 V/12 V and configurable Vx BEC outputs for appropriately rated connected devices.

Flight Controller Specifications

Model	Matek F405-WING-V2
MCU	STM32F405RGT6, 168 MHz, 1 MB Flash
Gyroscope	ICM42688-P
Barometer	DPS310
OSD Chip	AT7456E
Blackbox Storage	MicroSD card slot
Serial Interfaces	6 UARTs; one optional SoftSerial TX in INAV
Other Interfaces	2 I2C buses and 3 ADC inputs for battery voltage, current and RSSI
PWM Outputs	10, including the LED pad
USB	USB Type-C (USB 2.0)
Firmware	ArduPilot ArduPlane 4.4 or newer; INAV 6.0 or newer
Firmware Targets	MatekF405-Wing for ArduPilot; MATEKF405SE for INAV

Power and Physical Specifications

Battery Input	9–30 V DC (3–6S LiPo)
Current Sensor Range	220 A
Current Sense Resistor Rating	100 A continuous, 220 A peak
5 V BEC	2 A continuous
9 V / 12 V BEC	2 A continuous; 12 V selectable by jumper
Vx BEC	5 A continuous, 6 A peak; selectable 5 V, 6 V or 7.2 V
3.3 V Output	200 mA continuous
Mounting Pattern	30.5 × 30.5 mm
Board Dimensions	54 × 36 × 13 mm
Weight	25 g

Integration Notes

Use the firmware target and minimum firmware version specified for F405-WING-V2; do not select firmware solely from the F405-WING V1 model name.
The Vx2 pads on the S5–S9 servo rails are isolated. Follow the manufacturer’s wiring guidance when using the onboard Vx BEC or an external BEC.
For a stable 9 V/12 V or Vx BEC output, the input voltage must exceed the selected output voltage by more than 1 V.

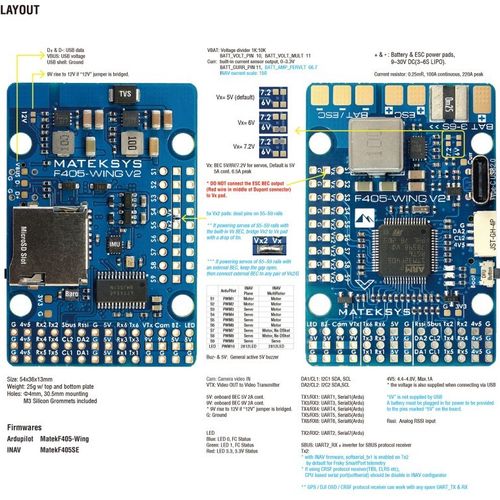

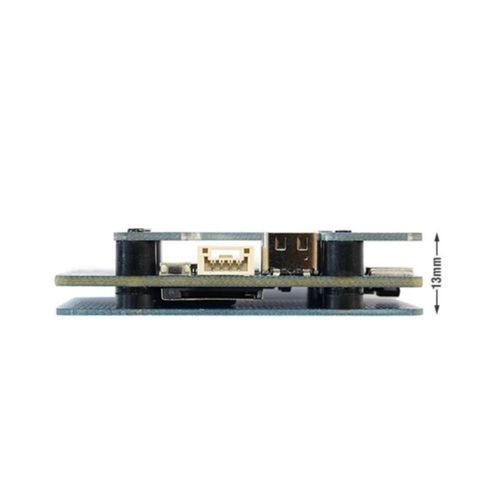

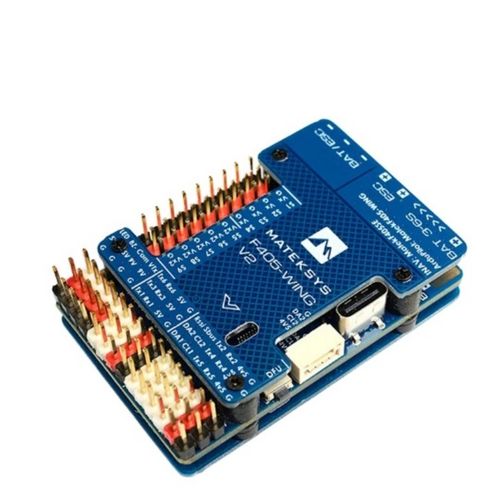

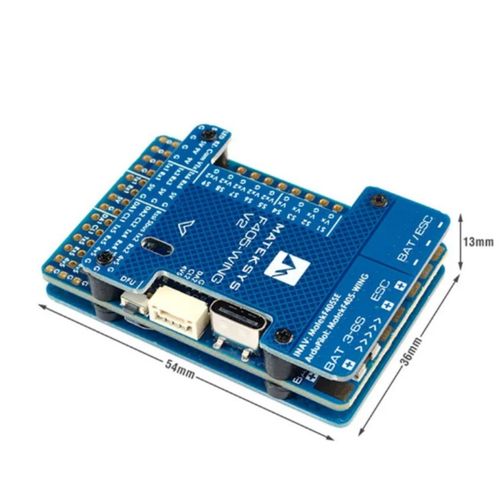

The 30.5 × 30.5 mm measurement is the mounting pattern; allow space for the full 54 × 36 × 13 mm board.

FAQ

Which firmware targets does the F405-WING-V2 use?

Use MatekF405-Wing with ArduPilot ArduPlane 4.4 or newer, or MATEKF405SE with INAV 6.0 or newer.

What is the supported battery input?

The specified input range is 9–30 V DC, corresponding to 3–6S LiPo systems.

Does the board provide OSD and blackbox storage?

Yes. It has an AT7456E OSD chip and a MicroSD card slot for blackbox storage.

Is 30.5 × 30.5 mm the overall board size?

No. It is the mounting pattern. The overall board dimensions are 54 × 36 × 13 mm.
