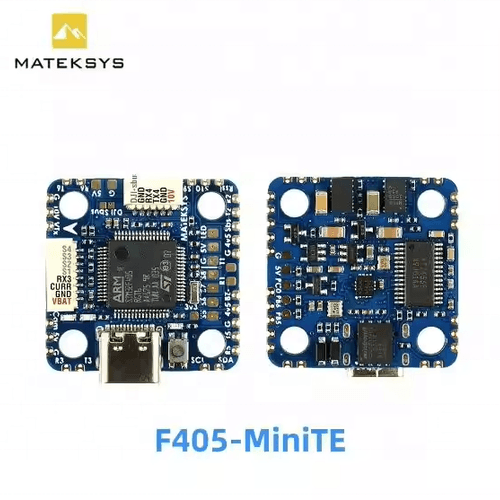

Matek F405-miniTE Flight Controller

Short Description:

Matek F405-miniTE flight controller with STM32F405, SPL06-001 barometer, AT7456E OSD and 5 V/10 V BEC outputs. Confirm the gyro revision before ordering.

Product Name: Matek F405-miniTE Flight Controller
Product Type: Compact FPV flight controller
MCU: STM32F405RGT6
Gyroscope: ICM42605 on earlier units; ICM42688-P on later units—confirm supplied revision
Barometer: Goertek SPL06-001, I2C
OSD Chip: AT7456E
Firmware: Betaflight; INAV and ArduPilot also supported
Firmware Target: MATEKF405TE for Betaflight
BEC Outputs: 5 V 1.7 A (2 A maximum); switchable 10 V 1.4 A
Mounting Pattern: 20 × 20 mm; 30.5 × 30.5 mm with conversion plate

Send email to us

Product Detail

FAQ

Technical Highlights

Compact STM32F405 Flight Controller

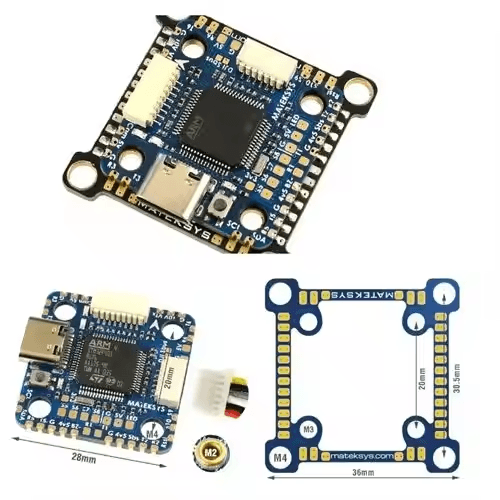

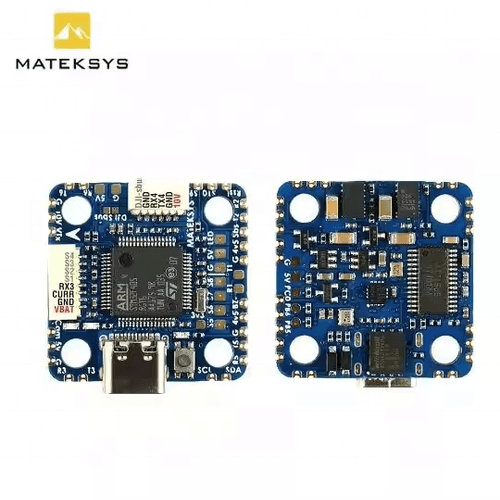

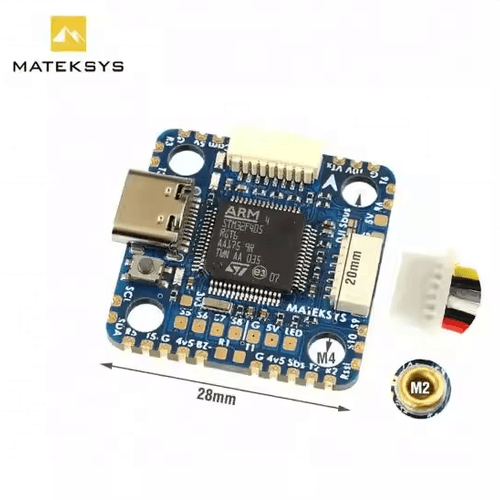

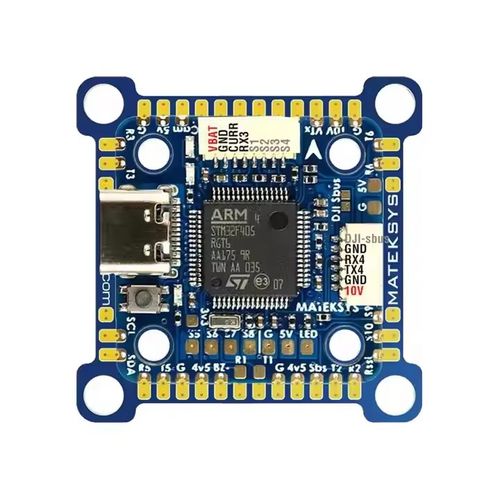

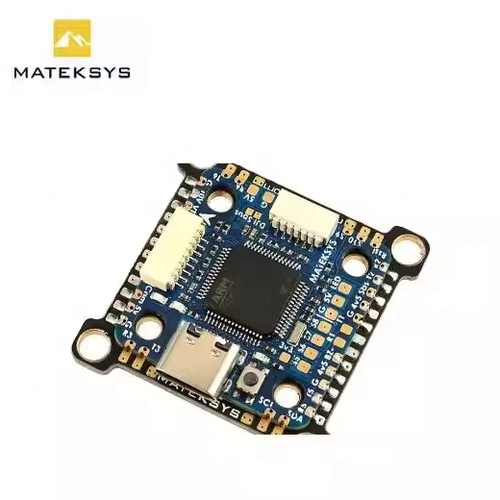

The F405-miniTE combines an STM32F405RGT6 MCU with a 28 × 28 mm board format. The flight-controller board weighs 5 g according to Matek's specification.

OSD, Barometer and Blackbox Flash

The board integrates an AT7456E OSD chip, a Goertek SPL06-001 barometer and 16M-byte flash memory for blackbox logging. The onboard barometer is not supported by Betaflight.

Dual Regulated Outputs

Onboard regulators provide 5 V at 1.7 A, with a stated 2 A maximum, and a switchable 10 V output rated at 1.4 A. A stable 10 V output requires an input above 11 V.

Flexible Mounting and Connections

The board supports 20 × 20 mm mounting and can use a conversion plate for 30.5 × 30.5 mm mounting. Matek specifies six UARTs, one I2C bus and 12 PWM outputs, including eight DShot-capable outputs.

Technical Specifications

Model	F405-miniTE
MCU	STM32F405RGT6
Gyroscope	ICM42605 on earlier units; ICM42688-P on later units
Barometer	Goertek SPL06-001, I2C
OSD Chip	AT7456E
Blackbox Storage	16M-byte flash memory
Serial and I2C Interfaces	6 UARTs and 1 I2C bus
PWM Outputs	12, including 8 DShot-capable outputs
Input Voltage	6–30 V
5 V BEC	1.7 A; 2 A maximum
10 V BEC	1.4 A; switchable
Board Dimensions	28 × 28 mm
Board Weight	5 g
Mounting	20 × 20 mm; 30.5 × 30.5 mm with conversion plate

Firmware and Installation Notes

Confirm whether the delivered board has an ICM42605 or ICM42688-P gyroscope before selecting firmware. Matek states that Betaflight 4.2.x does not support the ICM42688-P revision.
The Betaflight target specified by Matek is MATEKF405TE. The board also has manufacturer-listed INAV and ArduPilot firmware options.
Although the SPL06-001 barometer is physically onboard, Matek states that Betaflight does not support it.
For a stable 10 V BEC output, supply more than 11 V. At an input of 11 V or less, Matek specifies the output as approximately 90% of the input voltage.
Confirm the supplied board revision and included mounting accessories before assembly. Remove propellers during configuration and motor testing.

FAQ

Which gyroscope is fitted to the F405-miniTE?

Earlier units used the ICM42605. Matek states that later production replaced it with the ICM42688-P. Confirm the gyroscope on the supplied board before ordering or flashing firmware.

Can Betaflight use the onboard SPL06-001 barometer?

No. The board has an SPL06-001 barometer, but Matek states that it is not supported by Betaflight.

When will the 10 V BEC provide a stable 10 V output?

Matek specifies an input above 11 V for a stable 10 V output. At 11 V input or less, the output is approximately 90% of the input voltage.

Can the board fit a 30.5 × 30.5 mm mounting pattern?

Yes, with the appropriate 20 mm-to-30.5 mm conversion plate and mounting hardware. Confirm that these accessories are included in the quoted package.
