iFlight BLITZ Mini ATF435 Stack with Mini E55S 4-in-1 ESC

Short Description:

iFlight BLITZ Mini ATF435 stack pairs an AT32F435RGT7 FC with a 2-6S Mini E55S 4-in-1 ESC rated 55A continuous and 65A burst.

Product Name: iFlight BLITZ Mini ATF435 Stack with Mini E55S 4-in-1 ESC
Product Type: Flight controller and four-in-one ESC stack
MCU: AT32F435RGT7
Gyroscope: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Firmware: Betaflight
Firmware Target: IFLIGHT_BLITZ_ATF435
ESC Current Rating: 55 A continuous; 65 A burst
Blackbox Storage: 16 MB onboard flash

Send email to us

Product Detail

FAQ

Technical Highlights

Mini Flight Controller and ESC Stack

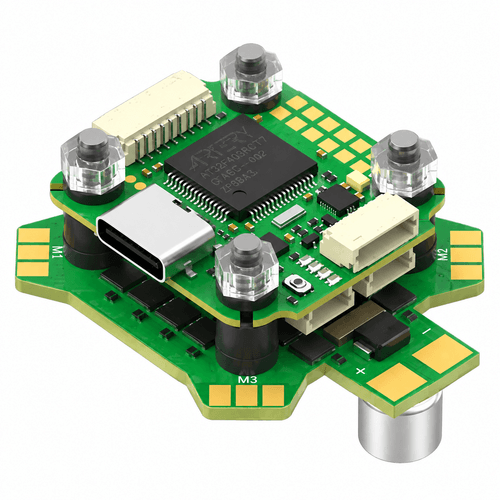

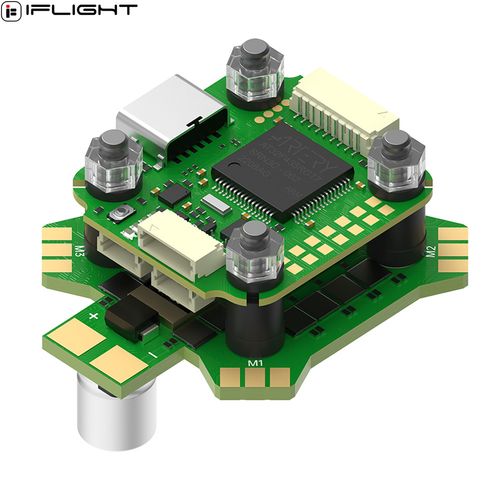

This stack pairs the BLITZ Mini ATF435 flight controller with the separate BLITZ Mini E55S four-in-one ESC. Both boards use a 20 × 20 mm mounting pattern with 4 mm holes.

AT32 Flight Processing and Onboard Sensors

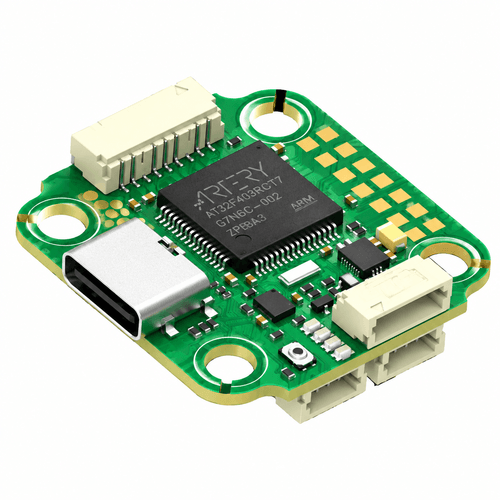

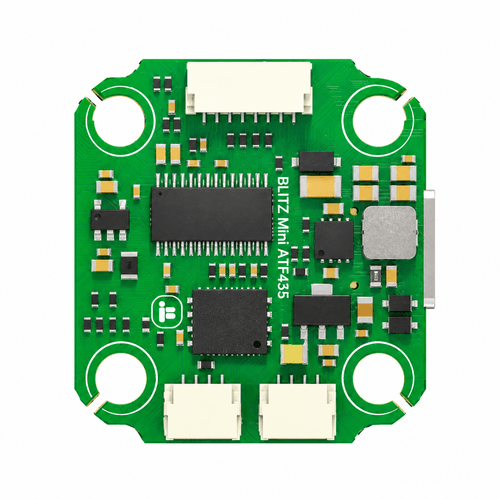

The Mini ATF435 flight controller uses an AT32F435RGT7 MCU, BMI270 gyroscope and DPS310 barometer. It also provides 16 MB of onboard Blackbox flash and an AT7456E analog OSD chip.

2–6S Four-in-One ESC

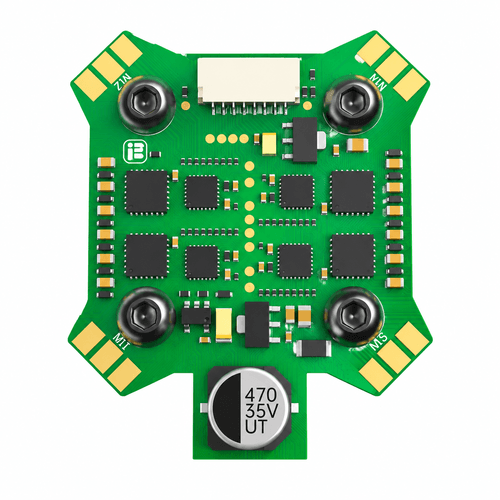

The Mini E55S ESC supports 2–6S LiPo input and is specified at 55 A continuous and 65 A burst. It provides onboard current sensing and supports DShot150, DShot300, DShot600, MultiShot and OneShot motor-control signals.

Video-Transmitter Control Interface

The flight controller supports SmartAudio and IRC Tramp VTX control protocols. A 5.8 GHz video transmitter is a separate component and is not listed in the manufacturer's standard stack package.

Flight Controller Specifications

Model	BLITZ Mini ATF435
MCU	AT32F435RGT7
Gyroscope	BMI270
Barometer	DPS310
OSD Chip	AT7456E
Blackbox Flash	16 MB
UARTs	6
Motor Outputs	4 outputs through an SH1.0 connector
Additional Interfaces	I2C pads, LED control and beeper pad
VTX Control	SmartAudio and IRC Tramp supported
Firmware Target	IFLIGHT_BLITZ_ATF435
BEC	5 V / 2.5 A
Dimensions	30.5 × 27 mm
Weight	5 g
Mounting Pattern	20 × 20 mm; 4 mm holes

Mini E55S ESC Specifications

ESC Configuration	Four-in-one ESC
Battery Input	2–6S LiPo
ESC MCU	BB21
Continuous Current	55 A
Burst Current	65 A
Current Sensor	Yes
ESC Telemetry Output	No
ESC BEC	No onboard BEC
Motor-Control Signals	DShot150/300/600, MultiShot and OneShot
ESC Firmware Targets	Q-H-25 16.7 for BLHeli_S; Q-H-50 for Bluejay
Weight	11.3 g
Mounting Pattern	20 × 20 mm; 4 mm holes

Selection and Installation Notes

Use the specifications for the Mini ATF435 version: BMI270 gyroscope, 16 MB Blackbox flash and 20 × 20 mm mounting.
The FC provides a 5 V / 2.5 A BEC; the Mini E55S ESC itself has no BEC.
Match the Betaflight configuration to the IFLIGHT_BLITZ_ATF435 target before flashing or replacing firmware.

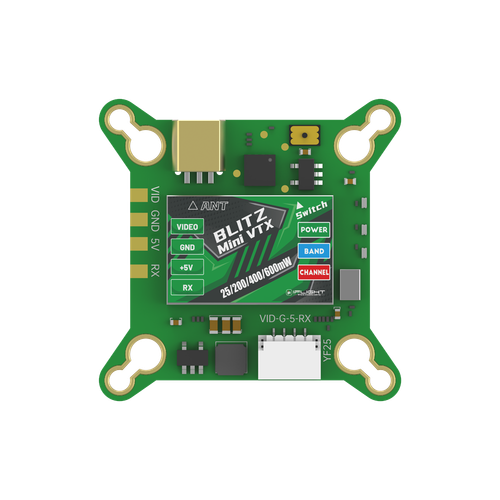

A BLITZ Mini 5.8 GHz VTX appears in the supplied image archive, but it is not included in iFlight's standard packing list for this FC/ESC stack. Confirm any VTX-inclusive bundle as a separate offered configuration.

Manufacturer-Listed Package Contents

1 × BLITZ Mini ATF435 flight controller
1 × BLITZ Mini E55S four-in-one 2–6S ESC
1 set of power cables and ESC signal wires

FAQ

Is this a single-board AIO flight controller?

No. The BLITZ Mini ATF435 and Mini E55S are separate flight-controller and four-in-one ESC boards assembled as a stack.

Which gyroscope and Blackbox capacity belong to the Mini ATF435?

The Mini ATF435 uses a BMI270 gyroscope and has 16 MB of onboard Blackbox flash. Specifications for the larger BLITZ ATF435 version should not be substituted.

What battery input and current ratings apply to the Mini E55S ESC?

The ESC supports 2–6S LiPo input and is specified at 55 A continuous and 65 A burst.

Does the stack include a 5.8 GHz video transmitter?

The manufacturer's standard stack packing list does not include a VTX. A VTX image appears in the supplied archive, so confirm the exact offered configuration if a transmitter is required.

What is the flight-controller firmware target?

The BLITZ Mini ATF435 flight controller uses the IFLIGHT_BLITZ_ATF435 target. Check the target and board revision before flashing firmware.

B2B Procurement FAQ

What is included in iFlight's standard FC/ESC stack package?

iFlight lists one BLITZ Mini ATF435 flight controller, one BLITZ Mini E55S four-in-one ESC, and power cables plus ESC signal wires. Confirm the contents of the specific offered SKU during quotation.

Can a 600 mW VTX be quoted with the stack?

The archive shows a separate BLITZ Mini VTX, but its inclusion is not established by the standard stack package. Confirm the exact VTX model, price and bundle contents during quotation.

Which fitment details should be checked before a bulk order?

Check the 20 × 20 mm mounting pattern with 4 mm holes, the 30.5 × 27 mm FC outline, 2–6S battery input, motor current requirements, cable connections and required video equipment.

Are MOQ, lead time, warranty and delivery terms established?

The supplied product material does not establish these terms for this offering. Confirm them during quotation.
