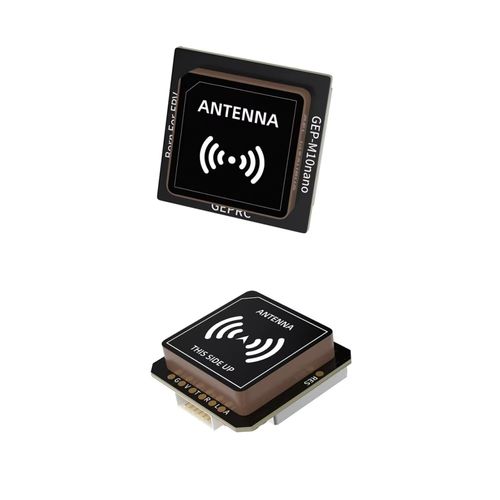

GEPRC GEP-M10 Series GPS Module (GEP-M10nano / GEP-M10 / GEP-M10-DQ)
Technical Highlights
u-blox M10050 Multi-GNSS Platform
The GEP-M10 series uses the u-blox M10050 platform. Its specified receiving bands cover GPS, GLONASS, BDS, Galileo, SBAS and QZSS.
Three Model Options
Choose the GPS-only GEP-M10nano or GEP-M10, or select the GEP-M10-DQ when an onboard compass and barometer are required.
10 Hz Position Updates
All three models are specified for a 10 Hz update rate, 72 channels and navigation using up to 32 satellites.
Model Selection

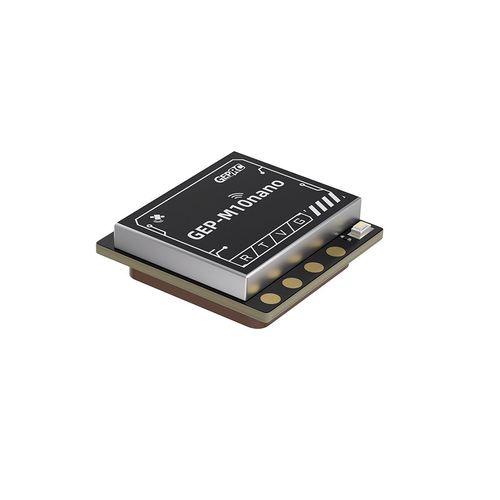

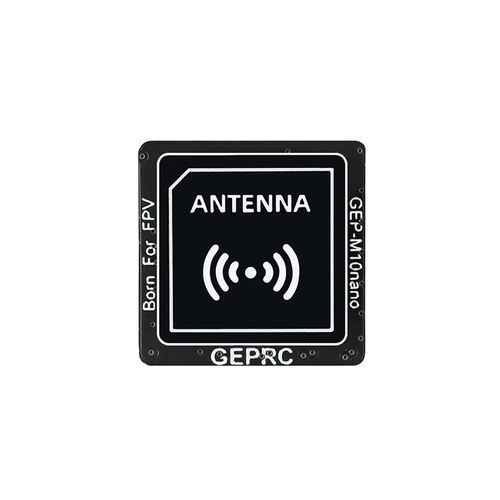

| GEP-M10nano | Compact GPS-only option; u-blox UART interface. Confirm the production-batch dimensions and weight before ordering. |
|---|---|

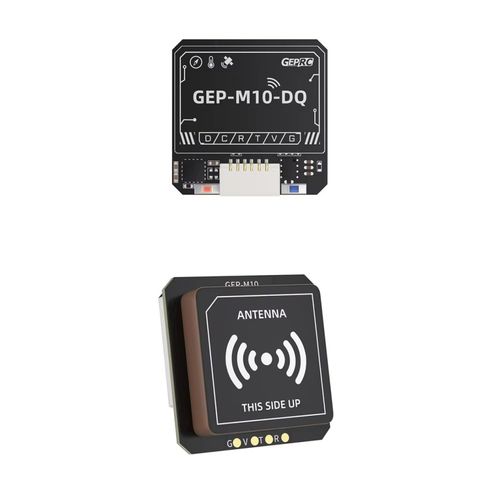

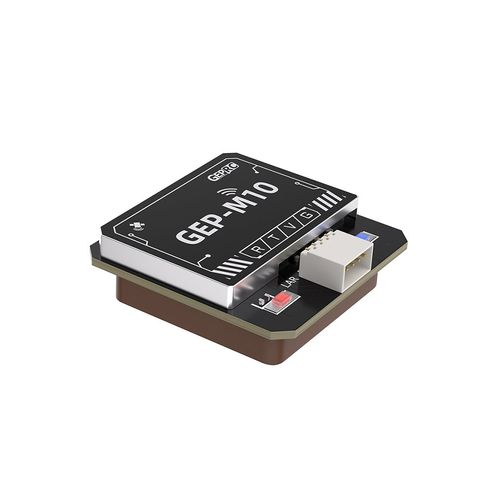

| GEP-M10 | GPS-only option; u-blox UART interface; 22 × 22 × 8.2 mm and 7.8 g according to the supplied specification. |

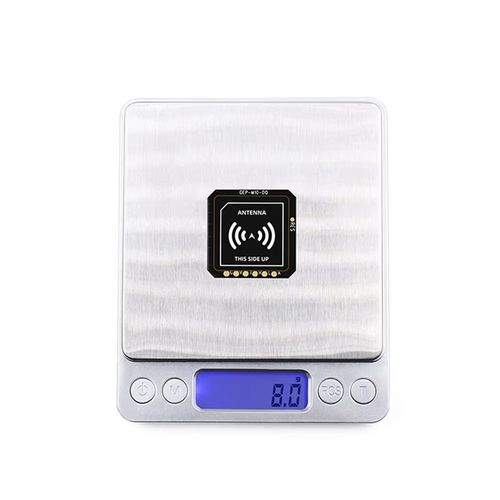

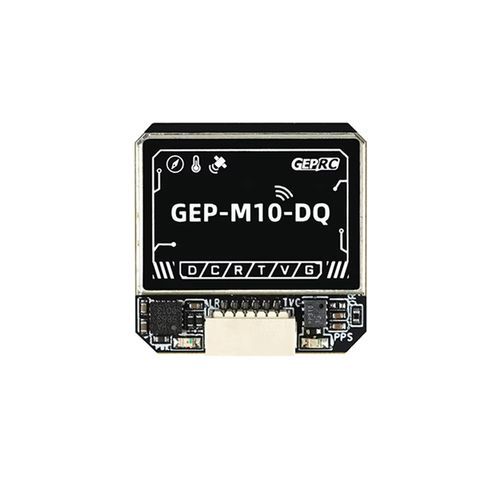

| GEP-M10-DQ | GPS with QMC5883L compass and barometer; u-blox UART plus I²C for the sensors. The barometer may be DPS310 or DPS368 depending on production batch. The supplied specification lists 22 × 22 × 8.2 mm and 8.0 g. |
GNSS and Electrical Specifications
| GNSS Platform | u-blox M10050 |
|---|---|
| Receiving Bands | GPS L1, GLONASS L1, BDS B1, Galileo E1, SBAS L1 and QZSS L1 |
| Joint Positioning Mode | GPS + BDS + Galileo + QZSS + SBAS |
| Channels / Navigation Satellites | 72 channels / up to 32 satellites |
| Update Rate | 10 Hz |
| Horizontal Positioning Accuracy | 1.5 m 2D accuracy under the open-air condition stated in the supplied specification |
| UART Baud Rate | 115200 bps |
| Operating Voltage | 3.3–5 V DC |
Integration Notes
Select the exact model before matching the module to a flight-controller installation.

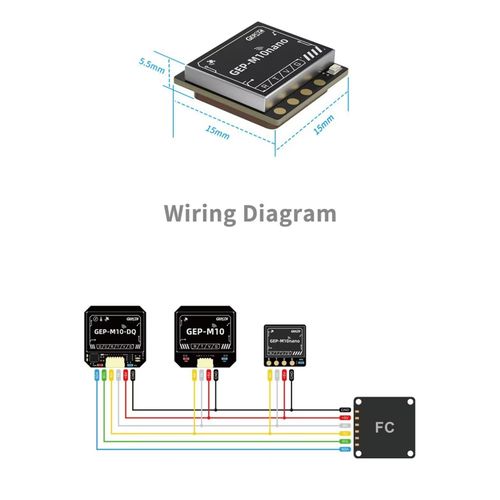

Use the variant-specific wiring diagram for power, UART and, on the GEP-M10-DQ, I²C sensor connections.
Confirm the actual barometer chip on GEP-M10-DQ and the production-batch dimensions and weight of GEP-M10nano before finalizing procurement specifications.
FAQ
Which GEP-M10 models are covered by this product page?
This page covers GEP-M10nano, GEP-M10 and GEP-M10-DQ. Other GEP-M10 series variants are not included in these three options.
Which model has a compass and barometer?
GEP-M10-DQ has a QMC5883L compass and a barometer. The GEP-M10nano and GEP-M10 options are GPS-only in the supplied specification.
Is the GEP-M10-DQ barometer always DPS310?
No. GEPRC states that DPS368 may replace DPS310 in some production batches. Confirm the barometer fitted to the batch being ordered.
What voltage and position update rate do the modules use?
The specified operating voltage is 3.3–5 V DC, and the specified position update rate is 10 Hz.
B2B Procurement FAQ
Can a quotation identify each of the three models separately?
Specify GEP-M10nano, GEP-M10 or GEP-M10-DQ in the inquiry. Model availability, quantities and commercial terms must be confirmed during quotation.
What should be checked before ordering GEP-M10nano in quantity?
Confirm the production-batch dimensions and weight. The supplied images and the current manufacturer page show different values for this model.
Can the GEP-M10-DQ barometer version be confirmed for an order?
Request confirmation of the actual production batch and its barometer chip during quotation. The supplied material shows DPS310, while the manufacturer also identifies DPS368 as a possible replacement.
