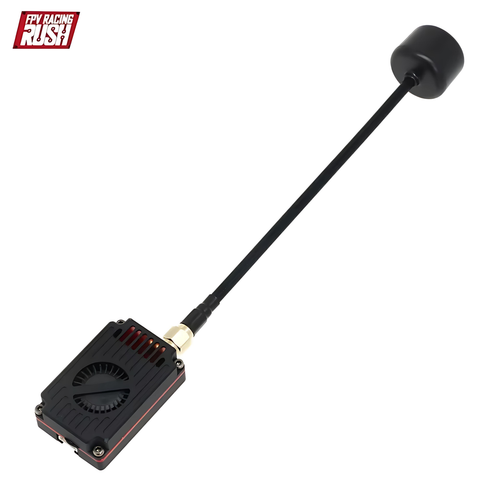

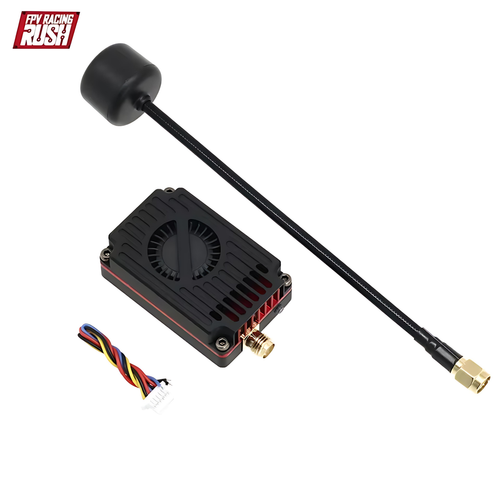

RUSHFPV 3.3G 4W VTX Transmitter Module

Short Description:

RUSHFPV 3.3G 4W analog FPV video transmitter offers 16 selectable channels from 3170 to 3470 MHz, PIT/25 mW/200 mW/1 W/4 W power settings, 7–30 V DC input, IRC Tramp control and a fan-cooled aluminum housing.

Product Name: RUSHFPV 3.3G 4W VTX Transmitter Module
Product Type: Analog FPV video transmitter (VTX)
Frequency Range: 3170–3470 MHz (Bands A and B)
Channels: 16 (8 per band)
Output Power: PIT / 25 / 200 / 1000 / 4000 mW selectable settings
Input Voltage: 7–30 V DC
Control Protocol: IRC Tramp via DATA pin
Dimensions: 44 × 28.6 × 14.7 mm (transmitter housing, per drawing)
Modulation: FM
Antenna Port: SMA, 50 Ω

Send email to us

Product Detail

FAQ

Technical Highlights

16 Channels Across Two 3.3 GHz Bands

The transmitter provides eight channels in Band A and eight in Band B, with listed channel frequencies spanning 3170–3470 MHz.

Selectable Output Up to 4 W

Selectable settings are PIT, 25 mW, 200 mW, 1000 mW and 4000 mW. The stated wattage refers to the selected nominal output setting, not a guaranteed link distance.

Button or Flight-Controller Configuration

An onboard button and RGB indicator support local band, channel and power selection. The DATA pin supports IRC Tramp control from a flight controller.

Fan-Cooled Aluminum Housing

The aluminum-alloy housing and integrated centrifugal fan provide active heat dissipation for the high-power transmitter.

RF Specifications

Frequency Range	3170–3470 MHz
Channels	16 total; 8 in Band A and 8 in Band B
Band A, CH1–CH8	3330, 3350, 3370, 3390, 3410, 3430, 3450, 3470 MHz
Band B, CH1–CH8	3170, 3190, 3210, 3230, 3250, 3270, 3290, 3310 MHz
Output Power Settings	PIT / 25 / 200 / 1000 / 4000 mW
Modulation	FM
Frequency Control	PLL
Antenna Port	SMA, 50 Ω

Electrical and Control

Input Voltage	7–30 V DC
Video Input Level	1 V ± 0.2 Vp-p, typical
Control Protocol	IRC Tramp via DATA pin
Local Control	Single button with RGB status indication
Operating Temperature	−10°C to +70°C

Physical Specifications

Housing Dimensions	44 × 28.6 × 14.7 mm, per supplied drawing
Housing and Cooling	Aluminum-alloy housing with integrated centrifugal fan
Mounting Hole Spacing	Confirm against the unit drawing before designing a fixed mounting plate; the supplied material does not state a center-to-center measurement.

Installation Notes

Connect a suitable 3.3 GHz antenna before powering the transmitter; operating without an antenna risks damage.
Mount the unit securely and allow airflow around the cooling fan.

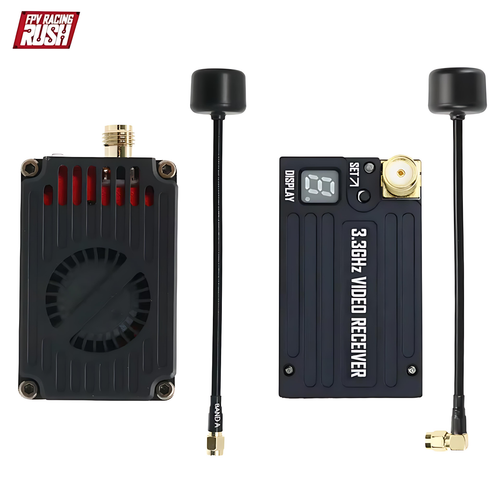

Use a receiver that supports the selected 3.3 GHz channel and analog video format. The VRX shown in some reference images is not established as part of this VTX SKU.

FAQ

How many channels does this 3.3G VTX provide?

It provides 16 listed channels: eight in Band A and eight in Band B, from 3170 to 3470 MHz.

What output power settings are available?

The listed settings are PIT, 25 mW, 200 mW, 1000 mW and 4000 mW.

Can a flight controller change the VTX settings?

Yes. Connect the VTX DATA pin and configure the flight controller for IRC Tramp. The onboard button and RGB indicator also provide local adjustment.

Can a 5.8 GHz-only receiver display this VTX signal?

No. The receiver must support the selected 3.3 GHz channel and analog video format; a 5.8 GHz-only receiver does not cover this transmitter's listed channels.

Can the transmitter be powered without an antenna?

No. The supplied technical sheet warns that the antenna must be connected before use to avoid possible damage.

B2B Procurement FAQ

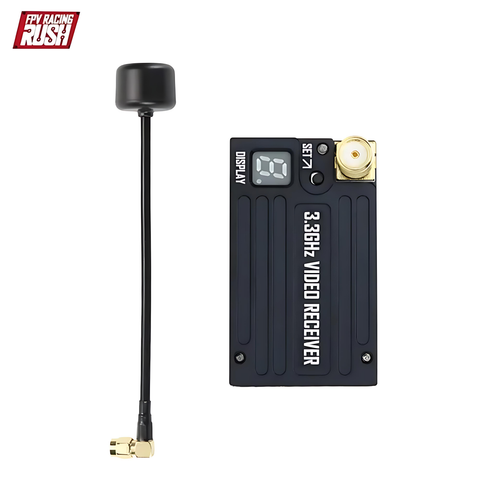

Is the 3.3 GHz VRX included with this VTX?

The supplied SKU image identifies the 3.3G 4W VTX, while other images also show a VRX. The images do not establish a combined packing list. Request a confirmed bill of materials if a transmitter-and-receiver set is required.

What information should be provided for a quotation?

Specify the required quantity, 3.3G 4W VTX configuration, antenna requirements, whether a matching receiver is needed, and the delivery destination. Final contents and commercial terms should be confirmed in the quotation.

Are alternative channel plans available?

The documented standard unit uses Bands A and B. Any alternative frequency plan must be reviewed and confirmed against the required configuration before an order is placed.

What are the MOQ and lead time?

MOQ, availability and lead time are not established by the supplied product material and must be confirmed during quotation.
