RadioMaster Bandit BR1 ExpressLRS Receiver

Short Description:

RadioMaster Bandit BR1 is a 915MHz ExpressLRS receiver with CRSF output, 50mW telemetry power, a 5V DC input, built-in TCXO and an 18 13.8mm board.

Product Name: RadioMaster Bandit BR1 ExpressLRS Receiver
Product Type: 915MHz RC Receiver
Frequency Range: 915MHz; FCC915 regulatory domain
Bus Interface: CRSF
Telemetry RF Power: 50mW (17dBm)
Input Voltage: 5.0V DC
Receiver Protocol: ExpressLRS
Dimensions: 18 × 13.8mm
Antenna Interface: IPEX1
Weight: 2.9g with T antenna

Send email to us

Product Detail

FAQ

Technical Highlights

915MHz ExpressLRS Receiver

The Bandit BR1 is a receiver identified by RadioMaster as an FCC915 product. It is not a 2.4GHz receiver or an FPV video transmitter.

CRSF Output

The receiver uses a CRSF bus interface for connection to a suitable RC flight-control system.

50mW Telemetry RF Power

RadioMaster specifies 50mW (17dBm) telemetry RF power. This is a receiver telemetry specification, not video transmission power.

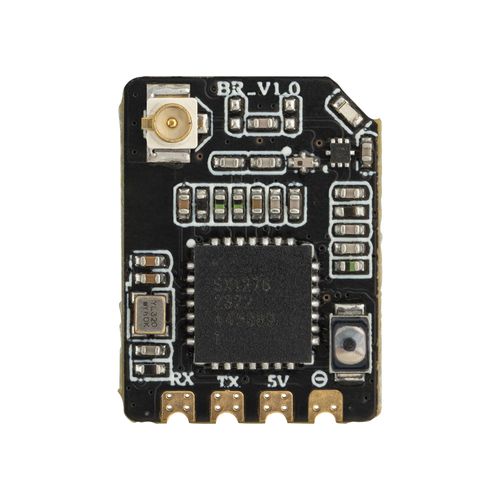

Compact Board with Built-In TCXO

The 18 × 13.8mm receiver board includes a temperature-compensated crystal oscillator. RadioMaster specifies a weight of 2.9g with the T antenna.

RF and Interface Specifications

Model	Bandit BR1
Product Type	ExpressLRS receiver
Regulatory Domain	FCC915
Operating Frequency	915MHz product version
Telemetry RF Power	50mW (17dBm)
Bus Interface	CRSF
Antenna Interface	IPEX1

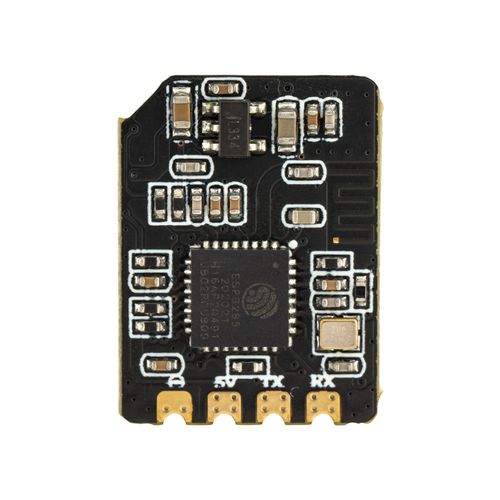

MCU	ESP8285
RF Chip	Semtech SX1276
Oscillator	Built-in TCXO

Electrical and Physical Specifications

Working Voltage	5.0V DC

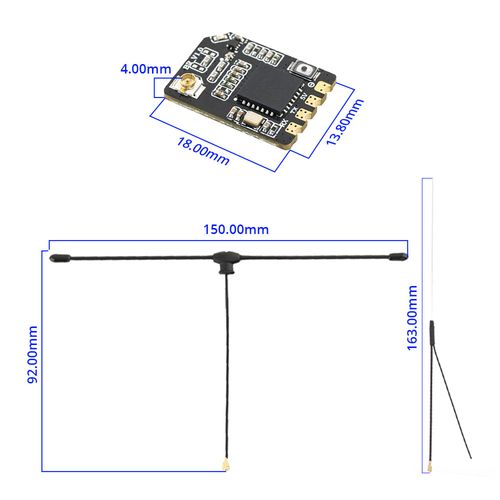

Board Dimensions	18 × 13.8mm
Weight	2.9g with T antenna

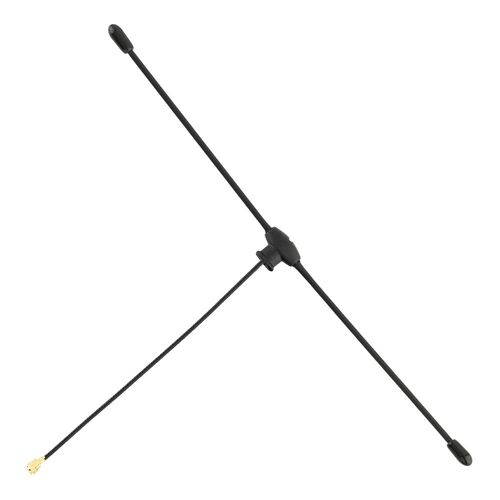

Antenna	RadioMaster lists a 915/868MHz T antenna for the BR1

Selection Notes

Specify Bandit BR1 and the required FCC915 frequency configuration when selecting the receiver.
Provide a regulated 5.0V DC supply and use the CRSF interface for the intended installation.

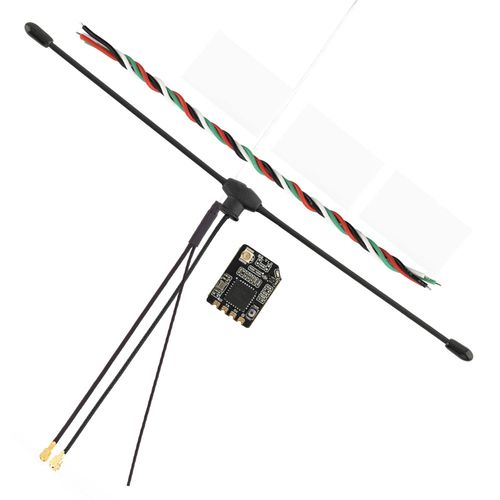

Check the antenna type and the exact contents of the quoted package; a Y antenna shown in product imagery should not be assumed to be included.
This receiver does not transmit FPV video.

FAQ

Is the Bandit BR1 a 2.4GHz receiver?

No. RadioMaster identifies this Bandit BR1 product as a 915MHz receiver in the FCC915 regulatory domain.

Does the BR1 transmit FPV video?

No. The BR1 is an ExpressLRS RC receiver. Its 50mW rating refers to telemetry RF power, not video output power.

What output interface and power supply does it use?

The BR1 uses a CRSF bus interface and requires a 5.0V DC supply.

What is the receiver's size and weight?

The board measures 18 × 13.8mm. RadioMaster specifies 2.9g with the T antenna.

B2B Procurement FAQ

What information should be included in an inquiry?

Specify RadioMaster Bandit BR1, the FCC915 version, required quantity and the intended CRSF installation. Confirm the antenna and package contents in the quotation.

Is the Y antenna included because it appears in an image?

Do not infer package contents from the image. RadioMaster's standard product listing identifies a T antenna; request explicit confirmation if a Y antenna is required.

Are MOQ, price and lead time predetermined?

Minimum order quantity, price, availability and lead time must be confirmed during quotation.
