RUSHFPV TANK Ultimate Mini 5.8GHz VTX

Short Description:

RUSHFPV TANK Ultimate Mini analog VTX features up to 48 channels, PIT/25/200/500/800mW power, 7–36V DC input, SmartAudio and 2020mm mounting.

Product Name: RUSHFPV TANK Ultimate Mini 5.8GHz VTX
Product Type: Analog FPV Video Transmitter
Frequency Range: 5362–5945 MHz channel centers; availability varies by region
Channels: 48 CH; 37 CH for the US version
Output Power: PIT / 25 / 200 / 500 / 800 mW
Input Voltage: 7–36 V DC
Control Protocol: TBS SmartAudio
Mounting Hole: 20 × 20 mm
Antenna Connector: MMCX
Dimensions: 28 × 29 × 4.8 mm

Send email to us

Product Detail

FAQ

Technical Highlights

Adjustable Analog Video Transmission

The TANK Ultimate Mini is a 5.8GHz analog FPV video transmitter with PIT mode and four selectable transmitting power levels: 25, 200, 500 and 800mW.

48-Channel Configuration

The standard version provides 48 channels across six bands. The US version provides 37 channels; channel availability must be checked against the supplied regional version and local radio rules.

SmartAudio and Onboard Controls

TBS SmartAudio supports VTX setting changes through a compatible flight controller. Onboard FREQ and PWR buttons provide direct band, channel, power and PIT-mode control.

Compact 20 × 20 mm Installation

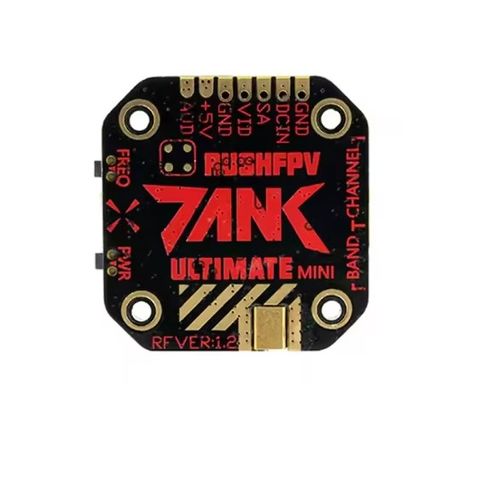

The 28 × 29 × 4.8 mm board has a 20 × 20 mm mounting-hole pattern and an MMCX antenna connector. Its marked pads provide video input, SmartAudio, DC input, ground, audio input and 5V output connections.

Technical Specifications

Model	RUSHFPV TANK Ultimate Mini, RFVER:1.2 shown in supplied images
Video System	Analog CVBS, NTSC/PAL
Frequency	5.8GHz FPV bands; listed channel centers span 5362–5945 MHz
Channels	48 CH; 37 CH for the US version
Transmitting Power	PIT / 25 / 200 / 500 / 800 mW
Input Voltage	7–36 V DC
5V Output	5 V, maximum 1 A
Control Protocol	TBS SmartAudio
Audio	External audio input
Antenna Connector	MMCX
Mounting-Hole Spacing	20 × 20 mm
Board Dimensions	28 × 29 × 4.8 mm
Weight	5.2 g, without cable

Installation Notes

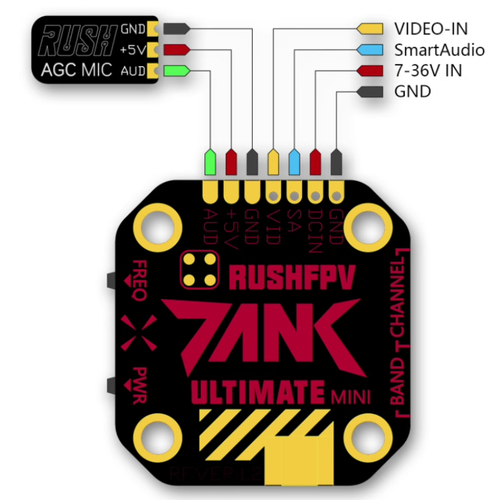

Connect the DC input to a suitable 7–36 V supply; the marked 5V pad is an output, not the main power input.
Connect the video-input pad to the analog camera video signal. The SA pad connects to a compatible flight-controller UART TX for SmartAudio control.
Connect a suitable antenna to the MMCX RF output before powering the VTX.
Provide airflow during operation, especially at higher transmitting power.
Confirm the permitted channels and transmitting power for the operating location before use.

FAQ

Is this the TANK Ultimate Mini II?

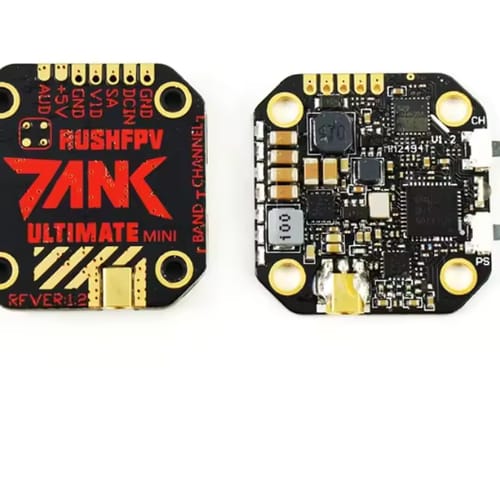

No. The supplied product images show a TANK Ultimate Mini board marked RFVER:1.2. The dimensions listed on this page are for the original Ultimate Mini, not the Mini II.

Which transmitting power levels are available?

The VTX supports PIT mode and selectable 25, 200, 500 and 800mW transmitting power levels.

Can the VTX be controlled from a flight controller?

Yes. Connect the SA pad to a compatible flight-controller UART TX and configure TBS SmartAudio for VTX control.

Does every regional version provide 48 channels?

No. The manufacturer’s manual lists 48 channels for the standard version and 37 channels for the US version. Confirm the supplied version and applicable local radio rules.

Can the VTX be powered from a 5V pad?

No. Its main DC input is rated for 7–36 V. The marked 5V connection is an output.

B2B Procurement FAQ

What should be confirmed when ordering this VTX?

Confirm the original TANK Ultimate Mini model, regional channel version, RF board revision, antenna connector and required accessories in the quotation.

Is an external microphone included?

The board supports an external audio input, but the supplied product images do not establish the contents of the sales package. Confirm microphone and other accessory inclusion before ordering.

What are the MOQ, lead time and warranty terms?

These terms are not established by the supplied materials and should be confirmed during quotation.
