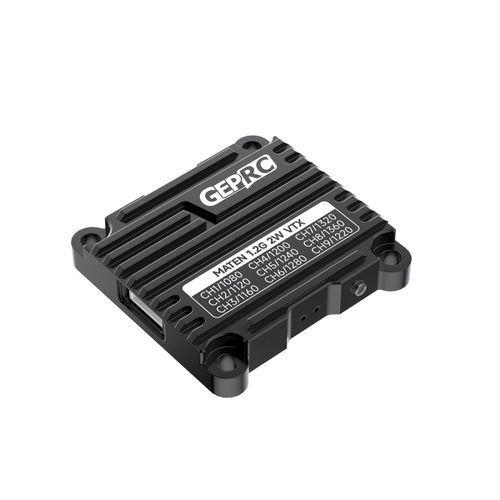

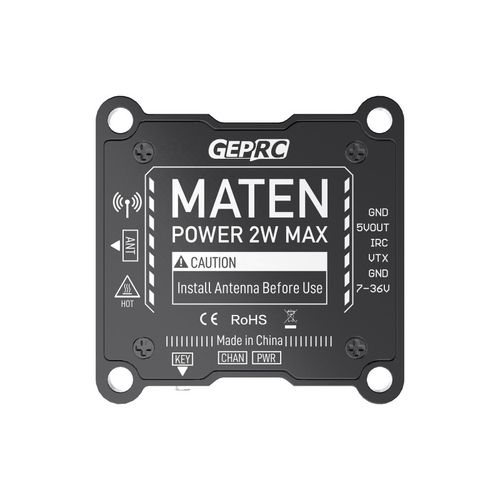

GEPRC MATEN 1.2G 2W VTX

Short Description:

GEPRC MATEN 1.2G 2W analog FPV VTX with nine 1080–1360MHz channels, four power levels, Pit Mode, IRC Tramp control and 7–36V input.

Product Name: GEPRC MATEN 1.2G 2W VTX
Product Type: Analog FPV Video Transmitter
Frequency Range: 1080–1360MHz
Channels: 9 Channels
Output Power: 25mW / 400mW / 800mW / 2000mW / Pit Mode
Input Voltage: 7–36V DC (2–8S Battery)
Control Protocol: IRC Tramp
Mounting Hole: 30.5 × 30.5mm (M3)
Video Format: PAL / NTSC
Weight: 14.5g (VTX Only)

Send email to us

Product Detail

FAQ

Technical Highlights

Up to 2000mW RF Output

Four selectable RF power levels of 25mW, 400mW, 800mW and 2000mW allow the video link to be configured for different operating requirements. Pit Mode is also available for low-power setup and maintenance.

Nine 1.2GHz Video Channels

The transmitter provides nine selectable channels from 1080MHz to 1360MHz, giving system integrators multiple frequency options for compatible 1.2GHz analog FPV receivers.

IRC Tramp Remote Control

IRC Tramp support allows compatible flight controllers and on-screen display systems to adjust VTX channel and output power without direct access to the transmitter buttons.

Wide 7–36V Input Range

The VTX accepts a 7–36V DC input, covering 2S through 8S battery systems. A regulated 5V output rated at up to 600mA is provided for a compatible FPV camera or cooling fan.

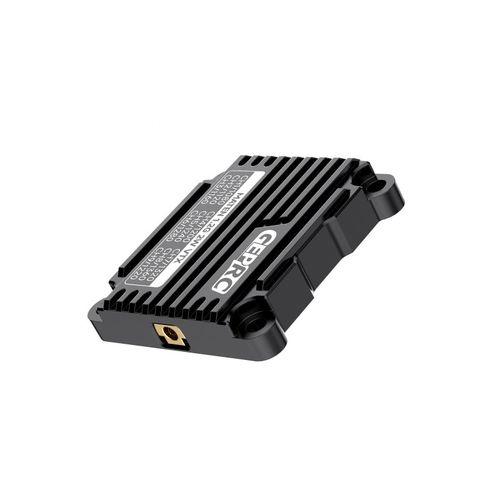

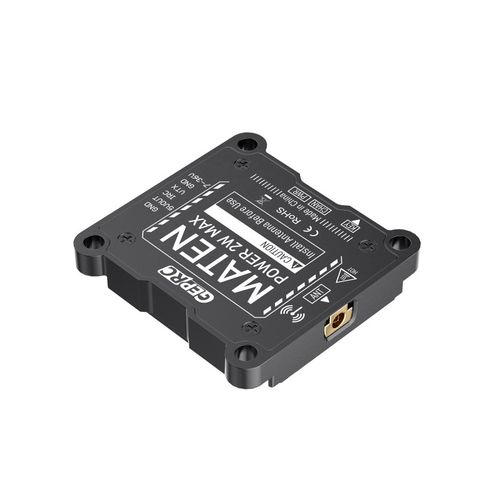

CNC Aluminum Heat-Dissipation Housing

The high-strength aluminum-alloy CNC enclosure protects the transmitter and acts as a heat sink. Integrated temperature protection helps reduce the risk of damage caused by excessive operating temperature.

Standard 30.5mm Installation Pattern

A 30.5 × 30.5mm M3 mounting pattern supports installation in compatible FPV frames and equipment platforms. The compact module measures 36.4 × 36.4 × 7.4mm.

Technical Specifications

Product Name	GEPRC MATEN 1.2G 2W VTX
Product Type	Analog FPV Video Transmitter
Frequency Range	1080–1360MHz
Channel Count	9
Output Power	25mW / 400mW / 800mW / 2000mW / Pit Mode
Input Voltage	7–36V DC, 2–8S Battery
Auxiliary Output	5V DC, Up to 600mA
Control Protocol	IRC Tramp
Video Format	PAL / NTSC
Antenna Interface	MMCX
Antenna Port Impedance	50Ω
Cable Interface	SH1.25 6-Pin
Frequency Stability	±100kHz Typical
Frequency Precision	±200kHz Typical
S/N at Fo ±3MHz	>70dBc
Operating Temperature	-10°C to +60°C
Dimensions	36.4 × 36.4 × 7.4mm
Mounting Hole	30.5 × 30.5mm, M3
Weight	14.5g, VTX Only

Channel Table

Channel	Frequency
CH1	1080MHz
CH2	1120MHz
CH3	1160MHz
CH4	1200MHz
CH5	1240MHz
CH6	1280MHz
CH7	1320MHz
CH8	1360MHz
CH9	1220MHz

Installation and Operating Notes

Install a correctly matched 1.2GHz antenna before powering the VTX.
Never operate the transmitter without an antenna or suitable RF load.
Maintain constant airflow around the housing, especially at higher output-power settings.
Install a cooling fan when operating in a confined or poorly ventilated installation.
The 5V output is intended only for a compatible camera or cooling fan.
Never connect the battery or main power input to the 5V output terminal.
Confirm cable polarity and connector pin order before applying power.
Confirm that the selected frequency and output power comply with local radio regulations.

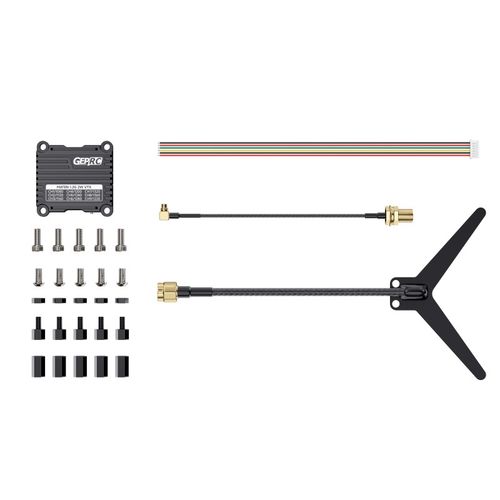

Package Contents

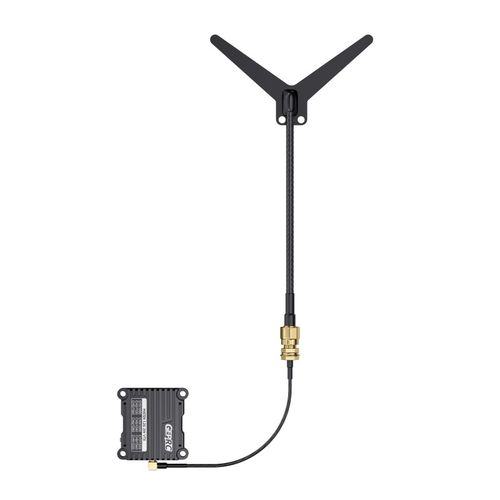

1 × GEPRC MATEN 1.2G 2W VTX
1 × MMCX-to-SMA Connector Cable
1 × 1.2GHz SMA Antenna
1 × SH1.25 6-Pin Connecting Cable
5 × M3 × 7 Screws
5 × M3 × 8 Screws
5 × M3 × 10 Hexagonal Standoffs
5 × M3 × 5 Isolation Columns
5 × M3 Nylon Nuts
1 × Product Manual

FAQ

What frequencies does the MATEN 1.2G 2W VTX support?

It provides nine selectable analog video channels between 1080MHz and 1360MHz: 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360 and 1220MHz.

Which output-power settings are available?

The selectable settings are 25mW, 400mW, 800mW and 2000mW. Pit Mode is also available for low-power setup and maintenance.

Does the VTX support remote parameter adjustment?

Yes. It supports the IRC Tramp protocol, allowing channel and output-power adjustment through a compatible flight controller and on-screen display system.

What battery voltage can be connected?

The supported input range is 7–36V DC, corresponding to 2S through 8S battery systems. Verify polarity before applying power.

Can the 5V output power an FPV camera?

Yes. The regulated output provides 5V at up to 600mA for a compatible camera or cooling fan. It must not be connected to a battery or another external power source.

Which video formats are supported?

The transmitter supports PAL and NTSC analog video formats.

What antenna connector does the VTX use?

The VTX uses a 50Ω MMCX antenna interface. The standard package includes an MMCX-to-SMA cable and a 1.2GHz SMA antenna.

Can the transmitter be powered without an antenna?

No. A correctly matched antenna or RF load must be connected before power is applied. Operating without an antenna may damage the RF output stage.

Does the 2W VTX require additional cooling?

Constant airflow and good ventilation are required, particularly at higher power settings. A cooling fan should be installed when the VTX operates in an enclosed or poorly ventilated area.

What mounting pattern is required?

The VTX uses a 30.5 × 30.5mm mounting pattern with M3 hardware. Its overall dimensions are 36.4 × 36.4 × 7.4mm.

B2B Procurement FAQ

What is included in the standard package?

The listed package contains one VTX, one MMCX-to-SMA cable, one 1.2GHz SMA antenna, one SH1.25 6-pin cable, mounting screws, standoffs, isolation columns, nylon nuts and one product manual. Final package contents should be confirmed in the quotation.

What information is required for a volume quotation?

Please provide the required quantity, destination country, preferred package configuration, required accessories and expected purchasing schedule. Commercial terms must be confirmed during quotation.

Can samples be supplied before a bulk order?

Sample availability, pricing and delivery arrangements are not specified in the product material and must be confirmed during quotation.

Are custom cables, antennas or packaging available?

Custom accessory combinations, cable specifications, labels and packaging are not guaranteed by the supplied material. Feasibility, minimum quantity and cost must be confirmed before ordering.

What should buyers verify for the destination market?

Buyers must confirm that the selected 1080–1360MHz channel, transmitter power and antenna configuration comply with radio, import and operational requirements in the destination country.

Are compliance documents included with the product?

Product-specific declarations, test reports and market-access documents are not established by the supplied technical material. Any required documentation must be identified and confirmed during quotation.

How should incoming inspection be performed?

Recommended checks include model and package verification, connector and housing inspection, correct input polarity, operation with a matched 1.2GHz antenna, channel switching, power-mode control and analog video testing with compatible receiving equipment.
