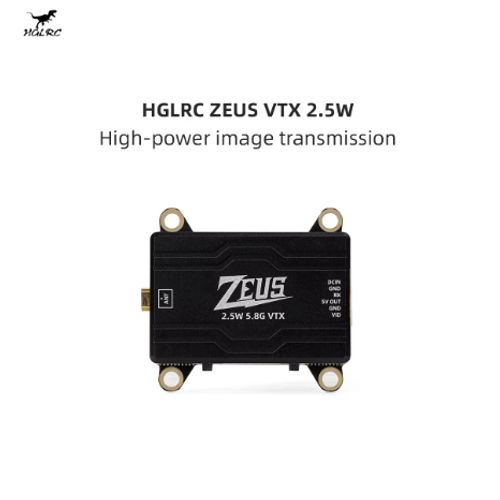

HGLRC Zeus VTX 2.5W 5.8GHz Analog Video Transmitter

Short Description:

HGLRC Zeus VTX 2.5W is a 5.8GHz analog FPV video transmitter with 40 channels, PIT to 2500mW output, 7–26V input, MMCX antenna port and 30.5mm M3 mounting.

Product Name: HGLRC Zeus VTX 2.5W 5.8GHz Analog Video Transmitter
Product Type: Analog FPV Video Transmitter
Frequency Range: 5.8GHz; A/B/E/F/R Bands
Channels: 40 Channels
Output Power: PIT / 25 / 200 / 800 / 1600 / 2500mW
Input Voltage: 7–26V DC
Control Protocol: IRC Tramp per supplied specification and 2.5W manual; confirm ordered revision
Mounting Hole: 30.5 × 30.5mm, M3
Antenna Connector: MMCX
BEC Output: 5V / 800mA

Send email to us

Product Detail

FAQ

Product Overview

The HGLRC Zeus VTX 2.5W is a 5.8GHz analog video transmitter for FPV aircraft. It provides 40 channels across five frequency bands and six selectable operating modes from PIT to 2500mW. Its metal housing, MMCX antenna interface and 30.5 × 30.5mm M3 mounting pattern support integration into compatible drone builds.

Technical Highlights

Selectable Output up to 2.5W

Choose PIT, 25mW, 200mW, 800mW, 1600mW or 2500mW to match the operating setup. The listed 2.5W value is the highest selectable output setting.

40 Analog Video Channels

The VTX supports 40 channels arranged in A, B, E, F and R frequency groups. It accepts PAL or NTSC analog video.

Wide DC Input and 5V BEC

The specified input is 7–26V DC. An integrated 5V, 800mA BEC output is provided for a suitable peripheral load.

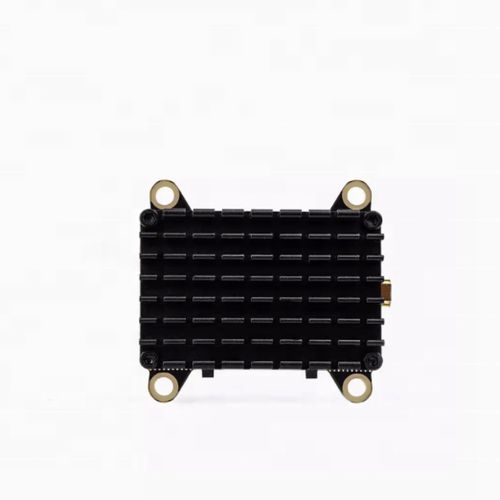

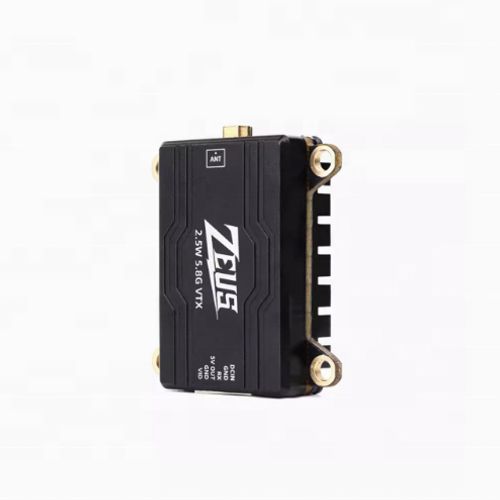

Mounting and Heat Dissipation

The 40 × 35 × 11.8mm housing uses a 30.5 × 30.5mm M3 mounting pattern. Its upper and lower metal housing sections aid heat dissipation.

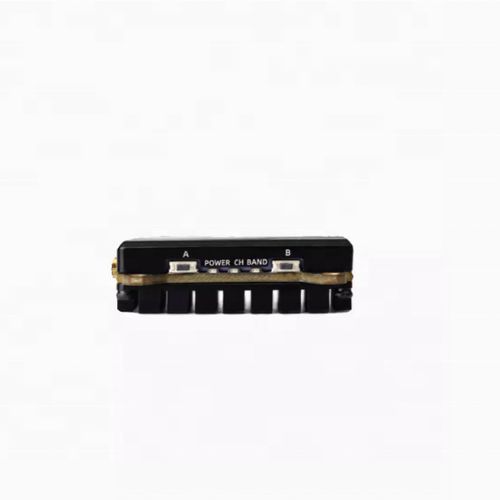

Button and OSD Configuration

On-board buttons and LED indicators provide direct setting control. The supplied 2.5W specification identifies IRC Tramp for flight-controller OSD control; the protocol should be checked against the ordered hardware revision.

RF and Video Specifications

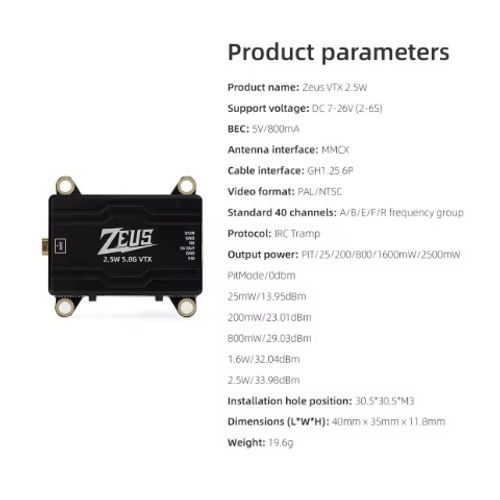

Model	HGLRC Zeus VTX 2.5W
Operating Band	5.8GHz
Frequency Groups	A / B / E / F / R
Channels	40
Selectable Output Power	PIT / 25 / 200 / 800 / 1600 / 2500mW
Video Format	PAL / NTSC
Antenna Interface	MMCX
Control Protocol	IRC Tramp per supplied specification and 2.5W manual; confirm ordered revision

Electrical and Mechanical Specifications

Input Voltage	7–26V DC
BEC Output	5V / 800mA
Cable Interface	GH1.25 6-pin
Mounting Hole Pattern	30.5 × 30.5mm, M3
Dimensions	40 × 35 × 11.8mm
Weight	19.6g

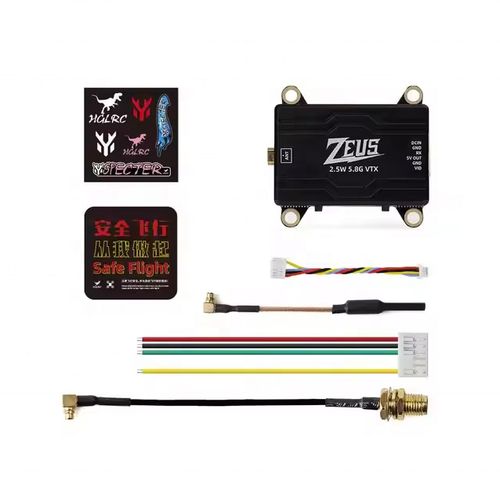

Package Contents

1 × Zeus VTX 2.5W
1 × 80mm MMCX copper tube antenna
1 × 100mm RG316 MMCX-to-SMA adapter
1 × 100mm GH1.25 6-pin single-ended cable
1 × 60mm SH1.0 4-pin to GH1.25 6-pin double-ended cable

Installation Notes

Confirm the input supply remains within the specified 7–26V DC range.
Fit the MMCX antenna before applying power to the VTX.
Provide airflow when operating at high output power; the housing can become hot.
Verify the control protocol of the supplied hardware before setting the flight-controller VTX port.
Match the receiving equipment to the selected frequency band and channel.

FAQ

Is this the Zeus VTX PRO 1.6W model?

No. This page covers the Zeus VTX 2.5W identified on the supplied product housing. The Zeus VTX PRO 1.6W is a separate model.

Which output power settings are available?

The specified settings are PIT, 25mW, 200mW, 800mW, 1600mW and 2500mW.

What input voltage does the VTX require?

The specified input range is 7–26V DC. The 5V/800mA rating refers to the BEC output, not the VTX input.

Which VTX control protocol should be configured?

The supplied specification and Zeus VTX 2.5W manual identify IRC Tramp, while an HGLRC online listing states TBS SmartAudio. Confirm the protocol of the actual supplied revision before configuring the flight-controller port.

Which analog video formats and channels are supported?

The VTX specifies PAL/NTSC video and 40 channels across A, B, E, F and R frequency groups.

Can the VTX be powered without an antenna?

No. Connect a suitable MMCX antenna before powering the transmitter.

What mounting pattern does the VTX use?

It uses a 30.5 × 30.5mm mounting pattern with M3 holes.
