HGLRC Zeus Nano 5.8GHz 350mW Analog VTX

Short Description:

HGLRC Zeus Nano 5.8GHz analog FPV VTX with 40 channels, PIT/25/100/200/350mW output, built-in microphone, IRC Tramp control and 5V input.

Product Name: HGLRC Zeus Nano 5.8GHz 350mW Analog VTX
Product Type: 5.8GHz Analog FPV Video Transmitter
Frequency Range: 5.8GHz; A/B/E/F/R Bands
Channels: 40 Channels
Output Power: PIT / 25 / 100 / 200 / 350mW
Input Voltage: 5V DC
Control Protocol: IRC Tramp
Mounting Hole: 16 × 16mm M2; 20 × 20mm M3; 25.5 × 25.5mm M2
Antenna Connector: IPEX
Built-in Microphone: Yes

Send email to us

Product Detail

FAQ

Product Overview

The HGLRC Zeus Nano is a compact 5.8GHz analog video transmitter for FPV drone builds. It offers 40 channels across A, B, E, F and R bands, five selectable operating modes including PIT, and a built-in microphone for audio transmission. Its mounting holes accommodate three common FPV installation patterns.

Technical Highlights

Five Selectable Power Modes

Choose PIT, 25mW, 100mW, 200mW or 350mW according to the installation and operating requirements. The function button and status indicators provide on-board setting feedback.

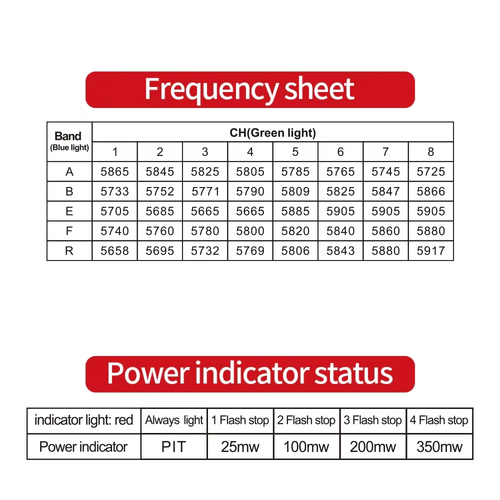

40 Channels on Five Bands

The VTX provides eight channels in each of the A, B, E, F and R bands. Select a channel supported by the receiving equipment and permitted in the operating location.

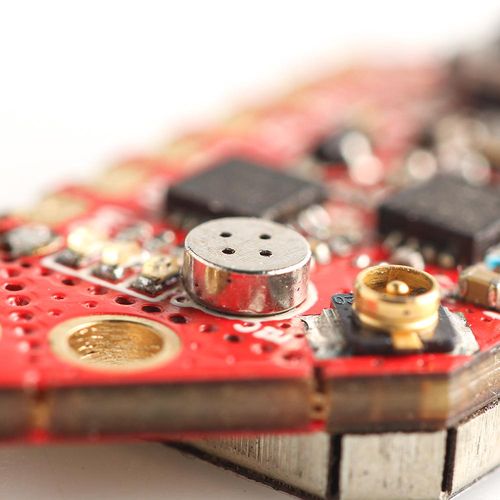

Built-in Microphone

The integrated microphone enables audio to accompany the analog video transmission when the receiving setup supports audio.

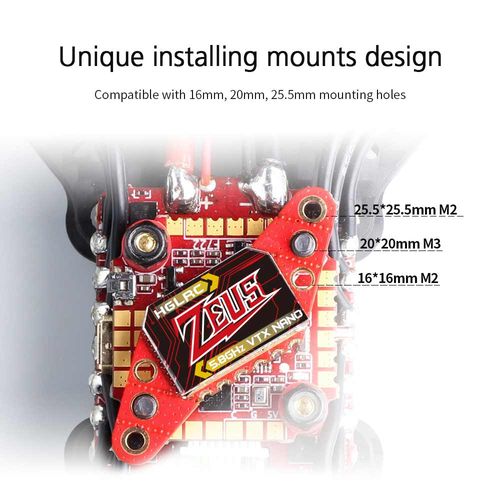

Flexible Mounting

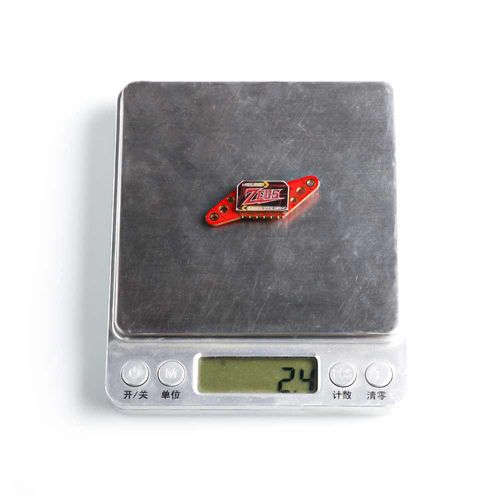

The board provides 16 × 16mm and 25.5 × 25.5mm M2 mounting positions, plus a 20 × 20mm M3 position. The VTX measures 18.6 × 13.6 × 6mm and weighs 2.4g.

IRC Tramp Control

An IRC Tramp control input allows compatible flight-controller configurations to adjust VTX settings through a serial connection.

Technical Specifications

Brand and Model	HGLRC Zeus Nano VTX
Video System	5.8GHz analog FPV
Frequency Groups	A / B / E / F / R
Channel Count	40; eight channels per band
Output Power Settings	PIT / 25 / 100 / 200 / 350mW
Input Voltage	5V DC
Control Protocol	IRC Tramp
Audio	Built-in microphone
Antenna Interface	IPEX
Mounting Patterns	16 × 16mm M2; 20 × 20mm M3; 25.5 × 25.5mm M2
Dimensions	18.6 × 13.6 × 6mm
Weight	2.4g

Power Consumption

PIT Mode	75mA at 5V
25mW Mode	180mA at 5V
100mW Mode	280mA at 5V
200mW Mode	330mA at 5V
350mW Mode	400mA at 5V

Installation Notes

Supply the VTX from a regulated 5V output.

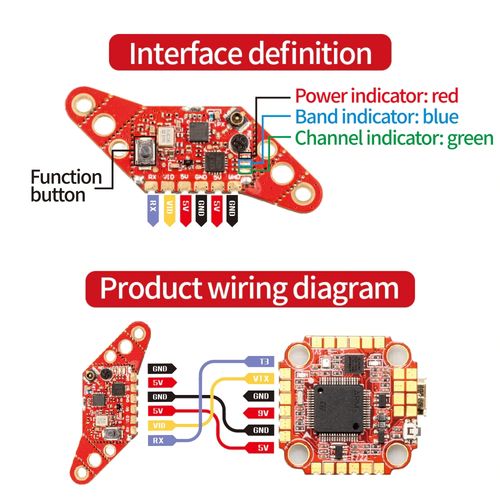

Connect the video input, ground and IRC Tramp control pad according to the board markings.
Connect a suitable antenna to the IPEX interface before powering the VTX.
Check the selected mounting pattern and available space in the FPV frame.
Set the receiving equipment to the same band and channel as the VTX.

Applications

Compact analog FPV racing drones
Freestyle and lightweight multirotor builds
FPV frames using 16mm, 20mm or 25.5mm mounting patterns
Analog video installations requiring a built-in microphone

FAQ

What video system does the Zeus Nano VTX use?

It is a 5.8GHz analog FPV video transmitter with 40 channels across A, B, E, F and R bands.

Which output power settings are available?

The available settings are PIT, 25mW, 100mW, 200mW and 350mW.

Can the Zeus Nano VTX be powered from a 9V pad?

No. The specified input is 5V DC. Use a regulated 5V supply for the VTX.

Which control protocol should be selected in the flight controller?

HGLRC specifies IRC Tramp for this model. Select IRC Tramp when configuring a compatible flight controller's VTX control connection.

Does this VTX include a microphone?

Yes. The Zeus Nano has a built-in microphone for audio transmission with a suitable analog receiving setup.

Which mounting patterns does it support?

It supports 16 × 16mm M2, 20 × 20mm M3 and 25.5 × 25.5mm M2 mounting positions.

What antenna connector does the VTX use?

The board uses an IPEX antenna interface. Connect a suitable antenna before powering the VTX.

B2B Procurement FAQ

What model details should a purchase inquiry include?

Specify HGLRC Zeus Nano 5.8GHz 350mW VTX, the required quantity and the destination market so the exact item and applicable channel requirements can be checked.

Should buyers specify the antenna and cable configuration?

Yes. Ask for a written packing-list confirmation covering the VTX, IPEX antenna, IPEX-to-SMA adapter cable and VTX wiring supplied with the quoted batch.

Can the VTX be evaluated before a larger order?

State the evaluation quantity in the inquiry. Sample availability and pricing must be confirmed during quotation.

What information is needed for integration review?

Provide the flight-controller model, available 5V supply, intended IRC Tramp connection, frame mounting pattern and antenna arrangement.

Are MOQ, lead time and documentation fixed?

MOQ, lead time and any requested product documentation must be confirmed for the specific quotation and order quantity.
