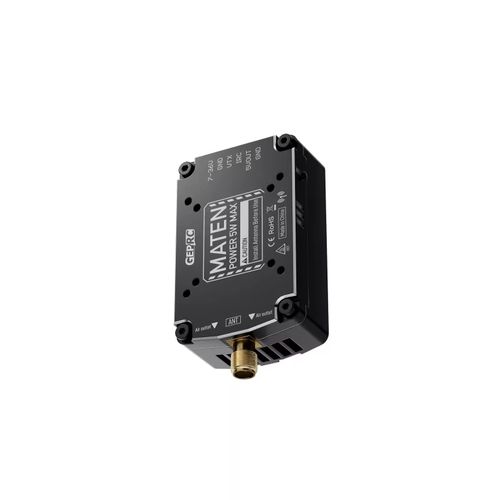

GEPRC MATEN 1.2G 5W VTX PRO

Short Description:

GEPRC MATEN 1.2G 5W VTX PRO with 1080–1360MHz coverage, selectable power up to 5000mW, IRC Tramp control, active cooling and 7–36V input.

Product Name: GEPRC MATEN 1.2G 5W VTX PRO
Product Type: 1.2GHz High-Power FPV Video Transmitter
Frequency Range: 1080–1360MHz
Channels: 16 Preset Positions in Two 8-Channel Groups
Output Power: 25mW / 400mW / 800mW / 5000mW / Pit Mode
Input Voltage: 7–36V DC (2–8S Battery)
Control Protocol: IRC Tramp
Mounting Hole: 20 × 20mm / 25.5 × 25.5mm (M2)
Dimensions: 60 × 33.2 × 19.1mm
Weight: 48g (VTX Only)

Send email to us

Product Detail

FAQ

Technical Highlights

Maximum 5000mW RF Output

Four selectable output levels of 25mW, 400mW, 800mW and 5000mW support different video-link requirements. Pit Mode provides a reduced-output setting for setup and maintenance.

1080–1360MHz Frequency Coverage

The updated frequency configuration uses two eight-position channel groups covering listed frequencies from 1080MHz to 1360MHz. Direct frequency entry is also supported through a compatible configurator.

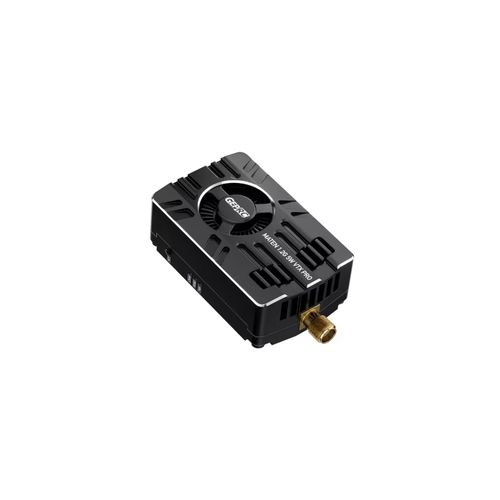

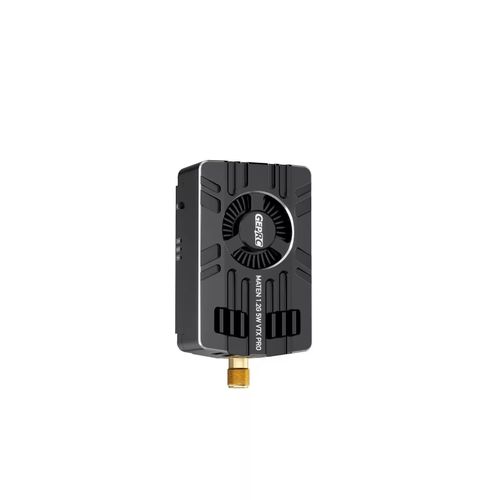

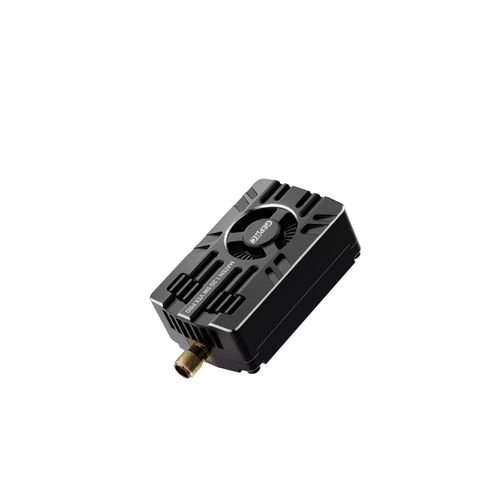

Integrated Active Cooling

The high-strength CNC aluminum-alloy housing combines passive heat dissipation with an integrated cooling fan. This thermal design supports the higher heat load produced at elevated RF output settings.

IRC Tramp VTX Control

IRC Tramp support enables channel and output-power adjustment through a compatible flight controller and on-screen display configuration system.

Wide 7–36V Power Input

The VTX accepts 7–36V DC input for 2S through 8S battery systems. It also provides a regulated 5V output rated at up to 600mA for a compatible camera or cooling accessory.

Temperature Protection

Integrated temperature protection helps prevent damage from excessive heat. Proper airflow and ventilation are still required, particularly when operating at 5000mW.

Technical Specifications

Product Name	GEPRC MATEN 1.2G 5W VTX PRO
Product Type	1.2GHz High-Power FPV Video Transmitter
Frequency Range	1080–1360MHz
Channel Arrangement	Two Groups with Eight Preset Positions per Group
Direct Frequency Entry	Supported
Output Power	25mW / 400mW / 800mW / 5000mW / Pit Mode
Input Voltage	7–36V DC, 2–8S Battery
Auxiliary Output	5V DC, Up to 600mA
Control Protocol	IRC Tramp
Antenna Connector	SMA
Cable Connector	SH1.25 6-Pin
Housing	CNC Aluminum Alloy with Integrated Cooling Fan
Mounting Patterns	20 × 20mm and 25.5 × 25.5mm, M2
Dimensions	60 × 33.2 × 19.1mm
Weight	48g, VTX Only

Frequency Groups

Position	Group A	Group B
1	1080MHz	1200MHz
2	1120MHz	1220MHz
3	1160MHz	1240MHz
4	1200MHz	1258MHz
5	1240MHz	1280MHz
6	1280MHz	1300MHz
7	1320MHz	1320MHz
8	1360MHz	1340MHz

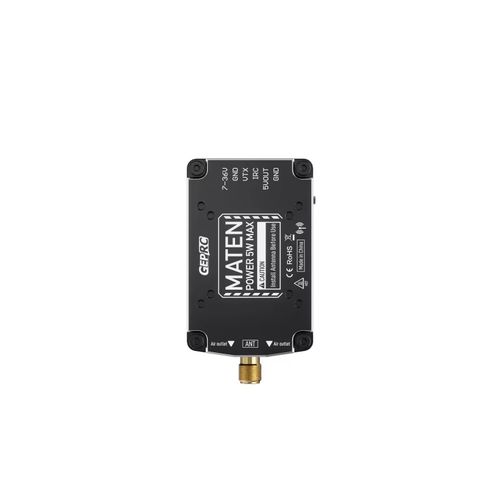

Electrical and Control Interfaces

7–36V DC main power input
Ground connection
Video transmitter signal connection
IRC Tramp control connection
Regulated 5V output rated at up to 600mA
SH1.25 6-pin cable interface
SMA antenna interface
Single function button with three status indicators

Installation and Operating Notes

Install a correctly matched 1.2GHz antenna before applying power.
Never operate the transmitter without a suitable antenna or RF load.
Maintain constant airflow and adequate ventilation around the housing.
Do not obstruct the integrated fan or the housing air outlets.
The 5V output is intended only for a compatible camera or cooling accessory.
Never connect the battery or main power input to the 5V output terminal.
Verify connector pin order and power polarity before installation.
Confirm the required mounting pattern against the supplied hardware before assembly.
Use only frequencies and output powers permitted by local radio regulations.

Package Contents

1 × GEPRC MATEN 1.2G 5W VTX PRO
1 × SMA Male-to-SMA Female Connector
1 × SH1.25 6-Pin VTX Connection Cable
6 × M2 × 5 Screws
6 × M2 × 6 Screws
1 × Product Manual

FAQ

What is the maximum output power?

The maximum listed output setting is 5000mW. The other selectable levels are 25mW, 400mW and 800mW, together with Pit Mode.

What frequency range does the VTX support?

The updated model covers listed frequencies from 1080MHz to 1360MHz and supports direct frequency entry through a compatible configurator.

How are the preset channels arranged?

The detailed manufacturer specification lists two frequency groups with eight preset positions in each group. Some frequencies appear in both groups.

Does the VTX support flight-controller adjustment?

Yes. IRC Tramp allows compatible flight controllers and OSD systems to adjust supported VTX parameters.

What battery voltage can be connected?

The VTX accepts 7–36V DC input and is specified for 2S through 8S battery systems. Always verify polarity before applying power.

What is the 5V output used for?

The regulated 5V output supplies up to 600mA for a compatible camera or cooling accessory. A battery or external power input must never be connected to this output.

Does the VTX include active cooling?

Yes. The aluminum-alloy housing incorporates an active cooling fan. The fan and air outlets must remain unobstructed during use.

Is an antenna included in the standard package?

The official package list includes an SMA connector adapter but does not list a 1.2GHz antenna. A correctly matched antenna should therefore be selected separately unless the quotation states otherwise.

Can the VTX be powered without an antenna?

No. A correctly matched 1.2GHz antenna or suitable RF load must be connected before the transmitter is powered.

Which mounting patterns are listed?

The detailed manufacturer specification lists 20 × 20mm and 25.5 × 25.5mm M2 mounting patterns. Buyers should verify the physical mounting version before integration.

B2B Procurement FAQ

What is included in the standard package?

The official package list includes one VTX, one SMA male-to-SMA female connector, one SH1.25 6-pin cable, six M2 × 5 screws, six M2 × 6 screws and one product manual. Final contents should be confirmed in the quotation.

Which product version should be stated on the purchase order?

The purchase order should identify the product as GEPRC MATEN 1.2G 5W VTX PRO and should state the required frequency range, firmware configuration and mounting pattern.

What should be confirmed before a volume order?

Confirm the channel firmware, direct-frequency-entry function, physical mounting-hole version, cable pinout, SMA connector configuration and package contents before production approval.

Can a sample be ordered for integration testing?

Sample availability, price and delivery terms are not specified in the supplied product information and must be confirmed during quotation.

Are custom cables, antennas or packaging available?

Custom cable pinouts, antenna bundles, labels and packaging are not guaranteed by the supplied material. Feasibility, minimum quantity and additional cost must be confirmed during quotation.

What regulatory information should buyers provide?

Buyers should provide the destination country and intended operating frequencies. Permission to use 1.2GHz channels and output power up to 5000mW varies by jurisdiction and must be checked before import or operation.

How should incoming inspection be performed?

Recommended checks include model-label verification, housing and fan inspection, connector and cable inspection, correct input polarity, operation with a matched RF load, channel selection, IRC Tramp control and output-mode switching.
