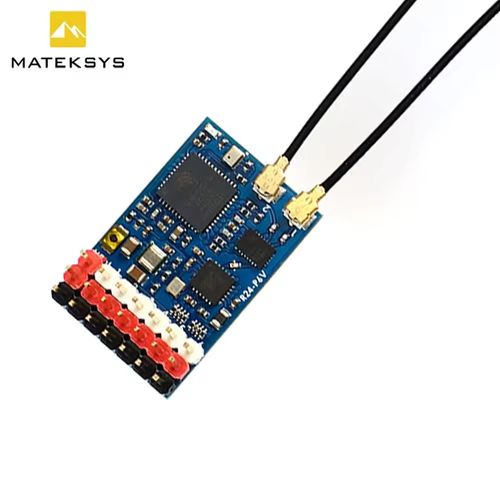

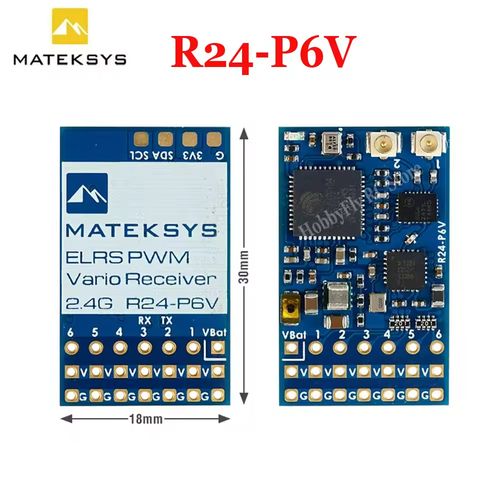

MATEKSYS R24-P6V ExpressLRS PWM Vario Receiver

Short Description:

MATEKSYS R24-P6V is a 2.4GHz ExpressLRS PWM vario receiver with six PWM outputs, antenna-switching diversity, SPL06-001 barometer, 180mW telemetry and 4–13V DC input.

Product Name: MATEKSYS R24-P6V ExpressLRS PWM Vario Receiver
Product Type: 2.4GHz PWM Vario Receiver
Frequency Range: 2.4GHz ISM band
PWM Outputs: 6 channels
Telemetry Power: 22.5dBm (180mW)
Input Voltage: 4–13V DC at V pad
Receiver Protocol: ExpressLRS
PCB Size: 30 × 18mm
Barometer: SPL06-001 (Vario)
VBAT Voltage Sense: 0–25.5V

Send email to us

Product Detail

FAQ

Technical Highlights

Six Direct PWM Outputs

The R24-P6V provides six PWM output channels for RC systems that require direct receiver-to-device signal connections.

Integrated Vario Sensor

An SPL06-001 barometer provides the receiver's variometer function. A separate VBAT sense input supports voltage measurement up to 25.5V.

2.4GHz ExpressLRS Link with Telemetry

The receiver operates in the 2.4GHz ISM band and has 22.5dBm (180mW) telemetry power. This rating applies to the receiver's telemetry link, not to FPV video transmission.

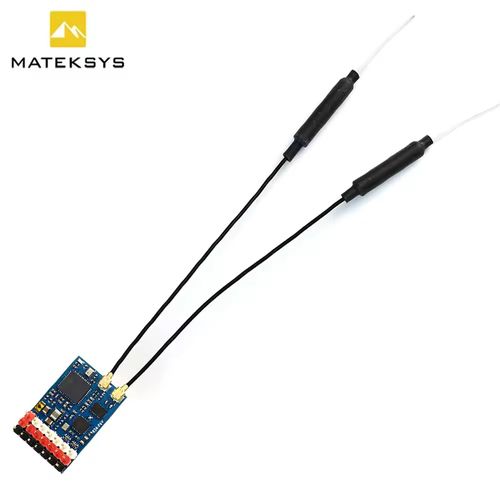

Antenna-Switching Diversity

Two IPEX MHF-1 antenna connectors support antenna-switching diversity; the manufacturer identifies ANT1 as the default antenna.

RF and Receiver Specifications

Model	ELRS-R24-P6V
Receiver Protocol	ExpressLRS
RF Frequency	2.4GHz ISM band
Telemetry Power	22.5dBm (180mW)
Antenna Diversity	Antenna-switching; ANT1 is the default
Antenna Connector	IPEX MHF-1
PWM Outputs	6 channels
Barometer	SPL06-001 (Vario)

Electrical and Physical Specifications

Power Supply	4–13V DC at the V pad
VBAT Voltage Sense	0–25.5V; sensing input, not the receiver power-supply input
Power Consumption	60–80mA at 5V input

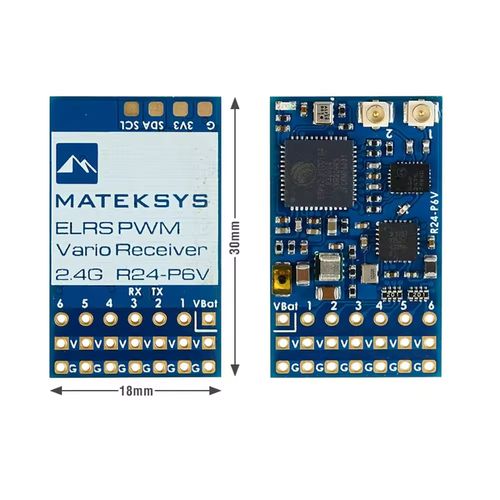

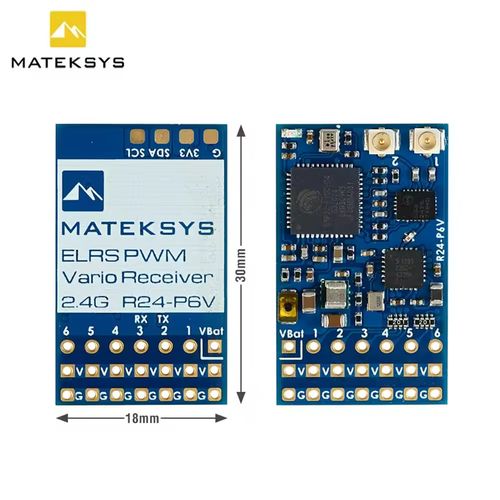

PCB Size	30 × 18mm
Weight	4g with antenna
MCU and RF Chip	ESP32-PICO-D4 and SX1281
PA/LNA	SE2431L

Selection and Installation Notes

Select the exact R24-P6V model when six PWM outputs and an integrated vario sensor are required; do not substitute R24-P6 specifications.

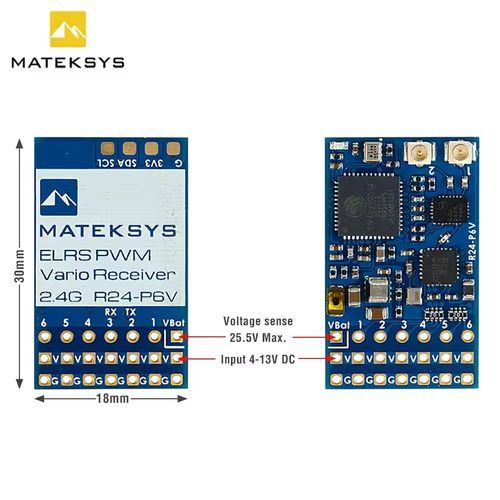

Supply 4–13V DC to the V pad. The VBAT pad is for voltage sensing up to 25.5V and must not be treated as the receiver's power input.
Confirm ExpressLRS firmware, binding settings and PWM channel configuration for the intended radio system before installation.
This is an RC receiver and does not transmit FPV video.

FAQ

Is the R24-P6V a video transmitter?

No. It is a 2.4GHz ExpressLRS PWM vario receiver. Its 180mW rating describes telemetry power, not FPV video output power.

How many PWM outputs does the receiver provide?

The R24-P6V provides six PWM output channels.

What does the integrated vario function use?

The receiver integrates an SPL06-001 barometer for its variometer function.

Can the 25.5V VBAT limit be used as the receiver supply voltage?

No. The VBAT connection is a voltage-sensing input rated up to 25.5V. Power the receiver through the V pad with 4–13V DC.

B2B Procurement FAQ

Which model should be specified in a purchase inquiry?

Specify MATEKSYS ELRS-R24-P6V and identify the required six PWM outputs and integrated vario sensor. This avoids confusion with other R24 receiver variants.

What should be confirmed before ordering for an RC project?

Confirm the required ExpressLRS firmware and binding setup, antenna and connector requirements, and the intended 4–13V receiver supply with the project team.

Are pricing, minimum order quantity and lead time fixed?

Pricing, minimum order quantity, availability and lead time must be confirmed during quotation.
