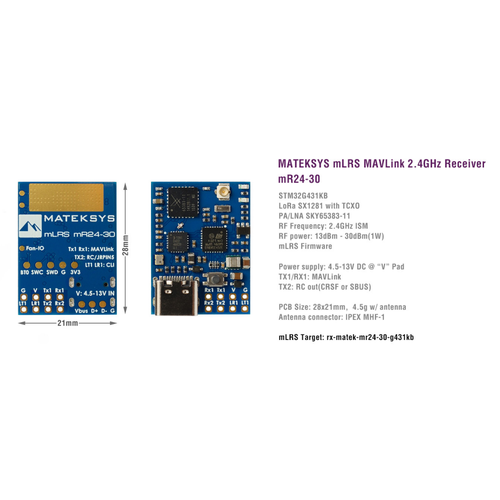

MATEKSYS mR24-30 2.4GHz mLRS Receiver

Short Description:

MATEKSYS mR24-30 is a 2.4GHz mLRS MAVLink receiver with CRSF/SBUS RC output, 4.5–13V DC input and selectable RF-link power up to 30dBm (1W).

Product Name: MATEKSYS mR24-30 2.4GHz mLRS Receiver
Product Type: mLRS MAVLink and RC Receiver
Frequency Range: 2.4 GHz ISM band
Data Interfaces: TX1/RX1: bidirectional serial MAVLink; TX2: CRSF or SBUS RC output
RF Link Power: 13 dBm minimum / 20 / 24 / 27 / 30 dBm; 30 dBm = 1000 mW maximum
Input Voltage: 4.5–13 V DC at the V pad
Control Protocol: mLRS
PCB Size: 28 × 21 mm
Antenna Connector: IPEX MHF-1
Weight: 4.5 g with antenna

Send email to us

Product Detail

FAQ

Technical Highlights

mLRS MAVLink and RC Link

The mR24-30 is a 2.4GHz mLRS receiver for bidirectional serial MAVLink and RC data. TX1/RX1 carries MAVLink, while TX2 provides a configurable CRSF or SBUS RC output. This module does not transmit FPV camera video.

Selectable RF-Link Power

The manufacturer lists 13 dBm minimum, 20, 24, 27 and 30 dBm RF power settings. The 30 dBm rating equals 1000 mW and is the maximum listed mLRS radio-link setting, not a continuous video-transmitter rating.

LoRa Radio Hardware

The board uses an STM32G431KB MCU, an SX1281 LoRa device with TCXO and an SKY65383-11 PA/LNA. Its antenna connection is IPEX MHF-1.

Compact Receiver Board

The PCB measures 28 × 21 mm and is specified at 4.5 g with antenna. A separate heatsink is listed by the manufacturer for higher-power operation.

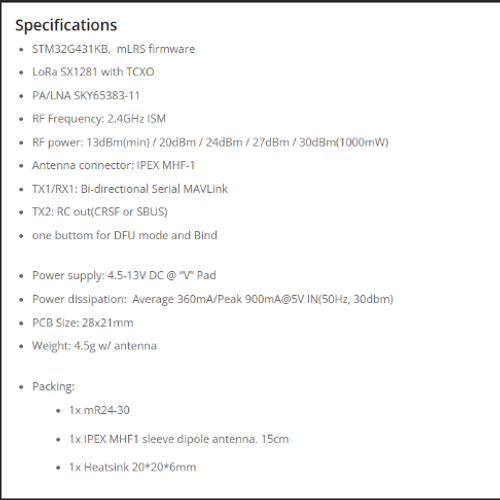

Technical Specifications

Model	MATEKSYS mR24-30
Product Function	mLRS MAVLink and RC receiver; not an FPV video transmitter
RF Frequency	2.4GHz ISM band
MCU and Firmware	STM32G431KB; mLRS firmware
RF Device	SX1281 LoRa with TCXO
PA/LNA	SKY65383-11
RF-Link Power Settings	13 dBm minimum / 20 / 24 / 27 / 30 dBm; 30 dBm equals 1000 mW
MAVLink Interface	TX1/RX1, bidirectional serial
RC Output	TX2, CRSF or SBUS
Input Voltage	4.5–13 V DC at the V pad
Input Current	Average 360 mA; peak 900 mA at 5 V input, 50 Hz and 30 dBm
Antenna Connector	IPEX MHF-1
PCB Size	28 × 21 mm
Weight	4.5 g with antenna
Receiver Firmware Target	rx-matek-mr24-30-g431kb

Installation Notes

Supply 4.5–13 V DC to the V pad and connect G to ground. Verify the flight-controller wiring before applying power.

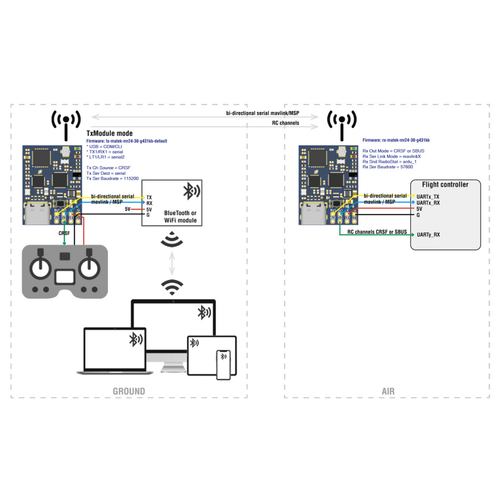

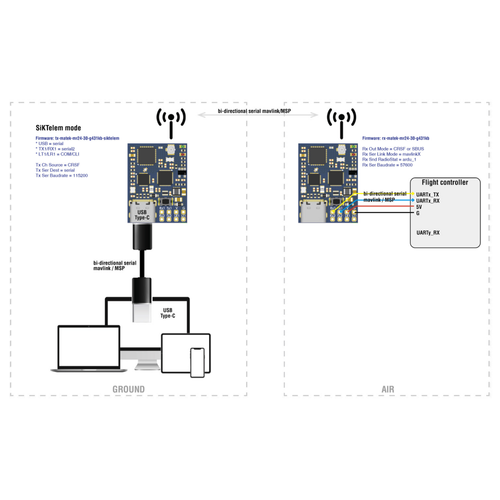

Use TX1/RX1 for bidirectional serial MAVLink and TX2 for the selected CRSF or SBUS RC output.
Attach a suitable 2.4GHz antenna to the IPEX MHF-1 connector before RF operation.

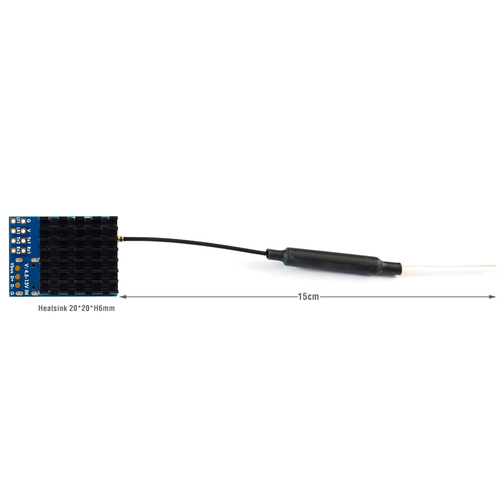

For RF power settings of 500 mW or higher, MATEKSYS recommends attaching the heatsink to the bottom of the PCB.
Use the receiver-specific firmware target when updating a unit intended to operate as an mLRS receiver; confirm the installed firmware and configuration first.

FAQ

Is the mR24-30 a video transmitter?

No. It is an mLRS radio-link receiver for MAVLink and RC data. Its RF power settings do not describe FPV video transmission.

Is 30 dBm the only RF power setting?

No. MATEKSYS lists 13 dBm minimum, 20, 24, 27 and 30 dBm settings. The 30 dBm setting is the highest listed value and equals 1000 mW.

Which connections carry MAVLink and RC data?

TX1/RX1 provides bidirectional serial MAVLink. TX2 provides RC output configured as CRSF or SBUS.

When should the heatsink be fitted?

MATEKSYS recommends fitting the heatsink to the bottom of the PCB when RF power is set to 500 mW or higher.
