RadioMaster Bandit BR3 ExpressLRS Receiver

Short Description:

RadioMaster Bandit BR3 is a 915MHz ExpressLRS receiver with dual T antennas, CRSF output, built-in TCXO and LUA-adjustable 100–500mW telemetry RF power.

Product Name: RadioMaster Bandit BR3 ExpressLRS Receiver
Product Type: 915MHz RC Receiver
Frequency Range: 915MHz; FCC915 regulatory domain
Bus Interface: CRSF
Telemetry RF Power: 100–500mW, LUA-adjustable; 500mW maximum
Input Voltage: 5.0V DC in supplied specification; current RadioMaster listing: 4.5–8.4V DC
Receiver Protocol: ExpressLRS

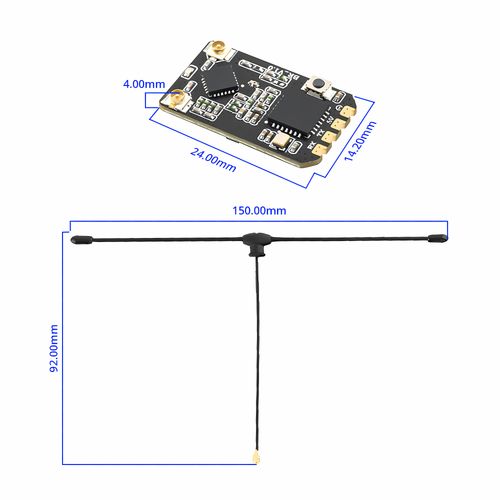

Dimensions: 24 × 14.2mm
Antenna Type: Dual 915/868MHz T antennas
Weight: 5.5g with antennas

Send email to us

Product Detail

FAQ

Technical Highlights

915MHz ExpressLRS Receiver

RadioMaster identifies the Bandit BR3 as an ExpressLRS receiver in the FCC915 regulatory domain. It receives RC control signals; it does not transmit FPV video.

Adjustable Telemetry Power

Telemetry RF power is LUA-adjustable from 100mW to 500mW. The 500mW figure is the specified maximum, not a continuous fixed setting or a video-transmitter rating.

Dual T-Antenna Arrangement

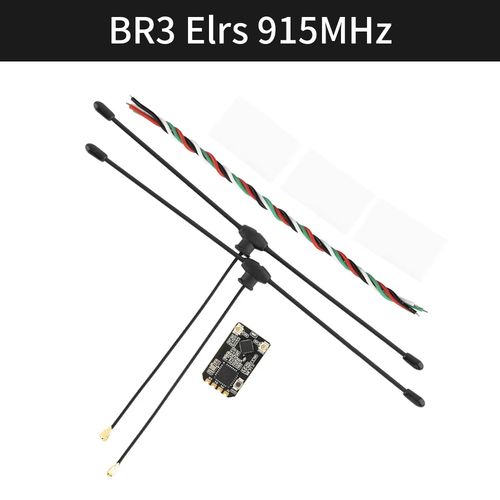

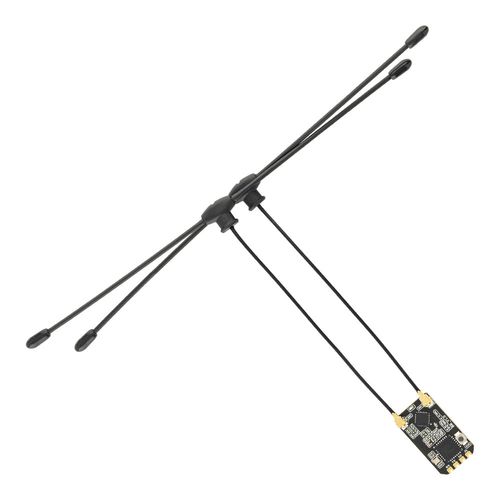

The BR3 uses two 915/868MHz T antennas connected through IPEX1 antenna interfaces. Its CRSF bus interface supports connection to a suitable flight-control system.

Built-In TCXO

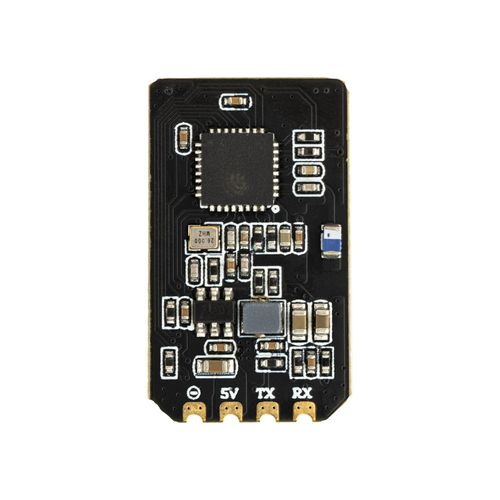

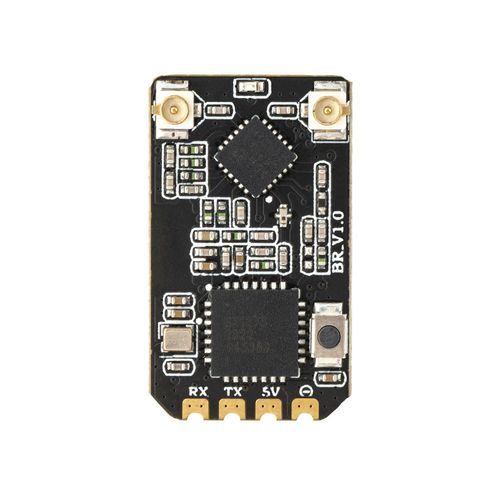

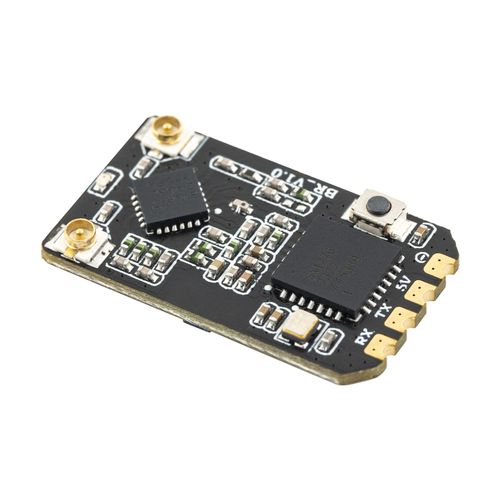

A temperature-compensated crystal oscillator is integrated into the compact 24 × 14.2mm receiver board.

RF and Interface Specifications

Model	Bandit BR3
Receiver Protocol	ExpressLRS
Regulatory Domain	FCC915
Product Frequency	915MHz
Telemetry RF Power	100–500mW, LUA-adjustable; 500mW maximum
Bus Interface	CRSF
Antenna	Two 915/868MHz T antennas
Antenna Interface	IPEX1
MCU	ESP8285
RF Chip	Semtech SX1276
Oscillator	Built-in TCXO

Electrical and Physical Specifications

Working Voltage	The supplied specification graphic states 5.0V DC; RadioMaster's current product listing states 4.5–8.4V DC. Confirm the applicable supply specification for the delivered batch.
Board Dimensions	24 × 14.2mm
Weight	5.5g with antennas

Selection and Installation Notes

Specify Bandit BR3, not BR1, when the 100–500mW adjustable telemetry-power specification is required.
For a conservative installation based on both supplied and current manufacturer specifications, use a regulated 5.0V DC supply. Verify the delivered batch before using a wider input-voltage range.
Use the CRSF interface for the intended flight-controller connection and confirm ExpressLRS frequency and configuration before installation.
The 915/868MHz label describes the specified T antennas; the product listing identifies this receiver as the FCC915 version.

FAQ

Is the Bandit BR3 a video transmitter?

No. It is a 915MHz ExpressLRS RC receiver. Its 100–500mW specification refers to adjustable telemetry RF power, not FPV video transmission.

Is 500mW the receiver's fixed telemetry setting?

No. RadioMaster specifies LUA-adjustable telemetry RF power from 100mW to a maximum of 500mW.

What interface does the BR3 use?

The receiver uses a CRSF bus interface and has two IPEX1 antenna connections.

What supply voltage should be used?

The supplied graphic states 5.0V DC, while RadioMaster's current listing states 4.5–8.4V DC. A regulated 5.0V supply is within both specifications; verify the delivered batch before using the wider range.

B2B Procurement FAQ

What should be specified in a purchase inquiry?

Specify RadioMaster Bandit BR3, the FCC915 version, required quantity and the intended CRSF installation. Request confirmation of the delivered batch's input-voltage specification.

How can BR3 be distinguished from BR1 during sourcing?

Request the exact BR3 model. RadioMaster specifies 100–500mW LUA-adjustable telemetry power, dual T antennas and a 24 × 14.2mm board for BR3; do not apply BR1 specifications to it.

Are price, MOQ and lead time guaranteed?

Price, minimum order quantity, availability and lead time must be confirmed during quotation.
