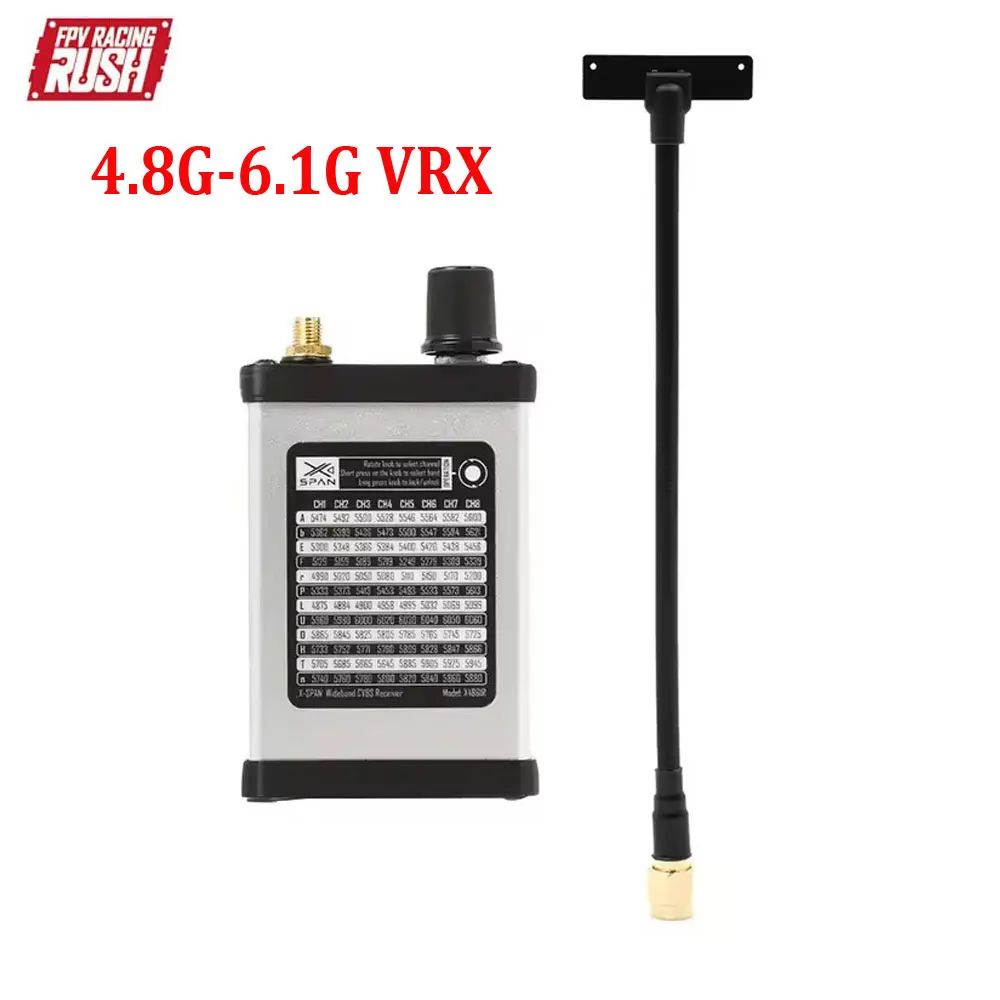

RUSHFPV X4861R 4.8G-6.1G XSPAN VRX Receiver Module Kit

Short Description:

RUSHFPV X4861R XSPAN analog FPV video receiver kit covers 4800-6100 MHz across 96 channels, with CVBS NTSC/PAL output, DC 7-30 V input and a linear antenna.

Product Name: RUSHFPV X4861R 4.8G-6.1G XSPAN VRX Receiver Module Kit
Product Type: Analog FPV Video Receiver Kit
Frequency Range: 4800–6100 MHz
Channels: 96
Video Output: CVBS NTSC/PAL via 3.5 mm video output
Input Voltage: DC 7–30 V
Channel Control: Rotary knob with digital band/channel display and lock function
Dimensions: 58 × 27 × 104 mm, receiver module
Antenna Type: Linear-polarized omnidirectional receiving antenna
Weight: 94 g, receiver module

Send email to us

Product Detail

FAQ

Technical Highlights

96-Channel Wideband Video Reception

The X4861R is the 4800–6100 MHz receiver variant, with 96 listed channel positions. It is a VRX receiver, not a video transmitter.

CVBS Video Output

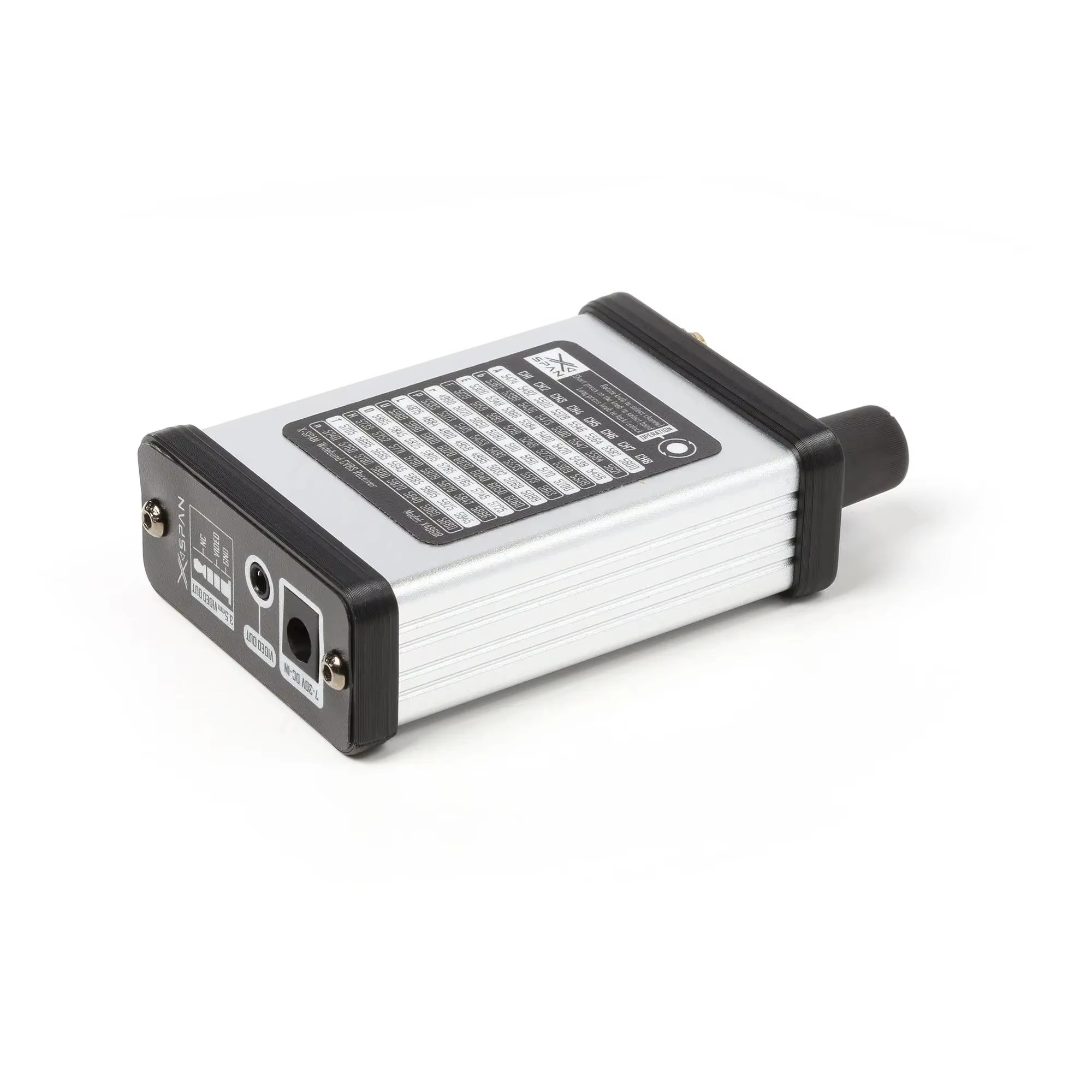

The receiver provides CVBS NTSC/PAL video output through its marked 3.5 mm video-output connection.

Direct Channel Selection

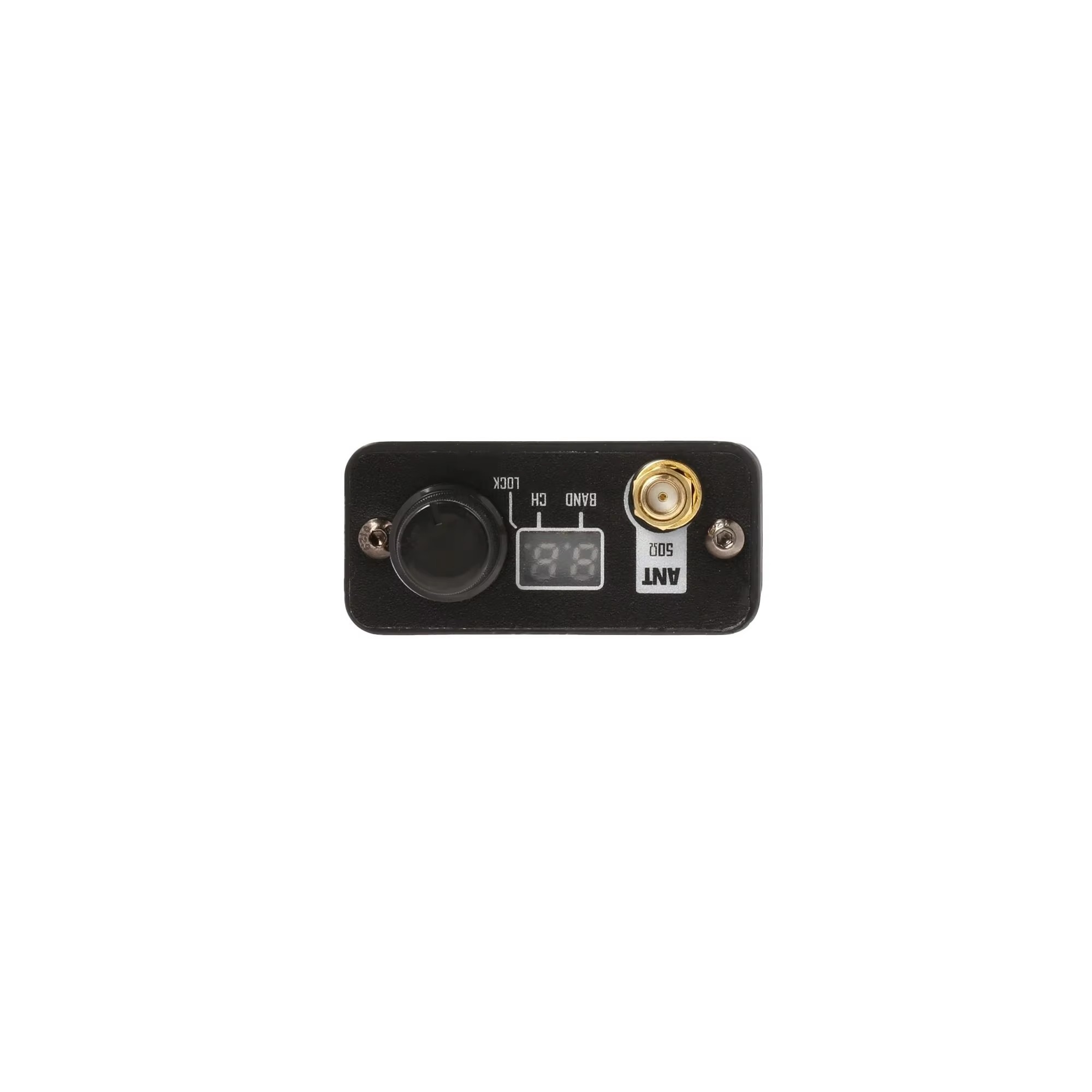

A rotary knob and digital display support band and channel selection. A long press locks or unlocks the controls.

Receiver Specifications

Model	X4861R
Operating Frequency	4800–6100 MHz
Channels	96
Video Output	CVBS NTSC/PAL
RF Connector	SMA
DC Input	7–30 V
Operating Temperature	−10°C to +60°C
Receiver Dimensions	58 × 27 × 104 mm
Receiver Weight	94 g

Kit Antenna

Polarization	Linear
Specified Antenna Bandwidth	4800–6065 MHz
Radiation Pattern	Omnidirectional
Gain	≤6.3 dBi
VSWR	≤1.5
Connector	SMA male
Dimensions	150 mm high × 29 mm wide
Weight	10 g

Package Contents

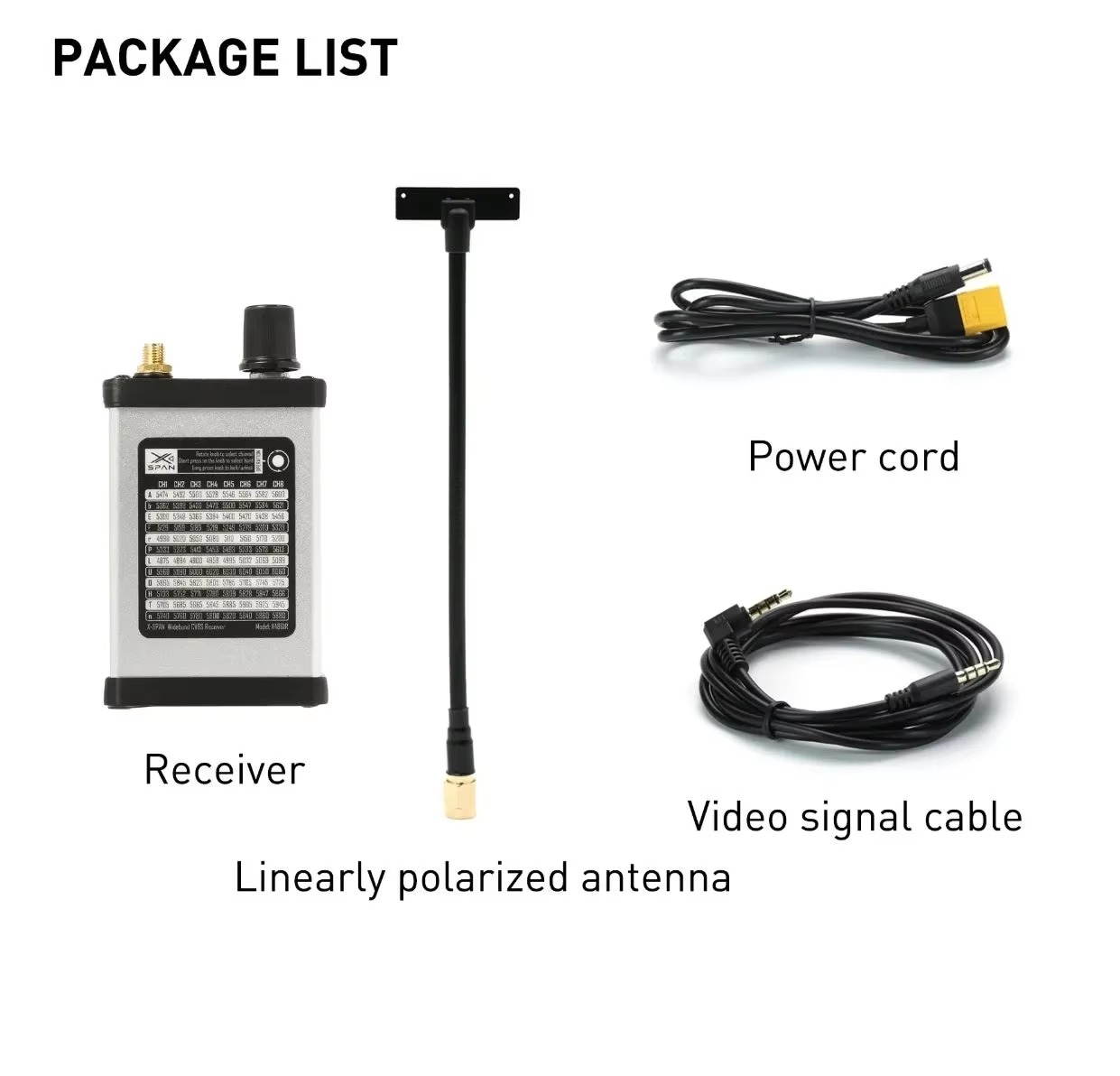

The supplied package-list image identifies the X4861R receiver, a linearly polarized receiving antenna, a power cord and a video signal cable.

Selection Notes

Select this X4861R variant for the 4800–6100 MHz receiver band; the X6172R is a separate 6100–7200 MHz product.
Match the receiver channel to the transmitter frequency and use an antenna appropriate for the selected channel.
The supplied material uses inconsistent wording for receiver sensitivity, so confirm any required sensitivity threshold before procurement.

FAQ

Is the X4861R a video transmitter?

No. The X4861R is a video receiver. It receives analog video signals in its specified band and provides CVBS NTSC/PAL video output.

How many channels does the X4861R provide?

The supplied specification lists 96 channel positions across the 4800–6100 MHz receiver band.

How are the band and channel selected?

Use the rotary knob and digital display. The supplied operating guide also shows a long-press lock and unlock function.

What antenna is specified for this kit?

The supplied package list shows a linear-polarized receiving antenna. Its specification lists a 4800–6065 MHz bandwidth and an SMA male connector.

B2B Procurement FAQ

Which exact model should be stated on the purchase order?

Specify X4861R for the 4800–6100 MHz, 96-channel kit. X6172R is a different receiver with a different band and channel count.

What is shown in the X4861R package list?

The supplied image lists a receiver, linear-polarized antenna, power cord and video signal cable. Confirm the current packing configuration in the quotation.

Are MOQ, lead time and a guaranteed sensitivity figure available?

MOQ and lead time must be confirmed during quotation. The supplied sensitivity wording is inconsistent, so request a confirmed test condition and value if sensitivity is a purchasing criterion.
