RUSHFPV X6172R 6.1G-7.2G XSPAN VRX Receiver Module Kit

Short Description:

RUSHFPV X6172R XSPAN analog FPV video receiver kit covers the specified 6100-7200 MHz band with 64 channels, CVBS NTSC/PAL output, DC 7-30 V input and a linear antenna.

Product Name: RUSHFPV X6172R 6.1G-7.2G XSPAN VRX Receiver Module Kit
Product Type: Analog FPV Video Receiver Kit
Frequency Range: 6100–7200 MHz, specified range
Channels: 64
Video Output: CVBS NTSC/PAL via 3.5 mm video output
Input Voltage: DC 7–30 V
Channel Control: Rotary knob with digital band/channel display and lock function
Dimensions: 58 × 27 × 104 mm, receiver module
Antenna Type: Linear-polarized omnidirectional receiving antenna
Weight: 94 g, receiver module

Send email to us

Product Detail

FAQ

Technical Highlights

64-Channel 6.1G–7.2G Receiver Variant

The X6172R specification identifies a 6100–7200 MHz receiver band and 64 channel positions. It is a VRX receiver, not a video transmitter.

Analog Video Output

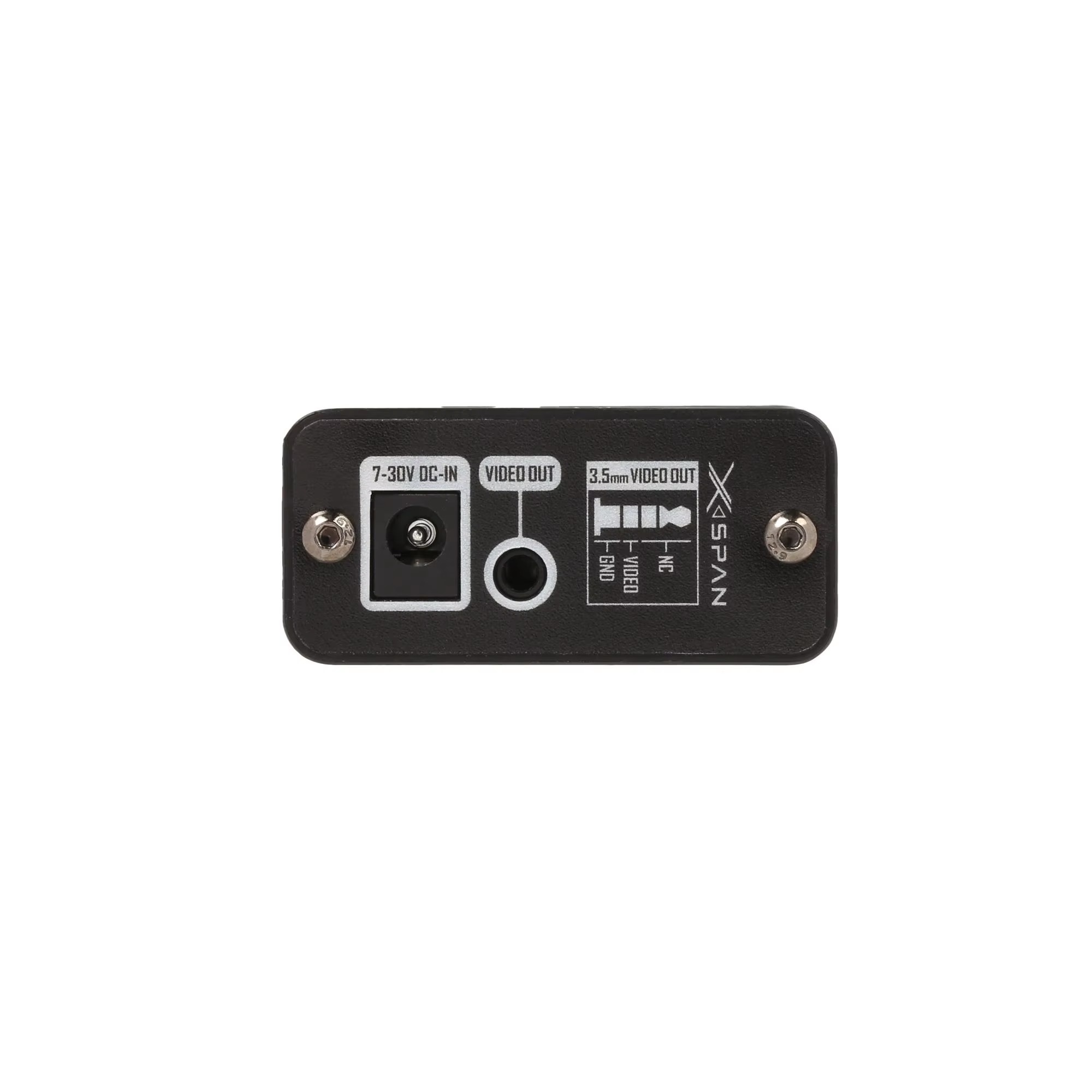

The receiver provides CVBS NTSC/PAL video output through its marked 3.5 mm video-output connection.

Knob and Digital Display Operation

The rotary knob supports channel selection, while the display identifies the selected band and channel. A long press locks or unlocks the controls.

Receiver Specifications

Model	X6172R
Specified Operating Frequency	6100–7200 MHz
Channels	64
Video Output	CVBS NTSC/PAL
RF Connector	SMA
DC Input	7–30 V
Operating Temperature	−10°C to +60°C
Receiver Dimensions	58 × 27 × 104 mm
Receiver Weight	94 g

Kit Antenna

Polarization	Linear
Specified Antenna Bandwidth	6000–7500 MHz
Radiation Pattern	Omnidirectional
Gain	≤4.6 dBi
VSWR	≤1.5
Connector	SMA male
Dimensions	150 mm high × 23 mm wide
Weight	9 g

Selection Notes

Select X6172R for the specified 6100–7200 MHz receiver band. X4861R is a separate 4800–6100 MHz product.

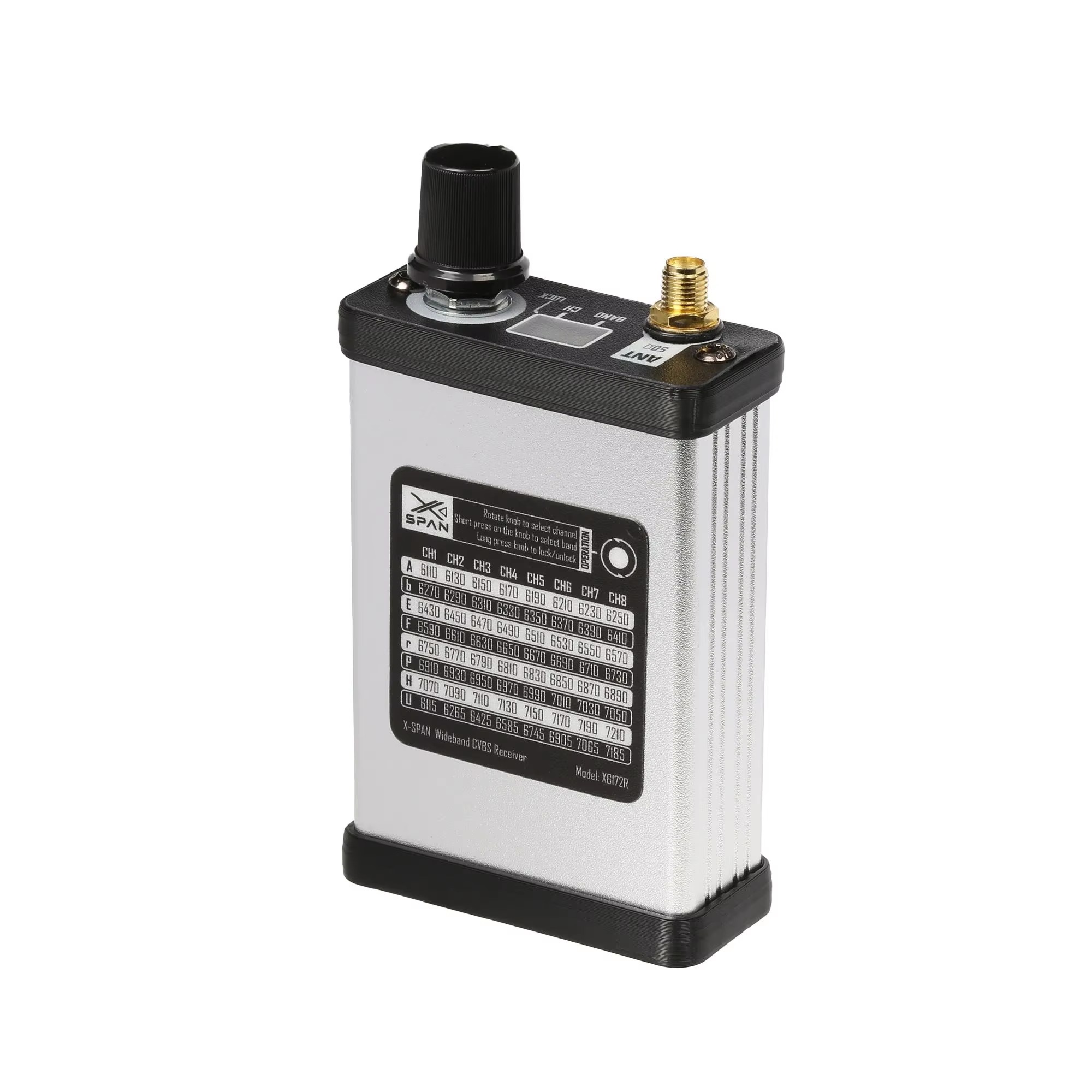

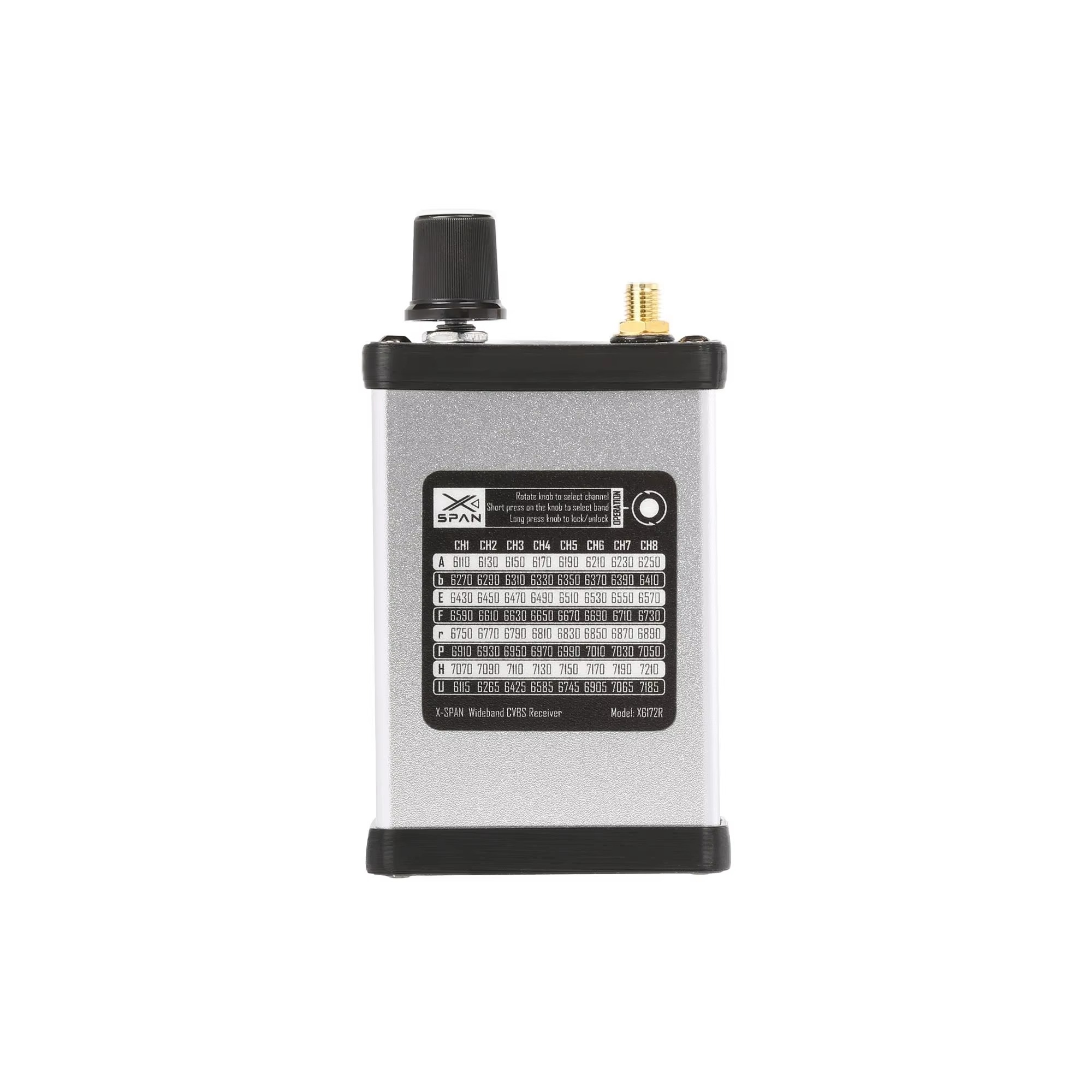

The device channel label includes 7210 MHz, above the specification sheet's 7200 MHz upper limit. Confirm this edge-channel operation before relying on it.
Match the receiver channel and antenna to the transmitter frequency. Confirm the current cable and accessory bundle when ordering.

FAQ

Is the X6172R a video transmitter?

No. It is an analog FPV video receiver with CVBS NTSC/PAL video output.

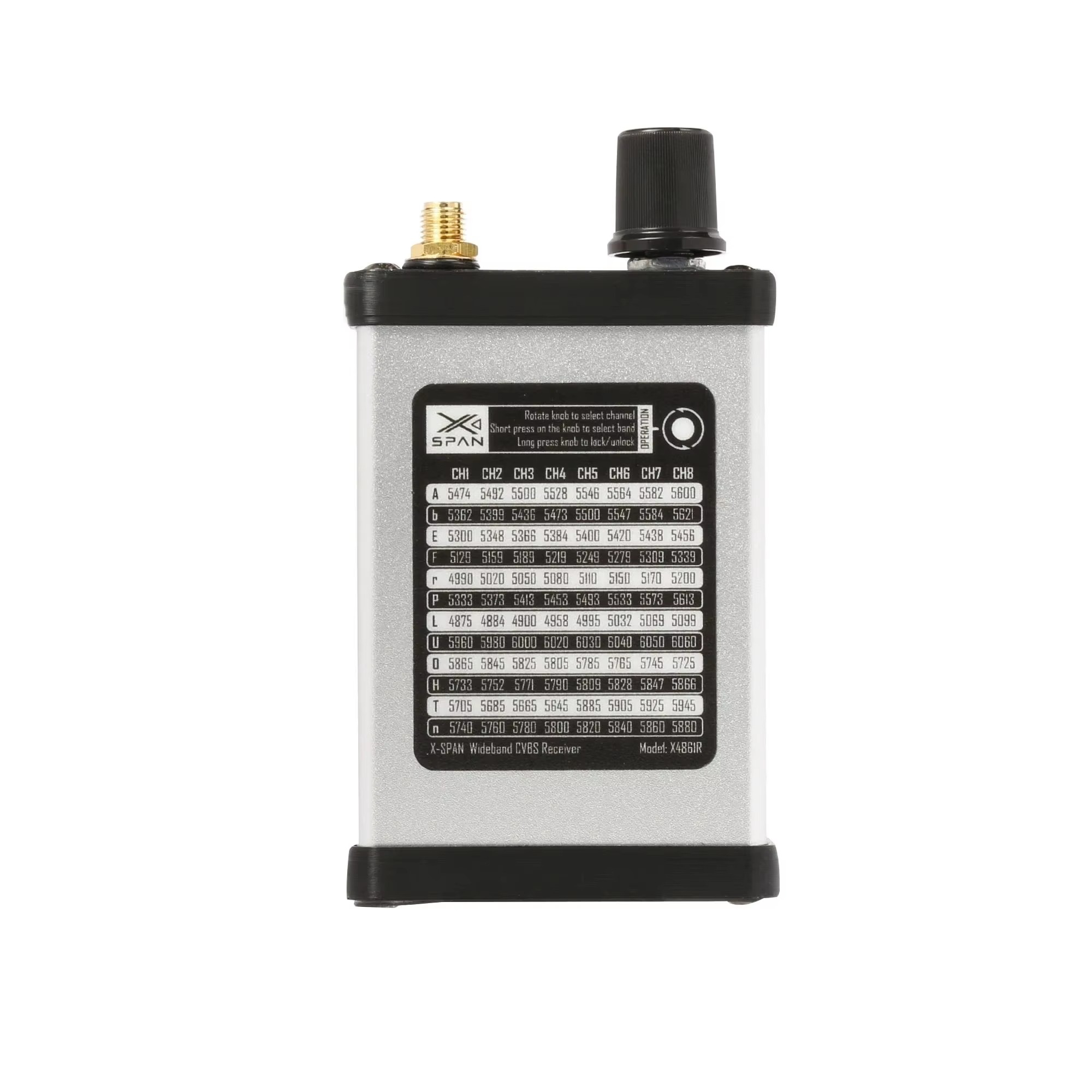

How does the X6172R differ from the X4861R?

X6172R is specified for 6100–7200 MHz with 64 channels. X4861R is a separate 4800–6100 MHz receiver with 96 channels.

Does the receiver support 7210 MHz?

The device's printed channel chart includes 7210 MHz, while the supplied specification table states an upper operating limit of 7200 MHz. Confirm the 7210 MHz channel with the supplier before specifying it for a system.

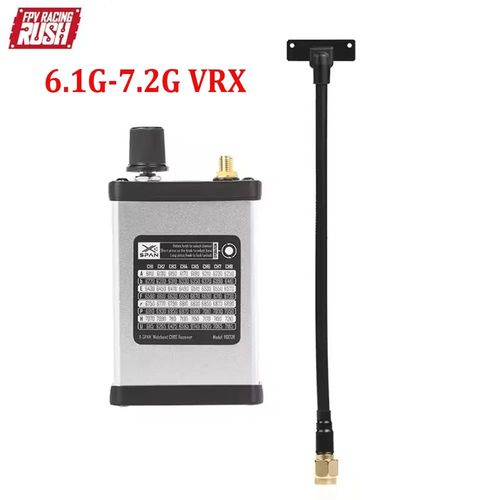

What are the specified antenna characteristics?

The pictured broadband receiving antenna is linearly polarized, omnidirectional and specified for 6000–7500 MHz with an SMA male connector.

B2B Procurement FAQ

Which model should be ordered for the 6.1G–7.2G band?

Specify X6172R, the 64-channel receiver variant. Do not substitute the X4861R 4.8G–6.1G model without reviewing the system frequency plan.

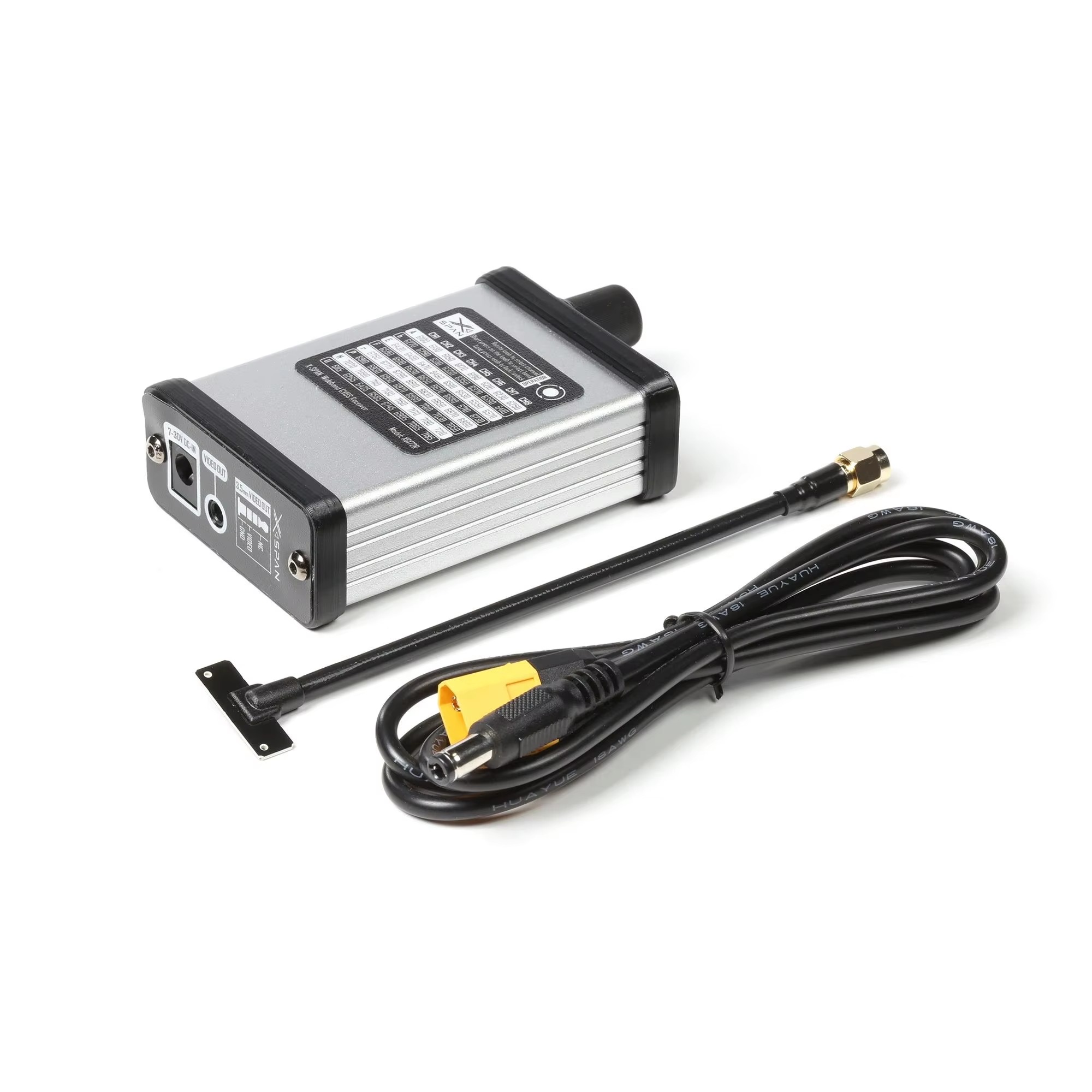

Are the power and video cables included?

The supplied images show cables, but the X6172R specification page does not provide a complete itemized packing list. Confirm the exact accessory bundle during quotation.

Are MOQ, lead time and guaranteed sensitivity documented?

MOQ and lead time must be confirmed during quotation. The supplied sensitivity wording is inconsistent, so request a confirmed test condition and value if sensitivity is required for procurement approval.
