RUSHFPV TANK RACE II VTX

Short Description:

RUSHFPV TANK RACE II is a 5.8GHz analog FPV VTX with 48 channels (37 US), PIT/25/100/200mW/MAX settings, 5V-only input and SmartAudio V2.1 control.

Product Name: RUSHFPV TANK RACE II VTX
Product Type: Analog FPV Video Transmitter
Frequency Range: 5.8GHz FPV band
Channels: 48 channels; 37 channels for the US version
Output Power: PIT / 25mW / 100mW / 200mW / MAX
Input Voltage: DC 5V only
Control Protocol: TBS SmartAudio V2.1
Weight: 1.7g without cable
Antenna Connector: U.FL-1 board connector
Video Format: CVBS PAL/NTSC

Send email to us

Product Detail

FAQ

Technical Highlights

Compact 5.8GHz Analog VTX

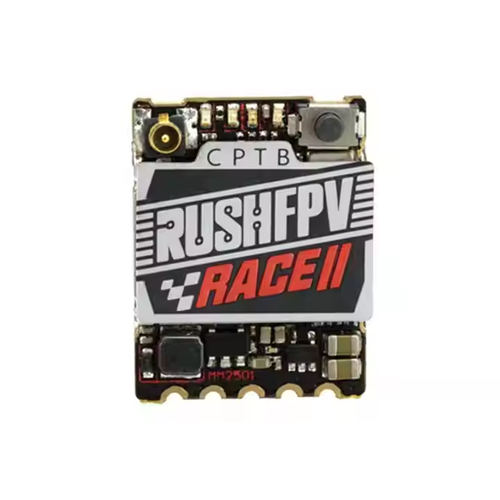

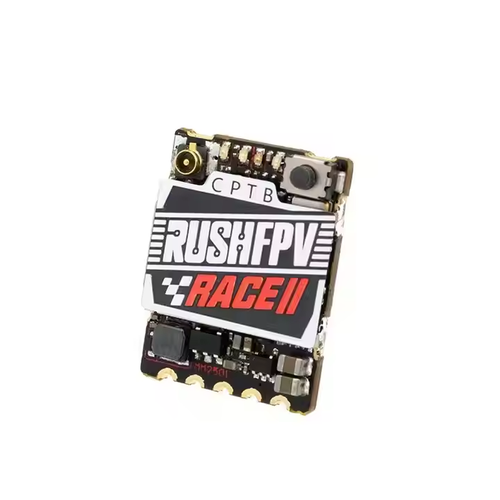

The TANK RACE II is a 5.8GHz analog FPV video transmitter weighing 1.7g without cable. It accepts CVBS PAL/NTSC video for compact FPV installations.

Selectable RF Power and PIT Mode

The manufacturer manual lists PIT, 25mW, 100mW, 200mW and MAX settings. It does not assign a fixed milliwatt rating to MAX, so MAX output should not be advertised as a guaranteed numerical value.

SmartAudio V2.1 Control

TBS SmartAudio V2.1 provides an external control interface for VTX settings when the DATA pad is correctly connected and the flight controller is configured for the protocol.

RF and Video Specifications

Model	RUSHFPV TANK RACE II
Product Type	5.8GHz analog FPV video transmitter
Channels	48 channels; 37 channels for the US version
RF Power Settings	PIT / 25mW / 100mW / 200mW / MAX
Video Format	CVBS PAL/NTSC
Audio	No audio input
External Control	TBS SmartAudio V2.1
Board Antenna Connector	U.FL-1

Electrical and Physical Specifications

Input Voltage	DC 5V only
Current at 5V	PIT: 70mA; 25mW: 220mA; 100mW: 275mA; 200mW: 330mA; MAX: 450mA, as listed in the manufacturer manual

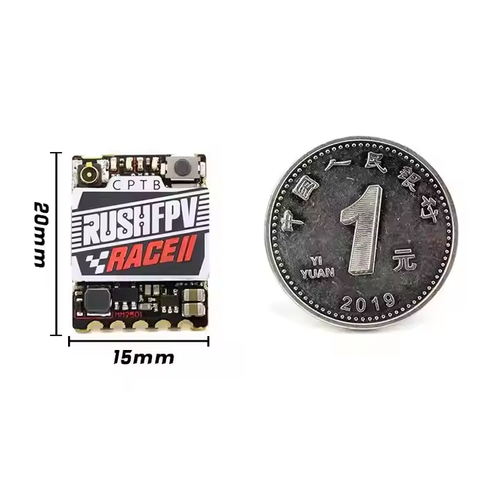

Nominal Dimensions	20 × 15.5 × 2.8 mm according to the manufacturer manual; confirm physical clearance because a supplied dimension image differs
Weight	1.7g without cable

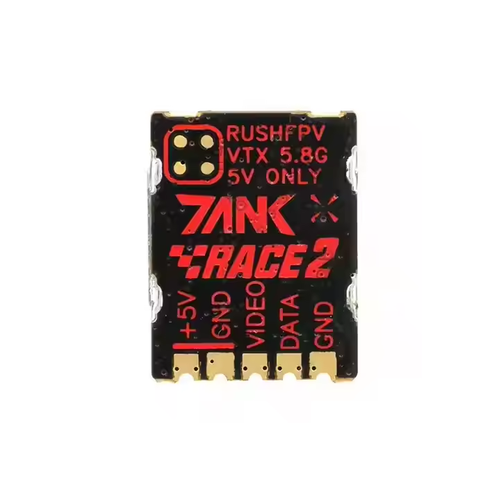

Connection Pads	+5V, GND, VIDEO, DATA and GND, as marked on the board

Installation Notes

Supply DC 5V only. A voltage higher than 5V can damage the VTX.
Connect a suitable antenna to the U.FL-1 board connector before powering the transmitter.
Keep the video signal wiring away from interference sources such as an ESC.
Provide airflow during operation; the VTX may reduce power when it overheats.
Confirm the regional channel version and verify physical mounting clearance before integration.

FAQ

What voltage does the TANK RACE II require?

It requires DC 5V only. Do not connect it directly to a higher-voltage battery or power rail.

Which output power settings are available?

The manufacturer manual lists PIT, 25mW, 100mW, 200mW and MAX. The manual does not specify a fixed milliwatt value for MAX.

Does every version have 48 channels?

No. The standard version is listed with 48 channels, while the US version is listed with 37 channels. Confirm the required version before ordering.

Is the antenna connection SMA?

The manufacturer manual identifies the connector on the VTX board as U.FL-1. A separate adapter cable, if supplied, may have a different connector at its other end.

Does this VTX support audio?

No. The manufacturer manual specifies no audio input. Its video input supports CVBS PAL/NTSC.

B2B Procurement FAQ

How should the channel version be specified for an order?

State the destination market and request written confirmation of the 48-channel or 37-channel US version during quotation.

What antenna connection and accessories should be confirmed?

Specify the U.FL-1 board connection and request a written list of any antenna, adapter cable and wiring accessories included with the quoted SKU.

Can mounting dimensions be confirmed before integration?

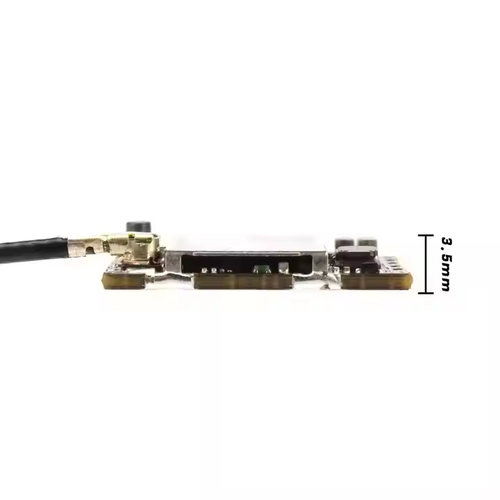

Yes. Request a current drawing or sample measurement during quotation. The manufacturer manual and a supplied dimension image give different thickness and width values, and a verified mounting-hole pattern was not supplied.

What are the MOQ, lead time and warranty terms?

These terms are not established by the supplied product materials and must be confirmed during quotation.
