SKYDROID 5.8GHz 150CH Dual-Antenna UVC OTG Video Receiver

Short Description:

SKYDROID 5.8GHz 150CH dual-antenna analog FPV video receiver with USB OTG/UVC output for compatible Android devices and USB-connected PCs.

Product Name: SKYDROID 5.8GHz 150CH Dual-Antenna UVC OTG Video Receiver
Product Type: Analog FPV Video Receiver (VRX)
Frequency Range: 5.8 GHz band
Channels: 150CH, as advertised for the dual-antenna version
Receiver Configuration: Dual-antenna receiver with two RF inputs
Input Voltage: 5 V via USB
Video Output Interface: UVC video over USB; separate port labeled AUDIO VIDEO 5V GND
Host Connection: USB OTG connection to compatible Android devices; USB connection to compatible PCs
Antenna Inputs: Two threaded RF antenna connectors
Onboard Controls: Two front-panel buttons

Send email to us

Product Detail

FAQ

Technical Highlights

Dual-Antenna FPV Video Reception

This SKYDROID receiver has two RF antenna inputs for receiving 5.8 GHz analog FPV video. The dual-antenna version is advertised with 150 channels.

USB OTG/UVC Video Connection

The receiver connects by USB to a compatible Android OTG device or PC for video viewing. Confirm USB video support and suitable viewing software on the intended host device.

Portable Receiver Controls

The enclosure has two front-panel buttons and a separate connector labeled AUDIO VIDEO 5V GND. It is a video receiver, not an RF video transmitter.

Receiver and Interface Specifications

Product Type	Analog FPV video receiver (VRX)
Operating Band	5.8 GHz
Advertised Channel Count	150CH
RF Inputs	Two threaded antenna connectors
USB Video Interface	UVC video via USB OTG connection
Additional Labeled Port	AUDIO VIDEO 5V GND
Power	5 V via USB
Controls	Two front-panel buttons

Selection Notes

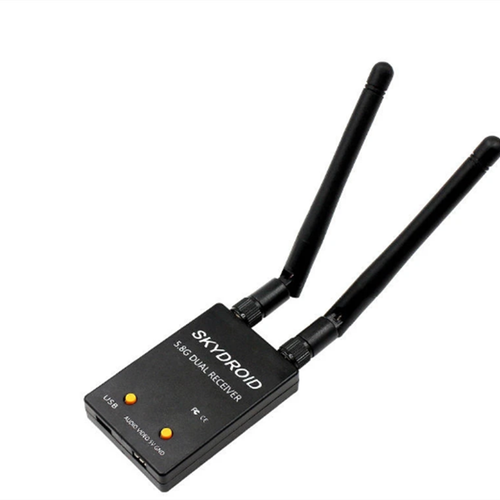

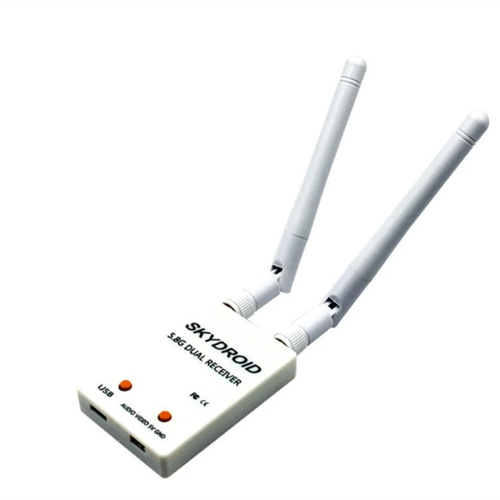

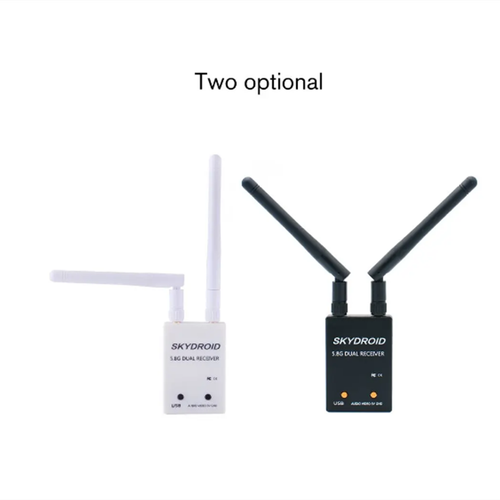

Select the dual-antenna version shown in the first four product images; the archive also contains photographs of a different single-antenna version.
The host Android device must support USB OTG and a suitable UVC video-viewing application. Confirm PC software compatibility before deployment.
Match the receiver to a 5.8 GHz analog FPV video source; this module is not described as a digital-video receiver.
Confirm the supplied antenna connector type, cable connectors and package contents when ordering.

FAQ

Is this product a video transmitter?

No. It is a 5.8 GHz analog FPV video receiver. It does not have an RF transmit output-power rating.

How many antennas does this version use?

The dual-antenna version has two RF antenna connectors. Do not confuse it with the single-antenna version also pictured in the source archive.

Will it work with every Android phone?

No universal phone compatibility is established. The intended Android phone or tablet must support USB OTG and a suitable UVC video-viewing application.

Does the receiver support digital FPV video systems?

This product is identified as a 5.8 GHz analog FPV video receiver. Digital FPV system compatibility has not been established.

B2B Procurement FAQ

Which version should be specified in the purchase inquiry?

Specify the SKYDROID 5.8 GHz 150CH dual-antenna USB OTG/UVC receiver. The source archive also contains single-antenna photographs, so confirm the selected version during quotation.

Are two antennas and USB cables included?

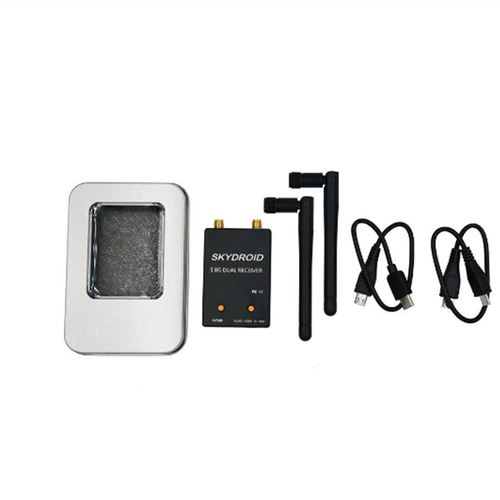

Product photographs show antennas and cables, but they do not establish the guaranteed package contents. Confirm the exact accessories and connector types in the quotation.

What information should be confirmed before a bulk order?

Confirm the supplied receiver version, antenna connector type, USB cable connectors, host-device compatibility, package contents and applicable channel table during quotation.
