RX5808 5.8GHz Dual-Antenna Diversity Video Receiver Module
Technical Highlights
Dual-Antenna Analog Video Reception

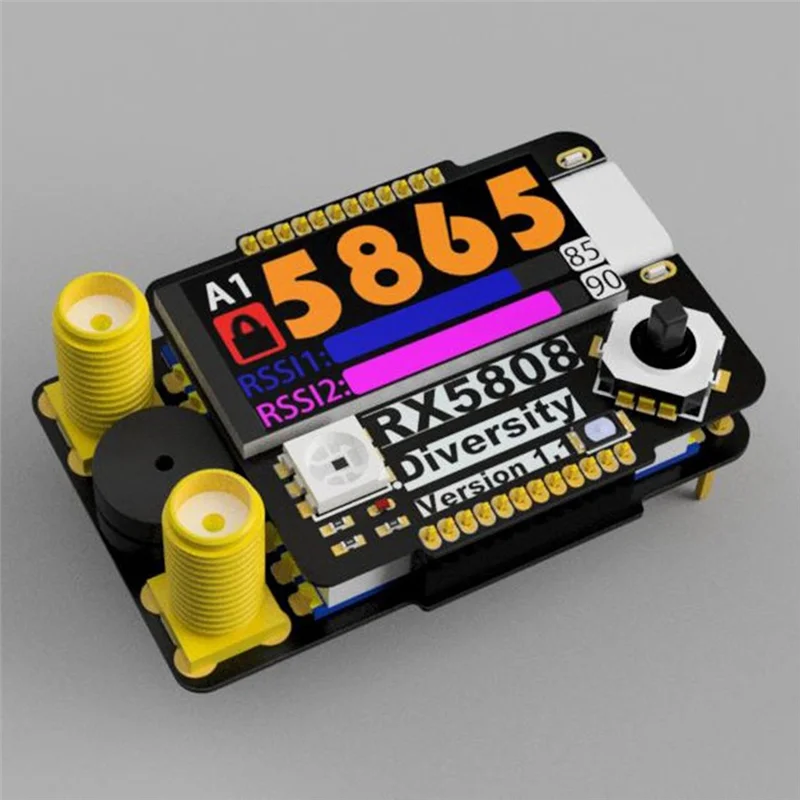

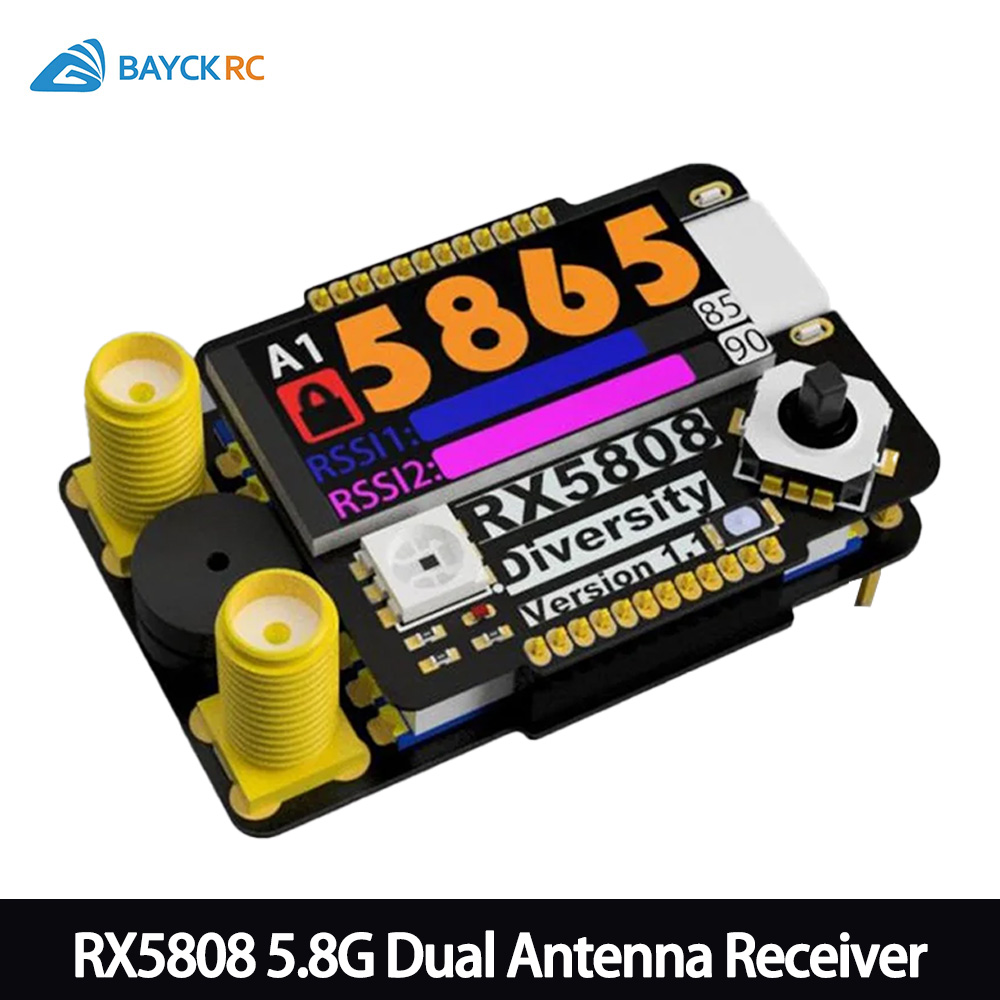

This RX5808 Diversity module receives 5.8 GHz analog FPV video through two RF antenna inputs. Its display provides separate RSSI1 and RSSI2 indications for the receiver paths.
Onboard Display and Joystick

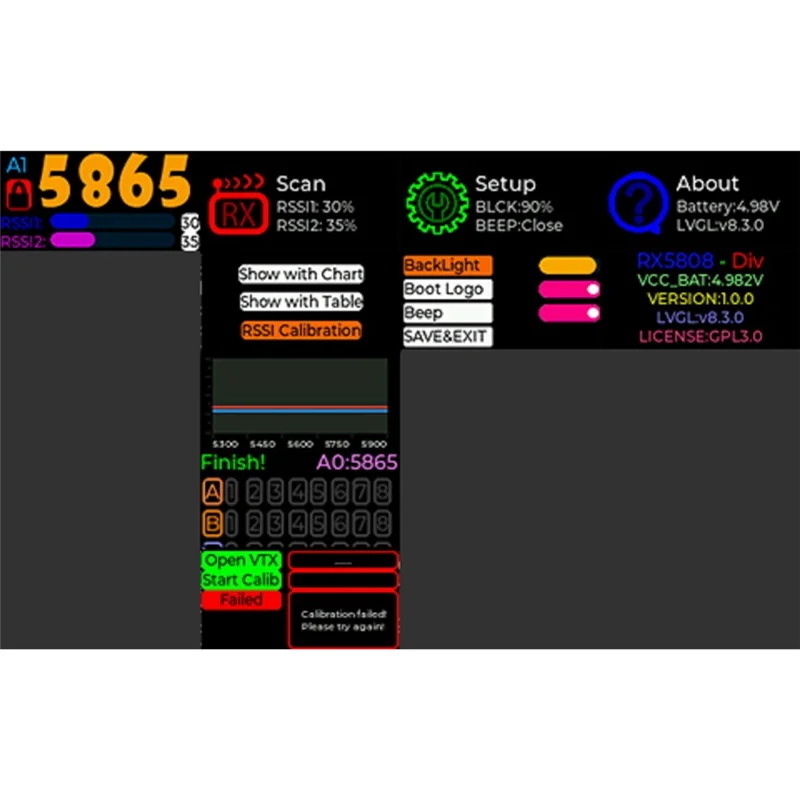

The integrated color display shows the selected channel and frequency. A five-way joystick provides access to the pictured channel scan, setup and RSSI calibration menus.
Receiver Module for Goggle Integration

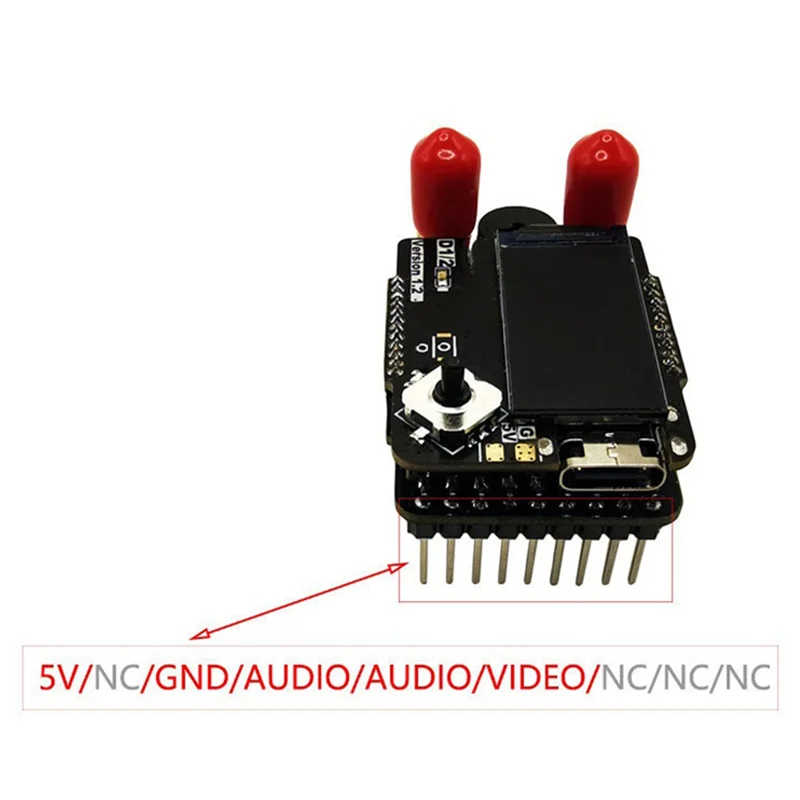

The pictured module interface includes 5 V power and analog video connections. Check the module bay, pin orientation and hardware revision of the intended goggles before installation.
Receiver Specifications
| Product Type | 5.8 GHz analog FPV video receiver module (VRX) |
|---|---|
| Receiver Design | Dual-antenna RX5808 Diversity receiver |
| Channel Information | 48 channels across A/B/E/F/R/L bands are reported for the matching Starfish D1 configuration; confirm the channel table for the supplied board revision. |
| Signal Indication | Separate RSSI1 and RSSI2 indications on the onboard display |
| User Interface | Color display and five-way joystick |
| Menu Functions Shown | Channel scan, setup and RSSI calibration |
| Power Connection | 5 V DC on the pictured goggle-module interface |
| Video Connection | Analog VIDEO output on the pictured module header |
Selection and Installation Notes
This product receives analog FPV video. It is not a video transmitter and has no RF transmit output-power rating.

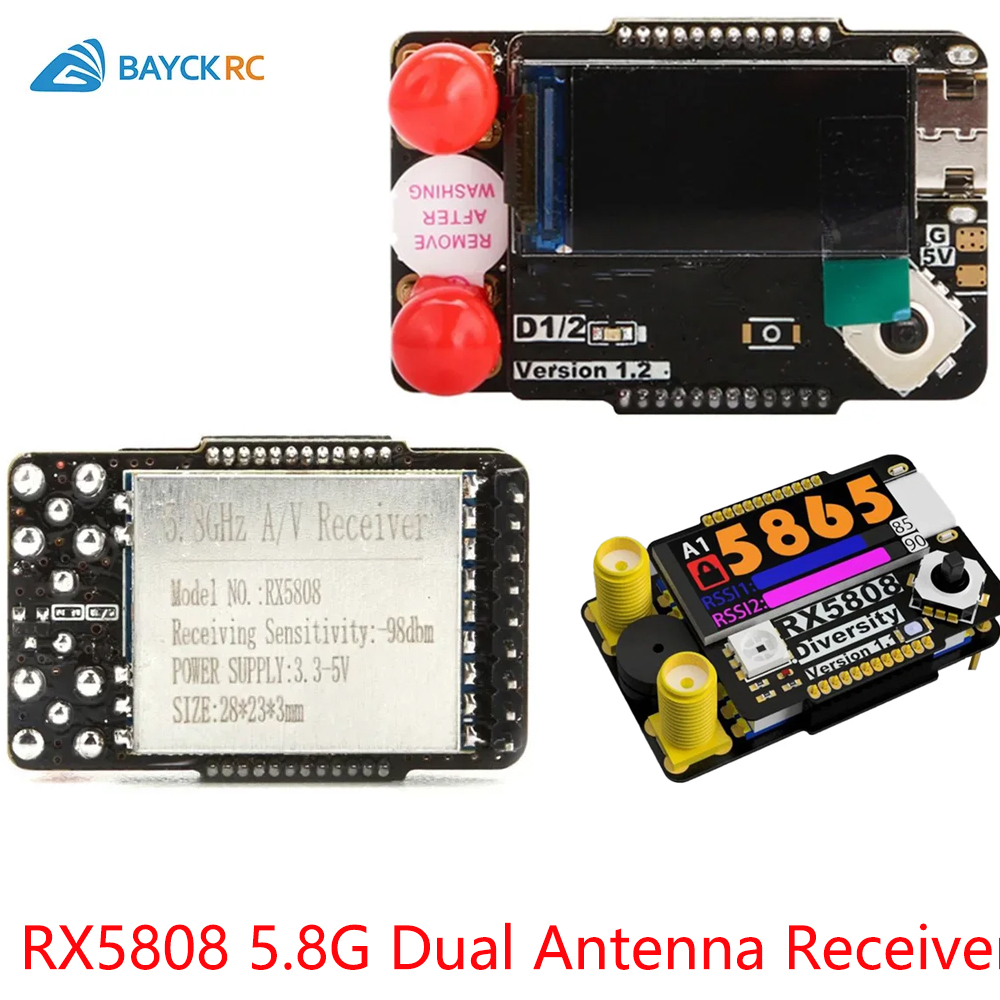

The supplied images show both Version 1.2 and Version 1.4 boards. Confirm the hardware revision before specifying the product for an installation.
Confirm goggle-module bay fit, connector orientation, antenna connector type and channel support against the actual supplied unit.
Specifications printed on the separate RX5808 tuner can should not be treated as verified dimensions or performance ratings of the complete Diversity board.
FAQ
Is this RX5808 module a video transmitter?
No. It is a 5.8 GHz analog video receiver module (VRX). It receives an FPV video signal and does not have an RF transmit output-power rating.
What do the two antenna inputs do?
The board is marked as a Diversity receiver and provides two RF antenna inputs. Its screen shows separate RSSI1 and RSSI2 indications for the two receiver paths.
Can I install it in any Fat Shark or SKYZONE goggles?
Universal compatibility has not been established for the supplied board revision. Check the goggles' module bay, interface pinout, physical clearance and antenna connections before ordering.
Does it support 48 channels?
Matching Starfish D1 product listings specify 48 channels across A/B/E/F/R/L bands. Because the supplied images mix board revisions, confirm the channel table on the actual unit before relying on this count.
B2B Procurement FAQ
Which hardware revision will be supplied?
The source images show Version 1.2 and Version 1.4 boards. Specify the required revision in the inquiry and confirm the exact supplied version during quotation.
What should buyers verify for goggle integration?
Confirm module-bay dimensions, pin orientation, 5 V power connection, analog video output, antenna connector type and channel table against the target goggles and supplied board.
Are antennas, covers or other accessories included?
The attachment does not establish package contents. Confirm antennas, covers, cables and other accessories in the quotation before placing an order.
