1.2GHz 1500mW Wireless AV Transmitter and Receiver Set

Short Description:

1.2GHz analog wireless AV link with a 1500mW 8-channel transmitter, 12-channel receiver, digital channel displays and 12V DC power.

Product Name: 1.2GHz 1500mW Wireless AV Transmitter and Receiver Set
Product Type: Analog Wireless Audio/Video Link
Frequency Range: 1.2GHz Band
Channels: 8CH Transmitter / 12CH Receiver
Output Power: 1500mW
Input Voltage: 12V DC
AV Interface: Composite Video and Analog Audio via RCA
Channel Display: LED Digital Channel Display on Transmitter and Receiver
Transmitter Model: FQX-215A

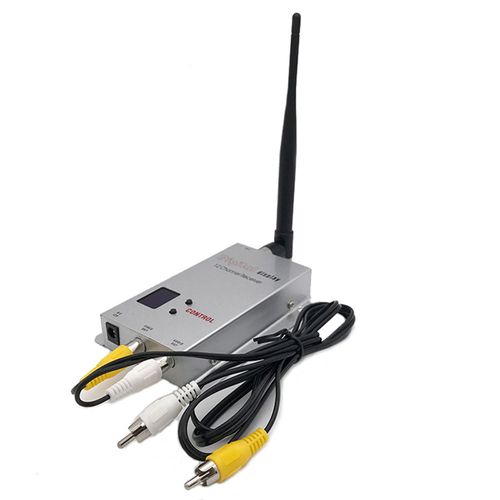

Receiver Model: FQX-R02

Send email to us

Product Detail

FAQ

Technical Highlights

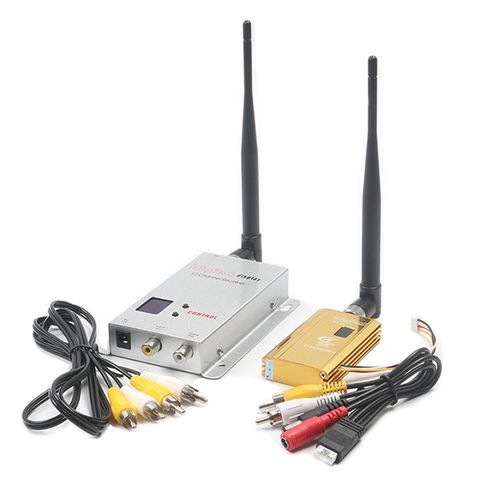

Matched 1.2GHz AV Link

This system combines the FQX-215A transmitter and FQX-R02 receiver to carry composite video and analog audio over a wireless link in the 1.2GHz band.

1500mW Transmitter Output

The transmitter is rated for 1500mW RF output. No transmission-distance figure is stated because usable range depends on the selected channel, antennas, installation, terrain, interference and local operating conditions.

8-Channel Transmitter and 12-Channel Receiver

The transmitter provides eight selectable channels, while the receiver provides twelve selectable channels. Both units must be set to a shared operating frequency before the video and audio link can be established.

Digital Channel Displays

Integrated numeric displays provide a direct indication of the selected channel. The digital display is used for channel selection only and does not indicate digital video encoding.

Composite Video and Analog Audio

RCA connections support composite video and analog audio equipment. The transmitter accepts the source signal, while the receiver provides corresponding outputs for a compatible monitor, recorder or display system.

12V DC Operation

Both the FQX-215A transmitter and FQX-R02 receiver are marked for 12V DC input. Supply polarity and connector compatibility should be confirmed before power is applied.

RF and Channel Specifications

Operating Band	1.2GHz Band
Transmitter Output Power	1500mW
Transmitter Channels	8 Selectable Channels
Receiver Channels	12 Selectable Channels
Channel Selection	Push-Button Control with Numeric Display
Channel Frequency Table	Must Be Confirmed Before Ordering

Electrical and AV Interfaces

Input Voltage	12V DC
Video Format	Analog Composite Video
Video Connection	RCA Composite Video
Audio Connection	RCA Analog Audio
Transmitter Connections	Video Input, Audio Input and DC Power Input
Receiver Connections	Video Output, Audio Output and DC Power Input
Antenna Connection	External Detachable Antenna Connection

Model and Physical Information

Product Type	Wireless Analog Audio/Video Transmitter and Receiver Set
Transmitter Model	FQX-215A
Receiver Model	FQX-R02

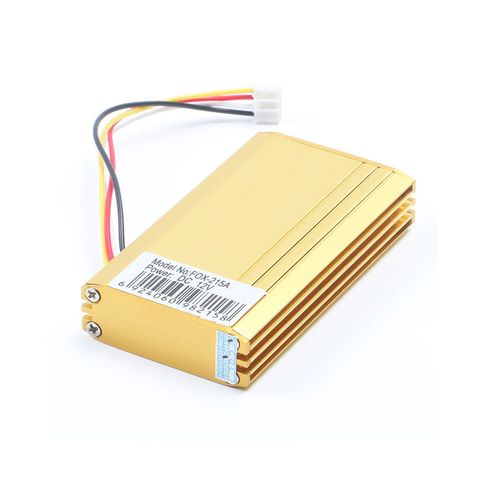

Transmitter Enclosure	Gold-Colored Finned Metal Housing

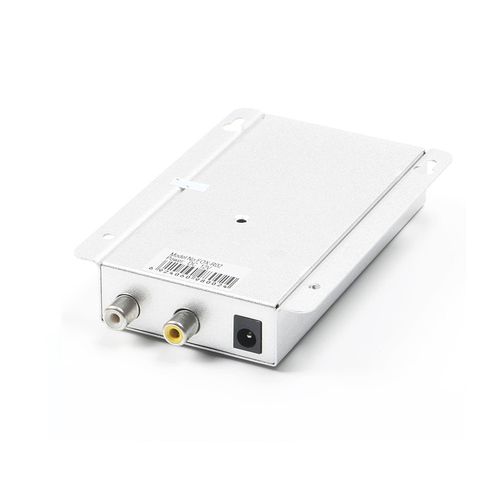

Receiver Enclosure	Silver-Colored Metal Housing with Mounting Flanges
Transmitter Weight Shown	Approximately 100.9g with Antenna

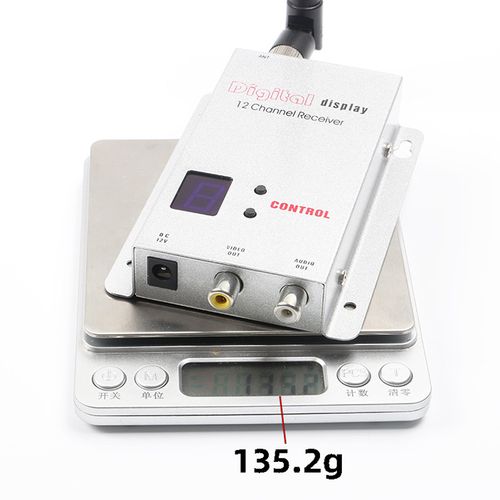

Receiver Weight Shown	Approximately 135.2g with Antenna

Connection and Selection Notes

Use the FQX-215A as the transmitting unit and the FQX-R02 as the receiving unit.
Set both units to a common channel before testing the AV link.
Connect the composite video source to the transmitter video input.
Connect the receiver video output to a compatible composite-video monitor or recorder.
Use a regulated 12V DC supply and verify connector polarity before connection.
Confirm the exact channel frequency table for the ordered version.
Confirm that operation in the 1.2GHz band is permitted in the destination market.

Recommended Applications

Analog FPV video links
Remote vehicle camera systems
Wireless composite-video monitoring
Ground-based camera transmission
Custom robotics and inspection systems
Analog AV equipment integration

FAQ

Is this a transmitter only or a complete transmitter and receiver system?

It is a matched wireless AV system consisting of an FQX-215A transmitter and an FQX-R02 receiver. The transmitter handles the source-side video and audio signals, while the receiver provides the corresponding outputs.

Does “digital display” mean that the product transmits digital video?

No. The digital display shows the selected channel. The video connection is analog composite video through RCA connectors.

Why does the transmitter have 8 channels while the receiver has 12 channels?

The FQX-215A provides eight selectable transmitter channels and the FQX-R02 provides twelve receiver channels. A working link requires both units to be set to the same shared frequency.

What is the transmitter output power?

The stated transmitter output power is 1500mW.

What power supply is required?

Both units are marked for 12V DC input. Confirm the supply connector and polarity before applying power.

Can the system carry both video and audio?

Yes. The photographed connections show composite video and analog audio RCA interfaces on the transmitter and receiver.

What is the specified transmission distance?

A verified distance rating is not included in the supplied product information. Actual range depends on antennas, channel selection, installation, obstructions, interference and local RF conditions.

Are a camera and monitor included?

The camera and monitor shown in the application illustration demonstrate the connection method. The exact package contents must be confirmed before ordering.

B2B Procurement FAQ

What information should be included in an RFQ?

Specify the FQX-215A transmitter and FQX-R02 receiver set, required quantity, destination market, required accessories, power-plug requirements and requested delivery schedule. Commercial terms must be confirmed during quotation.

Should the channel frequency table be confirmed before purchase?

Yes. The supplied materials identify an eight-channel transmitter and twelve-channel receiver but do not provide every channel frequency. Request the applicable frequency table before approving the order.

Can transmitter-only or receiver-only configurations be ordered?

The supplied information presents both individual units and the complete set, but separate-unit availability must be confirmed during quotation.

What package contents should buyers verify?

Confirm the transmitter, receiver, antennas, AV cables, DC power leads and any required power adapters in the quotation. Product photographs alone should not be treated as a final packing list.

Are samples, MOQ and lead time fixed?

No verified sample policy, MOQ or lead time is included in the supplied information. These items must be confirmed during quotation.

What should be checked during incoming inspection?

Verify the FQX-215A and FQX-R02 model labels, 12V DC markings, antennas, RCA connectors, channel displays, control buttons and supplied cables. Functional testing should confirm a shared channel and stable composite video output.

Are regulatory approvals included?

No model-specific certification is established by the supplied product images. Required RF, import and market-access documentation must be confirmed for the destination country before purchase.
