SKYDROID R12 2.4GHz 12-Channel Receiver

Short Description:

SKYDROID R12 2.4GHz 12-channel receiver for T12 radio systems, with two antenna leads, SBUS and serial interfaces, and a 4.5–5.5V operating voltage.

Product Name: SKYDROID R12 2.4GHz 12-Channel Receiver
Product Type: RC Control Receiver
Frequency Range: 2.4GHz band
Channels: 12
Antenna Configuration: Two wired 2.4GHz antennas
Input Voltage: 4.5–5.5V
Output Interface: SBUS and serial RX/TX pins
Dimensions: 51 × 41 × 13 mm
Weight: 14 g
Working Current: 140 mA at 5V

Send email to us

Product Detail

FAQ

Technical Highlights

12-Channel RC Receiver

The SKYDROID R12 is a 2.4GHz, 12-channel receiver for a compatible T12 radio system. It receives control-link signals; it is not a standalone video transmitter.

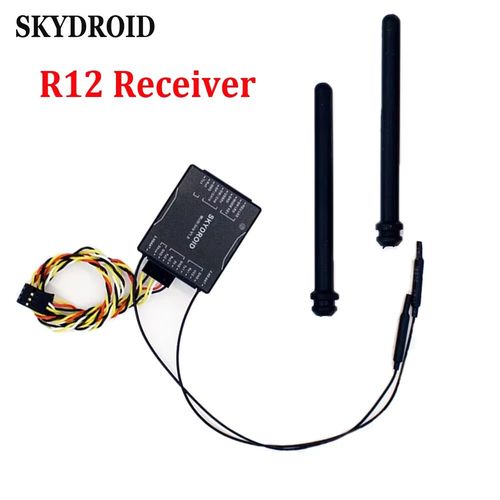

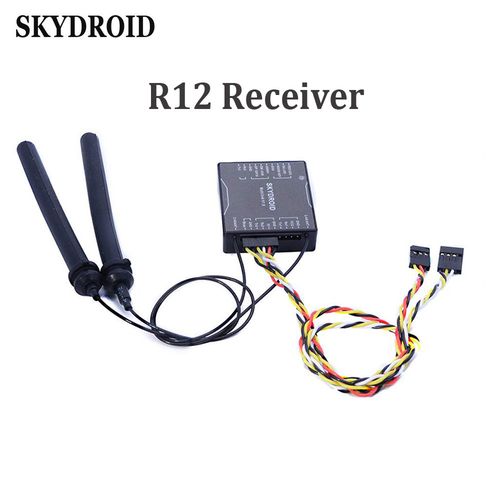

Two Wired Antennas

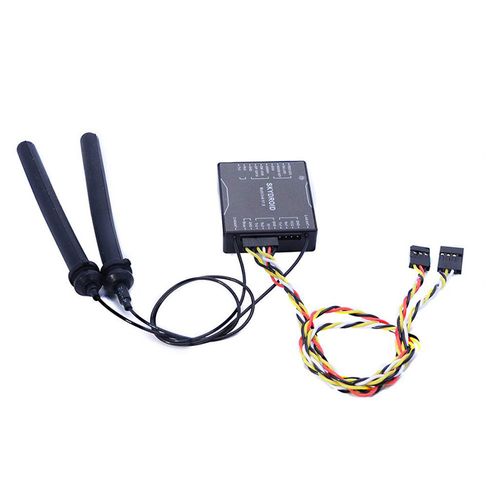

The receiver is pictured with two wired antennas. Its enclosure identifies both antenna positions as 2.4G ANT.

Control and Data Connections

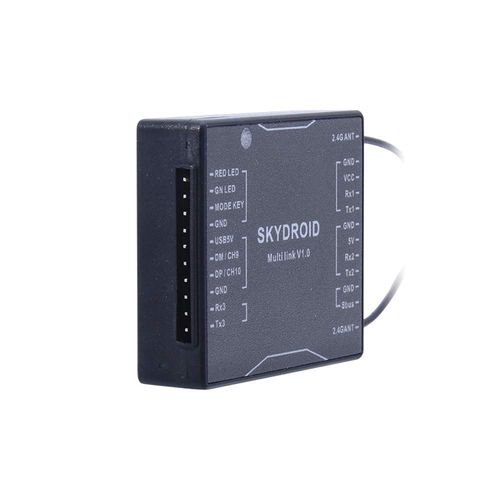

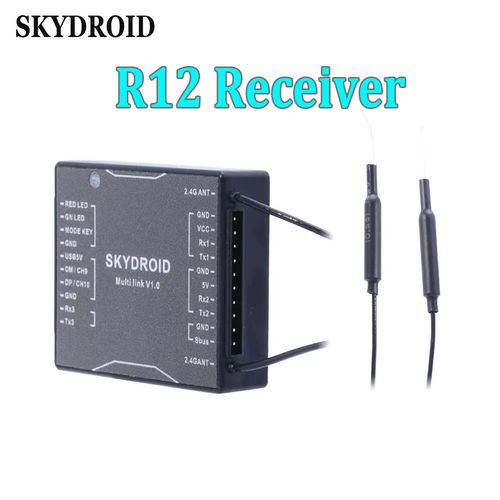

The enclosure labels identify an SBUS connection, multiple serial RX/TX pins, a camera-interface group, a USB upgrade group, indicator connections, and a mode-key connection. Wiring should follow the pin labels for the supplied hardware revision.

Receiver Specifications

Model	R12
Product Type	RC control receiver
Operating Band	2.4GHz
Channels	12
Operating Voltage	4.5–5.5V
Working Current	140 mA at 5V
Dimensions	51 × 41 × 13 mm
Weight	14 g

Connections and Integration

Antenna Connections	Two wired antennas; enclosure positions labeled 2.4G ANT
Control Output	SBUS-labeled connection
Serial Connections	RX1/TX1, RX2/TX2 and RX3/TX3 labels
Additional Labels	Camera-interface group, USB upgrade group, indicator connections and mode-key connection

Selection Guidance

Specify the SKYDROID R12 receiver when requesting this product. Confirm the exact transmitter pairing, connector harness and hardware revision before integrating it with a flight controller. The terms T12R and SG12-RX appear in the supplied sales material but are not used here as verified model aliases.

FAQ

Is the R12 a 5.8GHz video transmitter?

No. The R12 is a 2.4GHz RC control receiver. The supplied enclosure shows 2.4G ANT labels and receiver control/data connections.

How many channels does the receiver support?

The supplied receiver specification table lists 12 channels.

What power supply does the R12 require?

The specified operating voltage is 4.5–5.5V, with a listed working current of 140 mA at 5V.

Which connections are identified on the enclosure?

The enclosure labels include SBUS, RX/TX serial pins, a camera-interface group, a USB upgrade group, indicator connections and a mode-key connection.

B2B Procurement FAQ

Which model should be specified in a purchase inquiry?

Specify SKYDROID R12 and request confirmation of the hardware marking and connector pinout. T12R and SG12-RX appear in the supplied sales material but have not been verified as interchangeable model names.

Is a T12 transmitter included with the receiver?

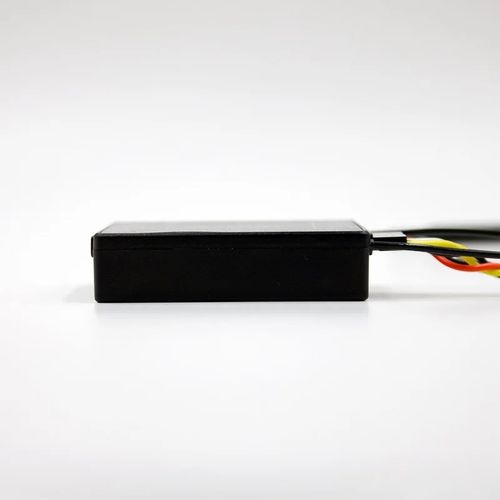

The product photographs show a receiver and antenna assembly, not a transmitter. Confirm the exact supplied items during quotation.

Can the receiver harness and transmitter pairing be confirmed before ordering?

Yes. Provide the intended transmitter and flight-controller connection requirements for confirmation during quotation; compatibility with an unspecified configuration should not be assumed.
