SKYZONE TX2501 CNC 56CH 2.5W FPV Video Transmitter

Short Description:

SKYZONE TX2501 56-channel analog FPV video transmitter with selectable 25/800/1600/2500mW settings, IRC or button control, and fan-cooled CNC housing. X-band output varies by frequency.

Product Name: SKYZONE TX2501 CNC 56CH 2.5W FPV Video Transmitter
Product Type: Analog FPV Video Transmitter
Frequency Range: 4990–5945 MHz
Channels: 56 preset channels; 7 bands × 8 channels
Output Power: Selectable 25 / 800 / 1600 / 2500 mW settings; actual X-band output varies by frequency
Input Voltage: 9–26V
Control Protocol: IRC control or onboard button mode
Mounting Hole: 30.5 × 30.5 mm, M3
Antenna Connector: MMCX
Dimensions: 38.8 × 38.6 × 22.5 mm

Send email to us

Product Detail

FAQ

Technical Highlights

56 Preset Channels Across Seven Bands

The TX2501 provides eight preset channels in each of the A, B, E, F, R, L and X bands. The supplied channel table spans 4990–5945 MHz.

Selectable Transmit-Power Settings

The listed settings are 25, 800, 1600 and 2500 mW. RF output is frequency-dependent: the supplied X-band table lists 1W at 4990 MHz and 2.5W at 5200 MHz, so the highest setting should not be interpreted as 2.5W at every channel.

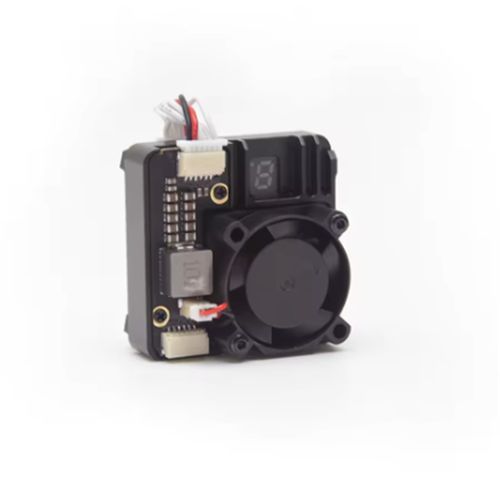

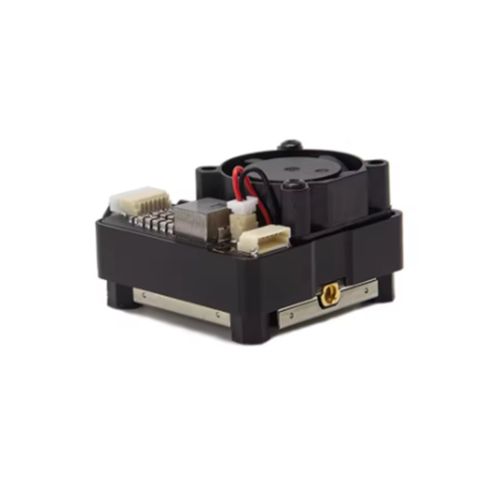

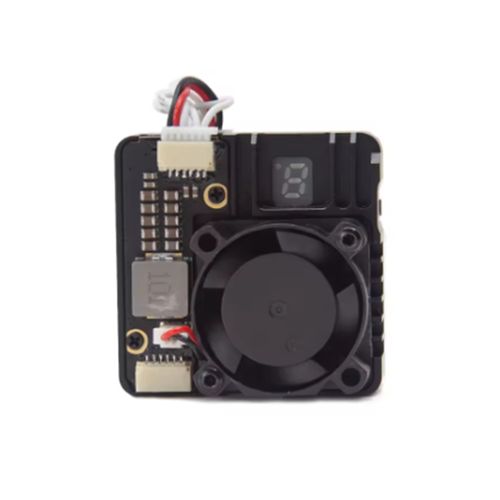

Fan-Cooled CNC Housing

A CNC housing and integrated fan provide active cooling. The onboard segment display shows configuration information, while the unit supports either button control or IRC control.

RF and Control Specifications

Product Type	Analog FPV video transmitter
Preset Channel Range	4990–5945 MHz
Preset Channels	56; seven bands with eight channels each
Bands	A, B, E, F, R, L and X
Selectable Power Settings	25 / 800 / 1600 / 2500 mW
X-Band Output Examples	1W at 4990 MHz; 2.5W at 5200 MHz, according to the supplied power table
Control	IRC control or onboard button mode
Antenna Connector	MMCX

Electrical and Mechanical Specifications

Input Voltage	9–26V, the range marked on the supplied wiring diagram
Wiring Labels	IRC, VTX, GND, 5V OUT, GND and 9–26V
Mounting Pattern	30.5 × 30.5 mm, M3
Dimensions	38.8 × 38.6 × 22.5 mm
Weight	27.5 g
Cooling	Integrated fan and CNC housing

Integration Notes

Select either button mode or IRC mode for configuration; the manufacturer states that the two modes should not be used together. Maintain adequate airflow around the fan-cooled transmitter, connect an appropriate antenna to the MMCX port, and confirm the chosen antenna and accessory set for the selected SKU.

FAQ

How many preset channels does the TX2501 provide?

It provides 56 preset channels: eight channels in each of the A, B, E, F, R, L and X bands.

Does the TX2501 output 2.5W on every channel?

No. The device has a 2500mW selectable setting, but the supplied X-band power table shows frequency-dependent output, including 1W at 4990 MHz and 2.5W at 5200 MHz.

How can the channel and power be controlled?

The transmitter supports onboard button mode or IRC control. Select one control mode for operation; the manufacturer advises disabling IRC control in Betaflight when using button mode.

What antenna connection and mounting pattern does it use?

The transmitter has an MMCX antenna port and a 30.5 × 30.5 mm M3 mounting pattern.

B2B Procurement FAQ

Which input-voltage range should be used for procurement specifications?

Specify 9–26V for this offered unit, as marked in the supplied wiring diagram. The manufacturer's product page lists 7–26V; operation below 9V should be confirmed for the exact supplied revision before it is specified.

Is an antenna included with every SKU?

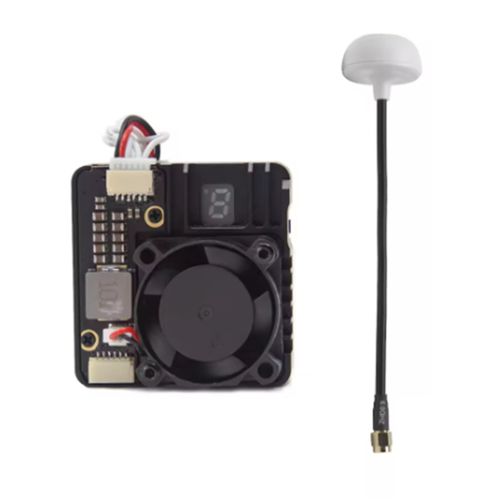

The supplied SKU images show the transmitter alone and with different antennas. Confirm the exact antenna, cable and other accessories for the selected SKU during quotation.

Can the requested frequency band and power setting be checked before ordering?

Yes. Specify the intended channel or frequency, required power setting and destination market when requesting a quotation, and confirm the offered configuration before purchase.
