SKYDROID 5.8GHz 150CH Dual-Antenna UVC OTG FPV Receiver

Short Description:

SKYDROID 5.8GHz 150CH dual-antenna UVC OTG FPV video receiver for compatible Android devices, with automatic channel scanning and a 5V USB connection.

Product Name: SKYDROID 5.8GHz 150CH Dual-Antenna UVC OTG FPV Receiver
Product Type: Analog FPV Video Receiver (VRX)
Frequency Range: 5645–5945 MHz
Channels: 150 channels (advertised)
Receiver Configuration: Dual-antenna receiver
Input Voltage: 5V via USB host
Video Interface: UVC over Micro-USB OTG connection
Antenna Connectors: 2 × RP-SMA female

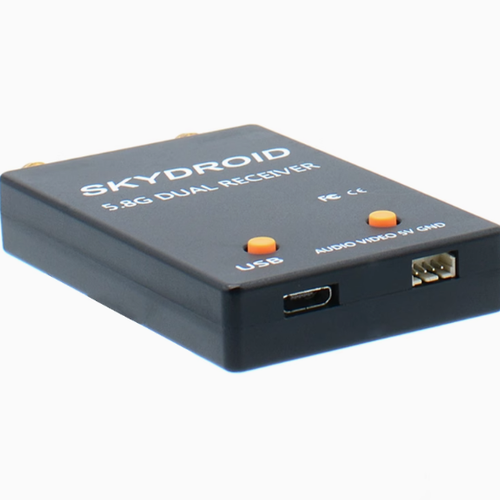

Auxiliary Connector: 4-pin port labeled AUDIO / VIDEO / 5V / GND
Color Variants: Black / White

Send email to us

Product Detail

FAQ

Technical Highlights

Dual-Antenna Analog Video Reception

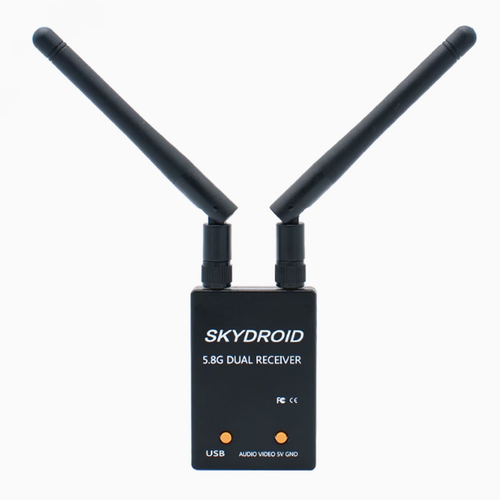

Two RP-SMA female antenna connectors distinguish this version from the single-antenna variants shown in the product materials. It receives 5.8GHz analog FPV video signals rather than transmitting video.

150-Channel Coverage

The supplied product information specifies 150 channels across 5645–5945 MHz. Two onboard buttons provide channel control, and a long press starts automatic frequency scanning.

UVC OTG Connection

The Micro-USB connection carries the receiver feed to a compatible Android device through USB OTG. Confirm the phone's OTG and UVC support before ordering for a specific handset.

RF and Electrical Specifications

Product Type	Analog FPV video receiver (VRX)
Frequency Range	5645–5945 MHz
Channel Count	150 channels (advertised)
Receiver Configuration	Dual antenna
Antenna Connectors	2 × RP-SMA female
Input Voltage	5V via USB host

Interfaces and Variants

Video Interface	UVC over Micro-USB OTG connection
Auxiliary Port	4-pin port labeled AUDIO / VIDEO / 5V / GND
Onboard Controls	Two channel-control buttons with long-press automatic scanning
Color Variants	Black and white dual-antenna versions are pictured

Selection Guidance

Select the dual-antenna SKU when ordering this product. The supplied archive also contains single-antenna SKU photographs, which should not be used to represent the dual-antenna configuration. Confirm handset compatibility, selected color, and the supplied accessory set during quotation.

FAQ

Is this product a video transmitter?

No. It is a 5.8GHz analog FPV video receiver (VRX). It is listed in the FPV VTX store category as requested, but it receives rather than transmits video.

How many antennas and channels does this version have?

The dual-antenna version has two RP-SMA female antenna connectors. The supplied product information advertises 150 channels across 5645–5945 MHz.

Will it work with every Android phone?

No universal phone compatibility is established. The intended host must support USB OTG and UVC, and compatibility should be checked for the specific handset and application.

Does it support automatic channel scanning?

Yes. The supplied product illustration states that a long press on either onboard button starts automatic frequency scanning.

B2B Procurement FAQ

How should the black and white versions be specified?

State the required color and confirm that the selected SKU is the dual-antenna version when requesting a quotation.

What accessories are included with each SKU?

The supplied images show antennas, USB cables, and a storage box, but the exact contents for the selected SKU must be confirmed during quotation.

Can dimensions and model marking be confirmed before a bulk order?

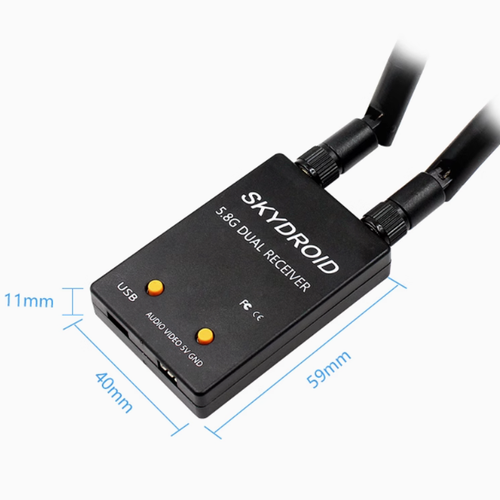

Yes. Request confirmation against the exact offered unit: the supplied images show conflicting dimensions, and the ROTG02 designation appears only in one specification image.
