AKK Ultra Long Range 3W VTX
Electrical Specifications
| Input Voltage | 8–28V DC |
|---|---|
| Output Power | 250 / 1000 / 2000 / 3000mW selectable levels |
| Maximum Output | 3W |
| Camera Power Output | Regulated 5V camera power output |
| Cooling System | Aluminum heat sink with active cooling fan |
RF and Control
| Product Type | Analog FPV video transmitter |
|---|---|
| Frequency Band | 4.9GHz / 5.8GHz |
| Channels | 80 selectable channels |
| Remote Control | SmartAudio supported |
| Antenna Connector | MMCX |
| Video Input | Analog video input |
| Audio | Built-in microphone |
| Local Controls | Left and right control buttons with LED status indicators |
Mechanical Specifications

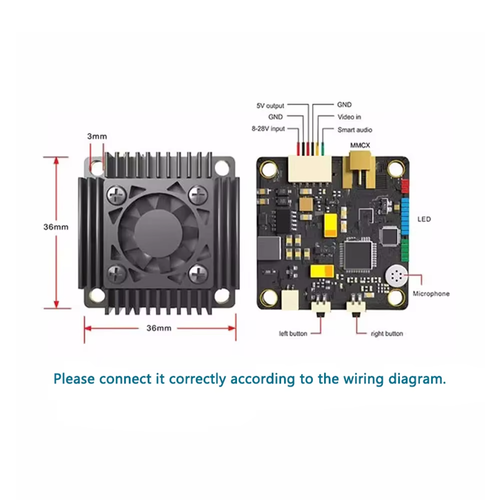

| Dimensions | 36 × 36mm |
|---|---|
| Mounting Holes | 3mm mounting holes |

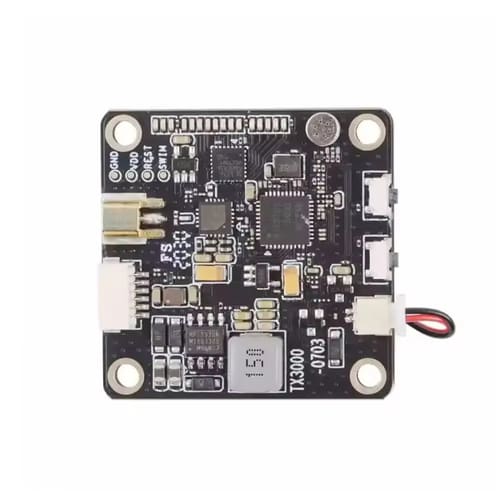

| PCB Marking | TX3000 Q703 |

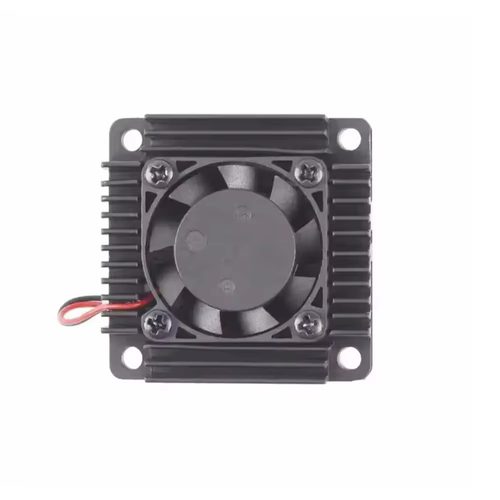

| Heat Management | Large aluminum heat sink and integrated cooling fan |
| Connection Cable | Six-wire wiring harness |
Key Features
Maximum 3W Output
Provides selectable output power up to 3000mW for demanding long-range analog FPV applications.
Dual-Band Operation
Supports both 4.9GHz and 5.8GHz frequency bands with a total of 80 selectable channels.
SmartAudio Control
Allows compatible flight controllers to manage the VTX channel and output power remotely.
Active Cooling Fan
An integrated fan supports continuous airflow during high-output-power operation.
Large Heat Sink
The aluminum heat sink improves heat dissipation and helps maintain stable transmission performance.
Built-in Microphone
Provides onboard audio capture for analog FPV systems that support transmitted audio.
Wide Voltage Input
The 8–28V DC input range supports installation in a variety of FPV aircraft power systems.
5V Camera Output
A dedicated 5V connection can supply power to a compatible analog FPV camera.
Technical Highlights
3000mW High-Power Transmission
The AKK Ultra Long Range VTX provides four selectable output levels from 250mW to 3000mW. This allows the transmission power to be configured according to the aircraft, operating environment and applicable local regulations.
4.9GHz and 5.8GHz Dual-Band Coverage
Support for 4.9GHz and 5.8GHz operation provides 80 selectable channels, offering additional frequency options for compatible analog FPV receiving equipment.
Active Thermal Management
A large aluminum heat sink works together with the integrated cooling fan to remove heat generated during high-power operation and improve operating stability.
SmartAudio Flight Controller Integration
The SmartAudio connection enables compatible flight controllers to adjust the frequency channel and transmission power through supported configuration software or an on-screen display.
Wide 8–28V Power Input
The wide DC input range simplifies integration with different FPV aircraft power systems, while the dedicated 5V output provides a convenient power connection for a compatible camera.
Integrated Audio Transmission
The onboard microphone captures ambient audio without requiring a separate external microphone module, reducing additional wiring inside the aircraft.
Applications
Long-Range FPV Drones
Suitable for custom analog FPV multirotors requiring selectable high transmission power.
FPV Fixed-Wing Aircraft
Can be integrated into fixed-wing aircraft where extended video transmission coverage is required.
Custom UAV Projects
Supports custom UAV and experimental FPV platforms using compatible analog video equipment.
VTX Replacement and Upgrade
Suitable for replacing or upgrading compatible analog transmitters that use an MMCX antenna connection.
Compatibility and Integration
Analog FPV Cameras
Compatible with analog FPV cameras that provide a standard composite video signal.
SmartAudio Flight Controllers
Works with compatible flight controllers that provide a properly configured SmartAudio connection.
Analog Video Receivers
Requires a receiver and antenna system that supports the selected 4.9GHz or 5.8GHz channel.

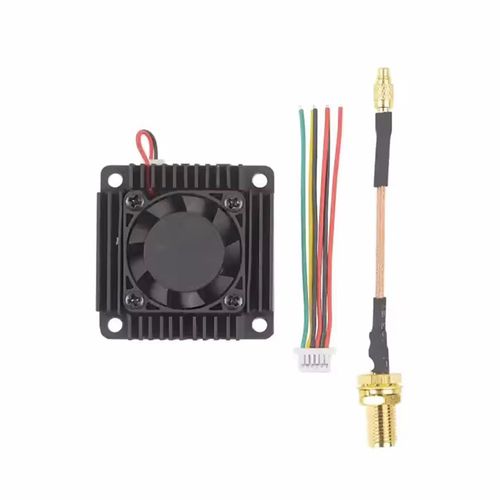

Package Contents
AKK Ultra Long Range 3W VTX ×1
Six-wire Connection Cable ×1

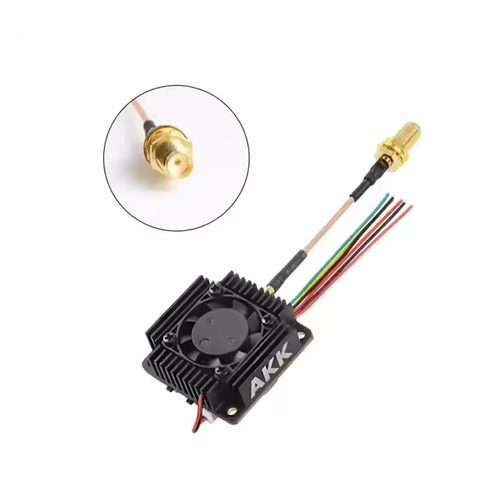

MMCX-to-SMA Antenna Pigtail ×1
FAQ
What is the AKK Ultra Long Range 3W VTX?
It is an analog FPV video transmitter supporting 4.9GHz and 5.8GHz operation, 80 selectable channels, SmartAudio and output power up to 3000mW.
Which frequency bands and channels does it support?
The VTX supports 4.9GHz and 5.8GHz frequency bands with a total of 80 selectable channels. The receiving equipment must support the selected frequency and channel.
What output power levels are available?
The available selectable output levels are 250mW, 1000mW, 2000mW and 3000mW.
What input voltage does the VTX support?
The supported input voltage is 8–28V DC. Always verify the wiring polarity and system voltage before applying power.
Does the VTX support SmartAudio?
Yes. SmartAudio allows a compatible flight controller to control the VTX channel and output power when the connection and firmware settings are configured correctly.
Why does the VTX include a cooling fan?
High-power video transmitters generate significant heat. The integrated fan and aluminum heat sink improve airflow and heat dissipation during operation.
Does the VTX have a built-in microphone?
Yes. The integrated microphone can provide audio transmission when used with compatible analog FPV receiving equipment.
What are the dimensions of the VTX?
The board measures approximately 36 × 36mm and uses 3mm mounting holes.
Can the VTX achieve a 20km transmission distance?
The product is designed for ultra-long-range FPV applications, but actual range depends on antennas, receiver sensitivity, installation, terrain, interference, line of sight and permitted transmission power. A specific distance cannot be guaranteed in every operating environment.
Must an antenna be connected before powering the VTX?
Yes. Always connect a compatible antenna before applying power. Operating a high-power VTX without a suitable antenna can damage the transmitter.
B2B Procurement FAQ
Is wholesale purchasing available?
Yes. Wholesale purchasing is available for FPV distributors, retailers, system integrators and professional UAV project customers.
Can I order a sample before placing a bulk order?
Yes. Sample orders may be arranged for product testing, frequency verification and system integration before volume purchasing.
Are OEM or private-label services available?
OEM and private-label requirements can be discussed according to the order quantity, packaging requirements and requested customization.
What information is required for a quotation?
Please provide the required quantity, destination country, delivery address, packaging requirements and any OEM or branding requests.
Can the channel and power configuration be confirmed before ordering?
Yes. Buyers should confirm the required frequency configuration, output power and regional radio regulations before placing an order.
What is included in the standard package?
The standard package includes one VTX, one six-wire connection cable and one MMCX-to-SMA antenna pigtail.
Can technical integration information be provided?
Available wiring, power input, video input, SmartAudio and antenna connection information can be provided for system evaluation and integration.
