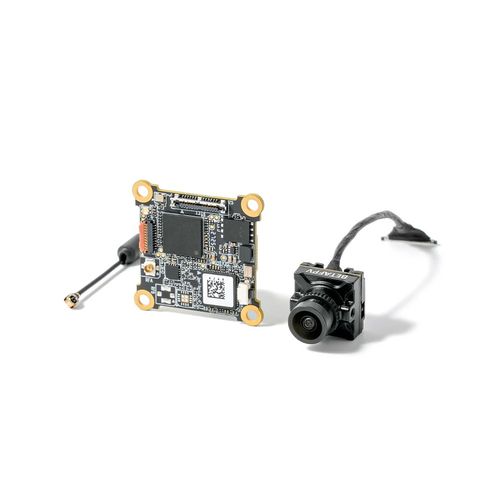

BETAFPV P1 Air Unit HD VTX

Short Description:

BETAFPV P1 Air Unit HD VTX delivers 1080p 60fps ArtLynk digital video, approximately 60ms latency, Canvas Mode OSD, and over 5km open-area range at 200mW.

Product Name: BETAFPV P1 Air Unit HD VTX
Product Type: Digital HD FPV VTX System
Frequency Range: 5.1–5.9 GHz
Channels: 3 Channels
Output Power: EIRP <200mW (FCC/SRRC); <25mW (CE)
Input Voltage: 5V
Control Protocol: MSP
Mounting Hole: 25.5 × 25.5 mm, Ø2.5 mm
Digital Video System: ArtLynk, 1080p at 60fps, Approx. 60ms Latency
Video Transmission Range: Over 5 km in Open Areas at 200mW

Send email to us

Product Detail

FAQ

Technical Highlights

1080p 60fps Digital HD Video

The P1 Air Unit delivers a 1080p live view at 60 frames per second through the ArtLynk digital video system. Its approximately 60ms glass-to-glass latency supports responsive FPV operation while retaining high-definition image detail.

Over 5km Open-Area Transmission

BETAFPV reports a transmission distance of more than 5km during open-area testing at 200mW. Actual range depends on the receiving device, antennas, firmware, installation, radio interference, terrain, and local output-power restrictions.

Ultralight 6.5g Camera and Air Unit

The air unit and camera weigh approximately 6.5g without the antenna. The air-unit board alone weighs approximately 3.61g, making the system suitable for compact FPV aircraft where installed weight is important.

Canvas Mode OSD and MSP Communication

A standard SH1.0 6-pin flight-controller port provides MSP communication and Canvas Mode OSD support. The system is designed for use with supported Betaflight and BETAFPV flight controllers.

Wide-Angle HD Camera

The supplied camera uses a 1/2.9-inch CMOS image sensor and a 170-degree field of view. Its compact 14 × 14 × 17mm housing is designed for space-limited FPV installations.

Video Transmission Specifications

Video System	ArtLynk digital HD video system
Operating Frequency	5.1–5.9 GHz
Channel Count	3 channels
Channel Bandwidth	10 MHz
Output Power	EIRP below 200mW for FCC/SRRC regions; below 25mW for CE regions
Live View Quality	1080p at 60fps
Maximum Video Bitrate	20 Mbps
Video Transmission Latency	Approximately 60ms
Tested Transmission Range	Over 5km in an open area at 200mW; actual range may vary
OSD	Canvas Mode
Antenna Configuration	Single antenna

Camera Specifications

Image Sensor	1/2.9-inch CMOS
Field of View	170°
Video Format	MP4

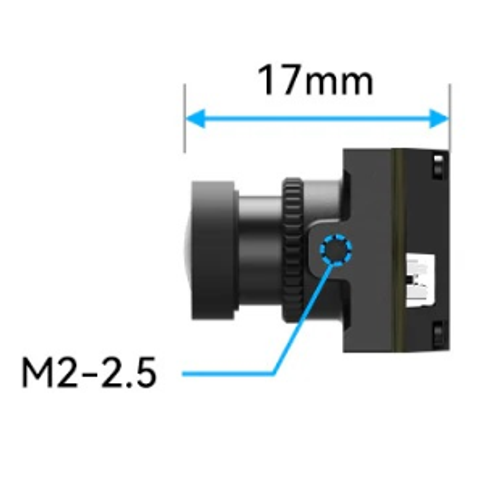

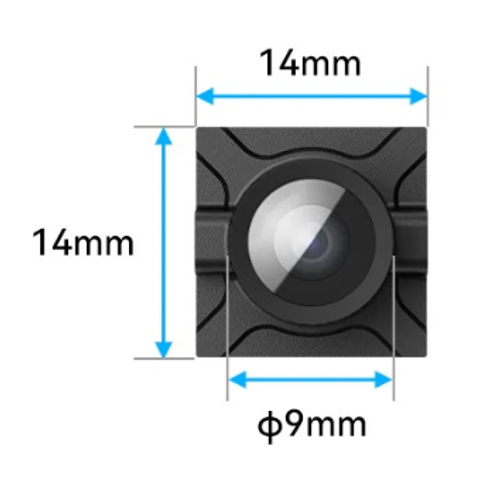

Camera Dimensions	14 × 14 × 17 mm
Camera Mounting Width	14 mm
Camera Mounting Thread	M2
Camera Cable Length	50 mm

Electrical and Mechanical Specifications

Input Voltage	5V

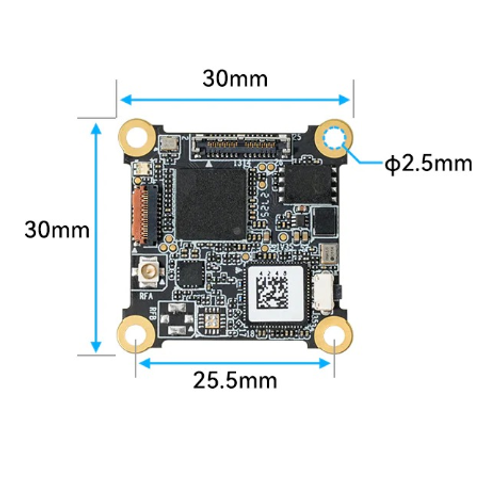

Air Unit Dimensions	30 × 30 × 5.5 mm
Mounting Pattern	25.5 × 25.5 mm
Mounting Hole Diameter	2.5 mm
Air Unit Weight	Approximately 3.61g, camera excluded

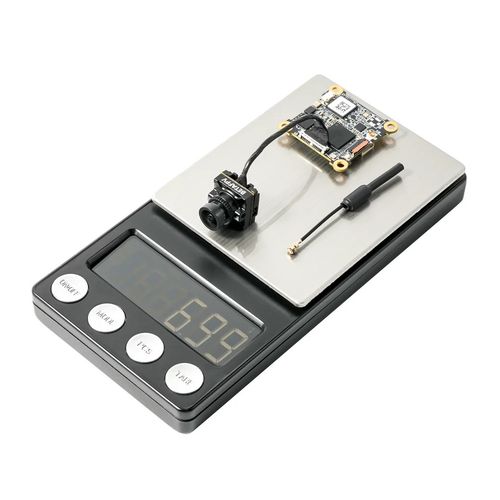

Combined Weight	Approximately 6.5g with camera, antenna excluded
Antenna Weight	Approximately 0.44g
Antenna Length	50 mm overall, with a 24mm radiating section

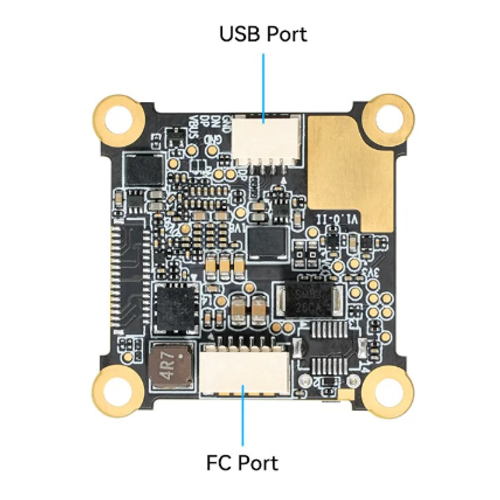

FC Port	SH1.0 6-pin
USB Port	SH1.0 4-pin
Operating Temperature	-10°C to 40°C

Interfaces and Compatibility

The 6-pin flight-controller connection supports MSP communication and Canvas Mode OSD.

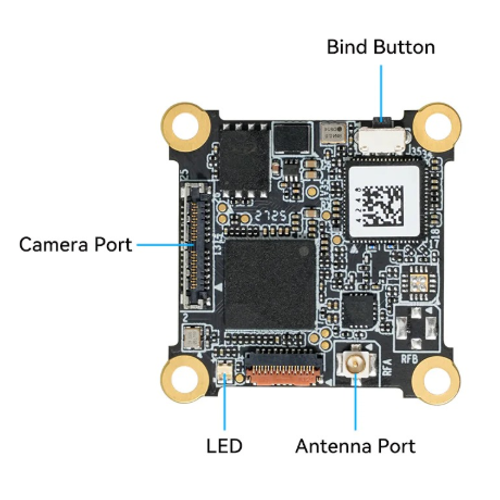

The air unit includes dedicated camera, antenna, flight-controller, and USB connections.
A bind button and status LED are provided on the air-unit board.
A compatible ArtLynk receiver or goggles are required to receive the digital video signal.
Supported devices include BETAFPV VR04 HD goggles and other compatible ArtLynk equipment with matching firmware.
Air-unit and receiving-device firmware versions must be checked before binding or updating.

Package Contents

1 × P1 Air Unit HD VTX
1 × 6-Pin Cable
4 × Shock-Absorbing Balls
2 × M2 × 4 Screws
4 × M2 × 6 Screws
1 × User Manual

Installation Notes

Supply the air unit with a regulated 5V input.
Connect and secure the antenna before powering the digital video transmitter.
Use the supplied 6-pin connection only after confirming the flight-controller pin sequence.
Maintain airflow around the exposed air-unit board and avoid contact with conductive frame components.
Confirm that the transmitter and receiving device use compatible ArtLynk firmware versions.
Use output power and operating frequencies permitted by local radio regulations.

FAQ

What video quality does the P1 Air Unit provide?

It provides a 1080p live view at 60fps with a maximum video bitrate of 20Mbps.

What video protocol does this air unit use?

The P1 Air Unit uses the ArtLynk digital video protocol. It requires a compatible ArtLynk receiver or goggles with matching firmware.

What is the transmission latency?

The specified glass-to-glass video latency is approximately 60ms.

Can the P1 Air Unit transmit video over 5km?

BETAFPV reports a range of more than 5km during open-area testing at 200mW. Actual range depends on antennas, receiver hardware, firmware, interference, installation, terrain, and regional power limits.

What is the regional output-power specification?

The rated EIRP is below 200mW for FCC and SRRC configurations and below 25mW for CE configurations.

Does it support Betaflight OSD?

Yes. The P1 Air Unit supports Canvas Mode OSD through MSP communication when connected to a supported Betaflight or BETAFPV flight controller.

How much does the complete video system weigh?

The air unit and camera weigh approximately 6.5g without the antenna. The air-unit board alone weighs approximately 3.61g, and the antenna weighs approximately 0.44g.

What input voltage is required?

The P1 Air Unit requires a regulated 5V power input.

B2B Procurement FAQ

Which regional version should be specified when ordering?

Please specify the destination market and required regional output-power configuration. The FCC/SRRC and CE versions have different EIRP limits.

What compatibility information should be confirmed before quotation?

Please confirm the intended ArtLynk receiver or goggles, flight-controller model, firmware version, mounting space, and required regional transmitter configuration.

What is included with the standard product?

The documented package contains one P1 Air Unit HD VTX, one 6-pin cable, four shock-absorbing balls, two M2 × 4 screws, four M2 × 6 screws, and one user manual. Package revision should be reconfirmed during quotation.

What are the MOQ and lead time?

MOQ, stock status, production availability, and lead time must be confirmed during quotation.

Can compliance documents be provided?

Available compliance documents and test reports must be confirmed for the exact regional version and destination market during quotation.
