SKYDROID 5.8G 150CH UVC OTG FPV Receiver

Short Description:

SKYDROID 5.8G 150CH UVC OTG receiver for Android FPV viewing, with single or dual antenna options, USB video, audio support, and 5V operation.

Product Name: SKYDROID 5.8G 150CH UVC OTG FPV Receiver
Product Type: 5.8GHz Analog FPV Video Receiver
Frequency Range: 5.8GHz Analog FPV Band
Channels: 150CH
Video Output: UVC Video via USB/OTG; Audio/Video Interface Available
Input Voltage: DC 5V via USB/OTG or 5V Interface
Control Protocol: USB Video Class (UVC) with USB OTG
Antenna Configuration: Single or Dual Detachable Antenna Options
Mobile Device Compatibility: Android Phones and Tablets with UVC and USB OTG Support
Audio Support: Analog Audio Downlink Support with Compatible Transmitters and Applications

Send email to us

Product Detail

FAQ

Technical Highlights

150-Channel 5.8GHz FPV Reception

The SKYDROID receiver is designed to receive 5.8GHz analog FPV video across 150 selectable channels, providing broad frequency selection for compatible airborne video transmitters.

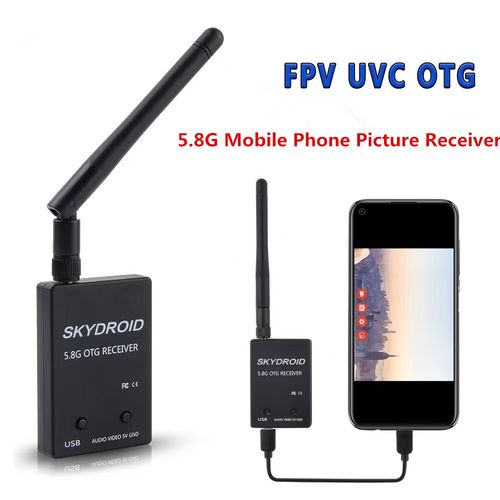

UVC Video for Android Devices

USB Video Class support allows live FPV video to be displayed on compatible Android phones and tablets through a USB OTG connection. The mobile device must support both UVC video input and USB OTG operation.

Single and Dual Antenna Options

The product is available in a compact single-antenna version and a dual-antenna version. The required antenna configuration must be identified when ordering because the two versions use different receiver housings and antenna quantities.

USB and Analog Audio/Video Interfaces

The USB interface carries UVC video to a compatible host device. A separate interface marked AUDIO, VIDEO, 5V and GND provides additional analog audio/video and power connections for suitable external equipment.

Front-Panel Channel Controls

Two front-panel buttons provide access to frequency scanning and adjustment functions. The receiver can search for an active analog FPV video signal after the transmitter has been powered.

Technical Specifications

Product Name	SKYDROID 5.8G 150CH UVC OTG FPV Receiver
Product Type	5.8GHz Analog FPV Video Receiver
Frequency Range	5.8GHz Analog FPV Band
Channels	150CH
Video Output	UVC Video via USB/OTG; Audio/Video Interface Available
Input Voltage	DC 5V via USB/OTG or 5V Interface
Control Protocol	USB Video Class (UVC) with USB OTG
Antenna Configuration	Single or Dual Detachable Antenna Options
Mobile Device Compatibility	Android Phones and Tablets with UVC and USB OTG Support
Audio Support	Analog Audio Downlink Support with Compatible Transmitters and Applications
Housing Colors Shown	Black and White
Front Controls	Two Channel Search and Adjustment Buttons

Receiver Options

Single-Antenna Version

The single-antenna receiver is marked “5.8G OTG RECEIVER” and uses one detachable antenna. It is suitable for applications that prioritize a compact and simple mobile FPV receiving setup.

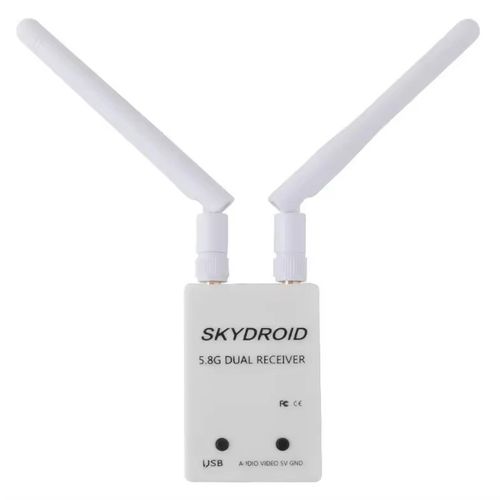

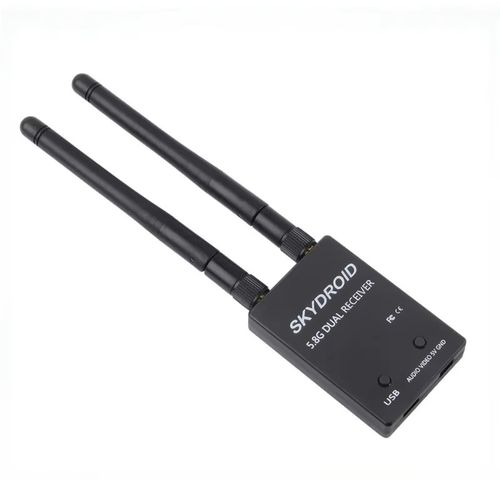

Dual-Antenna Version

The dual-antenna receiver is marked “5.8G DUAL RECEIVER” and provides two detachable antenna connections. The supplied material shows this version with two antennas installed.

Color and Package Selection

Black and white housings are both shown in the supplied material. Receiver version, housing color, cable configuration and packaging must be confirmed on the quotation or purchase order.

Interfaces and Controls

USB Interface	Connects the receiver to a compatible Android host using a suitable USB OTG data cable.
AUDIO	Analog audio connection for compatible FPV systems that transmit an audio signal.
VIDEO	Analog composite video connection for suitable external display or recording equipment.
5V	DC 5V power connection for an appropriate external installation.
GND	Common ground connection for the analog audio/video and power interface.
Control Buttons	Used for channel search and frequency adjustment.

Compatibility Requirements

The airborne video transmitter must produce a compatible 5.8GHz analog FPV signal.
The Android phone or tablet must support USB OTG host operation.
The Android device and application must support USB Video Class input.
A data-capable OTG cable with the correct connector for the mobile device is required.
Audio reception requires the video transmitter to provide a compatible audio subcarrier and the application or display path to support audio.
Compatibility with iOS devices is not established by the supplied material.

Basic Operating Procedure

Install the detachable antenna or antennas before operating the receiver.
Install a compatible UVC FPV viewing application on the Android device.
Enable USB OTG in the Android device settings when manual activation is required.
Connect the receiver to the Android device using a suitable data-capable OTG cable.
Power the 5.8GHz analog video transmitter and camera.
Use the receiver controls to scan for or adjust to the active video frequency.
Confirm stable video reception before using the system for navigation or recording.

Package Configuration

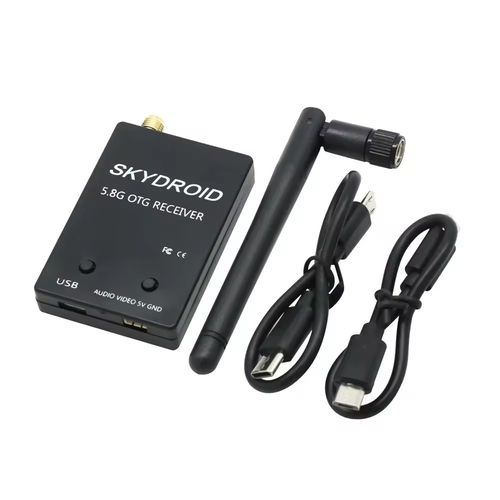

Single-Antenna Package Shown

The supplied images show one single-antenna receiver, one detachable antenna and two USB/OTG connection cables. Connector types should be confirmed for the intended Android device.

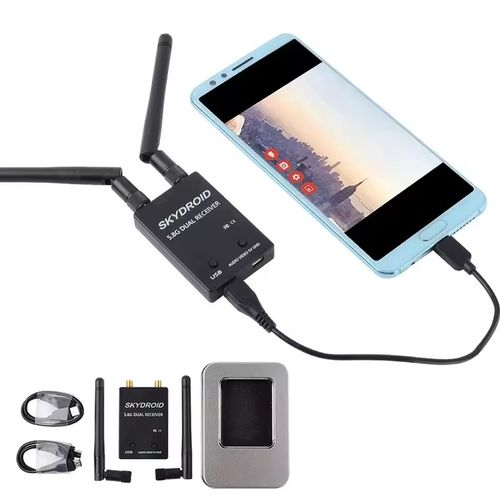

Dual-Antenna Package Shown

The supplied images show one dual-antenna receiver, two detachable antennas, USB/OTG connection cables and a metal storage package. Final package contents must be confirmed during quotation.

Important Product Notes

This product is a video receiver and does not replace a 5.8GHz airborne video transmitter.
“FUAV” appears in the archive description, while the receiver housing is branded SKYDROID.
The single-antenna and dual-antenna versions are separate selectable configurations.
The supplied material does not confirm exact frequency endpoints, display resolution, sensitivity, latency, dimensions, weight or reception distance.
Application compatibility may vary with the Android version, USB implementation and mobile-device settings.
Never operate the receiver without the required antenna or antennas securely connected.

FAQ

Is this product a VTX?

No. It is a 5.8GHz analog FPV video receiver. It receives video from a separate airborne VTX and displays the feed on a compatible Android device or external analog display.

How many channels does the receiver support?

The receiver is identified as a 150-channel model for the 5.8GHz analog FPV band.

What is the difference between the single and dual antenna versions?

The single version has one detachable antenna connection and is marked “5.8G OTG RECEIVER.” The dual version has two detachable antenna connections and is marked “5.8G DUAL RECEIVER.”

Which phones can use this receiver?

The phone or tablet must run Android and support both USB OTG host operation and USB Video Class input. Compatibility should be checked against the device, Android version and intended FPV application.

Does the receiver support audio?

The receiver provides an audio connection and is described as supporting audio downlink. Audio requires a compatible transmitter that sends audio and an application or display path capable of reproducing it.

How is the receiver powered?

The receiver operates from DC 5V. It can receive power through the USB/OTG connection or through an appropriate 5V external interface configuration.

Can it be used with an iPhone or iPad?

iOS compatibility is not established by the supplied product material. This page should advertise the receiver for compatible Android devices unless separate iOS compatibility documentation is provided.

B2B Procurement FAQ

Can single and dual antenna receivers be ordered under one product listing?

Yes, they may be presented as variants on one product page. Each quotation and purchase order should clearly identify the required antenna version and quantity.

Which brand should appear on the product listing?

The physical receiver housing is marked SKYDROID. “FUAV” appears in the archive title but should not replace the hardware brand unless separate manufacturer documentation establishes a different branding arrangement.

Are black and white housings both available?

Both colors appear in the supplied material, but current color availability and whether color selection is possible must be confirmed during quotation.

Which cables are included?

The images show two USB/OTG cables with the receiver packages. Required connector combinations and final cable quantities must be confirmed for the selected variant before ordering.

What should be verified during incoming inspection?

Recommended checks include housing and brand markings, correct antenna quantity, connector condition, 5V power-up, USB device detection, UVC video output, channel scanning, button operation and analog audio/video interface continuity.

Can mobile-device compatibility be guaranteed for every Android model?

No universal compatibility claim should be made. Buyers should validate the intended Android hardware, operating-system version, OTG support, UVC support and application before approving a bulk order.

Can customized packaging or branding be supplied?

Customization availability, trademark authorization, artwork, packaging format, minimum quantities and any additional cost must be confirmed during quotation.
